Canon XTi vs Nikon D5300

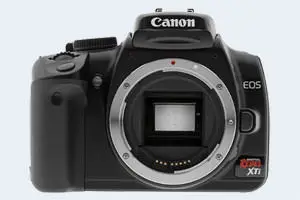

The Canon EOS Rebel XTi (called Canon 400D in some regions) and the Nikon D5300 are two digital cameras that were revealed to the public, respectively, in August 2006 and October 2013. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XTi and the Nikon D5300? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The physical size and weight of the Canon XTi and the Nikon D5300 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The D5300 can be obtained in three different colors (black, grey, red), while the XTi is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5300 is notably larger (15 percent) than the Canon XTi. However, the D5300 is markedly lighter (14 percent) than the XTi. In this context, it is worth noting that neither the XTi nor the D5300 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XTi) and the Nikon Lens Catalog (D5300).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799||ebay.com|
|2.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799||ebay.com|
|3.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|5.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|6.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449||ebay.com|
|7.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|8.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|9.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799||ebay.com|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299||ebay.com|
|11.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899||ebay.com|
|12.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899||ebay.com|
|13.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|14.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|15.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499||ebay.com|
|16.||Nikon D3200||125 mm||96 mm||77 mm||505 g||540||n||Apr 2012||599||ebay.com|
|17.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D5300 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XTi) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 24MP, the D5300 offers a higher resolution than the XTi (10.1MP), but the D5300 has smaller individual pixels (pixel pitch of 3.91μm versus 5.71μm for the XTi). Yet, the D5300 is a much more recent model (by 7 years and 1 month) than the XTi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D5300 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5300 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5300 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon XTi are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS Rebel XTi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Nikon D5300 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 100-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D5300 offers substantially better image quality than the XTi (overall score 21 points higher). The advantage is based on 1.9 bits higher color depth, 2.9 EV in additional dynamic range, and 1 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
Many modern cameras are not only capable of taking still images, but can also record movies. The D5300 indeed provides for movie recording, while the XTi does not. The highest resolution format that the D5300 can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. The XTi and the D5300 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the D5300 has a higher magnification than the one of the XTi (0.57x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon XTi, the Nikon D5300, and comparable cameras.
|1.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|2.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0/s||Y||n|
|3.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|4.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|7.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|8.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|9.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5/s||Y||n|
|10.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5/s||Y||n|
|11.||Canon XT||optical||n||1.8 / 115||fixed||n||1/4000s||3.0/s||Y||n|
|12.||Canon Rebel||optical||n||1.8 / 118||fixed||n||1/4000s||2.5/s||Y||n|
|13.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|14.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|15.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|16.||Nikon D3200||optical||n||3.0 / 921||fixed||n||1/4000s||4.0/s||Y||n|
|17.||Nikon D5200||optical||n||3.0 / 921||swivel||n||1/4000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The Nikon D5300 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XTi writes its imaging data to Compact Flash cards, while the D5300 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XTi and Nikon D5300 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|3.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|4.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|6.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|7.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|8.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|10.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Canon XT||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon Rebel||Y||- / -||-||-||-||1.1||-||-||-|
|13.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|14.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|15.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|16.||Nikon D3200||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|17.||Nikon D5200||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
It is notable that the D5300 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XTi does not provide wifi capability.
Travel and landscape photographers will find it useful that the D5300 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the XTi and the D5300 have been discontinued, but can regularly be found used on ebay. The XTi was replaced by the Canon Xsi, while the D5300 was followed by the Nikon D5500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what conclusions can be drawn? Which of the two cameras – the Canon XTi or the Nikon D5300 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS Rebel XTi:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (127x84mm vs 125x98mm) and thus needs less room in the bag.
- More heavily discounted: Has been available for much longer (launched in August 2006).
Arguments in favor of the Nikon D5300:
- More detail: Has more megapixels (24 vs 10.1MP), which boosts linear resolution by 54%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (21 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.9 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.9 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.57x vs 0.49x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Less heavy: Has a lower weight (by 76g or 14 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (600 versus 370) out of a single battery charge.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Reflects 7 years and 1 month of technical progress since the XTi launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D5300 is the clear winner of the contest (19 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XTi and the Nikon D5300 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the XTi or the D5300. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799||ebay.com|
|2.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799||ebay.com|
|3.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|4.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|5.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|6.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449||ebay.com|
|7.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|8.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|9.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799||ebay.com|
|10.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299||ebay.com|
|11.||Canon XT||..||80/100||..||+ +||o||..||Feb 2005||899||ebay.com|
|12.||Canon Rebel||..||..||..||+ +||..||..||Aug 2003||899||ebay.com|
|13.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|14.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|15.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499||ebay.com|
|16.||Nikon D3200||5/5||+ +||..||73/100||4.5/5||4.5/5||Apr 2012||599||ebay.com|
|17.||Nikon D5200||4/5||+ +||..||79/100||4.5/5||4.5/5||Nov 2012||749||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon SX420 vs Canon XTi
- Canon SX720 vs Canon XTi
- Canon T6i vs Canon XTi
- Canon XTi vs Fujifilm GFX 50S
- Canon XTi vs Nikon D750
- Canon XTi vs Sony NEX-F3
- Fujifilm X20 vs Nikon D5300
- Fujifilm XP120 vs Nikon D5300
- Nikon D5300 vs Nikon D780
- Nikon D5300 vs Panasonic GF6
- Nikon D5300 vs Sony HX95
- Nikon D5300 vs Sony RX10 II
Specifications: Canon XTi vs Nikon D5300
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XTi||Nikon D5300|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||August 2006||October 2013|
|Launch Price||USD 799||USD 799|
|Sensor Specs||Canon XTi||Nikon D5300|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.2 x 14.8 mm||23.5 x 15.6 mm|
|Sensor Area||328.56 mm2||366.6 mm2|
|Sensor Diagonal||26.7 mm||28.2 mm|
|Sensor Resolution||10.1 Megapixels||24 Megapixels|
|Image Resolution||3888 x 2592 pixels||6000 x 4000 pixels|
|Pixel Pitch||5.71 μm||3.91 μm|
|Pixel Density||3.07 MP/cm2||6.55 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||100 - 12,800 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC II||EXPEED 4|
|DXO Sensor Quality (score)||62||83|
|DXO Color Depth (bits)||22.1||24.0|
|DXO Dynamic Range (EV)||11.0||13.9|
|DXO Low Light (ISO)||664||1338|
|Screen Specs||Canon XTi||Nikon D5300|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.2inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon XTi||Nikon D5300|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||50 000 actuations||100 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XTi||Nikon D5300|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon XTi||Nikon D5300|
|Battery Life (CIPA)||370 shots per charge||600 shots per charge|
127 x 84 x 65 mm
(5.0 x 3.3 x 2.6 in)
125 x 98 x 76 mm
(4.9 x 3.9 x 3.0 in)
|Camera Weight||556 g (19.6 oz)||480 g (16.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
