Canon XSi vs Sony A77

The Canon EOS Rebel XSi (called Canon 450D in some regions) and the Sony Alpha SLT-A77 are two digital cameras that were announced, respectively, in January 2008 and August 2011. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 12.2 megapixels, whereas the Sony provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XSi		Sony A77
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Sony A mount lenses
12.2 MP – APS-C sensor		24 MP – APS-C sensor
no Video		1080/60p Video
ISO 100-1,600		ISO 100-16,000 (50 - 25,600)
Optical viewfinder		Electronic viewfinder (2359k dots)
3.0" LCD – 230k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fully flexible screen (no touchscreen)
3.5 shutter flaps per second		12 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
500 shots per battery charge		470 shots per battery charge
129 x 98 x 62 mm, 524 g		143 x 104 x 81 mm, 732 g

Check XSi offers at
ebay.com
Check A77 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XSi and the Sony Alpha SLT-A77? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon XSi and the Sony A77 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A77 is notably larger (18 percent) than the Canon XSi. Moreover, the A77 is substantially heavier (40 percent) than the XSi. It is noteworthy in this context that the A77 is splash and dust-proof, while the XSi does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the XSi gets 500 shots out of its Canon LP-E5 battery, while the A77 can take 470 images on a single charge of its Sony NP-FM500H power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
2.		Sony A77	143 mm	104 mm	81 mm	732 g	470	Y	Aug 2011	1,399	ebay.com
3.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
4.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
5.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
6.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
7.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
8.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
9.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
10.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
11.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
12.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
13.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	1,299	ebay.com
14.		Sony A6500	120 mm	67 mm	53 mm	453 g	350	Y	Oct 2016	1,399	ebay.com
15.		Sony A7 II	127 mm	96 mm	60 mm	599 g	350	Y	Nov 2014	1,999	ebay.com
16.		Sony A77 II	143 mm	104 mm	81 mm	647 g	480	Y	May 2014	1,199	ebay.com
17.		Sony A99	147 mm	111 mm	78 mm	812 g	500	Y	Sep 2012	2,799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XSi was launched at a markedly lower price (by 43 percent) than the A77, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the A77 is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (XSi) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

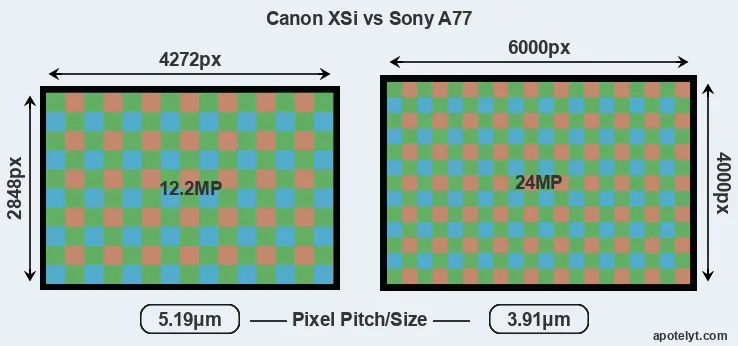

With 24MP, the A77 offers a higher resolution than the XSi (12.2MP), but the A77 has smaller individual pixels (pixel pitch of 3.91μm versus 5.19μm for the XSi). Yet, the A77 is a much more recent model (by 3 years and 7 months) than the XSi, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony A77 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A77 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon XSi are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.

The Canon EOS Rebel XSi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Sony Alpha SLT-A77 are ISO 100 to ISO 16000, with the possibility to increase the ISO range to 50-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the A77 offers substantially better image quality than the XSi (overall score 17 points higher). The advantage is based on 2.1 bits higher color depth, 2.4 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
2.		Sony A77	APS-C	24.0	6000	4000	1080/60p	24.0	13.2	801	78
3.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
4.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
5.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
6.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
7.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
8.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
9.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
10.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
11.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
12.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
13.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
14.		Sony A6500	APS-C	24.0	6000	4000	4K/30p	24.5	13.7	1405	85
15.		Sony A7 II	Full Frame	24.0	6000	4000	1080/60p	24.9	13.6	2449	90
16.		Sony A77 II	APS-C	24.0	6000	4000	1080/60p	24.4	13.4	1013	82
17.		Sony A99	Full Frame	24.0	6000	4000	1080/60p	25.0	14.0	1555	89

Many modern cameras are not only capable of taking still images, but can also record movies. The A77 indeed provides for movie recording, while the XSi does not. The highest resolution format that the A77 can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the A77 has an electronic viewfinder (2359k dots), while the XSi has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the A77 offers a wider field of view (100%) than the one in the XSi (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the A77 has a higher magnification (0.73x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon XSi and Sony A77 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
2.		Sony A77	2359	Y	3.0 / 921	full-flex	n	1/8000s	12.0/s	Y	Y
3.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
4.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
8.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
9.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
11.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
13.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
14.		Sony A6500	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	Y
15.		Sony A7 II	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	Y
16.		Sony A77 II	2359	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	Y	Y
17.		Sony A99	2359	Y	3.0 / 1229	full-flex	n	1/8000s	6.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the A77 and the XSi is in-body image stabilization (IBIS). The A77 reduces the risk of handshake-induced blur with all attached lenses, while the XSi offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The XSi writes its imaging data to SDHC cards, while the A77 uses SDXC or Memory Stick PRO Duo cards. The A77 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XSi cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XSi and Sony Alpha SLT-A77 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
2.		Sony A77	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
5.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
8.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
10.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
11.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
13.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Sony A6500	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
15.		Sony A7 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
16.		Sony A77 II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
17.		Sony A99	Y	stereo / mono	Y	Y	mini	2.0	-	-	-

Studio photographers will appreciate that the Sony A77 (unlike the XSi) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the A77 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the XSi and the A77 have been discontinued, but can regularly be found used on ebay. The XSi was replaced by the Canon T1i, while the A77 was followed by the Sony A77 II. Further information on the features and operation of the XSi and A77 can be found, respectively, in the Canon XSi Manual (free pdf) or the online Sony A77 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon XSi and the Sony A77? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS Rebel XSi:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More compact: Is smaller (129x98mm vs 143x104mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 208g or 28 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (43 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in January 2008).

Advantages of the Sony Alpha SLT-A77:

• More detail: Has more megapixels (24 vs 12.2MP), which boosts linear resolution by 40%.
• Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.1 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.4 EV of extra DR).
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.54x).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
• More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 3.5 flaps/sec) to capture the decisive moment.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 3 years and 7 months of technical progress since the XSi launch.

If the count of relative strengths (bullet points above) is taken as a measure, the A77 is the clear winner of the contest (20 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XSi and the Sony A77 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XSi or the A77 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
2.		Sony A77	5/5	91/100	..	81/100	..	5/5	Aug 2011	1,399	ebay.com
3.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
4.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
5.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
6.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
7.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
8.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
9.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
10.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
11.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
12.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
13.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	1,299	ebay.com
14.		Sony A6500	5/5	+ +	3.5/5	85/100	4.5/5	4.5/5	Oct 2016	1,399	ebay.com
15.		Sony A7 II	5/5	+	4/5	82/100	4.5/5	5/5	Nov 2014	1,999	ebay.com
16.		Sony A77 II	4/5	..	..	80/100	4.5/5	5/5	May 2014	1,199	ebay.com
17.		Sony A99	5/5	..	..	84/100	4.5/5	4.5/5	Sep 2012	2,799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
