Canon XSi vs Olympus E-420

The Canon EOS Rebel XSi (called Canon 450D in some regions) and the Olympus E-420 are two digital cameras that were officially introduced, respectively, in January 2008 and March 2008. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (XSi) and a Four Thirds (E-420) sensor. The Canon has a resolution of 12.2 megapixels, whereas the Olympus provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XSi		Olympus E-420
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Four Thirds lenses
12.2 MP – APS-C sensor		10 MP – Four Thirds sensor
no Video		no Video
ISO 100-1,600		ISO 100-1,600
Optical viewfinder		Optical viewfinder
3.0" LCD – 230k dots		2.7" LCD – 215k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.5 shutter flaps per second		3.5 shutter flaps per second
500 shots per battery charge		500 shots per battery charge
129 x 98 x 62 mm, 524 g		130 x 91 x 53 mm, 440 g

Check XSi offers at
ebay.com
Check E-420 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XSi and the Olympus E-420? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

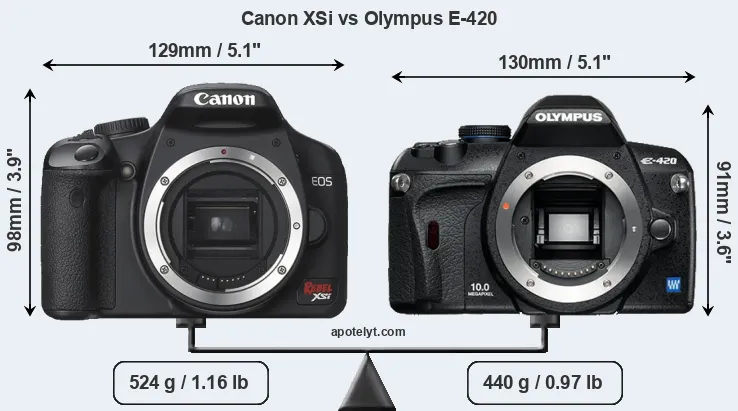

An illustration of the physical size and weight of the Canon XSi and the Olympus E-420 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-420 is notably smaller (6 percent) than the Canon XSi. Moreover, the E-420 is markedly lighter (16 percent) than the XSi. In this context, it is worth noting that neither the XSi nor the E-420 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XSi) and the Four Thirds Lens Catalog (E-420).

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
2.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	599	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	1,299	ebay.com
4.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
5.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
6.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
7.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
8.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
9.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
10.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
11.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	899	ebay.com
12.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
13.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	699	ebay.com
14.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	699	ebay.com
15.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	499	ebay.com
16.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	699	ebay.com
17.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-420 was launched at a somewhat lower price (by 25 percent) than the XSi, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon XSi features an APS-C sensor and the Olympus E-420 a Four Thirds sensor. The sensor area in the E-420 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the XSi has a native 3:2 aspect ratio, while the one in the E-420 offers a 4:3 aspect.

With 12.2MP, the XSi offers a higher resolution than the E-420 (10MP), but the XSi nevertheless has larger individual pixels (pixel pitch of 5.19μm versus 4.74μm for the E-420) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.

The resolution advantage of the Canon XSi implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the XSi for good quality output (200 dots per inch) amounts to 21.4 x 14.2 inches or 54.3 x 36.2 cm, for very good quality (250 dpi) 17.1 x 11.4 inches or 43.4 x 28.9 cm, and for excellent quality (300 dpi) 14.2 x 9.5 inches or 36.2 x 24.1 cm. The corresponding values for the Olympus E-420 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Canon EOS Rebel XSi has a native sensitivity range from ISO 100 to ISO 1600. The Olympus E-420 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the XSi has a notably higher overall DXO score than the E-420 (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.4 bits higher color depth, 0.4 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
2.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
5.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
6.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
7.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
8.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
9.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
10.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
11.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
12.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
13.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
14.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
15.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
16.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
17.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The XSi and the E-420 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the XSi has a higher magnification than the one of the E-420 (0.54x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon XSi and Olympus E-420 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
2.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
5.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
6.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
14.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
15.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
16.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
17.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The XSi writes its imaging data to SDHC cards, while the E-420 uses Compact Flash or xD Picture cards. The E-420 features dual card slots, which can be very useful in case a memory card fails. In contrast, the XSi only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XSi and Olympus E-420 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
2.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
5.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
6.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
11.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-

Both the XSi and the E-420 have been discontinued, but can regularly be found used on ebay. The XSi was replaced by the Canon T1i, while the E-420 does not have a direct successor. Further information on the features and operation of the XSi and E-420 can be found, respectively, in the Canon XSi Manual (free pdf) or the online Olympus E-420 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon XSi or the Olympus E-420 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS Rebel XSi:

• More detail: Offers more megapixels (12.2 vs 10MP) with a 13% higher linear resolution.
• Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
• Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.46x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.

Advantages of the Olympus E-420:

• Less heavy: Has a lower weight (by 84g or 16 percent) and is thus easier to take along.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More affordable: Was released into a lower priced segment (25 percent cheaper at launch).

If the count of relative strengths (bullet points above) is taken as a measure, the XSi emerges as the winner of the contest (5 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XSi and the Olympus E-420 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the XSi and the E-420 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
2.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	599	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	1,299	ebay.com
4.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
5.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
6.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
7.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
8.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
9.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
10.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
11.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	899	ebay.com
12.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
13.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	699	ebay.com
14.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	699	ebay.com
15.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	499	ebay.com
16.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	699	ebay.com
17.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
