Canon XS vs Pentax K-1 II
The Canon EOS Rebel XS (called Canon 1000D in some regions) and the Pentax K-1 II are two digital cameras that were announced, respectively, in June 2008 and February 2018. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (XS) and a full frame (K-1 II) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Pentax provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XS and the Pentax K-1 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

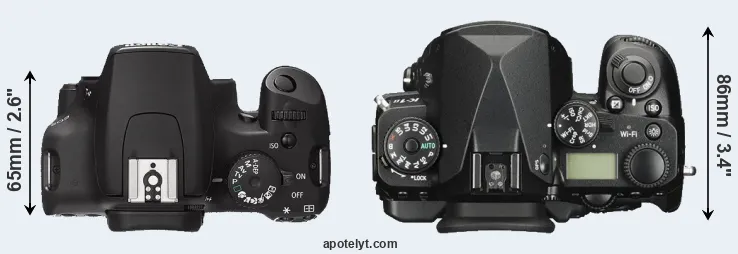

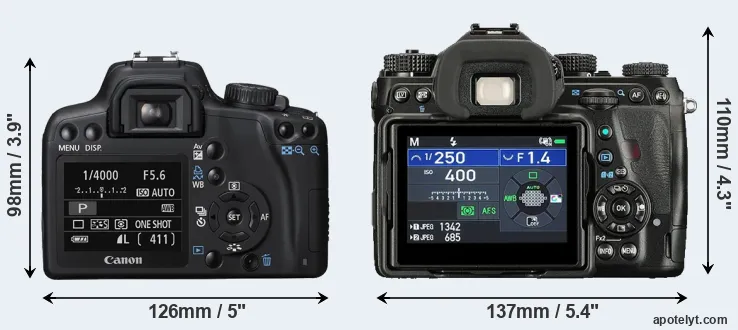

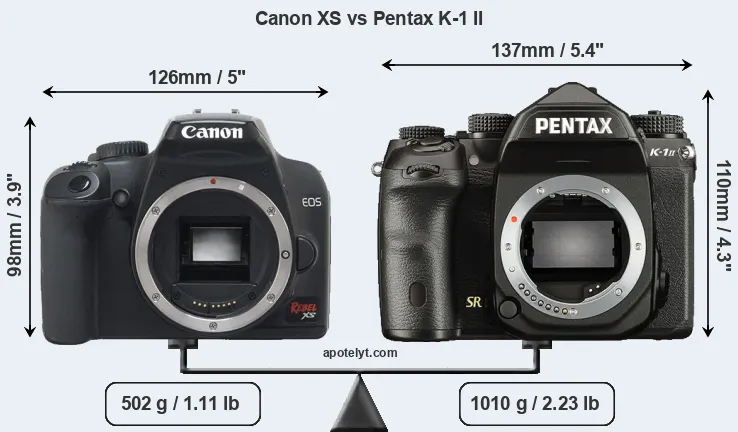

The physical size and weight of the Canon XS and the Pentax K-1 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The K-1 II can be obtained in two different colors (black, silver), while the XS is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-1 II is notably larger (22 percent) than the Canon XS. Moreover, the K-1 II is substantially heavier (101 percent) than the XS. It is noteworthy in this context that the K-1 II is splash and dust-proof, while the XS does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon XS||5.0 in||3.9 in||2.6 in||17.7 oz||500||n||Jun 2008||449|
|Pentax K-1 II||5.4 in||4.3 in||3.4 in||35.6 oz||670||Y||Feb 2018||1,999|
|Canon T7||5.1 in||4.0 in||3.1 in||16.8 oz||500||n||Feb 2018||449|
|Canon T100||5.1 in||4.0 in||3.0 in||15.4 oz||500||n||Feb 2018||399|
|Canon T5||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449|
|Canon T3||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449|
|Canon SX20||4.8 in||3.5 in||3.4 in||21.2 oz||..||n||Aug 2009||399|
|Canon T1i||5.1 in||3.9 in||2.4 in||18.3 oz||400||n||Mar 2009||799|
|Canon SX10||4.8 in||3.5 in||3.4 in||21.2 oz||..||n||Sep 2008||399|
|Canon XSi||5.1 in||3.9 in||2.4 in||18.5 oz||500||n||Jan 2008||799|
|Canon 40D||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299|
|Canon XTi||5.0 in||3.3 in||2.6 in||19.6 oz||370||n||Aug 2006||799|
|Panasonic S1R||5.9 in||4.3 in||3.8 in||35.8 oz||380||Y||Feb 2019||3,699|
|Pentax K-1||5.4 in||4.3 in||3.4 in||35.6 oz||760||Y||Feb 2016||1,799|
|Sony A7R III||5.0 in||3.8 in||2.9 in||22.9 oz||650||Y||Oct 2017||3,199|
|Sony A99 II||5.6 in||4.1 in||3.0 in||29.9 oz||490||Y||Sep 2016||3,199|
|Sony A850||6.1 in||4.6 in||3.2 in||31.6 oz||880||Y||Aug 2009||1,999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The XS was launched at a markedly lower price (by 78 percent) than the K-1 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

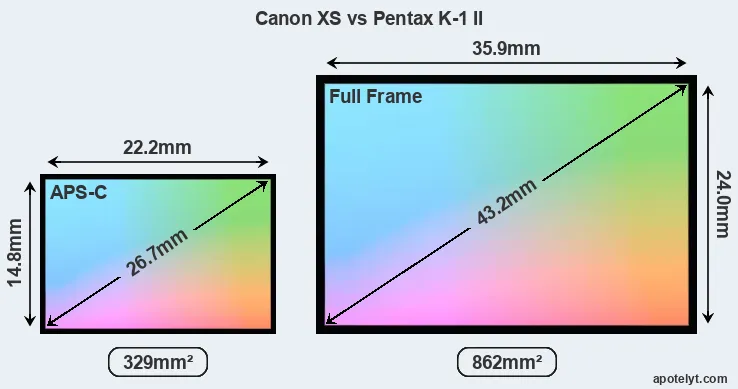

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon XS features an APS-C sensor and the Pentax K-1 II a full frame sensor. The sensor area in the K-1 II is 162 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

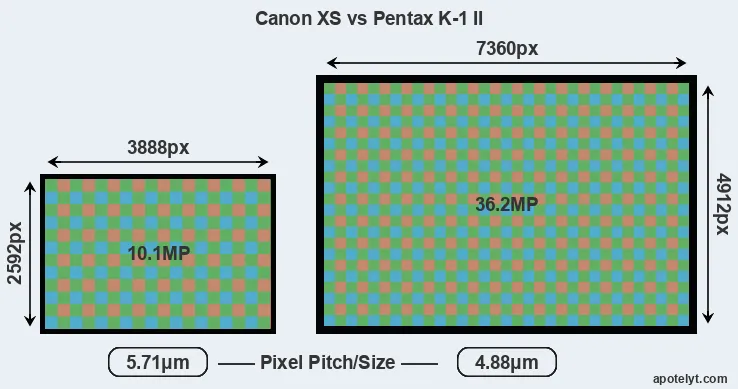

With 36.2MP, the K-1 II offers a higher resolution than the XS (10.1MP), but the K-1 II has smaller individual pixels (pixel pitch of 4.88μm versus 5.71μm for the XS). Yet, the K-1 II is a much more recent model (by 9 years and 8 months) than the XS, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the K-1 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax K-1 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-1 II for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
Unlike the XS, the K-1 II has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS Rebel XS has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-1600. The corresponding ISO settings for the Pentax K-1 II are ISO 100 to ISO 819200 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Pentax K-1 II||Full Frame||36.2||7360||4912||1080/60i||..||..||..||..|
|Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|Pentax K-1||Full Frame||36.2||7360||4912||1080/60i||25.4||14.6||3280||96|
|Sony A7R III||Full Frame||42.2||7952||5304||4K/30p||26.0||14.7||3523||100|
|Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
|Sony A850||Full Frame||24.4||6048||4032||none||23.8||12.2||1415||79|
Many modern cameras are not only capable of taking still images, but can also record movies. The K-1 II indeed provides for movie recording, while the XS does not. The highest resolution format that the K-1 II can use is 1080/60i.
Apart from body and sensor, cameras can and do differ across a variety of features. The XS and the K-1 II are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the K-1 II offers a wider field of view (100%) than the one in the XS (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the K-1 II has a higher magnification (0.70x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon XS, the Pentax K-1 II, and comparable cameras.
|Pentax K-1 II||optical||Y||3.2||1037||full-flex||n||1/8000s||4.4||n||Y|
|Sony A7R III||3686||n||3.0||1440||tilting||Y||1/8000s||10.0||n||Y|
|Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The XS has one, while the K-1 II does not. While the built-in flash of the XS is not very powerful, it can at times be useful as a fill-in light.
The Pentax K-1 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XS writes its imaging data to SDHC cards, while the K-1 II uses SDXC cards. The K-1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the XS only has one slot. The K-1 II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XS cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XS and Pentax K-1 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Pentax K-1 II||Y||stereo||mono||Y||Y||micro||2.0||Y||-||-|
|Sony A7R III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
|Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the K-1 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XS does not provide wifi capability.
Studio photographers will appreciate that the Pentax K-1 II (unlike the XS) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the K-1 II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The K-1 II is a recent model that features in the current product line-up of Pentax. In contrast, the XS has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the XS was succeeded by the Canon T3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Pentax websites.
So what is the bottom line? Is there a clear favorite between the Canon XS and the Pentax K-1 II? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS Rebel XS:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (126x98mm vs 137x110mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 508g or 50 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in June 2008).
Arguments in favor of the Pentax K-1 II:
- More detail: Has more megapixels (36.2 vs 10.1MP), which boosts linear resolution by 89%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.51x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (4.4 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (670 versus 500) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 9 years and 8 months of technical progress since the XS launch.
If the count of individual advantages (bullet points above) is taken as a guide, the K-1 II is the clear winner of the contest (26 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XS and the Pentax K-1 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the XS and the K-1 II in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon XS||82/100||+ +||3.5/5||4/5||4.5/5||Jun 2008||449|
|Pentax K-1 II||..||79/100||4.5/5||4.5/5||4.5/5||Feb 2018||1,999|
|Canon T7||o||..||3.5/5||..||3.5/5||Feb 2018||449|
|Canon T100||o||..||3.5/5||..||3.5/5||Feb 2018||399|
|Canon T5||+||..||4/5||4/5||4.5/5||Feb 2014||449|
|Canon T3||80/100||69/100||4/5||4/5||4.5/5||Feb 2011||449|
|Canon SX20||+ +||73/100||..||4/5||4/5||Aug 2009||399|
|Canon T1i||+ +||74/100||4.5/5||5/5||4.5/5||Mar 2009||799|
|Canon SX10||+ +||..||..||4.5/5||4/5||Sep 2008||399|
|Canon XSi||+ +||+ +||4/5||5/5||4.5/5||Jan 2008||799|
|Canon 40D||+ +||+ +||4.5/5||o||4.5/5||Aug 2007||1,299|
|Canon XTi||+ +||+ +||o||4.5/5||4/5||Aug 2006||799|
|Panasonic S1R||..||89/100||4.5/5||5/5||4.5/5||Feb 2019||3,699|
|Pentax K-1||..||84/100||5/5||4.5/5||5/5||Feb 2016||1,799|
|Sony A7R III||+ +||90/100||4.5/5||5/5||5/5||Oct 2017||3,199|
|Sony A99 II||..||85/100||4.5/5||4.5/5||4.5/5||Sep 2016||3,199|
|Sony A850||..||75/100||..||4/5||4.5/5||Aug 2009||1,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1Ds Mark III vs Canon XS
- Canon T6s vs Pentax K-1 II
- Canon XS vs Fujifilm GFX 100
- Canon XS vs Fujifilm X-T10
- Canon XS vs Panasonic GF1
- Canon XS vs Samsung NX500
- Canon XS vs Sony HX400V
- Nikon D5 vs Pentax K-1 II
- Olympus E-PM2 vs Pentax K-1 II
- Panasonic G5 vs Pentax K-1 II
- Panasonic G80 vs Pentax K-1 II
- Panasonic TZ200 vs Pentax K-1 II
Specifications: Canon XS vs Pentax K-1 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XS||Pentax K-1 II|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Pentax K mount lenses|
|Launch Date||June 2008||February 2018|
|Launch Price||USD 449||USD 1,999|
|Sensor Specs||Canon XS||Pentax K-1 II|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.2 x 14.8 mm||35.9 x 24.0 mm|
|Sensor Area||328.56 mm2||861.6 mm2|
|Sensor Diagonal||26.7 mm||43.2 mm|
|Sensor Resolution||10.1 Megapixels||36.2 Megapixels|
|Image Resolution||3888 x 2592 pixels||7360 x 4912 pixels|
|Pixel Pitch||5.71 μm||4.88 μm|
|Pixel Density||3.07 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100 - 800 ISO||100 - 819,200 ISO|
|ISO Boost||100 - 1,600 ISO||no Enhancement|
|Image Processor||DIGIC 3||PRIME IV|
|Screen Specs||Canon XS||Pentax K-1 II|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.5inch||3.2inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Fully flexible screen|
|Shooting Specs||Canon XS||Pentax K-1 II|
|Focus System||Phase-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/8000s|
|Continuous Shooting||3 shutter flaps/s||4.4 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||300 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon XS||Pentax K-1 II|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Canon XS||Pentax K-1 II|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||500 shots per charge||670 shots per charge|
126 x 98 x 65 mm
(5.0 x 3.9 x 2.6 in)
137 x 110 x 86 mm
(5.4 x 4.3 x 3.4 in)
|Camera Weight||502 g (17.7 oz)||1010 g (35.6 oz)|
