Canon XS vs Olympus E-P2
The Canon EOS Rebel XS (called Canon 1000D in some regions) and the Olympus PEN E-P2 are two digital cameras that were officially introduced, respectively, in June 2008 and November 2009. The XS is a DSLR, while the E-P2 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (XS) and a Four Thirds (E-P2) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XS and the Olympus PEN E-P2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

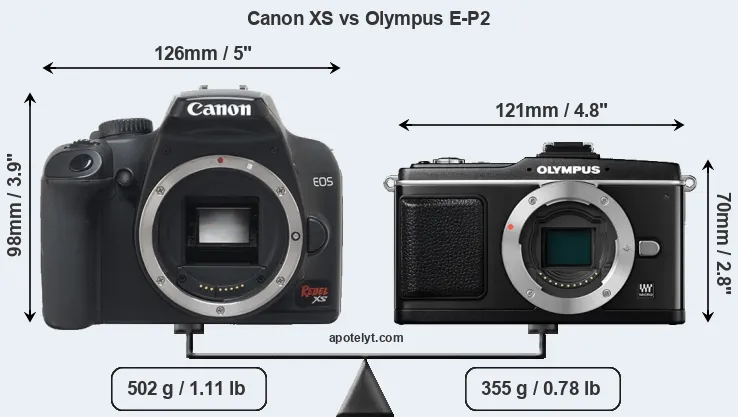

The physical size and weight of the Canon XS and the Olympus E-P2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The E-P2 can be obtained in three different colors (black, silver, white), while the XS is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P2 is considerably smaller (31 percent) than the Canon XS. Moreover, the E-P2 is markedly lighter (29 percent) than the XS. In this context, it is worth noting that neither the XS nor the E-P2 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XS) and the Micro Four Thirds Lens Catalog (E-P2). Mirrorless cameras, such as the E-P2, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon XS||126 mm||98 mm||65 mm||502 g||500||n||Jun 2008||449|
|2.||Olympus E-P2||121 mm||70 mm||36 mm||355 g||300||n||Nov 2009||799|
|3.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|5.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|6.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|7.||Canon SX20||123 mm||88 mm||87 mm||600 g||..||n||Aug 2009||399|
|8.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon SX10||123 mm||88 mm||87 mm||600 g||..||n||Sep 2008||399|
|10.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|11.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|12.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|13.||Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|14.||Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|15.||Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|16.||Olympus E-P1||121 mm||70 mm||36 mm||355 g||300||n||Jun 2009||799|
|17.||Panasonic GH1||124 mm||90 mm||45 mm||385 g||300||n||Mar 2009||899|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XS was launched at a markedly lower price (by 44 percent) than the E-P2, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon XS features an APS-C sensor and the Olympus E-P2 a Four Thirds sensor. The sensor area in the E-P2 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the XS has a native 3:2 aspect ratio, while the one in the E-P2 offers a 4:3 aspect.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.
Despite having a smaller sensor, the E-P2 offers a higher resolution of 12.2 megapixels, compared with 10.1 MP of the XS. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.29μm versus 5.71μm for the XS). However, it should be noted that the E-P2 is a somewhat more recent model (by 1 year and 4 months) than the XS, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.
The resolution advantage of the Olympus E-P2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-P2 for good quality output (200 dots per inch) amounts to 20.2 x 15.1 inches or 51.2 x 38.4 cm, for very good quality (250 dpi) 16.1 x 12.1 inches or 41 x 30.7 cm, and for excellent quality (300 dpi) 13.4 x 10.1 inches or 34.1 x 25.6 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS Rebel XS has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-1600. The corresponding ISO settings for the Olympus PEN E-P2 are ISO 100 to ISO 6400 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|13.||Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|14.||Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|15.||Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|16.||Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|17.||Panasonic GH1||Four Thirds||12.0||4000||3000||1080/24p||21.6||11.6||772||64|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The E-P2 indeed provides for movie recording, while the XS does not. The highest resolution format that the E-P2 can use is 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the XS has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-P2 relies on live view and the rear LCD for framing. That said, the E-P2 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon XS and Olympus E-P2 in connection with corresponding information for a sample of similar cameras.
|1.||Canon XS||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|2.||Olympus E-P2||optional||n||3.0 / 230||fixed||n||1/4000s||3.0||n||Y|
|3.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon T100||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|5.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|6.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|7.||Canon SX20||202||n||2.5 / 230||swivel||n||1/3200s||0.7||Y||Y|
|8.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4||Y||n|
|9.||Canon SX10||202||n||2.5 / 230||swivel||n||1/3200s||0.7||Y||Y|
|10.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5||Y||n|
|11.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5||Y||n|
|12.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|13.||Olympus E-P3||optional||n||3.0 / 614||fixed||Y||1/4000s||3.0||Y||Y|
|14.||Olympus E-PL2||optional||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||Y|
|15.||Olympus E-PL3||optional||n||3.0 / 460||tilting||n||1/4000s||5.5||n||Y|
|16.||Olympus E-P1||none||n||3.0 / 230||fixed||n||1/4000s||3.0||n||Y|
|17.||Panasonic GH1||1440||n||3.0 / 460||swivel||n||1/4000s||3.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The XS has one, while the E-P2 does not. While the built-in flash of the XS is not very powerful, it can at times be useful as a fill-in light.
Concerning the storage of imaging data, both the XS and the E-P2 write their files to SDHC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XS and Olympus PEN E-P2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon XS||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Olympus E-P2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon T100||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|7.||Canon SX20||Y||stereo / mono||-||-||YES||2.0||-||-||-|
|8.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon SX10||Y||stereo / mono||-||-||-||2.0||-||-||-|
|10.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|11.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Olympus E-P3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|14.||Olympus E-PL2||Y||stereo / -||-||-||mini||2.0||-||-||-|
|15.||Olympus E-PL3||Y||stereo / -||-||-||mini||2.0||-||-||-|
|16.||Olympus E-P1||Y||stereo / -||-||-||mini||2.0||-||-||-|
|17.||Panasonic GH1||Y||stereo / -||Y||-||mini||2.0||-||-||-|
Both the XS and the E-P2 have been discontinued, but can regularly be found used on eBay. The XS was replaced by the Canon T3, while the E-P2 was followed by the Olympus E-P3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is there a clear favorite between the Canon XS and the Olympus E-P2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Rebel XS:
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (500 versus 300) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (44 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in June 2008).
Reasons to prefer the Olympus PEN E-P2:
- More detail: Has more megapixels (12.2 vs 10.1MP), which boosts linear resolution by 8%.
- Broader imaging potential: Can capture not only stills but also 720/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More compact: Is smaller (121x70mm vs 126x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 147g or 29 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More modern: Was introduced somewhat (1 year and 4 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the XS comes out slightly ahead of the E-P2 (9 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XS and the Olympus E-P2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the XS or the E-P2. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XS||..||82/100||..||+ +||3.5/5||4.5/5||Jun 2008||449|
|2.||Olympus E-P2||3/5||+||..||69/100||4/5||4.5/5||Nov 2009||799|
|3.||Canon T7||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon T100||..||o||3/5||..||3.5/5||3.5/5||Feb 2018||399|
|5.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|6.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|7.||Canon SX20||..||+ +||..||73/100||..||4/5||Aug 2009||399|
|8.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon SX10||..||+ +||..||..||..||4/5||Sep 2008||399|
|10.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799|
|11.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|12.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|13.||Olympus E-P3||..||83/100||..||74/100||4.5/5||4.5/5||Jun 2011||799|
|14.||Olympus E-PL2||3/5||83/100||..||71/100||4.5/5||4.5/5||Jan 2011||599|
|15.||Olympus E-PL3||3/5||+ +||..||72/100||4.5/5||4/5||Jun 2011||599|
|16.||Olympus E-P1||..||+||..||66/100||4/5||4.5/5||Jun 2009||799|
|17.||Panasonic GH1||..||+ +||..||72/100||4.5/5||4.5/5||Mar 2009||899|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 80D vs Canon XS
- Canon RP vs Olympus E-P2
- Canon XS vs Fujifilm GFX 50R
- Canon XS vs Nikon D850
- Canon XS vs Olympus E-PM1
- Canon XS vs Sony A3000
- Canon XS vs Sony RX100 VII
- Fujifilm X-T100 vs Olympus E-P2
- Leica D-LUX Typ 109 vs Olympus E-P2
- Leica Q2 vs Olympus E-P2
- Olympus E-P2 vs Panasonic G2
- Olympus E-P2 vs Sony H200
Specifications: Canon XS vs Olympus E-P2
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XS||Olympus E-P2|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||June 2008||November 2009|
|Launch Price||USD 449||USD 799|
|Sensor Specs||Canon XS||Olympus E-P2|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.2 x 14.8 mm||17.3 x 13.0 mm|
|Sensor Area||328.56 mm2||224.9 mm2|
|Sensor Diagonal||26.7 mm||21.6 mm|
|Sensor Resolution||10.1 Megapixels||12.2 Megapixels|
|Image Resolution||3888 x 2592 pixels||4032 x 3024 pixels|
|Pixel Pitch||5.71 μm||4.29 μm|
|Pixel Density||3.07 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||720/30p Video|
|ISO Setting||100 - 800 ISO||100 - 6,400 ISO|
|ISO Boost||100 - 1,600 ISO||no Enhancement|
|Image Processor||DIGIC 3||TruePic V|
|DXO Sensor Quality (score)||..||56|
|DXO Color Depth (bits)||..||21.5|
|DXO Dynamic Range (EV)||..||10.4|
|DXO Low Light (ISO)||..||505|
|Screen Specs||Canon XS||Olympus E-P2|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon XS||Olympus E-P2|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDHC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Canon XS||Olympus E-P2|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon XS||Olympus E-P2|
|Battery Life (CIPA)||500 shots per charge||300 shots per charge|
126 x 98 x 65 mm
(5.0 x 3.9 x 2.6 in)
121 x 70 x 36 mm
(4.8 x 2.8 x 1.4 in)
|Camera Weight||502 g (17.7 oz)||355 g (12.5 oz)|
