Canon XS vs Nikon 1 J5
The Canon EOS Rebel XS (called Canon 1000D in some regions) and the Nikon 1 J5 are two digital cameras that were officially introduced, respectively, in June 2008 and April 2015. The XS is a DSLR, while the J5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (XS) and an one-inch (J5) sensor. The Canon has a resolution of 10.1 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XS and the Nikon 1 J5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

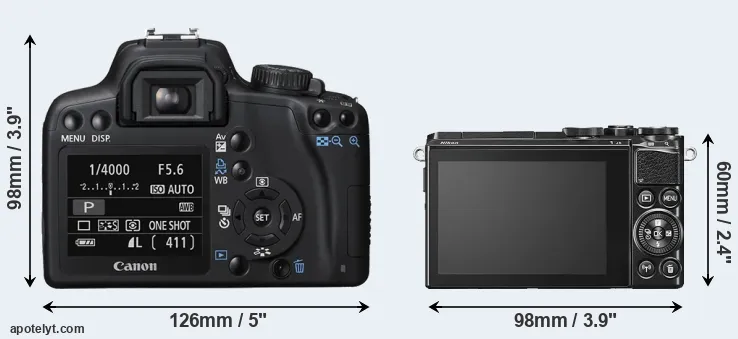

The side-by-side display below illustrates the physical size and weight of the Canon XS and the Nikon 1 J5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The J5 can be obtained in three different colors (black, silver, white), while the XS is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon 1 J5 is considerably smaller (52 percent) than the Canon XS. Moreover, the J5 is substantially lighter (54 percent) than the XS. In this context, it is worth noting that neither the XS nor the J5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon XS||126 mm||98 mm||65 mm||502 g||500||n||Jun 2008||449|
|2.||Nikon 1 J5||98 mm||60 mm||32 mm||231 g||250||n||Apr 2015||399|
|3.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|5.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529|
|6.||Canon 1200D||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|7.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|8.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|9.||Canon SX20||123 mm||88 mm||87 mm||600 g||..||n||Aug 2009||399|
|10.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|11.||Canon SX10||123 mm||88 mm||87 mm||600 g||..||n||Sep 2008||399|
|12.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|13.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|14.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|15.||Nikon 1 J4||100 mm||60 mm||29 mm||232 g||300||n||Apr 2014||549|
|16.||Sony A5000||110 mm||63 mm||36 mm||269 g||420||n||Jan 2014||449|
|17.||YI M1||114 mm||64 mm||34 mm||281 g||450||n||Sep 2016||349|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The J5 was launched at a somewhat lower price (by 11 percent) than the XS, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon XS features an APS-C sensor and the Nikon 1 J5 an one-inch sensor. The sensor area in the J5 is 65 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the J5 offers a higher resolution of 20.7 megapixels, compared with 10.1 MP of the XS. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.37μm versus 5.71μm for the XS). However, it should be noted that the J5 is much more recent (by 6 years and 9 months) than the XS, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the J5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon 1 J5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the J5 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Canon XS are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The J5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel XS has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-1600. The corresponding ISO settings for the Nikon 1 J5 are ISO 160 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Nikon 1 J5||1-inch||20.7||5568||3712||4K/15p||21.1||12.0||479||65|
|5.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|15.||Nikon 1 J4||1-inch||18.2||5232||3488||1080/60p||20.8||10.7||426||53|
|17.||YI M1||Four Thirds||20.2||5184||3888||4K/30p||23.0||12.6||1030||73|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The J5 indeed provides for movie recording, while the XS does not. The highest resolution format that the J5 can use is 4K/15p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the XS has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the J5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon XS, the Nikon 1 J5, and comparable cameras.
|1.||Canon XS||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|2.||Nikon 1 J5||none||n||3.0 / 1037||tilting||Y||1/4000s||60.0||Y||n|
|3.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon T100||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|5.||Canon G9 X||none||n||3.0 / 1040||fixed||Y||1/2000s||6.0||Y||Y|
|6.||Canon 1200D||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|7.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|8.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|9.||Canon SX20||202||n||2.5 / 230||swivel||n||1/3200s||0.7||Y||Y|
|10.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4||Y||n|
|11.||Canon SX10||202||n||2.5 / 230||swivel||n||1/3200s||0.7||Y||Y|
|12.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5||Y||n|
|13.||Canon 40D||optical||Y||3.0 / 230||fixed||n||1/8000s||6.5||Y||n|
|14.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|15.||Nikon 1 J4||none||n||3.0 / 1037||Fixed||Y||1/4000s||60.0||Y||n|
|16.||Sony A5000||none||n||3.0 / 461||tilting||n||1/4000s||3.5||Y||n|
|17.||YI M1||none||n||3.0 / 1040||fixed||Y||1/4000s||5.0||n||n|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The J5 has a touchscreen, while the XS has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The J5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the XS does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the J5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon 1 J5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XS writes its imaging data to SDHC cards, while the J5 uses SDXC cards. The J5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XS cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XS and Nikon 1 J5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon XS||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Nikon 1 J5||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon T100||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon G9 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon 1200D||Y||mono / mono||-||-||mini||2.0||-||-||-|
|7.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|8.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|9.||Canon SX20||Y||stereo / mono||-||-||YES||2.0||-||-||-|
|10.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|11.||Canon SX10||Y||stereo / mono||-||-||-||2.0||-||-||-|
|12.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|13.||Canon 40D||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Nikon 1 J4||-||stereo / mono||-||-||mini||2.0||Y||-||-|
|16.||Sony A5000||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|17.||YI M1||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
It is notable that the XS has a hotshoe, while the J5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Both the XS and the J5 have been discontinued, but can regularly be found used on eBay. The XS was replaced by the Canon T3, while the J5 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what conclusions can be drawn? Which of the two cameras – the Canon XS or the Nikon 1 J5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS Rebel XS:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (500 versus 250) on a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been available for much longer (launched in June 2008).
Reasons to prefer the Nikon 1 J5:
- More detail: Has more megapixels (20.7 vs 10.1MP), which boosts linear resolution by 43%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Broader imaging potential: Can capture not only stills but also 4K/15p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (60 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (98x60mm vs 126x98mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 271g or 54 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was released into a lower priced segment (11 percent cheaper at launch).
- More modern: Reflects 6 years and 9 months of technical progress since the XS launch.
If the count of individual advantages (bullet points above) is taken as a guide, the J5 is the clear winner of the contest (20 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XS and the Nikon 1 J5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the XS or the J5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XS||..||82/100||..||+ +||3.5/5||4.5/5||Jun 2008||449|
|2.||Nikon 1 J5||..||..||..||..||4.5/5||4.5/5||Apr 2015||399|
|3.||Canon T7||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon T100||..||o||3/5||..||3.5/5||3.5/5||Feb 2018||399|
|5.||Canon G9 X||3.5/5||+ +||..||..||4.5/5||4.5/5||Oct 2015||529|
|6.||Canon 1200D||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|7.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|8.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|9.||Canon SX20||..||+ +||..||73/100||..||4/5||Aug 2009||399|
|10.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|11.||Canon SX10||..||+ +||..||..||..||4/5||Sep 2008||399|
|12.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799|
|13.||Canon 40D||..||+ +||..||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|14.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|15.||Nikon 1 J4||3/5||..||..||..||4.5/5||4/5||Apr 2014||549|
|16.||Sony A5000||3/5||+||..||..||4.5/5||4.5/5||Jan 2014||449|
|17.||YI M1||..||..||..||69/100||..||..||Sep 2016||349|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon XS vs Nikon 1 J5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XS||Nikon 1 J5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Nikon 1 mount lenses|
|Launch Date||June 2008||April 2015|
|Launch Price||USD 449||USD 399|
|Sensor Specs||Canon XS||Nikon 1 J5|
|Sensor Format||APS-C Sensor||1" Sensor|
|Sensor Size||22.2 x 14.8 mm||13.2 x 8.8 mm|
|Sensor Area||328.56 mm2||116.16 mm2|
|Sensor Diagonal||26.7 mm||15.9 mm|
|Sensor Resolution||10.1 Megapixels||20.7 Megapixels|
|Image Resolution||3888 x 2592 pixels||5568 x 3712 pixels|
|Pixel Pitch||5.71 μm||2.37 μm|
|Pixel Density||3.07 MP/cm2||17.79 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||4K/15p Video|
|ISO Setting||100 - 800 ISO||160 - 12,800 ISO|
|ISO Boost||100 - 1,600 ISO||no Enhancement|
|Image Processor||DIGIC 3||EXPEED 5|
|DXO Sensor Quality (score)||..||65|
|DXO Color Depth (bits)||..||21.1|
|DXO Dynamic Range (EV)||..||12.0|
|DXO Low Light (ISO)||..||479|
|Screen Specs||Canon XS||Nikon 1 J5|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||230k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon XS||Nikon 1 J5|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Continuous Shooting||3 shutter flaps/s||60 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon XS||Nikon 1 J5|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon XS||Nikon 1 J5|
|Battery Life (CIPA)||500 shots per charge||250 shots per charge|
126 x 98 x 65 mm
(5.0 x 3.9 x 2.6 in)
98 x 60 x 32 mm
(3.9 x 2.4 x 1.3 in)
|Camera Weight||502 g (17.7 oz)||231 g (8.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
