Canon XC10 vs Panasonic GF5
The Canon XC10 and the Panasonic Lumix DMC-GF5 are two digital cameras that were announced, respectively, in April 2015 and April 2012. The XC10 is a fixed lens compact, while the GF5 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (XC10) and a Four Thirds (GF5) sensor. Both cameras offer a resolution of 12 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon XC10 and the Panasonic Lumix DMC-GF5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Canon XC10 and the Panasonic GF5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The GF5 can be obtained in three different colors (black, red, white), while the XC10 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GF5 is considerably smaller (43 percent) than the Canon XC10. In this context, it is worth noting that neither the XC10 nor the GF5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens built in, whereas the GF5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GF5 and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the XC10 gets 370 shots out of its LP-E6N battery, while the GF5 can take 360 images on a single charge of its DMW-BLE9 power pack. The power pack in the XC10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon XC10||125 mm||102 mm||122 mm||1040 g||370||n||Apr 2015||2,499||ebay.com|
|2.||Panasonic GF5||108 mm||67 mm||37 mm||267 g||360||n||Apr 2012||499||ebay.com|
|3.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699||ebay.com|
|4.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799||ebay.com|
|5.||Canon G9 X||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529||ebay.com|
|6.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799||ebay.com|
|7.||Canon G7 X||103 mm||60 mm||40 mm||304 g||210||n||Sep 2014||699||ebay.com|
|8.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549||ebay.com|
|9.||Fujifilm X30||119 mm||72 mm||60 mm||423 g||470||n||Aug 2014||599||ebay.com|
|10.||Nikon P900||140 mm||103 mm||137 mm||899 g||360||n||Mar 2015||599||ebay.com|
|11.||Panasonic FZ2500||138 mm||102 mm||135 mm||915 g||350||n||Sep 2016||1,199||amazon.com|
|12.||Panasonic LX100||115 mm||66 mm||55 mm||393 g||300||n||Sep 2014||899||ebay.com|
|13.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599||ebay.com|
|14.||Panasonic GF6||111 mm||65 mm||38 mm||323 g||340||n||Apr 2013||499||ebay.com|
|15.||Panasonic GF3||108 mm||67 mm||32 mm||264 g||300||n||Jun 2011||549||ebay.com|
|16.||Panasonic G10||124 mm||84 mm||74 mm||388 g||380||n||Mar 2010||499||ebay.com|
|17.||Panasonic G2||124 mm||84 mm||74 mm||428 g||360||n||Mar 2010||599||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon XC10 features an one-inch sensor and the Panasonic GF5 a Four Thirds sensor. The sensor area in the GF5 is 83 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.75 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

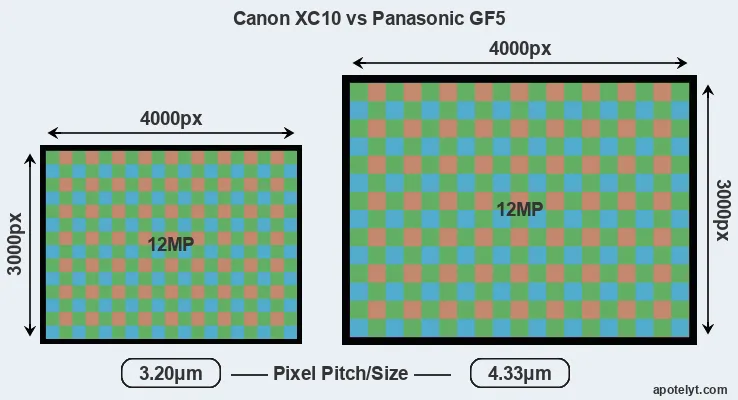

Even though the GF5 has a larger sensor, both cameras offer the same resolution of 12 megapixels. This implies that the GF5 has a lower pixel density and larger individual pixels (with a pixel pitch of 4.33μm versus 3.20μm for the XC10), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the XC10 is much more recent (by 3 years) than the GF5, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.
The Canon XC10 has a native sensitivity range from ISO 160 to ISO 20000. The corresponding ISO settings for the Panasonic Lumix DMC-GF5 are ISO 160 to ISO 6400, with the possibility to increase the ISO range to 160-12800.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Panasonic GF5||Four Thirds||12.0||4000||3000||1080/60i||21.4||11.6||618||61|
|3.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.8||11.9||260||62|
|4.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||21.8||11.9||227||61|
|5.||Canon G9 X||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63|
|6.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|7.||Canon G7 X||1-inch||20.0||5472||3648||1080/60p||23.0||12.7||556||71|
|12.||Panasonic LX100||Four Thirds||12.7||4112||3088||4K/30p||22.3||12.5||553||67|
|13.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|14.||Panasonic GF6||Four Thirds||15.8||4592||3448||1080/60i||20.7||10.6||622||54|
|15.||Panasonic GF3||Four Thirds||12.0||4000||3000||1080/60i||20.6||10.0||458||49|
|16.||Panasonic G10||Four Thirds||12.0||4000||3000||720/30p||21.2||10.1||411||52|
|17.||Panasonic G2||Four Thirds||12.0||4000||3000||720/30p||21.2||10.3||493||53|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the XC10 provides a higher video resolution than the GF5. It can shoot video footage at 4K/30p, while the Panasonic is limited to 1080/60i.
Apart from body and sensor, cameras can and do differ across a range of features. The XC10 and the GF5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Canon XC10 and Panasonic GF5 in connection with corresponding information for a sample of similar cameras.
|1.||Canon XC10||none||n||3.0 / 1030||tilting||Y||1/2000s||3.8/s||n||Y|
|2.||Panasonic GF5||none||n||3.0 / 920||fixed||Y||1/4000s||4.0/s||Y||n|
|3.||Canon G7 X Mark II||none||n||3.0 / 1040||tilting||Y||1/2000s||8.0/s||Y||Y|
|4.||Canon G5 X||2360||n||3.0 / 1040||swivel||Y||1/2000s||5.9/s||Y||Y|
|5.||Canon G9 X||none||n||3.0 / 1040||fixed||Y||1/2000s||6.0/s||Y||Y|
|6.||Canon G1 X Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||5.2/s||Y||Y|
|7.||Canon G7 X||none||n||3.0 / 1040||tilting||Y||1/2000s||6.5/s||Y||Y|
|8.||Canon SX60||922||n||3.0 / 922||swivel||n||1/2000s||6.4/s||Y||Y|
|9.||Fujifilm X30||2360||n||3.0 / 920||tilting||n||1/4000s||12.0/s||Y||Y|
|10.||Nikon P900||921||n||3.0 / 921||swivel||n||1/4000s||7.0/s||Y||Y|
|11.||Panasonic FZ2500||2360||n||3.0 / 1040||swivel||Y||1/4000s||12.0/s||Y||Y|
|12.||Panasonic LX100||2764||n||3.0 / 921||fixed||n||1/4000s||11.0/s||n||Y|
|13.||Panasonic G6||1440||n||3.0 / 1036||swivel||Y||1/4000s||7.0/s||Y||n|
|14.||Panasonic GF6||none||n||3.0 / 1040||tilting||Y||1/4000s||4.2/s||Y||n|
|15.||Panasonic GF3||none||n||3.0 / 460||fixed||Y||1/4000s||3.2/s||Y||n|
|16.||Panasonic G10||202||n||3.0 / 460||fixed||n||1/4000s||2.6/s||Y||n|
|17.||Panasonic G2||1440||n||3.0 / 460||swivel||Y||1/4000s||2.6/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The GF5 has one, while the XC10 does not. While the built-in flash of the GF5 is not very powerful, it can at times be useful as a fill-in light.
The Canon XC10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XC10 writes its imaging data to CFast or SDXC cards, while the GF5 uses SDXC cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the GF5 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon XC10 and Panasonic Lumix DMC-GF5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon XC10||Y||stereo / mono||Y||Y||mini||2.0||Y||Y||-|
|2.||Panasonic GF5||-||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Canon G7 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|4.||Canon G5 X||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon G9 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|6.||Canon G1 X Mark II||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|7.||Canon G7 X||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|8.||Canon SX60||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Fujifilm X30||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|10.||Nikon P900||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Panasonic FZ2500||Y||stereo / mono||Y||Y||micro||2.0||Y||-||-|
|12.||Panasonic LX100||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|13.||Panasonic G6||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|14.||Panasonic GF6||-||stereo / mono||-||-||mini||2.0||Y||Y||-|
|15.||Panasonic GF3||-||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Panasonic G10||Y||mono / -||-||-||mini||2.0||-||-||-|
|17.||Panasonic G2||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the XC10 has a hotshoe, while the GF5 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Both the XC10 and the GF5 have been discontinued, but can regularly be found used on ebay. The GF5 was replaced by the Panasonic GF6, while the XC10 was followed by the Canon XC15. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what conclusions can be drawn? Which of the two cameras – the Canon XC10 or the Panasonic GF5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon XC10:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More detailed LCD: Has a higher resolution rear screen (1030k vs 920k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Has a lens built-in, whereas the GF5 requires a separate lens.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 3 years of technical progress since the GF5 launch.
Advantages of the Panasonic Lumix DMC-GF5:
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- More compact: Is smaller (108x67mm vs 125x102mm) and will fit more readily into a bag.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- More heavily discounted: Has been around for much longer (launched in April 2012).
If the count of relative strengths (bullet points above) is taken as a measure, the XC10 is the clear winner of the match-up (14 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XC10 and the Panasonic GF5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the XC10 or the GF5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XC10||..||..||..||80/100||..||..||Apr 2015||2,499||ebay.com|
|2.||Panasonic GF5||3/5||..||..||..||4.5/5||4.5/5||Apr 2012||499||ebay.com|
|3.||Canon G7 X Mark II||4.5/5||+ +||..||81/100||4.5/5||4.5/5||Feb 2016||699||ebay.com|
|4.||Canon G5 X||5/5||+ +||..||78/100||4.5/5||4.5/5||Oct 2015||799||ebay.com|
|5.||Canon G9 X||3.5/5||+ +||..||..||4.5/5||4.5/5||Oct 2015||529||ebay.com|
|6.||Canon G1 X Mark II||3/5||+||..||77/100||4/5||4.5/5||Feb 2014||799||ebay.com|
|7.||Canon G7 X||4/5||+ +||..||77/100||4.5/5||4.5/5||Sep 2014||699||ebay.com|
|8.||Canon SX60||3/5||+ +||..||75/100||4/5||4.5/5||Sep 2014||549||ebay.com|
|9.||Fujifilm X30||4/5||..||..||76/100||4.5/5||4.5/5||Aug 2014||599||ebay.com|
|10.||Nikon P900||..||..||..||77/100||4/5||4/5||Mar 2015||599||ebay.com|
|11.||Panasonic FZ2500||..||+||..||82/100||4.5/5||5/5||Sep 2016||1,199||amazon.com|
|12.||Panasonic LX100||5/5||+ +||..||85/100||5/5||5/5||Sep 2014||899||ebay.com|
|13.||Panasonic G6||4/5||+ +||..||..||5/5||4.5/5||Apr 2013||599||ebay.com|
|14.||Panasonic GF6||..||+ +||..||..||4.5/5||4.5/5||Apr 2013||499||ebay.com|
|15.||Panasonic GF3||3/5||82/100||..||71/100||4.5/5||4/5||Jun 2011||549||ebay.com|
|16.||Panasonic G10||3/5||..||..||70/100||4/5||4/5||Mar 2010||499||ebay.com|
|17.||Panasonic G2||..||..||..||72/100||4/5||4.5/5||Mar 2010||599||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 5D Mark II vs Canon XC10
- Canon R3 vs Panasonic GF5
- Canon T5i vs Panasonic GF5
- Canon T7i vs Canon XC10
- Canon XC10 vs Fujifilm X-A3
- Canon XC10 vs Fujifilm X-A5
- Canon XC10 vs Fujifilm X-Pro2
- Canon XC10 vs Panasonic FZ150
- Leica X Typ 113 vs Panasonic GF5
- Nikon D800E vs Panasonic GF5
- Panasonic GF5 vs Samsung NX500
- Panasonic GF5 vs Sony RX1R
Specifications: Canon XC10 vs Panasonic GF5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XC10||Panasonic GF5|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-240mm f/2.8-5.6||Micro Four Thirds lenses|
|Launch Date||April 2015||April 2012|
|Launch Price||USD 2,499||USD 499|
|Sensor Specs||Canon XC10||Panasonic GF5|
|Sensor Format||1" Sensor||Four Thirds Sensor|
|Sensor Size||12.8 x 9.6 mm||17.3 x 13.0 mm|
|Sensor Area||122.88 mm2||224.9 mm2|
|Sensor Diagonal||16 mm||21.6 mm|
|Sensor Resolution||12 Megapixels||12 Megapixels|
|Image Resolution||4000 x 3000 pixels||4000 x 3000 pixels|
|Pixel Pitch||3.20 μm||4.33 μm|
|Pixel Density||9.77 MP/cm2||5.34 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||1080/60i Video|
|ISO Setting||160 - 20,000 ISO||160 - 6,400 ISO|
|ISO Boost||no Enhancement||160 - 12,800 ISO|
|Image Processor||DIGIC DV5||Venus FHD|
|DXO Sensor Quality (score)||..||61|
|DXO Color Depth (bits)||..||21.4|
|DXO Dynamic Range (EV)||..||11.6|
|DXO Low Light (ISO)||..||618|
|Screen Specs||Canon XC10||Panasonic GF5|
|Viewfinder Type||no viewfinder||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1030k dots||920k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Shooting Specs||Canon XC10||Panasonic GF5|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||3.8 shutter flaps/s||4 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CFAST or SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon XC10||Panasonic GF5|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon XC10||Panasonic GF5|
|Battery Life (CIPA)||370 shots per charge||360 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
125 x 102 x 122 mm
(4.9 x 4.0 x 4.8 in)
108 x 67 x 37 mm
(4.3 x 2.6 x 1.5 in)
|Camera Weight||1040 g (36.7 oz)||267 g (9.4 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
