Canon T8i vs Fujifilm X-T20
The Canon EOS Rebel T8i (called Canon 850D in some regions) and the Fujifilm X-T20 are two digital cameras that were revealed to the public, respectively, in February 2020 and January 2017. The T8i is a DSLR, while the X-T20 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 24 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T8i and the Fujifilm X-T20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

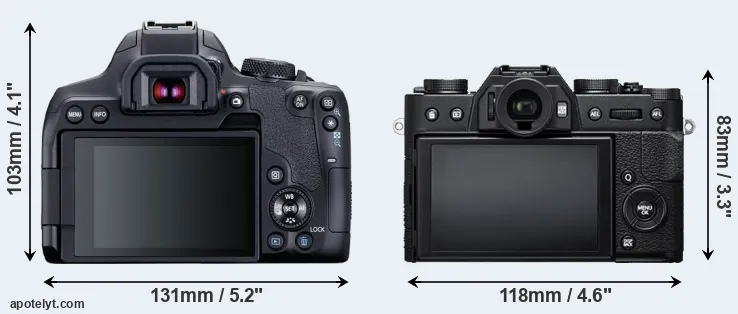

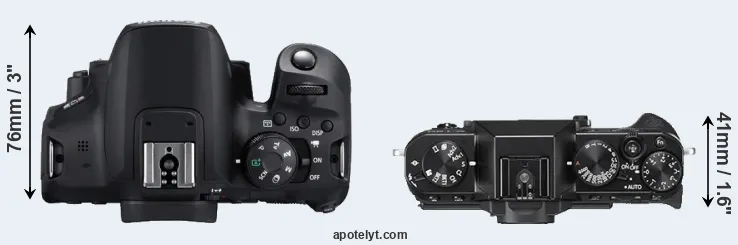

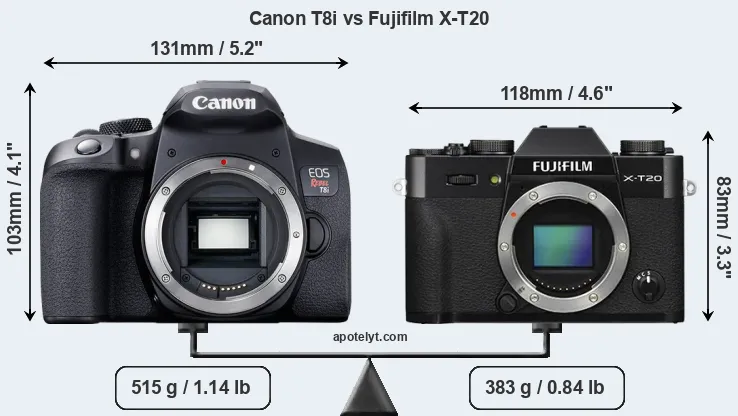

An illustration of the physical size and weight of the Canon T8i and the Fujifilm X-T20 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The X-T20 can be obtained in two different colors (black, silver), while the T8i is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T20 is notably smaller (27 percent) than the Canon T8i. Moreover, the X-T20 is markedly lighter (26 percent) than the T8i. In this context, it is worth noting that neither the T8i nor the X-T20 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T8i) and the Fujinon X Lens Catalog (X-T20). Mirrorless cameras, such as the X-T20, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the T8i gets 800 shots out of its LP-E17 battery, while the X-T20 can take 350 images on a single charge of its NP-W126S power pack. The power pack in the X-T20 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon T8i||131 mm||103 mm||76 mm||515 g||800||n||Feb 2020||749|
|2.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899|
|3.||Canon SL3||122 mm||93 mm||70 mm||449 g||1070||n||Apr 2019||599|
|4.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|5.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|6.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|7.||Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|8.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|9.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|10.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|11.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|12.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|13.||Fujifilm X-T30||118 mm||83 mm||47 mm||383 g||380||n||Feb 2019||899|
|14.||Fujifilm X-A5||117 mm||68 mm||40 mm||361 g||450||n||Jan 2018||399|
|15.||Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599|
|16.||Fujifilm X-E3||121 mm||74 mm||43 mm||337 g||350||n||Sep 2017||899|
|17.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The T8i was launched at a somewhat lower price (by 17 percent) than the X-T20, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-T20 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (T8i) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

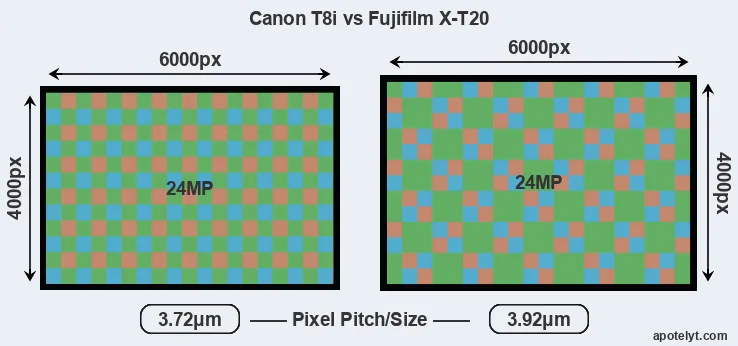

Even though the X-T20 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the X-T20 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.92μm versus 3.72μm for the T8i), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the T8i is much more recent (by 3 years) than the X-T20, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the X-T20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon EOS Rebel T8i has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Fujifilm X-T20 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-51200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-T20 provides a faster frame rate than the T8i. It can shoot movie footage at 4K/30p, while the Canon is limited to 4K/24p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the X-T20 has an electronic viewfinder (2360k dots), while the T8i has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-T20 offers a wider field of view (100%) than the one in the T8i (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the X-T20 has a higher magnification (0.62x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon T8i and Fujifilm X-T20 in connection with corresponding information for a sample of similar cameras.
|1.||Canon T8i||optical||n||3.0 / 1040||swivel||Y||1/4000s||7.5/s||Y||n|
|2.||Fujifilm X-T20||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||n|
|3.||Canon SL3||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|4.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|5.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|6.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|7.||Canon T7i||optical||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|8.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|10.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|11.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|12.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|13.||Fujifilm X-T30||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||n|
|14.||Fujifilm X-A5||none||n||3.0 / 1040||tilting||Y||1/4000s||6.0/s||Y||n|
|15.||Fujifilm X-T100||2360||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|16.||Fujifilm X-E3||2360||n||3.0 / 1040||fixed||Y||1/4000s||8.0/s||n||n|
|17.||Fujifilm X-T10||2360||n||3.0 / 920||tilting||n||1/4000s||8.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-T20 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon T8i and the Fujifilm X-T20 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the T8i and the X-T20 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T8i and Fujifilm X-T20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T8i||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|2.||Fujifilm X-T20||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|3.||Canon SL3||Y||stereo / mono||Y||-||mini||2.0||Y||-||Y|
|4.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|6.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|7.||Canon T7i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|8.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|9.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|10.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|12.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|13.||Fujifilm X-T30||Y||stereo / mono||Y||-||micro||3.1||Y||-||Y|
|14.||Fujifilm X-A5||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|15.||Fujifilm X-T100||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|16.||Fujifilm X-E3||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|17.||Fujifilm X-T10||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
The T8i is a recent model that features in the current product line-up of Canon. In contrast, the X-T20 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the X-T20 was succeeded by the Fujifilm X-T100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So what is the bottom line? Is there a clear favorite between the Canon T8i and the Fujifilm X-T20? Which camera is better? The listing below highlights the relative strengths of the two models.
Advantages of the Canon EOS Rebel T8i:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Longer lasting: Can take more shots (800 versus 350) on a single battery charge.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced segment (17 percent cheaper at launch).
- More modern: Reflects 3 years of technical progress since the X-T20 launch.
Reasons to prefer the Fujifilm X-T20:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (4K/30p versus 4K/24p).
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.62x vs 0.51x).
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (118x83mm vs 131x103mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 132g or 26 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More heavily discounted: Has been around for much longer (launched in January 2017).
If the count of individual advantages (bullet points above) is taken as a guide, the X-T20 emerges as the winner of the match-up (11 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T8i and the Fujifilm X-T20 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the T8i or the X-T20 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T8i||4.5/5||+||3/5||80/100||4/5||3.5/5||Feb 2020||749|
|2.||Fujifilm X-T20||5/5||+ +||5/5||82/100||5/5||4.5/5||Jan 2017||899|
|3.||Canon SL3||..||o||4.5/5||79/100||4/5||4/5||Apr 2019||599|
|4.||Canon T7||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|5.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|6.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|7.||Canon T7i||4.5/5||..||3.5/5||80/100||4.5/5||4/5||Feb 2017||749|
|8.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|9.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|10.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|11.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|12.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699|
|13.||Fujifilm X-T30||5/5||+ +||5/5||84/100||4.5/5||4.5/5||Feb 2019||899|
|14.||Fujifilm X-A5||..||+||4.1/5||..||4/5||3.5/5||Jan 2018||399|
|15.||Fujifilm X-T100||4/5||+||4.5/5||79/100||4/5||4.5/5||May 2018||599|
|16.||Fujifilm X-E3||4.5/5||+||4.5/5||84/100||4.5/5||4.5/5||Sep 2017||899|
|17.||Fujifilm X-T10||4.5/5||+ +||..||80/100||5/5||5/5||May 2015||799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 6D Mark II vs Canon T8i
- Canon SX420 vs Fujifilm X-T20
- Canon T8i vs Olympus E-M10 III
- Canon T8i vs Olympus E-M1X
- Canon T8i vs Sony A5100
- Canon T8i vs Sony A9 II
- Canon T8i vs Sony RX0 II
- Fujifilm X-T20 vs Leica D-LUX Typ 109
- Fujifilm X-T20 vs Leica Digilux 3
- Fujifilm X-T20 vs Olympus TG-6
- Fujifilm X-T20 vs Sony A99 II
- Fujifilm X-T20 vs Sony RX100
Specifications: Canon T8i vs Fujifilm X-T20
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T8i||Fujifilm X-T20|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||February 2020||January 2017|
|Launch Price||USD 749||USD 899|
|Sensor Specs||Canon T8i||Fujifilm X-T20|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.6 x 15.6 mm|
|Sensor Area||332.27 mm2||368.16 mm2|
|Sensor Diagonal||26.8 mm||28.3 mm|
|Sensor Resolution||24 Megapixels||24 Megapixels|
|Image Resolution||6000 x 4000 pixels||6000 x 4000 pixels|
|Pixel Pitch||3.72 μm||3.92 μm|
|Pixel Density||7.22 MP/cm2||6.52 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/24p Video||4K/30p Video|
|ISO Setting||100 - 25,600 ISO||200 - 12,800 ISO|
|ISO Boost||100 - 51,200 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 8||X-Processor Pro2|
|Screen Specs||Canon T8i||Fujifilm X-T20|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||1040k dots|
|LCD Attachment||Swivel screen||Tilting screen|
|Shooting Specs||Canon T8i||Fujifilm X-T20|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||7.5 shutter flaps/s||8 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon T8i||Fujifilm X-T20|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon T8i||Fujifilm X-T20|
|Battery Life (CIPA)||800 shots per charge||350 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
131 x 103 x 76 mm
(5.2 x 4.1 x 3.0 in)
118 x 83 x 41 mm
(4.6 x 3.3 x 1.6 in)
|Camera Weight||515 g (18.2 oz)||383 g (13.5 oz)|
