Canon T7i vs Olympus E-M5 II

The Canon EOS Rebel T7i (called Canon 800D in some regions) and the Olympus OM-D E-M5 Mark II are two digital cameras that were announced, respectively, in February 2017 and February 2015. The T7i is a DSLR, while the E-M5 II is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (T7i) and a Four Thirds (E-M5 II) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon T7i
versus
Olympus E-M5 II
Canon T7i   Olympus E-M5 II
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Micro Four Thirds lenses
24 MP – APS-C sensor 15.9 MP – Four Thirds sensor
1080/60p Video 1080/60p Video
ISO 100-25,600 (100 - 51,200) ISO 200-25,600
Optical viewfinder Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots 3.0" LCD – 1037k dots
Swivel touchscreen Swivel touchscreen
6 shutter flaps per second 10 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
600 shots per battery charge310 shots per battery charge
131 x 100 x 76 mm, 532 g 124 x 85 x 45 mm, 469 g
logo
Check T7i offers at
ebay.com
logo
Check E-M5 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T7i and the Olympus OM-D E-M5 Mark II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

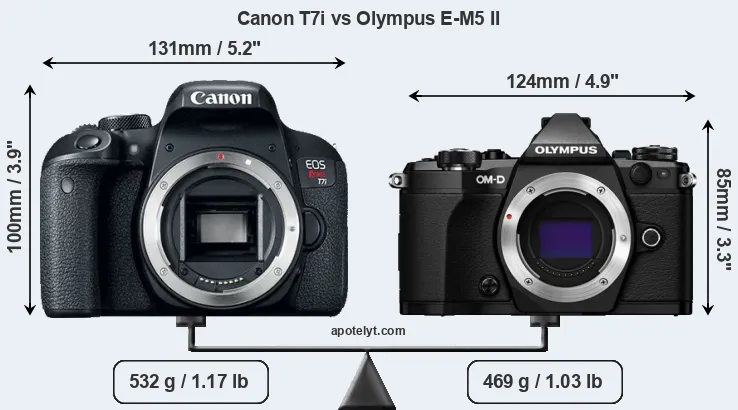

An illustration of the physical size and weight of the Canon T7i and the Olympus E-M5 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-M5 II can be obtained in two different colors (black, silver), while the T7i is only available in black.

Size Canon T7i vs Olympus E-M5 II
Compare T7i versus E-M5 II top
Comparison T7i or E-M5 II rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 II is notably smaller (20 percent) than the Canon T7i. Moreover, the E-M5 II is markedly lighter (12 percent) than the T7i. It is noteworthy in this context that the E-M5 II is splash and dust-proof, while the T7i does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T7i) and the Micro Four Thirds Lens Catalog (E-M5 II). Mirrorless cameras, such as the E-M5 II, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the T7i gets 600 shots out of its Canon LP-E17 battery, while the E-M5 II can take 310 images on a single charge of its Olympus BLN-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
2.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
3.

Canon T8i 131 mm 103 mm 76 mm 515 g 800 n Feb 2020 749ebay.com
4.

Canon T7 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 amazon.com
5.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899ebay.com
6.

Canon SL2 122 mm 93 mm 70 mm 453 g 650 n Jun 2017 549ebay.com
7.

Canon T6i 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749ebay.com
8.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
9.

Canon T5i 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 649ebay.com
10.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849ebay.com
11.

Canon T2i 129 mm 98 mm 62 mm 530 g 440 n Feb 2010 699ebay.com
12.

Canon T1i 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799ebay.com
13.

Olympus E-M5 III 125 mm 85 mm 50 mm 414 g 310 Y Oct 2019 1,199ebay.com
14.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 649ebay.com
15.

Olympus E-M10 119 mm 82 mm 46 mm 396 g 320 n Jan 2014 699ebay.com
16.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
17.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 1,299ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The T7i was launched at a markedly lower price (by 32 percent) than the E-M5 II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon T7i features an APS-C sensor and the Olympus E-M5 II a Four Thirds sensor. The sensor area in the E-M5 II is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the T7i has a native 3:2 aspect ratio, while the one in the E-M5 II offers a 4:3 aspect.

Canon T7i and Olympus E-M5 II sensor measures

With 24MP, the T7i offers a higher resolution than the E-M5 II (15.9MP), but the T7i has marginally smaller individual pixels (pixel pitch of 3.72μm versus 3.76μm for the E-M5 II). However, the T7i is a much more recent model (by 2 years) than the E-M5 II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon T7i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T7i for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-M5 II are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The T7i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the T7i, the E-M5 II has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon EOS Rebel T7i has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus OM-D E-M5 Mark II are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

T7i versus E-M5 II MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
2.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
3.

Canon T8i APS-C 24.0 6000 40004K/24p24.013.5187383
4.

Canon T7 APS-C 24.0 6000 40001080/30p23.813.3168481
5.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.397178
6.

Canon SL2 APS-C 24.0 6000 40001080/60p23.613.4104179
7.

Canon T6i APS-C 24.0 6000 40001080/30p22.712.091971
8.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
9.

Canon T5i APS-C 17.9 5184 34561080/30p21.711.268161
10.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.272262
11.

Canon T2i APS-C 17.9 5184 34561080/30p22.111.578466
12.

Canon T1i APS-C 15.1 4752 31681080/20p21.711.566363
13.

Olympus E-M5 III Four Thirds 20.2 5184 38884K/30p23.313.1132476
14.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
15.

Olympus E-M10 Four Thirds 15.9 4608 34561080/30p22.812.388472
16.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
17.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M5 II has an electronic viewfinder (2360k dots), while the T7i has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M5 II offers a wider field of view (100%) than the one in the T7i (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M5 II has a higher magnification (0.74x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon T7i, the Olympus E-M5 II, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
2.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
3.

Canon T8ioptical n3.0 / 1040 swivel Y 1/4000s 7.5/s Y n
4.

Canon T7optical n3.0 / 920 fixed n 1/4000s 3.0/s Y n
5.

Canon 77Doptical Y3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
6.

Canon SL2optical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
7.

Canon T6ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
8.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
9.

Canon T5ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
10.

Canon T4ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
11.

Canon T2ioptical n3.0 / 1040 fixed n 1/4000s 3.7/s Y n
12.

Canon T1ioptical n3.0 / 920 fixed n 1/4000s 3.4/s Y n
13.

Olympus E-M5 III2360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
14.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
15.

Olympus E-M101440 n3.0 / 1037 tilting Y 1/4000s 8.0/s Y Y
16.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
17.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The T7i has one, while the E-M5 II does not. While the built-in flash of the T7i is not very powerful, it can at times be useful as a fill-in light.

Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M5 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M5 II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the T7i and the E-M5 II write their files to SDXC cards. The E-M5 II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the T7i can use UHS-I cards (up to 104 MB/s).

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T7i and Olympus OM-D E-M5 Mark II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon T7iYstereo / monoY-mini2.0YYY
2.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
3.

Canon T8iYstereo / monoY-mini2.0Y-Y
4.

Canon T7Ymono / mono--mini2.0YY-
5.

Canon 77DYstereo / monoY-mini2.0YYY
6.

Canon SL2Ystereo / monoY-mini2.0YYY
7.

Canon T6iYstereo / monoY-mini2.0YY-
8.

Canon T6sYstereo / monoY-mini2.0YY-
9.

Canon T5iYstereo / monoY-mini2.0---
10.

Canon T4iYstereo / monoY-mini2.0---
11.

Canon T2iYstereo / -Y-mini2.0---
12.

Canon T1iYmono / mono--mini2.0---
13.

Olympus E-M5 IIIYstereo / monoY-micro2.0Y-Y
14.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
15.

Olympus E-M10Ystereo / mono--micro2.0Y--
16.

Olympus E-M1Ystereo / monoY-micro2.0Y--
17.

Olympus E-M5Ystereo / mono--mini2.0---
padding

Studio photographers will appreciate that the Olympus E-M5 II (unlike the T7i) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the T7i and the E-M5 II have been discontinued, but can regularly be found used on ebay. The E-M5 II was replaced by the Olympus E-M5 III, while the T7i was followed by the Canon T8i. Further information on the features and operation of the T7i and E-M5 II can be found, respectively, in the Canon T7i Manual (free pdf) or the online Olympus E-M5 II Manual.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon T7i or the Olympus E-M5 II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Canon EOS Rebel T7i:

  • More detail: Offers more megapixels (24 vs 15.9MP) with a 25% higher linear resolution.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (600 versus 310) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More affordable: Was introduced into a lower priced category (32 percent cheaper at launch).
  • More modern: Reflects 2 years of technical progress since the E-M5 II launch.

ilogo

Reasons to prefer the Olympus OM-D E-M5 Mark II:

  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.51x).
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (124x85mm vs 131x100mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 63g or 12 percent) and is thus easier to take along.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More heavily discounted: Has been around for much longer (launched in February 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 II emerges as the winner of the match-up (16 : 13 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

T7i 13:16 E-M5 II

How about other alternatives? Do the specifications of the Canon T7i and the Olympus E-M5 II place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the T7i or the E-M5 II perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
2.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
3.

Canon T8i4.5/5+3/580/1004/53.5/5 Feb 2020 749ebay.com
4.

Canon T7..o3.5/5..3.5/53.5/5 Feb 2018 449 amazon.com
5.

Canon 77D4.5/5..4/582/1004.5/54/5 Feb 2017 899ebay.com
6.

Canon SL24/5+ +4/578/1004.5/54.5/5 Jun 2017 549ebay.com
7.

Canon T6i5/5....75/1004.5/54.5/5 Feb 2015 749ebay.com
8.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
9.

Canon T5i......76/1004.5/54.5/5 Mar 2013 649ebay.com
10.

Canon T4i4/5+ +..77/1004.5/54.5/5 Jun 2012 849ebay.com
11.

Canon T2i..+ +..77/1004/54.5/5 Feb 2010 699ebay.com
12.

Canon T1i..+ +..74/1004.5/54.5/5 Mar 2009 799ebay.com
13.

Olympus E-M5 III5/5+5/582/1004.5/54.5/5 Oct 2019 1,199ebay.com
14.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 649ebay.com
15.

Olympus E-M104/5....80/1005/55/5 Jan 2014 699ebay.com
16.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
17.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 1,299ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check T7i offers at
ebay.com
logo
Check E-M5 II offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon T7i vs Olympus E-M5 II

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon T7i Olympus E-M5 II
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Micro Four Thirds lenses
    Launch Date February 2017 February 2015
    Launch Price USD 749 USD 1,099
    Sensor Specs Canon T7i Olympus E-M5 II
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.9 mm 17.3 x 13.0 mm
    Sensor Area 332.27 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 24 Megapixels 15.9 Megapixels
    Image Resolution 6000 x 4000 pixels 4608 x 3456 pixels
    Pixel Pitch 3.72 μm 3.76 μm
    Pixel Density 7.22 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/60p Video 1080/60p Video
    ISO Setting 100 - 25,600 ISO 200 - 25,600 ISO
    ISO Boost 100 - 51,200 ISO 100 - 25,600 ISO
    Image Processor DIGIC 7 TruePic VII
    DXO Sensor Quality (score) .. 73
    DXO Color Depth (bits) .. 23.0
    DXO Dynamic Range (EV) .. 12.5
    DXO Low Light (ISO) .. 842
    Screen Specs Canon T7i Olympus E-M5 II
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.51x 0.74x
    Viewfinder Resolution 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1037k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon T7i Olympus E-M5 II
    Focus System Phase-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 6 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/16000s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I UHS-II
    Connectivity Specs Canon T7i Olympus E-M5 II
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon T7i Olympus E-M5 II
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Canon LP-E17 Olympus BLN-1
    Battery Life (CIPA)600 shots per charge310 shots per charge
    Body Dimensions 131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    124 x 85 x 45 mm
    (4.9 x 3.3 x 1.8 in)
    Camera Weight 532 g (18.8 oz) 469 g (16.5 oz)
    logo
    Check T7i offers at
    ebay.com
    logo
    Check E-M5 II offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon T7i vs Olympus E-M5 II
