Canon T6i vs Olympus E-PM1
The Canon EOS Rebel T6i (called Canon 750D in some regions) and the Olympus PEN E-PM1 are two digital cameras that were announced, respectively, in February 2015 and June 2011. The T6i is a DSLR, while the E-PM1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (T6i) and a Four Thirds (E-PM1) sensor. The Canon has a resolution of 24 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon T6i||Olympus E-PM1|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|24 MP, APS-C Sensor||12.2 MP, Four Thirds Sensor|
|1080/30p Video||1080/60i Video|
|ISO 100-12,800 (100 - 25,600)||ISO 100-12,800|
|Optical viewfinder||Viewfinder optional|
|3.0 LCD, 1040k dots||3.0 LCD, 460k dots|
|Swivel touchscreen||Fixed screen (not touch-sensitive)|
|5 shutter flaps per second||5.5 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|440 shots per battery charge||330 shots per battery charge|
|132 x 101 x 78 mm, 555 g||110 x 64 x 34 mm, 265 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T6i and the Olympus PEN E-PM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Canon T6i and the Olympus E-PM1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The E-PM1 can be obtained in six different colors (black, silver, brown, pink, purple, white), while the T6i is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PM1 is considerably smaller (47 percent) than the Canon T6i. Moreover, the E-PM1 is substantially lighter (52 percent) than the T6i. In this context, it is worth noting that neither the T6i nor the E-PM1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T6i) and the Micro Four Thirds Lens Catalog (E-PM1). Mirrorless cameras, such as the E-PM1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|Canon T7i||131 mm||100 mm||76 mm||532 g||600||n||Feb 2017||749|
|Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|Olympus E-P3||122 mm||69 mm||34 mm||369 g||330||n||Jun 2011||799|
|Olympus E-PL2||114 mm||72 mm||42 mm||362 g||280||n||Jan 2011||599|
|Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-PM1 was launched at a markedly lower price (by 33 percent) than the T6i, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

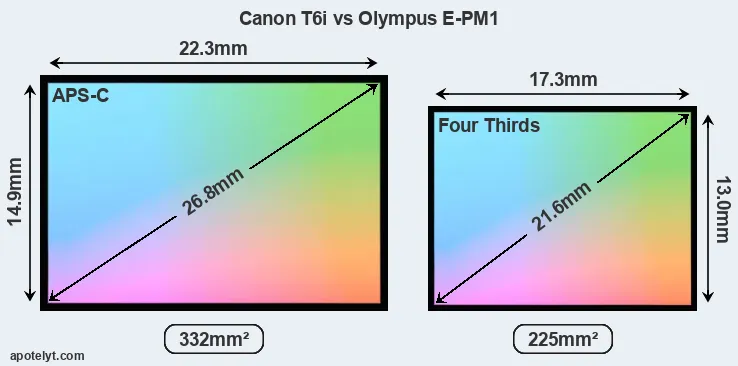

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon T6i features an APS-C sensor and the Olympus E-PM1 a Four Thirds sensor. The sensor area in the E-PM1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the T6i has a native 3:2 aspect ratio, while the one in the E-PM1 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 24MP, the T6i offers a higher resolution than the E-PM1 (12.2MP), but the T6i has smaller individual pixels (pixel pitch of 3.72μm versus 4.29μm for the E-PM1). However, the T6i is a much more recent model (by 3 years and 7 months) than the E-PM1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon T6i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T6i for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus E-PM1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The T6i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel T6i has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus PEN E-PM1 are ISO 100 to ISO 12800 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the T6i provides substantially higher image quality than the E-PM1, with an overall score that is 19 points higher. This advantage is based on 1.7 bits higher color depth, 1.7 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PM1 provides a faster frame rate than the T6i. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the T6i has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PM1 relies on live view and the rear LCD for framing. That said, the E-PM1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon T6i and Olympus E-PM1 in connection with corresponding information for a sample of similar cameras.
One difference between the cameras concerns the presence of an on-board flash. The T6i has one, while the E-PM1 does not. While the built-in flash of the T6i is not very powerful, it can at times be useful as a fill-in light.The T6i has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-PM1 does not have a selfie-screen.
Concerning the storage of imaging data, both the T6i and the E-PM1 write their files to SDXC cards. The T6i supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PM1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T6i and Olympus PEN E-PM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the T6i has a microphone port, which is missing on the E-PM1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the T6i and the E-PM1 have been discontinued, but can regularly be found used on eBay. The E-PM1 was replaced by the Olympus E-PM2, while the T6i was followed by the Canon T7i. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon T6i and the Olympus E-PM1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS Rebel T6i:
- More detail: Offers more megapixels (24 vs 12.2MP) with a 43% higher linear resolution.
- Better image quality: Scores substantially higher (19 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (1.7 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.7 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.9 stops ISO advantage).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Longer lasting: Can take more shots (440 versus 330) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 3 years and 7 months of technical progress since the E-PM1 launch.
Advantages of the Olympus PEN E-PM1:
- Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
- More compact: Is smaller (110x64mm vs 132x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 290g or 52 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was introduced into a lower priced category (33 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in June 2011).
If the number of relative strengths (bullet points above) is taken as a guide, the T6i is the clear winner of the match-up (18 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T6i and the Olympus E-PM1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the T6i or the E-PM1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon T6i||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Olympus E-PM1||86/100||71/100||4.5/5||..||4.5/5||Jun 2011||499|
|Canon 77D||..||82/100||4.5/5||4.5/5||4/5||Feb 2017||899|
|Canon T7i||..||80/100||4.5/5||4/5||4/5||Feb 2017||749|
|Canon T6s||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Canon T5||+||..||4/5||4/5||4.5/5||Feb 2014||449|
|Canon T5i||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon T4i||+ +||77/100||4.5/5||4.5/5||4.5/5||Jun 2012||849|
|Canon T1i||+ +||74/100||4.5/5||5/5||4.5/5||Mar 2009||799|
|Canon XSi||+ +||+ +||4/5||5/5||4.5/5||Jan 2008||799|
|Canon XTi||+ +||+ +||o||4.5/5||4/5||Aug 2006||799|
|Canon XT||80/100||+ +||o||o||..||Feb 2005||899|
|Olympus E-PM2||..||77/100||5/5||4.5/5||4.5/5||Sep 2012||499|
|Olympus E-P3||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799|
|Olympus E-PL2||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599|
|Olympus E-PL3||+ +||72/100||4.5/5||..||4/5||Jun 2011||599|
|Olympus E-PL1||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 1D X Mark III vs Canon T6i
- Canon 550D vs Olympus E-PM1
- Canon G5 X Mark II vs Canon T6i
- Canon T100 vs Canon T6i
- Canon T6i vs Nikon A1000
- Canon T6i vs Nikon D3400
- Canon T6i vs Panasonic ZS100
- Canon T6i vs Sony A7 III
- Nikon 1 J5 vs Olympus E-PM1
- Nikon D200 vs Olympus E-PM1
- Nikon D700 vs Olympus E-PM1
- Olympus E-PM1 vs Sony HX400V
Specifications: Canon T6i vs Olympus E-PM1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T6i||Olympus E-PM1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2015||June 2011|
|Launch Price||USD 749||USD 499|
|Sensor Specs||Canon T6i||Olympus E-PM1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||12.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||4032 x 3024 pixels|
|Pixel Pitch||3.72 μm||4.29 μm|
|Pixel Density||7.22 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||1080/60i Video|
|ISO Setting||100 - 12,800 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 6||TruePic VI|
|DXO Sensor Quality (score)||71||52|
|DXO Color Depth (bits)||22.7||21.0|
|DXO Dynamic Range (EV)||12.0||10.3|
|DXO Low Light (ISO)||919||499|
|Screen Specs||Canon T6i||Olympus E-PM1|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||460k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon T6i||Olympus E-PM1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5 shutter flaps/s||5.5 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon T6i||Olympus E-PM1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon T6i||Olympus E-PM1|
|Battery Life (CIPA)||440 shots per charge||330 shots per charge|
132 x 101 x 78 mm
(5.2 x 4.0 x 3.1 in)
110 x 64 x 34 mm
(4.3 x 2.5 x 1.3 in)
|Camera Weight||555 g (19.6 oz)||265 g (9.3 oz)|
