Canon T6 vs Nikon D5
The Canon EOS Rebel T6 (called Canon 1300D in some regions) and the Nikon D5 are two digital cameras that were officially introduced, respectively, in March 2016 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (T6) and a full frame (D5) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T6 and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

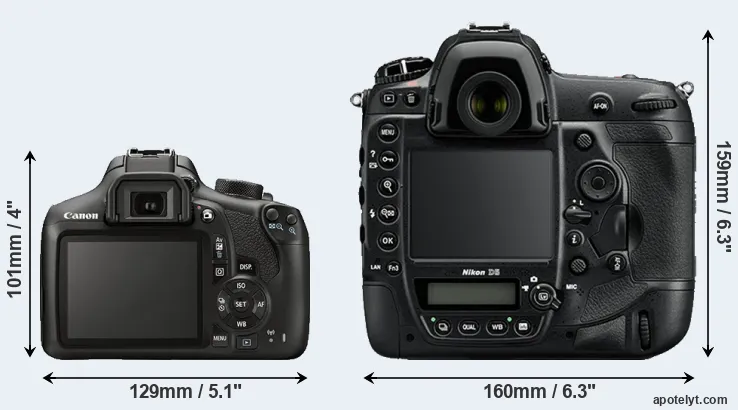

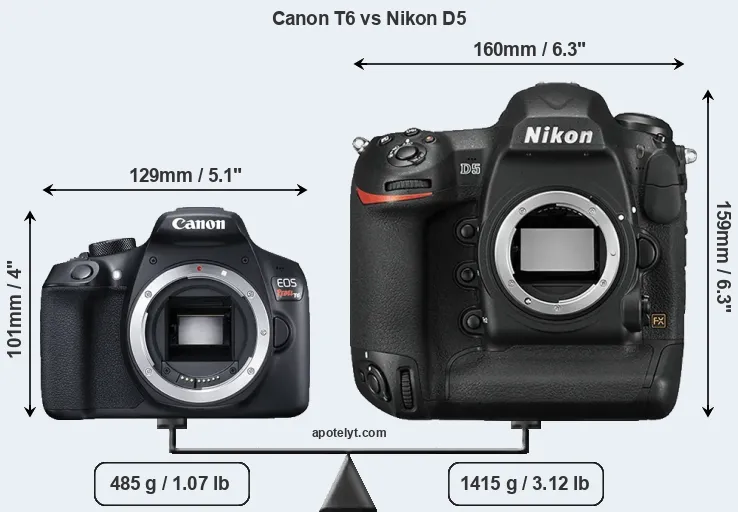

An illustration of the physical size and weight of the Canon T6 and the Nikon D5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (95 percent) than the Canon T6. Moreover, the D5 is substantially heavier (192 percent) than the T6. It is noteworthy in this context that the D5 is splash and dust-proof, while the T6 does not feature any corresponding weather-sealing.

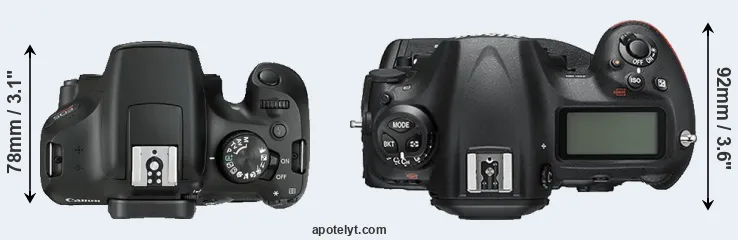

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T6) and the Nikon Lens Catalog (D5).
Concerning battery life, the T6 gets 500 shots out of its LP-E10 battery, while the D5 can take 3780 images on a single charge of its EN-EL18a power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the T6, there are third party battery grips available as optional accessories (see here on eBay).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|2.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|3.||Canon T7||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449|
|4.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|5.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|6.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|7.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|8.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|9.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|10.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|11.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|12.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|13.||Canon XS||126 mm||98 mm||65 mm||502 g||500||n||Jun 2008||449|
|14.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|15.||Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499|
|16.||Nikon D750||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299|
|17.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The T6 was launched at a markedly lower price (by 93 percent) than the D5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

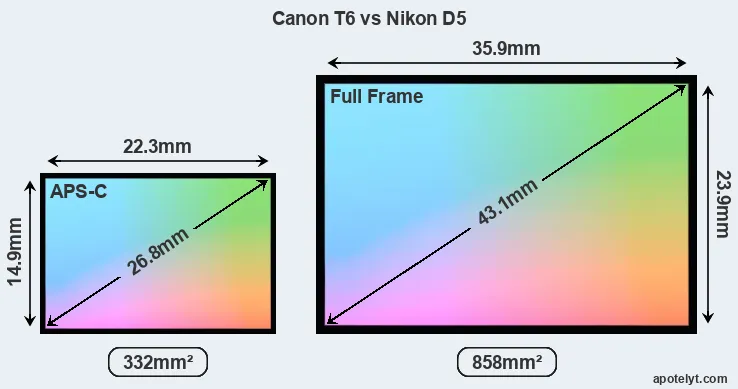

Of the two cameras under consideration, the Canon T6 features an APS-C sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

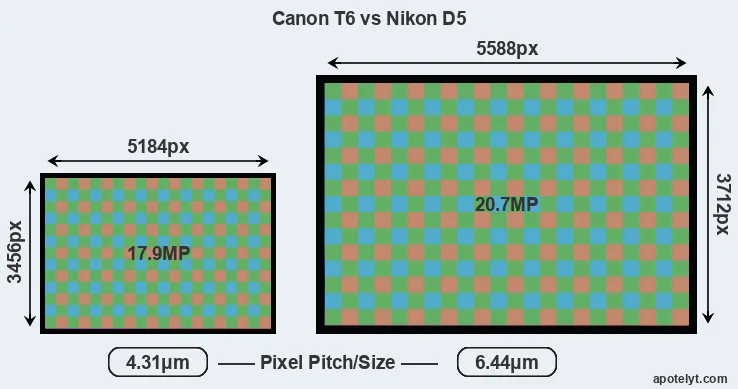

With 20.7MP, the D5 offers a higher resolution than the T6 (17.9MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 4.31μm for the T6) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation.
The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Canon T6 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS Rebel T6 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|5.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|14.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||..||..||..||..|
|15.||Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|16.||Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|17.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D5 provides a better video resolution than the T6. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The T6 and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D5 offers a wider field of view (100%) than the one in the T6 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D5 has a higher magnification (0.72x vs 0.50x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon T6 and Nikon D5 in connection with corresponding information for a sample of similar cameras.
|1.||Canon T6||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|2.||Nikon D5||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0||n||n|
|3.||Canon T7||optical||n||3.0 / 920||fixed||n||1/4000s||3.0||Y||n|
|4.||Canon T100||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|5.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0||n||n|
|6.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|7.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9||Y||n|
|8.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|9.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|10.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|11.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7||Y||n|
|12.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7||Y||n|
|13.||Canon XS||optical||n||2.5 / 230||fixed||n||1/4000s||3.0||Y||n|
|14.||Nikon D6||optical||Y||3.2 / 2359||fixed||Y||1/8000s||14.0||n||n|
|15.||Nikon D4S||optical||Y||3.2 / 921||fixed||n||1/8000s||11.0||n||n|
|16.||Nikon D750||optical||Y||3.2 / 1229||tilting||n||1/4000s||6.0||Y||n|
|17.||Nikon D610||optical||Y||3.2 / 921||fixed||n||1/4000s||6.0||Y||n|
One difference between the cameras concerns the presence of an on-board flash. The T6 has one, while the D5 does not. While the built-in flash of the T6 is not very powerful, it can at times be useful as a fill-in light.
The Nikon D5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The T6 writes its imaging data to SDXC cards, while the D5 uses Compact Flash or XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the T6 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T6 and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T6||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|2.||Nikon D5||Y||stereo / mono||Y||Y||mini||3.0||-||-||-|
|3.||Canon T7||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon T100||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|6.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|7.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|12.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|13.||Canon XS||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Nikon D6||Y||stereo / mono||Y||Y||mini||3.1||Y||-||Y|
|15.||Nikon D4S||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|16.||Nikon D750||Y||stereo / mono||Y||Y||mini||2.0||Y||-||-|
|17.||Nikon D610||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
It is notable that the T6 offers wifi support, while the D5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D5 (unlike the T6) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the T6 and the D5 have been discontinued, but can regularly be found used on eBay. The D5 was replaced by the Nikon D6, while the T6 was followed by the Canon T7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Which of the two cameras – the Canon T6 or the Nikon D5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Canon EOS Rebel T6:
- More compact: Is smaller (129x101mm vs 160x159mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 930g or 66 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced into a lower priced category (93 percent cheaper at launch).
Advantages of the Nikon D5:
- More detail: Has more megapixels (20.7 vs 17.9MP), which boosts linear resolution by 8%.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.50x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 920k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (14 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (3780 versus 500) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
If the count of relative strengths (bullet points above) is taken as a measure, the D5 is the clear winner of the contest (23 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T6 and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the T6 and the D5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T6||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449|
|2.||Nikon D5||..||..||4/5||89/100||4.5/5||5/5||Jan 2016||6,499|
|3.||Canon T7||..||o||..||..||3.5/5||3.5/5||Feb 2018||449|
|4.||Canon T100||..||o||3/5||..||3.5/5||3.5/5||Feb 2018||399|
|5.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|6.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|7.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549|
|8.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|9.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|10.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|11.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599|
|12.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699|
|13.||Canon XS||..||82/100||..||+ +||3.5/5||4.5/5||Jun 2008||449|
|14.||Nikon D6||..||..||4/5||..||4.5/5||4.5/5||Feb 2020||6,499|
|15.||Nikon D4S||5/5||..||..||..||4.5/5||4.5/5||Feb 2014||6,499|
|16.||Nikon D750||5/5||+ +||4/5||90/100||4.5/5||4.5/5||Sep 2014||2,299|
|17.||Nikon D610||4/5||+ +||..||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon T6 vs Nikon D5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T6||Nikon D5|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||March 2016||January 2016|
|Launch Price||USD 449||USD 6,499|
|Sensor Specs||Canon T6||Nikon D5|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||35.9 x 23.9 mm|
|Sensor Area||332.27 mm2||858.01 mm2|
|Sensor Diagonal||26.8 mm||43.1 mm|
|Sensor Resolution||17.9 Megapixels||20.7 Megapixels|
|Image Resolution||5184 x 3456 pixels||5588 x 3712 pixels|
|Pixel Pitch||4.31 μm||6.44 μm|
|Pixel Density||5.39 MP/cm2||2.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 102,400 ISO|
|ISO Boost||100 - 25,600 ISO||50 - 3,280,000 ISO|
|Image Processor||DIGIC 4+||EXPEED 5|
|DXO Sensor Quality (score)||..||88|
|DXO Color Depth (bits)||..||25.1|
|DXO Dynamic Range (EV)||..||12.3|
|DXO Low Light (ISO)||..||2343|
|Screen Specs||Canon T6||Nikon D5|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||920k dots||2359k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon T6||Nikon D5|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||14 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||400 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF or XQD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon T6||Nikon D5|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon T6||Nikon D5|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||500 shots per charge||3780 shots per charge|
129 x 101 x 78 mm
(5.1 x 4.0 x 3.1 in)
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
|Camera Weight||485 g (17.1 oz)||1415 g (49.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
