Canon T5i vs Olympus E-5
The Canon EOS Rebel T5i (called Canon 700D in some regions) and the Olympus E-5 are two digital cameras that were officially introduced, respectively, in March 2013 and September 2010. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (T5i) and a Four Thirds (E-5) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T5i and the Olympus E-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

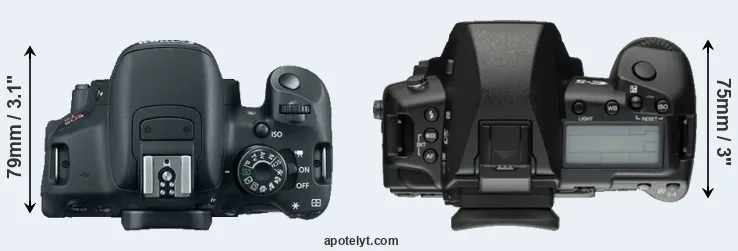

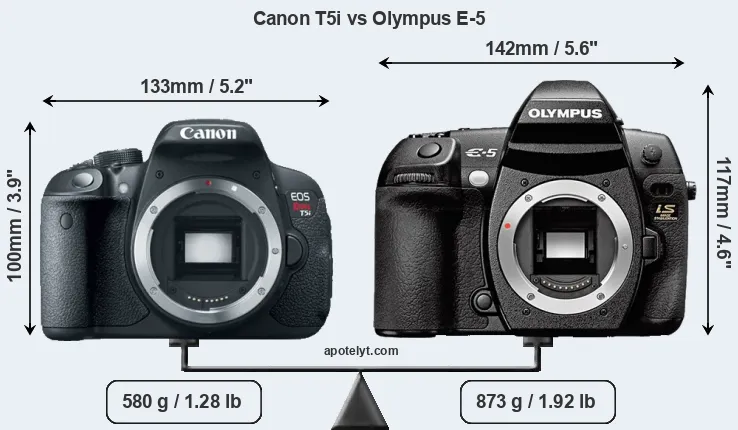

The physical size and weight of the Canon T5i and the Olympus E-5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-5 is notably larger (25 percent) than the Canon T5i. Moreover, the E-5 is substantially heavier (51 percent) than the T5i. It is noteworthy in this context that the E-5 is splash and dust-proof, while the T5i does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T5i) and the Four Thirds Lens Catalog (E-5).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|2.||Olympus E-5||142 mm||117 mm||75 mm||873 g||750||Y||Sep 2010||1,699||ebay.com|
|3.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449||ebay.com|
|4.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|5.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|6.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|7.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|8.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|9.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|10.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|11.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|12.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|13.||Olympus E-30||142 mm||108 mm||75 mm||701 g||750||n||Nov 2008||1,299||ebay.com|
|14.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699||ebay.com|
|15.||Olympus E-3||142 mm||116 mm||75 mm||876 g||750||Y||Oct 2007||1,699||ebay.com|
|16.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799||ebay.com|
|17.||Olympus E-1||141 mm||104 mm||81 mm||738 g||750||Y||Jun 2003||1,699||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The T5i was launched at a markedly lower price (by 62 percent) than the E-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

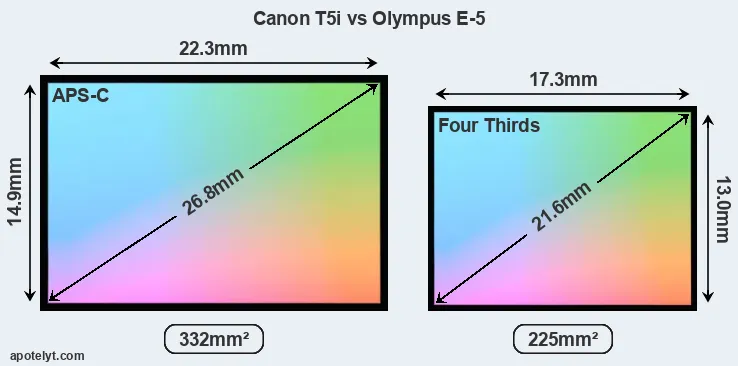

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon T5i features an APS-C sensor and the Olympus E-5 a Four Thirds sensor. The sensor area in the E-5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the T5i has a native 3:2 aspect ratio, while the one in the E-5 offers a 4:3 aspect.

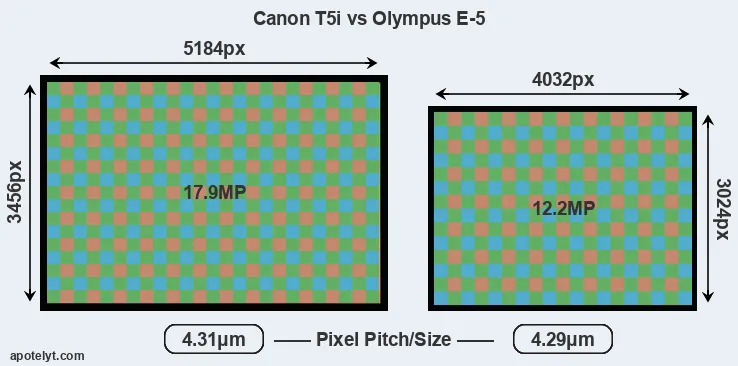

With 17.9MP, the T5i offers a higher resolution than the E-5 (12.2MP), but the T5i nevertheless has marginally larger individual pixels (pixel pitch of 4.31μm versus 4.29μm for the E-5) due to its larger sensor. Moreover, the T5i is a much more recent model (by 2 years and 6 months) than the E-5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon T5i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T5i for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-5 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The T5i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel T5i has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus E-5 are ISO 100 to ISO 6400 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the T5i has a notably higher overall DXO score than the E-5 (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.099999999999998 bits higher color depth, 0.7 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|2.||Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56|
|13.||Olympus E-30||Four Thirds||12.2||4032||3024||none||21.3||10.4||530||55|
|14.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|15.||Olympus E-3||Four Thirds||10.0||3648||2736||none||21.6||10.5||571||56|
|16.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|17.||Olympus E-1||Four Thirds||4.9||2560||1920||none||20.0||9.7||-145||44|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the T5i provides a higher video resolution than the E-5. It can shoot video footage at 1080/30p, while the Olympus is limited to 720/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The T5i and the E-5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-5 offers a wider field of view (100%) than the one in the T5i (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-5 has a higher magnification (0.58x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon T5i and Olympus E-5 in connection with corresponding information for a sample of similar cameras.
|1.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Olympus E-5||optical||Y||3.0 / 920||swivel||n||1/8000s||5.0/s||Y||Y|
|3.||Canon T6||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|7.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|8.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|9.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|10.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|11.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|12.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|13.||Olympus E-30||optical||Y||2.7 / 230||swivel||n||1/8000s||5.0/s||Y||Y|
|14.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||Y|
|15.||Olympus E-3||optical||Y||2.5 / 230||swivel||n||1/8000s||5.0/s||Y||Y|
|16.||Olympus E-510||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||Y|
|17.||Olympus E-1||optical||Y||1.8 / 134||fixed||n||1/4000s||3.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The T5i has a touchscreen, while the E-5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The T5i writes its imaging data to SDXC cards, while the E-5 uses Compact Flash or xD Picture cards. The E-5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the T5i only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5i and Olympus E-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus E-5||Y||stereo / -||-||-||mini||2.0||-||-||-|
|3.||Canon T6||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|6.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|7.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|12.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Olympus E-30||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-3||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-510||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Olympus E-1||Y||- / -||-||-||-||2.0||-||-||-|
It is notable that the T5i has a microphone port, which is missing on the E-5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Studio photographers will appreciate that the Olympus E-5 (unlike the T5i) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the T5i and the E-5 have been discontinued, but can regularly be found used on ebay. The T5i was replaced by the Canon T6i, while the E-5 does not have a direct successor. Further information on the features and operation of the T5i and E-5 can be found, respectively, in the Canon T5i Manual (free pdf) or the online Olympus E-5 Manual.
So how do things add up? Is there a clear favorite between the Canon T5i and the Olympus E-5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Rebel T5i:
- More detail: Offers more megapixels (17.9 vs 12.2MP) with a 24% higher linear resolution.
- Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (0.7 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- More compact: Is smaller (133x100mm vs 142x117mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 293g or 34 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
- More modern: Reflects 2 years and 6 months of technical progress since the E-5 launch.
Reasons to prefer the Olympus E-5:
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.53x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Gets more shots (750 versus 440) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in September 2010).
If the count of relative strengths (bullet points above) is taken as a measure, the T5i emerges as the winner of the contest (13 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T5i and the Olympus E-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the T5i and the E-5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|2.||Olympus E-5||4/5||..||..||75/100||4/5||4.5/5||Sep 2010||1,699||ebay.com|
|3.||Canon T6||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449||ebay.com|
|4.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|5.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|6.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|7.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|8.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|9.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|10.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|11.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|12.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|13.||Olympus E-30||..||..||..||71/100||4.5/5||4/5||Nov 2008||1,299||ebay.com|
|14.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699||ebay.com|
|15.||Olympus E-3||..||88/100||..||+ +||o||4/5||Oct 2007||1,699||ebay.com|
|16.||Olympus E-510||..||89/100||..||+ +||3.5/5||4.5/5||Mar 2007||799||ebay.com|
|17.||Olympus E-1||..||..||..||+||o||..||Jun 2003||1,699||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 100D vs Olympus E-5
- Canon 40D vs Canon T5i
- Canon 800D vs Olympus E-5
- Canon T5i vs Leica S Typ 006
- Canon T5i vs Nikon 1 V2
- Canon T5i vs Olympus E-M10 III
- Canon T5i vs Olympus E-P3
- Canon T5i vs Sony HX99
- Leica M-E Typ 240 vs Olympus E-5
- Nikon D850 vs Olympus E-5
- Olympus E-5 vs Olympus E-M10 IV
- Olympus E-5 vs Sony A7 II
Specifications: Canon T5i vs Olympus E-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T5i||Olympus E-5|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||March 2013||September 2010|
|Launch Price||USD 649||USD 1,699|
|Sensor Specs||Canon T5i||Olympus E-5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||12.2 Megapixels|
|Image Resolution||5184 x 3456 pixels||4032 x 3024 pixels|
|Pixel Pitch||4.31 μm||4.29 μm|
|Pixel Density||5.39 MP/cm2||5.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||720/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||DIGIC 5||TruePic V+|
|DXO Sensor Quality (score)||61||56|
|DXO Color Depth (bits)||21.7||21.6|
|DXO Dynamic Range (EV)||11.2||10.5|
|DXO Low Light (ISO)||681||519|
|Screen Specs||Canon T5i||Olympus E-5|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||920k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon T5i||Olympus E-5|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||5 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||150 000 actuations|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Single or Dual Card Slots||Single card slot||Dual card slots|
|Connectivity Specs||Canon T5i||Olympus E-5|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon T5i||Olympus E-5|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||440 shots per charge||750 shots per charge|
133 x 100 x 79 mm
(5.2 x 3.9 x 3.1 in)
142 x 117 x 75 mm
(5.6 x 4.6 x 3.0 in)
|Camera Weight||580 g (20.5 oz)||873 g (30.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
