Canon T5i vs Leica TL
The Canon EOS Rebel T5i (called Canon 700D in some regions) and the Leica TL are two digital cameras that were officially introduced, respectively, in March 2013 and November 2016. The T5i is a DSLR, while the TL is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Leica provides 16.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T5i and the Leica TL? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

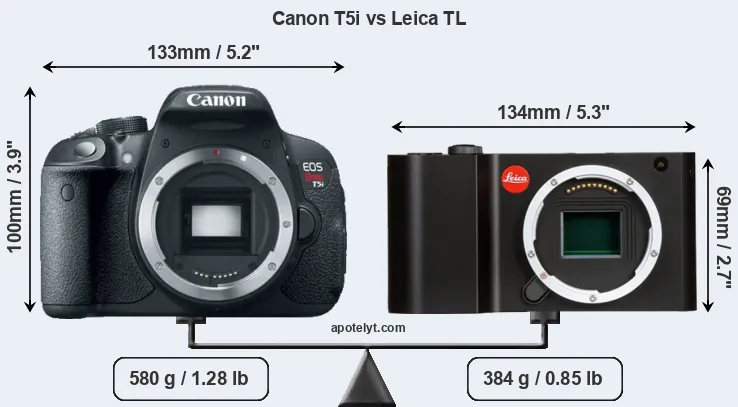

The physical size and weight of the Canon T5i and the Leica TL are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The TL can be obtained in three different colors (black, silver, titanium), while the T5i is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica TL is considerably smaller (30 percent) than the Canon T5i. Moreover, the TL is markedly lighter (34 percent) than the T5i. In this context, it is worth noting that neither the T5i nor the TL are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the TL can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649||ebay.com|
|2.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695||ebay.com|
|3.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449||ebay.com|
|4.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||ebay.com|
|5.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649||ebay.com|
|6.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||ebay.com|
|7.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549||ebay.com|
|8.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599||ebay.com|
|9.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849||ebay.com|
|10.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599||ebay.com|
|11.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699||ebay.com|
|12.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799||ebay.com|
|13.||Fujifilm X-A10||117 mm||67 mm||40 mm||331 g||410||n||Dec 2016||399||ebay.com|
|14.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399||ebay.com|
|15.||Fujifilm X-Pro1||140 mm||82 mm||43 mm||450 g||300||n||Jan 2012||1,699||ebay.com|
|16.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950||ebay.com|
|17.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The T5i was launched at a markedly lower price (by 62 percent) than the TL, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the TL is 12 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (T5i) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
Despite having a smaller sensor, the Canon T5i offers a higher resolution of 17.9 megapixels, compared with 16.1 MP of the Leica TL. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 4.80μm for the TL). Moreover, it should be noted that the TL is much more recent (by 3 years and 7 months) than the T5i, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the TL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon T5i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T5i for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Leica TL are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.
The T5i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel T5i has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica TL are ISO 100 to ISO 12500 (no boost).
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).
Beyond body and sensor, cameras can and do differ across a range of features. For example, the T5i has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TL relies on live view and the rear LCD for framing. That said, the TL can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Canon T5i and Leica TL in connection with corresponding information for a sample of similar cameras.
|1.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|2.||Leica TL||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|3.||Canon T6||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0/s||Y||n|
|7.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9/s||Y||n|
|8.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3/s||n||n|
|9.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|10.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7/s||Y||n|
|11.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7/s||Y||n|
|12.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|13.||Fujifilm X-A10||none||n||3.0 / 1040||tilting||n||1/4000s||6.0/s||Y||n|
|14.||Fujifilm X-A2||none||n||3.0 / 920||tilting||n||1/4000s||5.6/s||Y||n|
|15.||Fujifilm X-Pro1||1440||n||3.0 / 1230||fixed||n||1/4000s||6.0/s||n||n|
|16.||Leica TL2||optional||n||3.7 / 1230||fixed||Y||1/4000s||7.0/s||n||n|
|17.||Leica T||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
Concerning the storage of imaging data, both the T5i and the TL write their files to SDXC cards. The T5i supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the TL cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5i and Leica TL and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|2.||Leica TL||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|3.||Canon T6||Y||mono / mono||-||-||mini||2.0||Y||Y||-|
|4.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|6.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|7.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|11.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|12.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Fujifilm X-A10||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|14.||Fujifilm X-A2||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|15.||Fujifilm X-Pro1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Leica TL2||Y||stereo / mono||-||-||micro||3.0||Y||-||-|
|17.||Leica T||Y||stereo / mono||-||-||-||2.0||Y||-||-|
It is notable that the T5i has a microphone port, which is missing on the TL. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the T5i and the TL have been discontinued, but can regularly be found used on ebay. The T5i was replaced by the Canon T6i, while the TL was followed by the Leica TL2. Further information on the features and operation of the T5i and TL can be found, respectively, in the Canon T5i Manual (free pdf) or the online Leica TL Manual.
So how do things add up? Is there a clear favorite between the Canon T5i and the Leica TL? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Rebel T5i:
- More detail: Offers more megapixels (17.9 vs 16.1MP) with a 5% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in March 2013).
Reasons to prefer the Leica TL:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1230k vs 1040k dots).
- More compact: Is smaller (134x69mm vs 133x100mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 196g or 34 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Reflects 3 years and 7 months of technical progress since the T5i launch.
If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (10 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T5i and the Leica TL place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the T5i and the TL in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649||ebay.com|
|2.||Leica TL||..||..||..||..||..||4/5||Nov 2016||1,695||ebay.com|
|3.||Canon T6||4/5||o||4/5||73/100||4/5||4/5||Mar 2016||449||ebay.com|
|4.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749||ebay.com|
|5.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649||ebay.com|
|6.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449||ebay.com|
|7.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549||ebay.com|
|8.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599||ebay.com|
|9.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849||ebay.com|
|10.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599||ebay.com|
|11.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699||ebay.com|
|12.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799||ebay.com|
|13.||Fujifilm X-A10||..||..||..||..||4/5||4/5||Dec 2016||399||ebay.com|
|14.||Fujifilm X-A2||4/5||..||..||..||4.5/5||4.5/5||Jan 2015||399||ebay.com|
|15.||Fujifilm X-Pro1||5/5||+ +||..||79/100||4.5/5||4.5/5||Jan 2012||1,699||ebay.com|
|16.||Leica TL2||3.5/5||..||3/5||..||4/5||4/5||Jul 2017||1,950||ebay.com|
|17.||Leica T||3/5||..||..||..||4/5||4/5||Apr 2014||1,850||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon T5i vs Leica TL
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T5i||Leica TL|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Leica T mount lenses|
|Launch Date||March 2013||November 2016|
|Launch Price||USD 649||USD 1,695|
|Sensor Specs||Canon T5i||Leica TL|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.6 x 15.7 mm|
|Sensor Area||332.27 mm2||370.52 mm2|
|Sensor Diagonal||26.8 mm||28.3 mm|
|Sensor Resolution||17.9 Megapixels||16.1 Megapixels|
|Image Resolution||5184 x 3456 pixels||4928 x 3264 pixels|
|Pixel Pitch||4.31 μm||4.80 μm|
|Pixel Density||5.39 MP/cm2||4.34 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||1080/30p Video|
|ISO Setting||100 - 12,800 ISO||100 - 12,500 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||61||..|
|DXO Color Depth (bits)||21.7||..|
|DXO Dynamic Range (EV)||11.2||..|
|DXO Low Light (ISO)||681||..|
|Screen Specs||Canon T5i||Leica TL|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.7inch|
|LCD Resolution||1040k dots||1230k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Canon T5i||Leica TL|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||5 shutter flaps/s||5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon T5i||Leica TL|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon T5i||Leica TL|
|Battery Life (CIPA)||440 shots per charge||400 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
133 x 100 x 79 mm
(5.2 x 3.9 x 3.1 in)
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
|Camera Weight||580 g (20.5 oz)||384 g (13.5 oz)|
