Canon T5 vs Nikon D500
The Canon EOS Rebel T5 (called Canon 1200D in some regions) and the Nikon D500 are two digital cameras that were announced, respectively, in February 2014 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon T5||Nikon D500|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|17.9 MP, APS-C Sensor||20.7 MP, APS-C Sensor|
|1080/30p Video||4K/30p Video|
|ISO 100-6,400 (100 - 12,800)||ISO 100-51,200 (50 - 1,640,000)|
|Optical viewfinder||Optical viewfinder|
|3.0 LCD, 460k dots||3.2 LCD, 2359k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|3 shutter flaps per second||10 shutter flaps per second|
|not weather sealed||Weathersealed body|
|500 shots per battery charge||1240 shots per battery charge|
|130 x 100 x 78 mm, 480 g||147 x 115 x 81 mm, 860 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T5 and the Nikon D500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

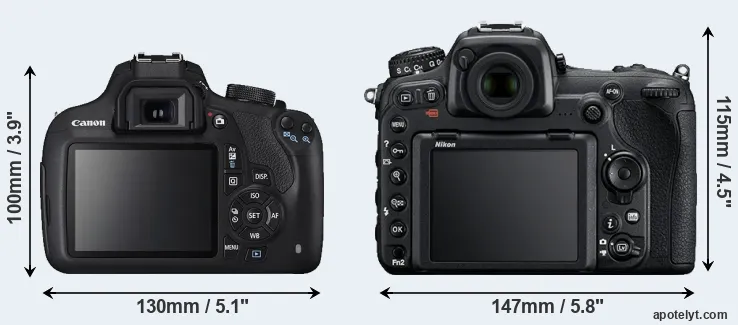

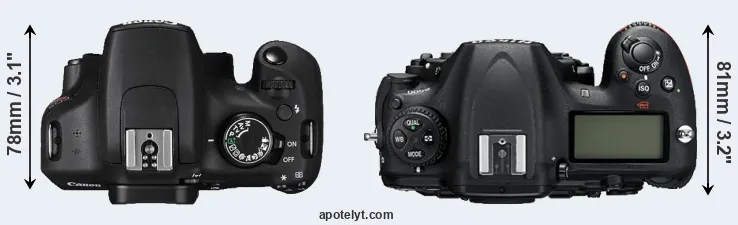

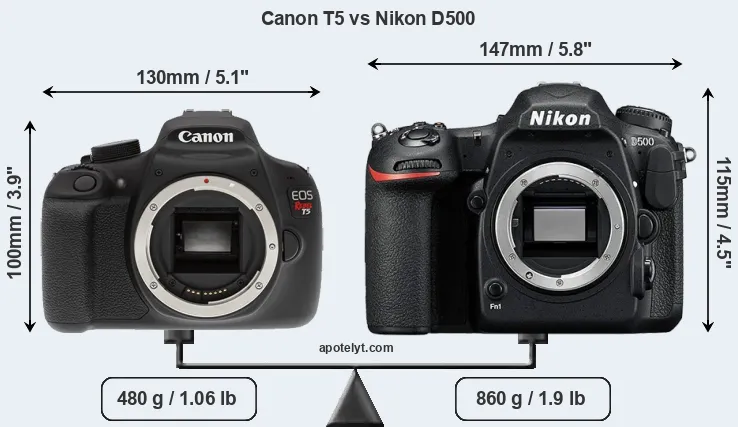

The side-by-side display below illustrates the physical size and weight of the Canon T5 and the Nikon D500. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D500 is notably larger (30 percent) than the Canon T5. Moreover, the D500 is substantially heavier (79 percent) than the T5. It is noteworthy in this context that the D500 is splash and dust-proof, while the T5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Yet, since both cameras are based around an APS-C sensor, their respective lenses will tend to have similar dimensions and heft. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T5) and the Nikon Lens Catalog (D500).
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The T5 was launched at a markedly lower price (by 78 percent) than the D500, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

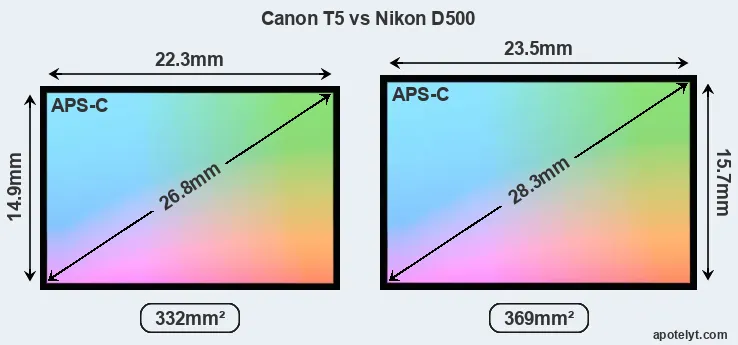

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D500 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (T5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

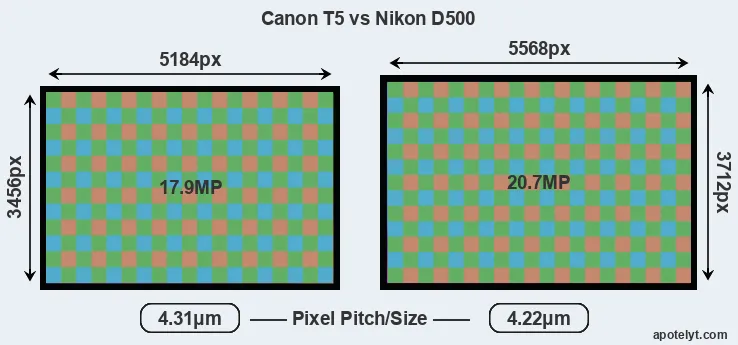

With 20.7MP, the D500 offers a higher resolution than the T5 (17.9MP), but the D500 has marginally smaller individual pixels (pixel pitch of 4.22μm versus 4.31μm for the T5). Yet, the D500 is a somewhat more recent model (by 1 year and 10 months) than the T5, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D500 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Canon T5 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The Canon EOS Rebel T5 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Nikon D500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-1640000.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D500 offers substantially better image quality than the T5 (overall score 20 points higher). The advantage is based on 2.1 bits higher color depth, 2.7 EV in additional dynamic range, and 0.9 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D500 provides a better video resolution than the T5. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The T5 and the D500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D500 offers a wider field of view (100%) than the one in the T5 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D500 has a higher magnification (0.67x vs 0.50x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon T5 and Nikon D500 in connection with corresponding information for a sample of similar cameras.
One difference between the cameras concerns the presence of an on-board flash. The T5 has one, while the D500 does not. While the built-in flash of the T5 is not very powerful, it can at times be useful as a fill-in light.
The Nikon D500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The T5 writes its imaging data to SDXC cards, while the D500 uses SDHC or XQD cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the T5 only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the T5 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5 and Nikon D500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the D500 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the T5 does not provide wifi capability.
Studio photographers will appreciate that the Nikon D500 (unlike the T5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The D500 is a recent model that features in the current product line-up of Nikon. In contrast, the T5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the T5 was succeeded by the Canon T6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Is there a clear favorite between the Canon T5 and the Nikon D500? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Rebel T5:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More compact: Is smaller (130x100mm vs 147x115mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 380g or 44 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in February 2014).
Reasons to prefer the Nikon D500:
- More detail: Has more megapixels (20.7 vs 17.9MP), which boosts linear resolution by 7%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (20 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.1 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (2.7 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.9 stops ISO advantage).
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.67x vs 0.50x).
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 460k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Gets more shots (1240 versus 500) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
- More modern: Was introduced somewhat (1 year and 10 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the D500 is the clear winner of the contest (29 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T5 and the Nikon D500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the T5 or the D500 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon T5||+||..||4/5||4/5||4.5/5||Feb 2014||449|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Canon T100||o||..||3.5/5||..||3.5/5||Feb 2018||399|
|Canon T6||o||73/100||4/5||3.5/5||4/5||Mar 2016||449|
|Canon T6i||..||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749|
|Canon T6s||+||77/100||4.5/5||4.5/5||4.5/5||Feb 2015||649|
|Canon SL1||+||78/100||4/5||4/5||4/5||Mar 2013||549|
|Canon T5i||..||76/100||4.5/5||4.5/5||4.5/5||Mar 2013||649|
|Canon T4i||+ +||77/100||4.5/5||4.5/5||4.5/5||Jun 2012||849|
|Canon T3||80/100||69/100||4/5||4/5||4.5/5||Feb 2011||449|
|Canon T3i||o||77/100||4.5/5||5/5||4.5/5||Feb 2011||599|
|Canon T2i||+ +||77/100||4/5||5/5||4.5/5||Feb 2010||699|
|Nikon D7500||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299|
|Nikon D7200||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199|
|Nikon D7100||+ +||85/100||4.5/5||5/5||4.5/5||Feb 2013||1,199|
|Nikon D610||+ +||87/100||4.5/5||4.5/5||4.5/5||Oct 2013||1,999|
|Nikon D300S||+ +||82/100||4/5||5/5||4.5/5||Jul 2009||1,799|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon T5 vs Nikon D500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T5||Nikon D500|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||February 2014||January 2016|
|Launch Price||USD 449||USD 1,999|
|Sensor Specs||Canon T5||Nikon D500|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.5 x 15.7 mm|
|Sensor Area||332.27 mm2||368.95 mm2|
|Sensor Diagonal||26.8 mm||28.3 mm|
|Sensor Resolution||17.9 Megapixels||20.7 Megapixels|
|Image Resolution||5184 x 3456 pixels||5568 x 3712 pixels|
|Pixel Pitch||4.31 μm||4.22 μm|
|Pixel Density||5.39 MP/cm2||5.60 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100 - 6,400 ISO||100 - 51,200 ISO|
|ISO Boost||100 - 12,800 ISO||50 - 1,640,000 ISO|
|Image Processor||DIGIC 4||EXPEED 5|
|DXO Sensor Quality (score)||63||83|
|DXO Color Depth (bits)||21.9||24.0|
|DXO Dynamic Range (EV)||11.3||14.0|
|DXO Low Light (ISO)||724||1324|
|Screen Specs||Canon T5||Nikon D500|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||460k dots||2359k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon T5||Nikon D500|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3 shutter flaps/s||10 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||200 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC or XQD cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||no||UHS-II|
|Connectivity Specs||Canon T5||Nikon D500|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon T5||Nikon D500|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||500 shots per charge||1240 shots per charge|
130 x 100 x 78 mm
(5.1 x 3.9 x 3.1 in)
147 x 115 x 81 mm
(5.8 x 4.5 x 3.2 in)
|Camera Weight||480 g (16.9 oz)||860 g (30.3 oz)|
