Canon T5 vs Leica M8

The Canon EOS Rebel T5 (called Canon 1200D in some regions) and the Leica M8 are two digital cameras that were officially introduced, respectively, in February 2014 and September 2006. The T5 is a DSLR, while the M8 is a rangefinder-focusing mirrorless camera. The cameras are based on an APS-C (T5) and an APS-H (M8) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Leica provides 10.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon T5		Leica M8
Digital single lens reflex		Rangefinder camera
Canon EF mount lenses		Leica M mount lenses
17.9 MP – APS-C sensor		10.4 MP – APS-H sensor
1080/30p Video		no Video
ISO 100-6,400 (100 - 12,800)		ISO 160-2,500
Optical viewfinder		Optical viewfinder
3.0" LCD – 460k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		2 shutter flaps per second
500 shots per battery charge		550 shots per battery charge
130 x 100 x 78 mm, 480 g		139 x 80 x 37 mm, 591 g

Check T5 offers at
ebay.com
Check M8 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T5 and the Leica M8? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

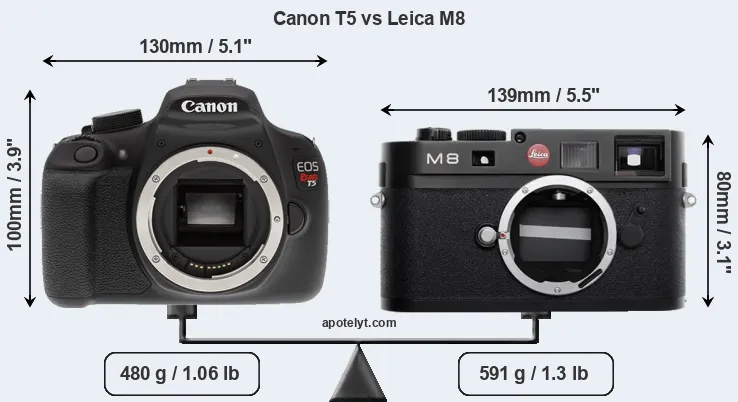

The physical size and weight of the Canon T5 and the Leica M8 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The M8 can be obtained in two different colors (black, silver), while the T5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M8 is notably smaller (14 percent) than the Canon T5. However, the M8 is markedly heavier (23 percent) than the T5. In this context, it is worth noting that neither the T5 nor the M8 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T5) and the Leica M Lens Catalog (M8).

Concerning battery life, the T5 gets 500 shots out of its Canon LP-E10 battery, while the M8 can take 550 images on a single charge of its Leica BLI-312 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
2.		Leica M8	139 mm	80 mm	37 mm	591 g	550	n	Sep 2006	5,499	ebay.com
3.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
4.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
5.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
6.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
7.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
8.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
9.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
10.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
11.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
12.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
13.		Canon 400D	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
14.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	6,595	ebay.com
15.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	7,999	ebay.com
16.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	999	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The T5 was launched at a markedly lower price (by 92 percent) than the M8, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon T5 features an APS-C sensor and the Leica M8 an APS-H sensor. The sensor area in the M8 is 46 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.3. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the Canon T5 offers a higher resolution of 17.9 megapixels, compared with 10.4 MP of the Leica M8. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 6.84μm for the M8). However, it should be noted that the T5 is much more recent (by 7 years and 5 months) than the M8, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the M8 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon T5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T5 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Leica M8 are 19.7 x 13.2 inches or 50 x 33.4 cm for good quality, 15.7 x 10.5 inches or 40 x 26.7 cm for very good quality, and 13.1 x 8.8 inches or 33.3 x 22.3 cm for excellent quality prints.

The Canon EOS Rebel T5 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Leica M8 are ISO 160 to ISO 2500 (no boost).

In terms of underlying technology, the T5 is build around a CMOS sensor, while the M8 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the T5 has a notably higher overall DXO score than the M8 (overall score 4 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.8 bits higher color depth, and 0.1 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
2.		Leica M8	APS-H	10.4	3936	2630	none	21.1	11.3	663	59
3.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
4.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
6.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
7.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
8.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
9.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
10.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
11.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
12.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
13.		Canon 400D	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
14.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
15.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
16.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55

Many modern cameras are not only capable of taking still images, but can also record movies. The T5 indeed provides movie recording capabilities, while the M8 does not. The highest resolution format that the T5 can use is 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The T5 and the M8 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Canon T5 and Leica M8 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
2.		Leica M8	optical	n	2.5 / 230	fixed	n	1/8000s	2.0/s	n	n
3.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
8.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
12.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
13.		Canon 400D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
15.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
16.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The T5 has one, while the M8 does not. While the built-in flash of the T5 is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the T5 and the M8 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5 and Leica M8 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Leica M8	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
13.		Canon 400D	Y	- / -	-	-	-	2.0	-	-	-
14.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
15.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
16.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

Both the T5 and the M8 have been discontinued, but can regularly be found used on ebay. The M8 was replaced by the Leica M9, while the T5 was followed by the Canon T6. Further information on the features and operation of the T5 and M8 can be found, respectively, in the Canon T5 Manual (free pdf) or the online Leica M8 Manual.

Review summary

So how do things add up? Is the Canon T5 better than the Leica M8 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS Rebel T5:

• More detail: Offers more megapixels (17.9 vs 10.4MP) with a 32% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• Faster burst: Shoots at higher frequency (3 vs 2 flaps/sec) to capture the decisive moment.
• Less heavy: Is lighter (by 111g or 19 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (92 percent cheaper at launch).
• More modern: Reflects 7 years and 5 months of technical progress since the M8 launch.

Advantages of the Leica M8:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• More compact: Is smaller (139x80mm vs 130x100mm) and will fit more readily into a bag.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in September 2006).

If the count of individual advantages (bullet points above) is taken as a guide, the T5 is the clear winner of the match-up (11 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the T5 or the M8 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
2.		Leica M8	..	..	..	+ +	..	..	Sep 2006	5,499	ebay.com
3.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
4.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
5.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
6.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
7.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
8.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
9.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
10.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
11.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
12.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
13.		Canon 400D	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
14.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	6,595	ebay.com
15.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	7,999	ebay.com
16.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	999	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
