Canon T5 vs Epson R-D1

The Canon EOS Rebel T5 (called Canon 1200D in some regions) and the Epson R-D1 are two digital cameras that were announced, respectively, in February 2014 and March 2004. The T5 is a DSLR, while the R-D1 is a rangefinder-focusing mirrorless camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Epson provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon T5		Epson R-D1
Digital single lens reflex		Rangefinder camera
Canon EF mount lenses		Leica M mount lenses
17.9 MP – APS-C sensor		6 MP – APS-C sensor
1080/30p Video		no Video
ISO 100-6,400 (100 - 12,800)		ISO 200-1,600
Optical viewfinder		Optical viewfinder
3.0" LCD – 460k dots		2.0" LCD – 235k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		1 shutter flaps per second
130 x 100 x 78 mm, 480 g		142 x 89 x 40 mm, 620 g

Check T5 offers at
ebay.com
Check R-D1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T5 and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon T5 and the Epson R-D1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Epson R-D1 is somewhat smaller (3 percent) than the Canon T5. However, the R-D1 is markedly heavier (29 percent) than the T5. In this context, it is worth noting that neither the T5 nor the R-D1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T5) and the Leica M Lens Catalog (R-D1).

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
2.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	2,999	ebay.com
3.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
4.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	899	ebay.com
5.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
6.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
7.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
8.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
9.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
10.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
11.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
12.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
13.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
14.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	2,850	ebay.com
15.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	749	ebay.com
16.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	999	ebay.com
17.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The T5 was launched at a markedly lower price (by 85 percent) than the R-D1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the R-D1 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (T5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

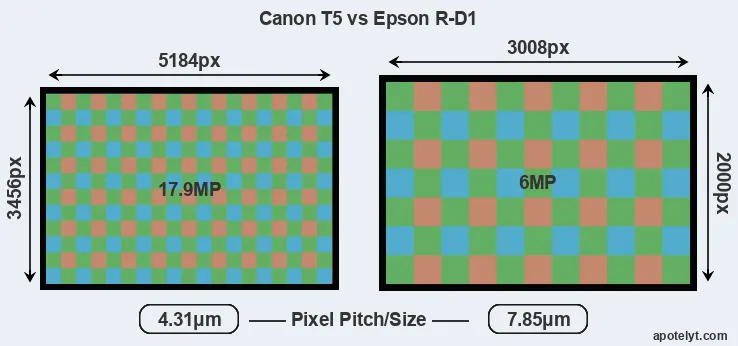

Despite having a smaller sensor, the Canon T5 offers a higher resolution of 17.9 megapixels, compared with 6 MP of the Epson R-D1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.31μm versus 7.85μm for the R-D1). However, it should be noted that the T5 is much more recent (by 9 years and 11 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Canon T5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T5 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Canon EOS Rebel T5 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).

In terms of underlying technology, the T5 is build around a CMOS sensor, while the R-D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
2.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
3.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
4.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
5.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
6.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
7.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
8.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
9.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
10.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
11.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
12.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
13.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
14.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
15.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
16.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
17.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The T5 indeed provides movie recording capabilities, while the R-D1 does not. The highest resolution format that the T5 can use is 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The T5 and the R-D1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The following table reports on some other key feature differences and similarities of the Canon T5, the Epson R-D1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
2.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
3.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
4.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
5.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
6.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
8.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
15.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
16.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
17.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The T5 has one, while the R-D1 does not. While the built-in flash of the T5 is not very powerful, it can at times be useful as a fill-in light.

The T5 writes its imaging data to SDXC cards, while the R-D1 uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5 and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
3.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
5.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
6.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
10.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
13.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
14.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
16.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
17.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-

Studio photographers will appreciate that the Epson R-D1 (unlike the T5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the T5 and the R-D1 have been discontinued, but can regularly be found used on ebay. The T5 was replaced by the Canon T6, while the R-D1 does not have a direct successor. Further information on the features and operation of the T5 and R-D1 can be found, respectively, in the Canon T5 Manual (free pdf) or the online Epson R-D1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon T5 and the Epson R-D1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS Rebel T5:

• More detail: Offers more megapixels (17.9 vs 6MP) with a 72% higher linear resolution.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 235k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (3 vs 1 flaps/sec) to capture the decisive moment.
• Less heavy: Is lighter (by 140g or 23 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (85 percent cheaper at launch).
• More modern: Reflects 9 years and 11 months of technical progress since the R-D1 launch.

Arguments in favor of the Epson R-D1:

• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in March 2004).

If the count of relative strengths (bullet points above) is taken as a measure, the T5 is the clear winner of the match-up (10 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the T5 or the R-D1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
2.		Epson R-D1	..	..	..	..	..	..	Mar 2004	2,999	ebay.com
3.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
4.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	899	ebay.com
5.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
6.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
7.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
8.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
9.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
10.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
11.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
12.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
13.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
14.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	2,850	ebay.com
15.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	749	ebay.com
16.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	999	ebay.com
17.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
