Canon T3 vs Olympus XZ-2

The Canon EOS Rebel T3 (called Canon 1100D in some regions) and the Olympus XZ-2 are two digital cameras that were officially introduced, respectively, in February 2011 and September 2012. The T3 is a DSLR, while the XZ-2 is a fixed lens compact. The cameras are based on an APS-C (T3) and a 1/1.7-inch (XZ-2) sensor. The Canon has a resolution of 12.2 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon T3		Olympus XZ-2
Digital single lens reflex		Fixed lens compact camera
Canon EF mount lenses		28-112mm f/1.8-2.5
12.2 MP – APS-C sensor		11.8 MP – 1/1.7" sensor
720/30p Video		1080/30p Video
ISO 100-6,400		ISO 100-12,800
Optical viewfinder		Viewfinder optional
2.7" LCD – 230k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
700 shots per battery charge		340 shots per battery charge
130 x 100 x 78 mm, 495 g		113 x 65 x 48 mm, 346 g

Check T3 offers at
ebay.com
Check XZ-2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T3 and the Olympus XZ-2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

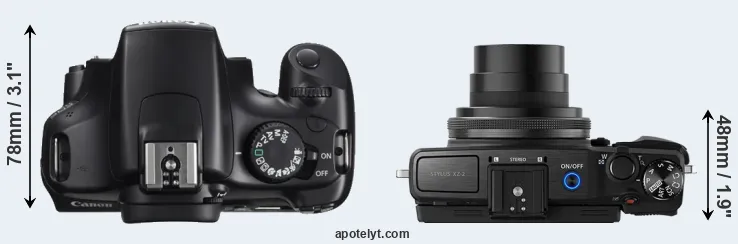

An illustration of the physical size and weight of the Canon T3 and the Olympus XZ-2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-2 is considerably smaller (43 percent) than the Canon T3. In this context, it is worth noting that neither the T3 nor the XZ-2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-2 has a lens built in, whereas the T3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the T3 and their specifications in the Canon EF Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	449	ebay.com
2.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	599	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
4.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
5.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
6.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
7.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
8.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
9.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
10.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	449	ebay.com
11.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
12.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	799	ebay.com
13.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	599	ebay.com
14.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	599	ebay.com
15.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	699	ebay.com
16.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	499	ebay.com
17.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon T3 features an APS-C sensor and the Olympus XZ-2 a 1/1.7-inch sensor. The sensor area in the XZ-2 is 87 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the T3 has a native 3:2 aspect ratio, while the one in the XZ-2 offers a 4:3 aspect.

With 12.2MP, the T3 offers a slightly higher resolution than the XZ-2 (11.8MP), but the T3 nevertheless has larger individual pixels (pixel pitch of 5.15μm versus 1.91μm for the XZ-2) due to its larger sensor. However, the XZ-2 is a somewhat more recent model (by 1 year and 7 months) than the T3, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The Canon EOS Rebel T3 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Olympus XZ-2 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the T3 provides substantially higher image quality than the XZ-2, with an overall score that is 13 points higher. This advantage is based on 1.5 bits higher color depth, 0.3 EV of lower dynamic range, and 1.8 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
2.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
5.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
6.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
7.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
8.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
9.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
10.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
11.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
12.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
13.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
14.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
15.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
16.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
17.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the XZ-2 provides a better video resolution than the T3. It can shoot movie footage at 1080/30p, while the Canon is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the T3 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XZ-2 relies on live view and the rear LCD for framing. That said, the XZ-2 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Canon T3 and Olympus XZ-2 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
2.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
5.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
6.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
8.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
12.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
14.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
15.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
16.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
17.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The XZ-2 has a touchscreen, while the T3 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus XZ-2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the T3 and the XZ-2 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T3 and Olympus XZ-2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
5.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
8.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
9.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
11.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
12.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
17.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-

Both the T3 and the XZ-2 have been discontinued, but can regularly be found used on ebay. The T3 was replaced by the Canon T5, while the XZ-2 does not have a direct successor. Further information on the features and operation of the T3 and XZ-2 can be found, respectively, in the Canon T3 Manual (free pdf) or the online Olympus XZ-2 Manual.

Review summary

So what conclusions can be drawn? Is the Canon T3 better than the Olympus XZ-2 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS Rebel T3:

• Better image quality: Scores substantially higher (13 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.5 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (1.8 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (700 versus 340) on a single battery charge.
• More heavily discounted: Has been on the market for longer (launched in February 2011).

Advantages of the Olympus XZ-2:

• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the T3 requires a separate lens.
• More compact: Is smaller (113x65mm vs 130x100mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the T3).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More modern: Was introduced somewhat (1 year and 7 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the XZ-2 is the clear winner of the contest (12 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon T3 and the Olympus XZ-2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the T3 and the XZ-2 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	449	ebay.com
2.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
4.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
5.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
6.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
7.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
8.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
9.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
10.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	449	ebay.com
11.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
12.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	799	ebay.com
13.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	599	ebay.com
14.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	599	ebay.com
15.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	699	ebay.com
16.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	499	ebay.com
17.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
