Canon SX740 vs Samsung NX30
The Canon PowerShot SX740 HS and the Samsung NX30 are two digital cameras that were revealed to the public, respectively, in July 2018 and January 2014. The SX740 is a fixed lens compact, while the NX30 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX740) and an APS-C (NX30) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Samsung provides 20 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX740 HS and the Samsung NX30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

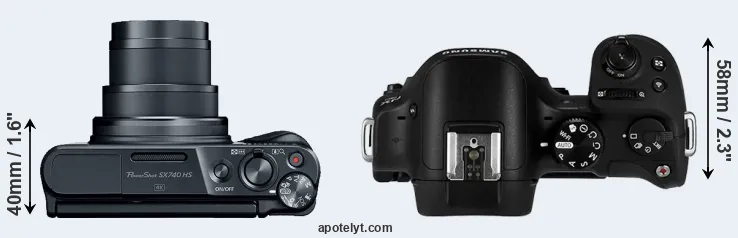

The physical size and weight of the Canon SX740 and the Samsung NX30 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The SX740 can be obtained in two different colors (black, silver), while the NX30 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX30 is considerably larger (73 percent) than the Canon SX740. In this context, it is worth noting that neither the SX740 nor the NX30 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX740 has a lens built in, whereas the NX30 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399||amazon.com|
|2.||Samsung NX30||127 mm||96 mm||58 mm||375 g||360||n||Jan 2014||999||ebay.com|
|3.||Canon SX70||127 mm||91 mm||117 mm||608 g||325||n||Sep 2018||549||amazon.com|
|4.||Canon SX430||104 mm||69 mm||85 mm||323 g||195||n||Jan 2017||299||amazon.com|
|5.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399||ebay.com|
|6.||Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379||ebay.com|
|7.||Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349||ebay.com|
|8.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|9.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499||ebay.com|
|10.||Panasonic ZS80||112 mm||69 mm||42 mm||327 g||380||n||Feb 2019||449||amazon.com|
|11.||Panasonic TS7||117 mm||76 mm||37 mm||319 g||300||Y||May 2018||449||amazon.com|
|12.||Panasonic ZS70||112 mm||67 mm||41 mm||322 g||380||n||Apr 2017||449||ebay.com|
|13.||Sony A6400||120 mm||67 mm||50 mm||403 g||410||Y||Jan 2019||899||amazon.com|
|14.||Sony HX99||102 mm||58 mm||36 mm||242 g||370||n||Aug 2018||449||amazon.com|
|15.||Sony HX95||102 mm||58 mm||36 mm||242 g||370||n||Aug 2018||429||amazon.com|
|16.||Sony A6000||120 mm||67 mm||45 mm||344 g||360||n||Feb 2014||599||ebay.com|
|17.||Sony A3000||128 mm||91 mm||85 mm||411 g||470||n||Aug 2013||329||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX740 was launched at a lower price than the NX30, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

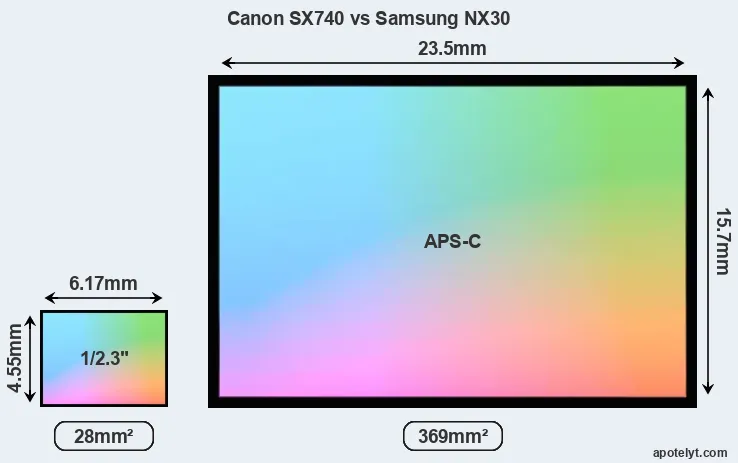

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon SX740 features a 1/2.3-inch sensor and the Samsung NX30 an APS-C sensor. The sensor area in the NX30 is 1218 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX740 has a native 4:3 aspect ratio, while the one in the NX30 offers a 3:2 aspect.
Despite having a smaller sensor, the Canon SX740 offers a higher resolution of 20.2 megapixels, compared with 20 MP of the Samsung NX30. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.30μm for the NX30). However, it should be noted that the SX740 is much more recent (by 4 years and 6 months) than the NX30, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The NX30 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon PowerShot SX740 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Samsung NX30 are ISO 100 to ISO 25600 (no boost).
In terms of underlying technology, the SX740 is build around a BSI-CMOS sensor, while the NX30 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX740 provides a higher video resolution than the NX30. It can shoot video footage at 4K/30p, while the Samsung is limited to 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the NX30 has an electronic viewfinder (2359k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX740 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX740, the Samsung NX30, and comparable cameras.
|1.||Canon SX740||none||n||3.0 / 922||tilting||n||1/3200s||10.0/s||Y||Y|
|2.||Samsung NX30||2359||n||3.0 / 1036||swivel||Y||1/8000s||9.0/s||Y||n|
|3.||Canon SX70||2360||n||3.0 / 922||swivel||n||1/2000s||10.0/s||Y||Y|
|4.||Canon SX430||none||n||3.0 / 230||fixed||n||1/4000s||0.5/s||Y||Y|
|5.||Canon SX730||none||n||3.0 / 922||tilting||n||1/3200s||5.9/s||Y||Y|
|6.||Canon SX720||none||n||3.0 / 922||fixed||n||1/3200s||5.9/s||Y||Y|
|7.||Canon SX710||none||n||3.0 / 922||fixed||n||1/3200s||6.0/s||Y||Y|
|8.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|10.||Panasonic ZS80||2330||n||3.0 / 1040||tilting||Y||1/2000s||10.0/s||Y||Y|
|11.||Panasonic TS7||1170||n||3.0 / 1040||fixed||n||1/1300s||10.0/s||Y||Y|
|12.||Panasonic ZS70||1166||n||3.0 / 1040||tilting||Y||1/2000s||10.0/s||Y||Y|
|13.||Sony A6400||2359||n||3.0 / 922||tilting||Y||1/4000s||11.0/s||Y||n|
|14.||Sony HX99||638||n||3.0 / 922||tilting||Y||1/2000s||10.0/s||Y||Y|
|15.||Sony HX95||638||n||3.0 / 922||tilting||n||1/2000s||10.0/s||Y||Y|
|16.||Sony A6000||1440||n||3.0 / 922||tilting||n||1/4000s||11.0/s||Y||n|
|17.||Sony A3000||202||n||3.0 / 230||fixed||n||1/4000s||2.5/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The NX30 has a touchscreen, while the SX740 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Canon SX740 and the Samsung NX30 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX740 and the NX30 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX740 HS and Samsung NX30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon SX740||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|2.||Samsung NX30||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon SX70||-||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon SX430||-||mono / mono||-||-||-||2.0||Y||Y||-|
|5.||Canon SX730||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|6.||Canon SX720||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon SX710||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|8.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|9.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|10.||Panasonic ZS80||-||stereo / mono||-||-||micro||2.0||Y||-||Y|
|11.||Panasonic TS7||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|12.||Panasonic ZS70||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|13.||Sony A6400||Y||stereo / mono||Y||-||micro||2.0||Y||Y||Y|
|14.||Sony HX99||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|15.||Sony HX95||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|16.||Sony A6000||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|17.||Sony A3000||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the NX30 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX740 does not feature such an accessory-socket.
The SX740 is a recent model that features in the current product line-up of Canon. In contrast, the NX30 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the NX30 from Samsung. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Samsung websites.
So what conclusions can be drawn? Which of the two cameras – the Canon SX740 or the Samsung NX30 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon PowerShot SX740 HS:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Ready to shoot: Has a lens built-in, whereas the NX30 requires a separate lens.
- More compact: Is smaller (110x64mm vs 127x96mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the NX30).
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 4 years and 6 months of technical progress since the NX30 launch.
Arguments in favor of the Samsung NX30:
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1036k vs 922k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/3200s) to freeze action.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (360 versus 265) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been around for much longer (launched in January 2014).
If the number of relative strengths (bullet points above) is taken as a guide, the NX30 is the clear winner of the contest (15 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX740 and the Samsung NX30 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX740 or the NX30. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX740||..||+||3.5/5||..||4/5||4/5||Jul 2018||399||amazon.com|
|2.||Samsung NX30||3/5||..||..||77/100||4.5/5||4.5/5||Jan 2014||999||ebay.com|
|3.||Canon SX70||..||+ +||3.5/5||..||3.5/5||3.5/5||Sep 2018||549||amazon.com|
|4.||Canon SX430||..||..||..||..||3.5/5||3.5/5||Jan 2017||299||amazon.com|
|5.||Canon SX730||..||+||..||..||4/5||4/5||Apr 2017||399||ebay.com|
|6.||Canon SX720||..||+||..||..||4/5||4.5/5||Feb 2016||379||ebay.com|
|7.||Canon SX710||..||+||..||..||4/5||3.5/5||Jan 2015||349||ebay.com|
|8.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|9.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499||ebay.com|
|10.||Panasonic ZS80||..||+ +||..||..||4.5/5||..||Feb 2019||449||amazon.com|
|11.||Panasonic TS7||..||+||..||..||..||3.5/5||May 2018||449||amazon.com|
|12.||Panasonic ZS70||..||+ +||..||..||4/5||4/5||Apr 2017||449||ebay.com|
|13.||Sony A6400||4/5||+||4/5||85/100||4.5/5||4/5||Jan 2019||899||amazon.com|
|14.||Sony HX99||..||..||..||..||4/5||4.5/5||Aug 2018||449||amazon.com|
|15.||Sony HX95||..||..||..||..||..||..||Aug 2018||429||amazon.com|
|16.||Sony A6000||5/5||+||4.5/5||80/100||4.5/5||5/5||Feb 2014||599||ebay.com|
|17.||Sony A3000||3/5||+||..||..||4/5||4/5||Aug 2013||329||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 550D vs Samsung NX30
- Canon SX740 vs Fujifilm X70
- Canon SX740 vs Nikon D7100
- Canon SX740 vs Nikon D850
- Canon SX740 vs Olympus E-P1
- Canon SX740 vs Pentax K-S2
- Canon SX740 vs Sony A7 II
- Fujifilm X-M1 vs Samsung NX30
- Leica X1 vs Samsung NX30
- Nikon D3 vs Samsung NX30
- Nikon Z7 vs Samsung NX30
- Olympus E-1 vs Samsung NX30
Specifications: Canon SX740 vs Samsung NX30
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX740||Samsung NX30|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-960mm f/3.3-6.9||Samsung NX mount lenses|
|Launch Date||July 2018||January 2014|
|Launch Price||USD 399||USD 999|
|Sensor Specs||Canon SX740||Samsung NX30|
|Sensor Format||1/2.3" Sensor||APS-C Sensor|
|Sensor Size||6.17 x 4.55 mm||23.5 x 15.7 mm|
|Sensor Area||28.0735 mm2||368.95 mm2|
|Sensor Diagonal||7.7 mm||28.3 mm|
|Sensor Resolution||20.2 Megapixels||20 Megapixels|
|Image Resolution||5184 x 3888 pixels||5472 x 3648 pixels|
|Pixel Pitch||1.18 μm||4.30 μm|
|Pixel Density||71.80 MP/cm2||5.41 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||4K/30p Video||1080/60p Video|
|ISO Setting||100 - 3,200 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 8||DRIMe IV|
|DXO Sensor Quality (score)||..||76|
|DXO Color Depth (bits)||..||23.5|
|DXO Dynamic Range (EV)||..||12.4|
|DXO Low Light (ISO)||..||1014|
|Screen Specs||Canon SX740||Samsung NX30|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2359k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||922k dots||1036k dots|
|LCD Attachment||Tilting screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon SX740||Samsung NX30|
|Focus System||Contrast-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/3200s||1/8000s|
|Continuous Shooting||10 shutter flaps/s||9 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon SX740||Samsung NX30|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Bluetooth Support||Bluetooth built-in||no Bluetooth|
|Body Specs||Canon SX740||Samsung NX30|
|Battery Life (CIPA)||265 shots per charge||360 shots per charge|
|In-Camera Charging||USB charging||USB charging|
110 x 64 x 40 mm
(4.3 x 2.5 x 1.6 in)
127 x 96 x 58 mm
(5.0 x 3.8 x 2.3 in)
|Camera Weight||299 g (10.5 oz)||375 g (13.2 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
