Canon SX740 vs Ricoh WG-60

The Canon PowerShot SX740 HS and the Ricoh WG-60 are two digital cameras that were revealed to the public, respectively, in July 2018 and October 2018. Both the SX740 and the WG-60 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The Canon has a resolution of 20.2 megapixels, whereas the Ricoh provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX740		Ricoh WG-60
Fixed lens compact camera		Fixed lens compact camera
24-960mm f/3.3-6.9		28-140mm f/3.5-5.5
20.2 MP – 1/2.3" sensor		15.9 MP – 1/2.3" sensor
4K/30p Video		1080/60p Video
ISO 100-3,200		ISO 125-6,400
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 922k dots		2.7" LCD – 230k dots
Tilting screen (no touchscreen)		Fixed screen (not touch-sensitive)
10 shutter flaps per second		8 shutter flaps per second
not weather sealed		Waterproof body (14m)
265 shots per battery charge		300 shots per battery charge
110 x 64 x 40 mm, 299 g		123 x 62 x 30 mm, 193 g

Check SX740 price at
amazon.com
Check WG-60 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX740 HS and the Ricoh WG-60? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon SX740 and the Ricoh WG-60 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The SX740 can be obtained in two different colors (black, silver), while the WG-60 is also available in two color-versions, but different ones (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Ricoh WG-60 is notably larger (8 percent) than the Canon SX740. However, the WG-60 is substantially lighter (35 percent) than the SX740. It is noteworthy in this context that the WG-60 is splash and dust-proof, while the SX740 does not feature any corresponding weather-sealing. More than that, the WG-60 is water-proof up to 14m and can, thus, be used for underwater photography.

The power pack in the SX740 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	399	amazon.com
2.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	279	ebay.com
3.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	549	amazon.com
4.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	299	ebay.com
5.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
6.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	379	ebay.com
7.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
8.		Fujifilm XP120	110 mm	71 mm	28 mm	203 g	210	Y	Jan 2017	229	ebay.com
9.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	229	ebay.com
10.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	389	ebay.com
11.		Panasonic TS7	117 mm	76 mm	37 mm	319 g	300	Y	May 2018	449	ebay.com
12.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	449	ebay.com
13.		Panasonic ZS80	112 mm	69 mm	42 mm	327 g	380	n	Feb 2019	449	ebay.com
14.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	279	amazon.com
15.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	429	ebay.com
16.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	449	ebay.com
17.		Sony WX800	102 mm	58 mm	36 mm	233 g	370	n	Oct 2018	399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The WG-60 was launched at a markedly lower price (by 30 percent) than the SX740, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

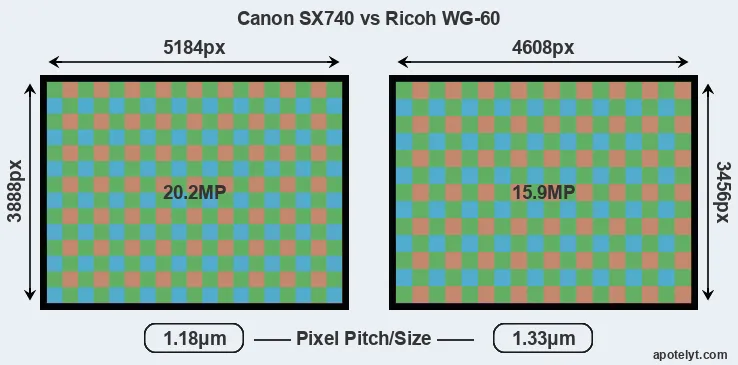

While the two cameras under review share the same sensor size, the SX740 offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the WG-60. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the SX740 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.33μm for the WG-60). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX740 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX740 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Ricoh WG-60 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX740 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Ricoh WG-60 are ISO 125 to ISO 6400 (no boost).

In terms of underlying technology, the SX740 is build around a BSI-CMOS sensor, while the WG-60 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
2.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
3.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
4.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
5.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
6.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
7.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
8.		Fujifilm XP120	1/2.3	15.9	4608	3456	1080/60p	20.5	11.9	900	49
9.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
10.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
11.		Panasonic TS7	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1028	51
12.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
13.		Panasonic ZS80	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1103	52
14.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
15.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
16.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
17.		Sony WX800	1/2.3	18.0	4896	3672	4K/30p	20.6	12.2	1070	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX740 provides a higher video resolution than the WG-60. It can shoot video footage at 4K/30p, while the Ricoh is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The SX740 and the WG-60 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Canon SX740 and Ricoh WG-60 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
2.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
3.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
4.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
6.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
7.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
8.		Fujifilm XP120	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
9.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
10.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
11.		Panasonic TS7	1170	n	3.0 / 1040	fixed	n	1/1300s	10.0/s	Y	Y
12.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
13.		Panasonic ZS80	2330	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
14.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
15.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
17.		Sony WX800	none	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon SX740 and the Ricoh WG-60 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the SX740 and the WG-60 have zoom lenses built in. The SX740 has a 24-960mm f/3.3-6.9 optic and the WG-60 offers a 28-140mm f/3.5-5.5 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Ricoh. The SX740 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX740 and the WG-60 write their files to SDXC cards. The SX740 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the WG-60 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX740 HS and Ricoh WG-60 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-
3.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
5.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Fujifilm XP120	-	mono / mono	-	-	micro	2.0	Y	-	-
9.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
10.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Panasonic TS7	-	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic ZS80	-	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
15.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
16.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Sony WX800	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the SX740 offers wifi support, while the WG-60 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The SX740 is a recent model that features in the current product line-up of Canon. In contrast, the WG-60 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the WG-60 from Ricoh. Further information on the features and operation of the SX740 and WG-60 can be found, respectively, in the Canon SX740 Manual (free pdf) or the online Ricoh WG-60 Manual.

Review summary

So what is the bottom line? Is the Canon SX740 better than the Ricoh WG-60 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot SX740 HS:

• More detail: Offers more megapixels (20.2 vs 15.9MP) with a 13% higher linear resolution.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (10 vs 8 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/3.3 vs f/3.5).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.

Advantages of the Ricoh WG-60:

• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Less heavy: Has a lower weight (by 106g or 35 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (300 versus 265) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 14m).
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).

If the number of relative strengths (bullet points above) is taken as a guide, the SX740 is the clear winner of the match-up (15 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX740 and the Ricoh WG-60 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX740 or the WG-60. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	399	amazon.com
2.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	279	ebay.com
3.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	549	amazon.com
4.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	299	ebay.com
5.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
6.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	379	ebay.com
7.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
8.		Fujifilm XP120	..	o	..	..	3.5/5	4/5	Jan 2017	229	ebay.com
9.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	229	ebay.com
10.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	389	ebay.com
11.		Panasonic TS7	..	+	..	..	..	3.5/5	May 2018	449	ebay.com
12.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	449	ebay.com
13.		Panasonic ZS80	..	+ +	..	..	4.5/5	..	Feb 2019	449	ebay.com
14.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	279	amazon.com
15.		Sony HX95	..	..	..	..	..	..	Aug 2018	429	ebay.com
16.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	449	ebay.com
17.		Sony WX800	..	..	..	..	..	..	Oct 2018	399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
