Canon SX740 vs Nikon D4S

The Canon PowerShot SX740 HS and the Nikon D4S are two digital cameras that were officially introduced, respectively, in July 2018 and February 2014. The SX740 is a fixed lens compact, while the D4S is a DSLR. The cameras are based on a 1/2.3-inch (SX740) and a full frame (D4S) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Nikon provides 16.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX740		Nikon D4S
Fixed lens compact camera		Digital single lens reflex
24-960mm f/3.3-6.9		Nikon F mount lenses
20.2 MP – 1/2.3" sensor		16.2 MP – Full Frame sensor
4K/30p Video		1080/60p Video
ISO 100-3,200		ISO 100-25,600 (50 - 409,600)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 922k dots		3.2" LCD – 921k dots
Tilting screen (no touchscreen)		Fixed screen (not touch-sensitive)
10 shutter flaps per second		11 shutter flaps per second
not weather sealed		Weathersealed body
265 shots per battery charge		3020 shots per battery charge
110 x 64 x 40 mm, 299 g		160 x 157 x 91 mm, 1350 g

Check SX740 price at
amazon.com
Check D4S offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX740 HS and the Nikon D4S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

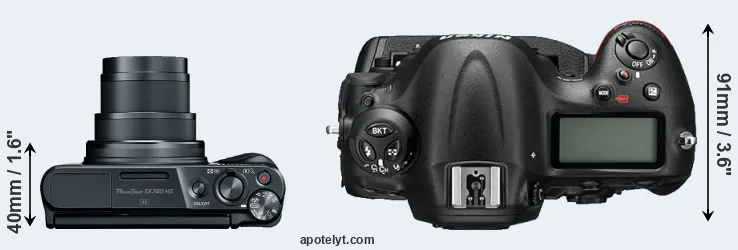

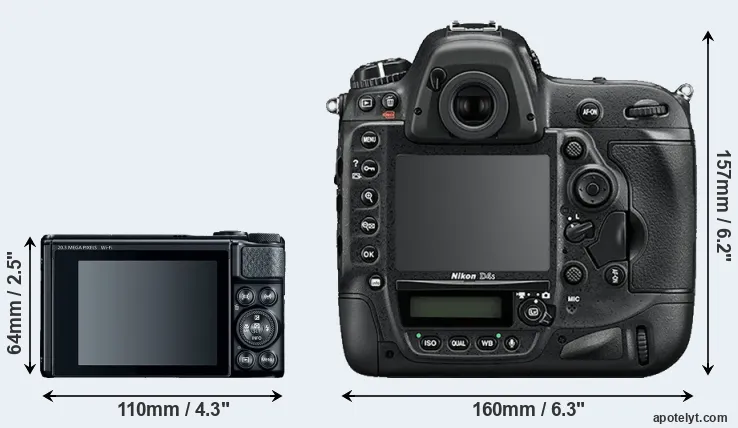

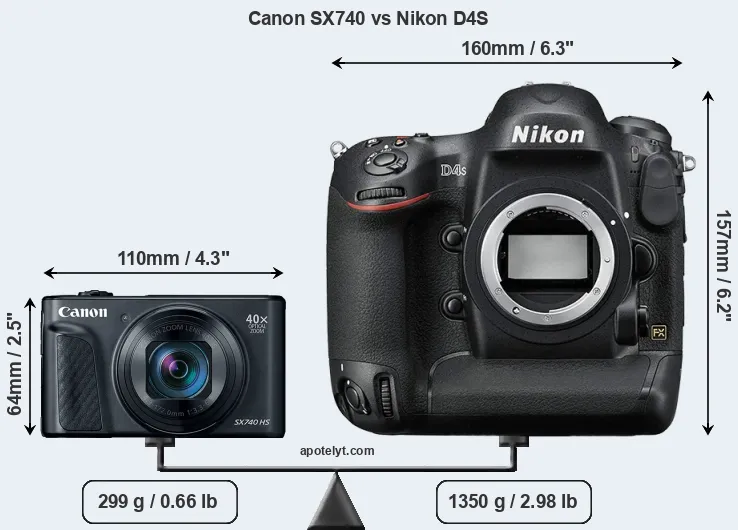

The side-by-side display below illustrates the physical size and weight of the Canon SX740 and the Nikon D4S. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The SX740 can be obtained in two different colors (black, silver), while the D4S is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D4S is considerably larger (257 percent) than the Canon SX740. It is noteworthy in this context that the D4S is splash and dust-proof, while the SX740 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX740 has a lens built in, whereas the D4S is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D4S and their specifications in the Nikon Lens Catalog.

Concerning battery life, the SX740 gets 265 shots out of its Canon NB-13L battery, while the D4S can take 3020 images on a single charge of its Nikon EN-EL18a power pack. As can be seen in the images above, the D4S has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the SX740 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	399	amazon.com
2.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	6,499	ebay.com
3.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	549	amazon.com
4.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	299	ebay.com
5.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
6.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	379	ebay.com
7.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
8.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	6,499	ebay.com
9.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	2,299	ebay.com
10.		Nikon D810	146 mm	123 mm	82 mm	980 g	1200	Y	Jun 2014	3,299	ebay.com
11.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	2,749	ebay.com
12.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	5,999	ebay.com
13.		Panasonic ZS80	112 mm	69 mm	42 mm	327 g	380	n	Feb 2019	449	ebay.com
14.		Panasonic TS7	117 mm	76 mm	37 mm	319 g	300	Y	May 2018	449	ebay.com
15.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	449	ebay.com
16.		Sony HX99	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	449	ebay.com
17.		Sony HX95	102 mm	58 mm	36 mm	242 g	370	n	Aug 2018	429	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX740 was launched at a lower price than the D4S, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

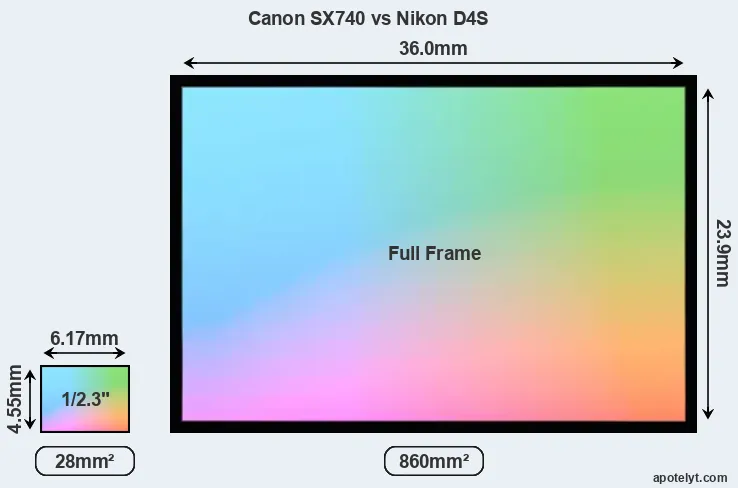

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX740 features a 1/2.3-inch sensor and the Nikon D4S a full frame sensor. The sensor area in the D4S is 2971 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.0. The sensor in the SX740 has a native 4:3 aspect ratio, while the one in the D4S offers a 3:2 aspect.

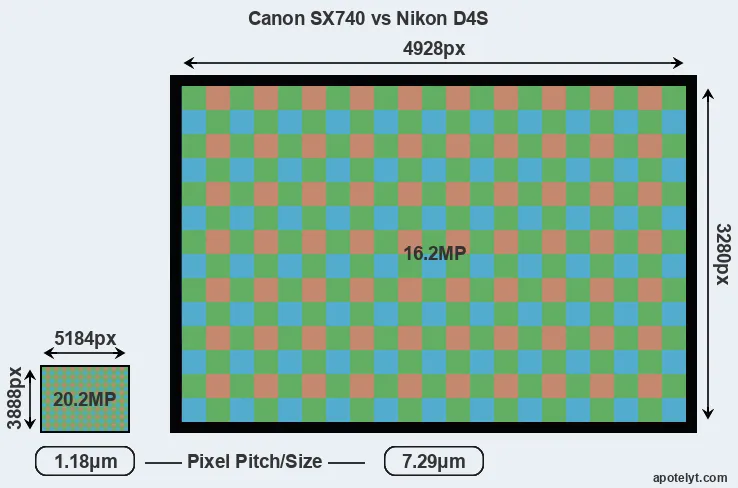

Despite having a smaller sensor, the Canon SX740 offers a higher resolution of 20.2 megapixels, compared with 16.2 MP of the Nikon D4S. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 7.29μm for the D4S). However, it should be noted that the SX740 is much more recent (by 4 years and 5 months) than the D4S, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX740 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX740 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX740 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Nikon D4S are 24.6 x 16.4 inches or 62.6 x 41.7 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.3 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.8 cm for excellent quality prints.

The Canon PowerShot SX740 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Nikon D4S are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-409600.

In terms of underlying technology, the SX740 is build around a BSI-CMOS sensor, while the D4S uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
2.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
3.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
4.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
5.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
6.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
7.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
8.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
9.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
10.		Nikon D810	Full Frame	36.2	7360	4912	1080/60p	25.7	14.8	2853	97
11.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
12.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
13.		Panasonic ZS80	1/2.3	20.2	5184	3888	4K/30p	20.7	12.2	1103	52
14.		Panasonic TS7	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1028	51
15.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
16.		Sony HX99	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1058	51
17.		Sony HX95	1/2.3	18.0	4896	3672	4K/30p	20.6	12.1	1057	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX740 provides a higher video resolution than the D4S. It can shoot video footage at 4K/30p, while the Nikon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D4S has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX740 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX740 and Nikon D4S along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
2.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
3.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
4.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
6.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
7.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
8.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
9.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
10.		Nikon D810	optical	Y	3.2 / 1229	fixed	n	1/8000s	5.0/s	Y	n
11.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
12.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
13.		Panasonic ZS80	2330	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
14.		Panasonic TS7	1170	n	3.0 / 1040	fixed	n	1/1300s	10.0/s	Y	Y
15.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
16.		Sony HX99	638	n	3.0 / 922	tilting	Y	1/2000s	10.0/s	Y	Y
17.		Sony HX95	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The SX740 has one, while the D4S does not. While the built-in flash of the SX740 is not very powerful, it can at times be useful as a fill-in light.

The Canon SX740 and the Nikon D4S both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The SX740 writes its imaging data to SDXC cards, while the D4S uses Compact Flash or XQD cards. The D4S features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX740 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX740 HS and Nikon D4S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
2.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
3.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
5.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
9.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
10.		Nikon D810	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
11.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
12.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
13.		Panasonic ZS80	-	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Panasonic TS7	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Sony HX99	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
17.		Sony HX95	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the SX740 offers wifi support, while the D4S does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Nikon D4S (unlike the SX740) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The SX740 is a recent model that features in the current product line-up of Canon. In contrast, the D4S has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the D4S was succeeded by the Nikon D5. Further information on the features and operation of the SX740 and D4S can be found, respectively, in the Canon SX740 Manual (free pdf) or the online Nikon D4S Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon SX740 and the Nikon D4S? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot SX740 HS:

• More detail: Offers more megapixels (20.2 vs 16.2MP) with a 9% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Ready to shoot: Comes with a built-in lens, while the D4S requires a separate lens.
• More compact: Is smaller (110x64mm vs 160x157mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D4S).
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 4 years and 5 months of technical progress since the D4S launch.

Advantages of the Nikon D4S:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/3200s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Longer lasting: Gets more shots (3020 versus 265) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in February 2014).

If the count of individual advantages (bullet points above) is taken as a guide, the D4S is the clear winner of the contest (19 : 15 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX740 and the Nikon D4S place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX740 or the D4S perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	399	amazon.com
2.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	6,499	ebay.com
3.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	549	amazon.com
4.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	299	ebay.com
5.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
6.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	379	ebay.com
7.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
8.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	6,499	ebay.com
9.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	2,299	ebay.com
10.		Nikon D810	5/5	..	5/5	86/100	5/5	4.5/5	Jun 2014	3,299	ebay.com
11.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	2,749	ebay.com
12.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	5,999	ebay.com
13.		Panasonic ZS80	..	+ +	..	..	4.5/5	..	Feb 2019	449	ebay.com
14.		Panasonic TS7	..	+	..	..	..	3.5/5	May 2018	449	ebay.com
15.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	449	ebay.com
16.		Sony HX99	..	..	..	..	4/5	4.5/5	Aug 2018	449	ebay.com
17.		Sony HX95	..	..	..	..	..	..	Aug 2018	429	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check SX740 price at
amazon.com
Check D4S offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check SX740 price at
amazon.com
Check D4S offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
