Canon SX720 vs Panasonic GH3

The Canon PowerShot SX720 HS and the Panasonic Lumix DMC-GH3 are two digital cameras that were revealed to the public, respectively, in February 2016 and September 2012. The SX720 is a fixed lens compact, while the GH3 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX720) and a Four Thirds (GH3) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Panasonic provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX720		Panasonic GH3
Fixed lens compact camera		Mirrorless system camera
24-960mm f/3.3-6.9		Micro Four Thirds lenses
20.2 MP – 1/2.3" sensor		15.9 MP – Four Thirds sensor
1080/60p Video		1080/60p Video
ISO 80-3,200		ISO 200-12,800 (125 - 25,600)
No viewfinder, LCD framing		Electronic viewfinder (1746k dots)
3.0" LCD – 922k dots		3.0" LCD – 614k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
5.9 shutter flaps per second		6 shutter flaps per second
not weather sealed		Weathersealed body
250 shots per battery charge		540 shots per battery charge
110 x 64 x 36 mm, 270 g		133 x 93 x 82 mm, 550 g

Check SX720 offers at
ebay.com
Check GH3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX720 HS and the Panasonic Lumix DMC-GH3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon SX720 and the Panasonic GH3 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The SX720 can be obtained in two different colors (black, red), while the GH3 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GH3 is considerably larger (76 percent) than the Canon SX720. It is noteworthy in this context that the GH3 is splash and dust-proof, while the SX720 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX720 has a lens built in, whereas the GH3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GH3 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX720 gets 250 shots out of its Canon NB-13L battery, while the GH3 can take 540 images on a single charge of its Panasonic DMW-BLF19 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	379	ebay.com
2.		Panasonic GH3	133 mm	93 mm	82 mm	550 g	540	Y	Sep 2012	1,299	ebay.com
3.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	399	amazon.com
4.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
5.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	699	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	299	ebay.com
7.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
8.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	279	ebay.com
9.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
10.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	1,099	ebay.com
11.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	1,399	ebay.com
12.		Panasonic TZ90	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	449	ebay.com
13.		Panasonic GH4	133 mm	93 mm	84 mm	560 g	500	Y	Feb 2014	1,499	ebay.com
14.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	599	ebay.com
15.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	899	ebay.com
16.		Sony HX80	102 mm	58 mm	36 mm	245 g	390	n	Mar 2016	349	ebay.com
17.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	429	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX720 was launched at a lower price than the GH3, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

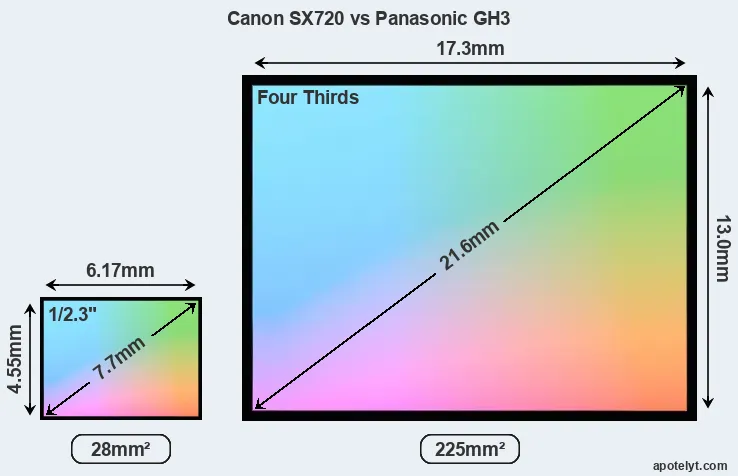

Of the two cameras under consideration, the Canon SX720 features a 1/2.3-inch sensor and the Panasonic GH3 a Four Thirds sensor. The sensor area in the GH3 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Canon SX720 offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the Panasonic GH3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 3.76μm for the GH3). However, it should be noted that the SX720 is much more recent (by 3 years and 5 months) than the GH3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX720 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX720 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX720 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic GH3 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX720 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-GH3 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 125-25600.

In terms of underlying technology, the SX720 is build around a BSI-CMOS sensor, while the GH3 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
2.		Panasonic GH3	Four Thirds	15.9	4608	3456	1080/60p	22.7	12.4	812	71
3.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
4.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
5.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
8.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
9.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
10.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
11.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
12.		Panasonic TZ90	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
13.		Panasonic GH4	Four Thirds	15.9	4608	3456	4K/30p	23.2	12.8	791	74
14.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
15.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
16.		Sony HX80	1/2.3	18.0	4896	3672	1080/60p	20.4	11.8	822	48
17.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the GH3 has an electronic viewfinder (1746k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX720 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX720 and Panasonic GH3 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
2.		Panasonic GH3	1746	n	3.0 / 614	swivel	Y	1/4000s	6.0/s	Y	n
3.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
4.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
5.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
8.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
9.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
10.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
11.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
12.		Panasonic TZ90	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
13.		Panasonic GH4	2359	n	3.0 / 1036	swivel	Y	1/8000s	12.0/s	Y	n
14.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
16.		Sony HX80	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GH3 has a touchscreen, while the SX720 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GH3 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GH3 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SX720 and the GH3 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX720 HS and Panasonic Lumix DMC-GH3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Panasonic GH3	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
3.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
4.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
8.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
9.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Panasonic TZ90	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic GH4	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
14.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Sony HX80	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the GH3 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX720 does not feature such a mic input.

Studio photographers will appreciate that the Panasonic GH3 (unlike the SX720) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the SX720 and the GH3 have been discontinued, but can regularly be found used on ebay. The GH3 was replaced by the Panasonic GH4, while the SX720 was followed by the Canon SX730. Further information on the features and operation of the SX720 and GH3 can be found, respectively, in the Canon SX720 Manual (free pdf) or the online Panasonic GH3 Manual.

Review summary

So what conclusions can be drawn? Is the Canon SX720 better than the Panasonic GH3 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon PowerShot SX720 HS:

• More detail: Offers more megapixels (20.2 vs 15.9MP) with a 13% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More detailed LCD: Has a higher resolution rear screen (922k vs 614k dots).
• Ready to shoot: Has a lens built-in, whereas the GH3 requires a separate lens.
• More compact: Is smaller (110x64mm vs 133x93mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the GH3).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 3 years and 5 months of technical progress since the GH3 launch.

Advantages of the Panasonic Lumix DMC-GH3:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (540 versus 250) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been around for much longer (launched in September 2012).

If the count of relative strengths (bullet points above) is taken as a measure, the GH3 is the clear winner of the contest (20 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX720 and the Panasonic GH3 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX720 and the GH3 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	379	ebay.com
2.		Panasonic GH3	5/5	+ +	..	79/100	4.5/5	4.5/5	Sep 2012	1,299	ebay.com
3.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	399	amazon.com
4.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
5.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	699	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	299	ebay.com
7.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
8.		Canon SX410	..	o	..	..	..	..	Feb 2015	279	ebay.com
9.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
10.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	1,099	ebay.com
11.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	1,399	ebay.com
12.		Panasonic TZ90	..	+ +	4/5	..	4/5	4/5	Apr 2017	449	ebay.com
13.		Panasonic GH4	5/5	+ +	..	85/100	5/5	5/5	Feb 2014	1,499	ebay.com
14.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	599	ebay.com
15.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	899	ebay.com
16.		Sony HX80	..	..	..	..	..	..	Mar 2016	349	ebay.com
17.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	429	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check SX720 offers at
ebay.com
Check GH3 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check SX720 offers at
ebay.com
Check GH3 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
