Canon SX720 vs Olympus E-P1
The Canon PowerShot SX720 HS and the Olympus PEN E-P1 are two digital cameras that were announced, respectively, in February 2016 and June 2009. The SX720 is a fixed lens compact, while the E-P1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX720) and a Four Thirds (E-P1) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Olympus provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon SX720||Olympus E-P1|
|Fixed lens compact camera||Mirrorless system camera|
|24-960mm f/3.3-6.9||Micro Four Thirds lenses|
|20.2 MP, 1/2.3" Sensor||12.2 MP, Four Thirds Sensor|
|1080/60p Video||720/30p Video|
|ISO 80-3,200||ISO 100-6,400|
|No viewfinder, LCD framing||No viewfinder, LCD framing|
|3.0 LCD, 922k dots||3.0 LCD, 230k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|5.9 shutter flaps per second||3 shutter flaps per second|
|Lens-based stabilization||In-body stabilization|
|250 shots per battery charge||300 shots per battery charge|
|110 x 64 x 36 mm, 270 g||121 x 70 x 36 mm, 355 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX720 HS and the Olympus PEN E-P1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

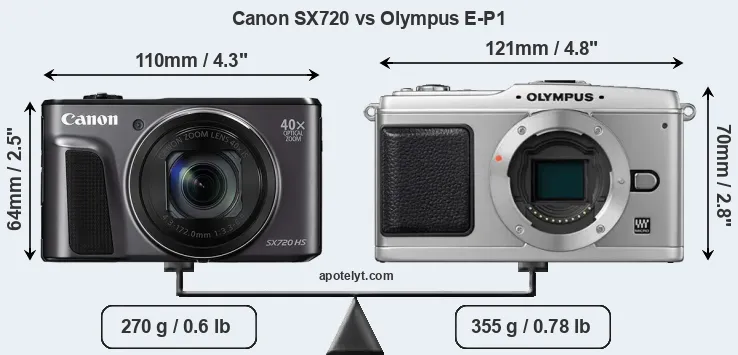

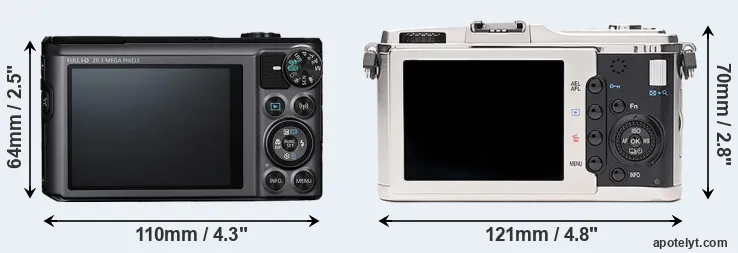

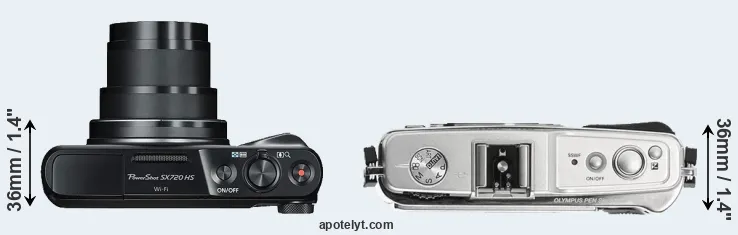

The side-by-side display below illustrates the physical size and weight of the Canon SX720 and the Olympus E-P1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The SX720 can be obtained in two different colors (black, red), while the E-P1 is available in three color-versions (black, silver, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P1 is notably larger (20 percent) than the Canon SX720. In this context, it is worth noting that neither the SX720 nor the E-P1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX720 has a lens built in, whereas the E-P1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-P1 and their specifications in the Micro Four Thirds Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon SX720||4.3 in||2.5 in||1.4 in||9.5 oz||250||n||Feb 2016||379|
|Olympus E-P1||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Jun 2009||799|
|Canon SX740||4.3 in||2.5 in||1.6 in||10.5 oz||265||n||Jul 2018||399|
|Canon SX730||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399|
|Canon G7 X Mark II||4.2 in||2.4 in||1.7 in||11.3 oz||265||n||Feb 2016||699|
|Canon SX420||4.1 in||2.7 in||3.3 in||11.5 oz||195||n||Jan 2016||299|
|Canon SX540||4.7 in||3.2 in||3.6 in||15.6 oz||205||n||Jan 2016||399|
|Canon SX410||4.1 in||2.7 in||3.3 in||11.5 oz||185||n||Feb 2015||279|
|Canon SX710||4.4 in||2.6 in||1.4 in||9.5 oz||230||n||Jan 2015||349|
|Olympus E-P3||4.8 in||2.7 in||1.3 in||13.0 oz||330||n||Jun 2011||799|
|Olympus E-PL2||4.5 in||2.8 in||1.7 in||12.8 oz||280||n||Jan 2011||599|
|Olympus E-PL3||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599|
|Olympus E-P2||4.8 in||2.8 in||1.4 in||12.5 oz||300||n||Nov 2009||799|
|Panasonic ZS70||4.4 in||2.6 in||1.6 in||11.4 oz||380||n||Apr 2017||449|
|Panasonic GH1||4.9 in||3.5 in||1.8 in||13.6 oz||300||n||Mar 2009||899|
|Sony HX80||4.0 in||2.3 in||1.4 in||8.6 oz||390||n||Mar 2016||349|
|Sony HX90V||4.0 in||2.3 in||1.4 in||8.6 oz||360||n||Apr 2015||429|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX720 was launched at a lower price than the E-P1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

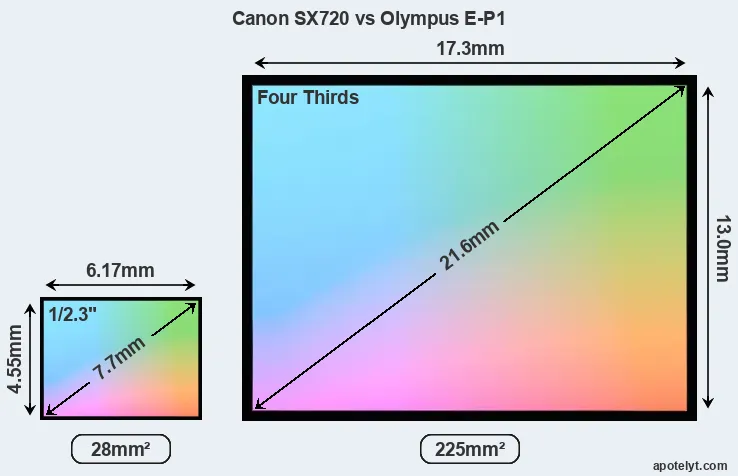

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon SX720 features a 1/2.3-inch sensor and the Olympus E-P1 a Four Thirds sensor. The sensor area in the E-P1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

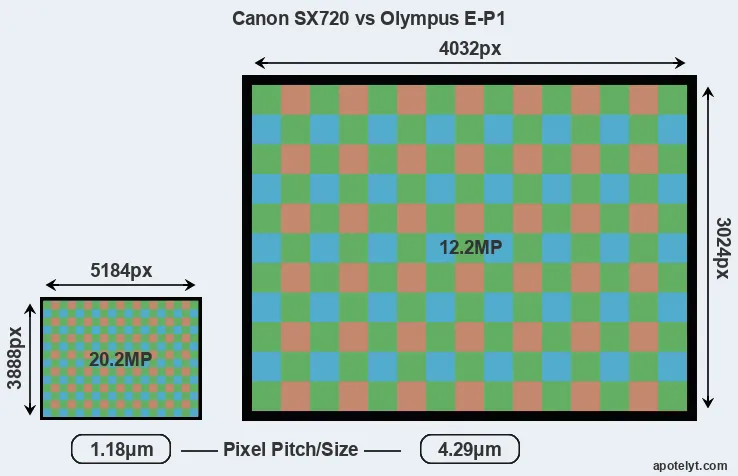

Despite having a smaller sensor, the Canon SX720 offers a higher resolution of 20.2 megapixels, compared with 12.2 MP of the Olympus E-P1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 4.29μm for the E-P1). However, it should be noted that the SX720 is much more recent (by 6 years and 8 months) than the E-P1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX720 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX720 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX720 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-P1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.
The Canon PowerShot SX720 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-P1 are ISO 100 to ISO 6400 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Olympus E-P1||Four Thirds||12.2||4032||3024||720/30p||21.4||10.4||536||55|
|Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Olympus E-P3||Four Thirds||12.2||4032||3024||1080/60i||20.8||10.1||536||51|
|Olympus E-PL2||Four Thirds||12.2||4032||3024||720/30p||21.4||10.2||573||55|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|Olympus E-P2||Four Thirds||12.2||4032||3024||720/30p||21.5||10.4||505||56|
|Panasonic GH1||Four Thirds||12.0||4000||3000||1080/24p||21.6||11.6||772||64|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX720 provides a higher video resolution than the E-P1. It can shoot video footage at 1080/60p, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The SX720 and the E-P1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Canon SX720 and Olympus E-P1 in connection with corresponding information for a sample of similar cameras.
|Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The SX720 has one, while the E-P1 does not. While the built-in flash of the SX720 is not very powerful, it can at times be useful as a fill-in light.
The SX720 writes its imaging data to SDXC cards, while the E-P1 uses SDHC cards. The SX720 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-P1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX720 HS and Olympus PEN E-P1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the SX720 offers wifi support, while the E-P1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the SX720 and the E-P1 have been discontinued, but can regularly be found used on eBay. The E-P1 was replaced by the Olympus E-P2, while the SX720 was followed by the Canon SX730. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is there a clear favorite between the Canon SX720 and the Olympus E-P1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon PowerShot SX720 HS:
- More detail: Offers more megapixels (20.2 vs 12.2MP) with a 29% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
- More detailed LCD: Has a higher resolution rear screen (922k vs 230k dots).
- Faster burst: Shoots at higher frequency (5.9 vs 3 flaps/sec) to capture the decisive moment.
- Ready to shoot: Has a lens built-in, whereas the E-P1 requires a separate lens.
- More compact: Is smaller (110x64mm vs 121x70mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-P1).
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years and 8 months of technical progress since the E-P1 launch.
Advantages of the Olympus PEN E-P1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (300 versus 250) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been around for much longer (launched in June 2009).
If the count of relative strengths (bullet points above) is taken as a measure, the SX720 is the clear winner of the match-up (14 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX720 and the Olympus E-P1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX720 or the E-P1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon SX720||+||..||4/5||..||4.5/5||Feb 2016||379|
|Olympus E-P1||+||66/100||4/5||4/5||4.5/5||Jun 2009||799|
|Canon SX740||+||..||4/5||..||4/5||Jul 2018||399|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Canon G7 X Mark II||+ +||81/100||4.5/5||4/5||4.5/5||Feb 2016||699|
|Canon SX420||..||..||..||..||3/5||Jan 2016||299|
|Canon SX540||..||..||..||..||..||Jan 2016||399|
|Canon SX410||o||..||..||..||..||Feb 2015||279|
|Canon SX710||+||..||4/5||..||3.5/5||Jan 2015||349|
|Olympus E-P3||83/100||74/100||4.5/5||4.5/5||4.5/5||Jun 2011||799|
|Olympus E-PL2||83/100||71/100||4.5/5||4.5/5||4.5/5||Jan 2011||599|
|Olympus E-PL3||+ +||72/100||4.5/5||..||4/5||Jun 2011||599|
|Olympus E-P2||+||69/100||4/5||4.5/5||4.5/5||Nov 2009||799|
|Panasonic ZS70||+ +||..||4/5||..||4/5||Apr 2017||449|
|Panasonic GH1||+ +||72/100||4.5/5||5/5||4.5/5||Mar 2009||899|
|Sony HX80||..||..||..||..||..||Mar 2016||349|
|Sony HX90V||+ +||..||4/5||..||4.5/5||Apr 2015||429|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 5D vs Canon SX720
- Canon G1 X Mark III vs Olympus E-P1
- Canon SX50 vs Olympus E-P1
- Canon SX60 vs Canon SX720
- Canon SX720 vs Fujifilm GFX 100
- Canon SX720 vs Fujifilm X30
- Canon SX720 vs Leica X1
- Canon SX720 vs Olympus E-410
- Canon SX720 vs Olympus E-600
- Nikon D5200 vs Olympus E-P1
- Olympus E-P1 vs Panasonic GF1
- Olympus E-P1 vs Panasonic GX800
Specifications: Canon SX720 vs Olympus E-P1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX720||Olympus E-P1|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-960mm f/3.3-6.9||Micro Four Thirds lenses|
|Launch Date||February 2016||June 2009|
|Launch Price||USD 379||USD 799|
|Sensor Specs||Canon SX720||Olympus E-P1|
|Sensor Format||1/2.3" Sensor||Four Thirds Sensor|
|Sensor Size||6.17 x 4.55 mm||17.3 x 13.0 mm|
|Sensor Area||28.0735 mm2||224.9 mm2|
|Sensor Diagonal||7.7 mm||21.6 mm|
|Sensor Resolution||20.2 Megapixels||12.2 Megapixels|
|Image Resolution||5184 x 3888 pixels||4032 x 3024 pixels|
|Pixel Pitch||1.18 μm||4.29 μm|
|Pixel Density||71.80 MP/cm2||5.42 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||720/30p Video|
|ISO Setting||80 - 3,200 ISO||100 - 6,400 ISO|
|Image Processor||DIGIC 6||TruePic V|
|DXO Sensor Quality (score)||..||55|
|DXO Color Depth (bits)||..||21.4|
|DXO Dynamic Range (EV)||..||10.4|
|DXO Low Light (ISO)||..||536|
|Screen Specs||Canon SX720||Olympus E-P1|
|Viewfinder Type||no viewfinder||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||922k dots||230k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon SX720||Olympus E-P1|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Continuous Shooting||5.9 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDHC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Canon SX720||Olympus E-P1|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||micro HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX720||Olympus E-P1|
|Battery Life (CIPA)||250 shots per charge||300 shots per charge|
110 x 64 x 36 mm
(4.3 x 2.5 x 1.4 in)
121 x 70 x 36 mm
(4.8 x 2.8 x 1.4 in)
|Camera Weight||270 g (9.5 oz)||355 g (12.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
