Canon SX620 vs Olympus E-M5 III

The Canon PowerShot SX620 HS and the Olympus OM-D E-M5 Mark III are two digital cameras that were revealed to the public, respectively, in May 2016 and October 2019. The SX620 is a fixed lens compact, while the E-M5 III is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX620) and a Four Thirds (E-M5 III) sensor. Both cameras offer a resolution of 20.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX620		Olympus E-M5 III
Fixed lens compact camera		Mirrorless system camera
25-625mm f/3.2-6.6		Micro Four Thirds lenses
20.2 MP – 1/2.3" sensor		20.2 MP – Four Thirds sensor
1080/30p Video		4K/30p Video
ISO 80-3,200		ISO 200-25,600
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 922k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
2.5 shutter flaps per second		10 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
295 shots per battery charge		310 shots per battery charge
97 x 57 x 28 mm, 182 g		125 x 85 x 50 mm, 414 g

Check SX620 offers at
ebay.com
Check E-M5 III offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX620 HS and the Olympus OM-D E-M5 Mark III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

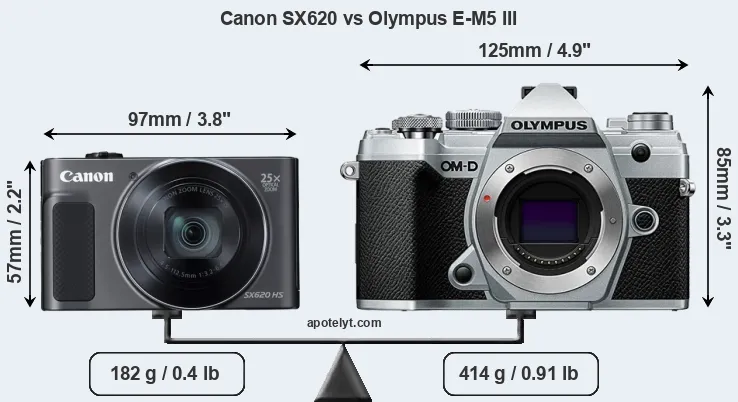

An illustration of the physical size and weight of the Canon SX620 and the Olympus E-M5 III is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The SX620 can be obtained in three different colors (black, silver, red), while the E-M5 III is available in two color-versions (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 III is considerably larger (92 percent) than the Canon SX620. It is noteworthy in this context that the E-M5 III is splash and dust-proof, while the SX620 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX620 has a lens built in, whereas the E-M5 III is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M5 III and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX620 gets 295 shots out of its Canon NB-13L battery, while the E-M5 III can take 310 images on a single charge of its Olympus BLS-50 power pack. The power pack in the E-M5 III can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	279	ebay.com
2.		Olympus E-M5 III	125 mm	85 mm	50 mm	414 g	310	Y	Oct 2019	1,199	ebay.com
3.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	299	ebay.com
4.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
5.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	399	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	299	ebay.com
7.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
8.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	379	ebay.com
9.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
10.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	279	ebay.com
11.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	249	ebay.com
12.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
13.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	1,199	ebay.com
14.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	1,099	ebay.com
15.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	1,399	ebay.com
16.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	1,299	ebay.com
17.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	1,199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX620 was launched at a lower price than the E-M5 III, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX620 features a 1/2.3-inch sensor and the Olympus E-M5 III a Four Thirds sensor. The sensor area in the E-M5 III is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Even though the E-M5 III has a larger sensor, both cameras offer the same resolution of 20.2 megapixels. This implies that the E-M5 III has a lower pixel density and larger individual pixels (with a pixel pitch of 3.34μm versus 1.18μm for the SX620), which gives it a potential advantage in terms of light gathering capacity. In addition, the E-M5 III is much more recent (by 3 years and 5 months) than the SX620, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The E-M5 III has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the SX620, the E-M5 III has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon PowerShot SX620 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Olympus OM-D E-M5 Mark III are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.

In terms of underlying technology, the SX620 is build around a BSI-CMOS sensor, while the E-M5 III uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
2.		Olympus E-M5 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1324	76
3.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
4.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
5.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
8.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
9.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
10.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
11.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
12.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
13.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
14.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
15.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
16.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
17.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-M5 III provides a better video resolution than the SX620. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M5 III has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX620 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX620, the Olympus E-M5 III, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
2.		Olympus E-M5 III	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
3.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
4.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
5.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
8.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
9.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
10.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
11.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
12.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
13.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
14.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
15.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
16.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
17.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The SX620 has one, while the E-M5 III does not. While the built-in flash of the SX620 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M5 III is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M5 III has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SX620 and the E-M5 III write their files to SDXC cards. The E-M5 III supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the SX620 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX620 HS and Olympus OM-D E-M5 Mark III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
2.		Olympus E-M5 III	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
4.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
8.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
11.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
12.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
16.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-

It is notable that the E-M5 III has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX620 does not feature such a mic input.

Both the SX620 and the E-M5 III have been discontinued, but can regularly be found used on ebay. The E-M5 III was replaced by the OM System OM-5, while the SX620 does not have a direct successor. Further information on the features and operation of the SX620 and E-M5 III can be found, respectively, in the Canon SX620 Manual (free pdf) or the online Olympus E-M5 III Manual.

Review summary

So how do things add up? Is the Canon SX620 better than the Olympus E-M5 III or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon PowerShot SX620 HS:

• Ready to shoot: Has a lens built-in, whereas the E-M5 III requires a separate lens.
• More compact: Is smaller (97x57mm vs 125x85mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-M5 III).
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in May 2016).

Arguments in favor of the Olympus OM-D E-M5 Mark III:

• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 2.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.
• More modern: Reflects 3 years and 5 months of technical progress since the SX620 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the E-M5 III is the clear winner of the contest (24 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX620 and the Olympus E-M5 III place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX620 or the E-M5 III perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX620	..	..	..	..	..	4/5	May 2016	279	ebay.com
2.		Olympus E-M5 III	5/5	+	5/5	82/100	4.5/5	4.5/5	Oct 2019	1,199	ebay.com
3.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	299	ebay.com
4.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
5.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	399	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	299	ebay.com
7.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
8.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	379	ebay.com
9.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
10.		Canon SX410	..	o	..	..	..	..	Feb 2015	279	ebay.com
11.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	249	ebay.com
12.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
13.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	1,199	ebay.com
14.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	1,099	ebay.com
15.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	1,399	ebay.com
16.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	1,299	ebay.com
17.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	1,199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check SX620 offers at
ebay.com
Check E-M5 III offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check SX620 offers at
ebay.com
Check E-M5 III offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
