Canon SX60 vs Olympus E-M5

The Canon PowerShot SX60 HS and the Olympus OM-D E-M5 are two digital cameras that were revealed to the public, respectively, in September 2014 and February 2012. The SX60 is a fixed lens compact, while the E-M5 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX60) and a Four Thirds (E-M5) sensor. The Canon has a resolution of 14.2 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX60		Olympus E-M5
Fixed lens compact camera		Mirrorless system camera
21-1365mm f/3.4-6.5		Micro Four Thirds lenses
14.2 MP – 1/2.3" sensor		15.9 MP – Four Thirds sensor
1080/60p Video		1080/60i Video
ISO 100-3,200 (100 - 6,400)		ISO 200-25,600
Electronic viewfinder (922k dots)		Electronic viewfinder (1440k dots)
3.0" LCD – 922k dots		3.0" LCD – 610k dots
Swivel screen (not touch-sensitive)		Tilting touchscreen
6.4 shutter flaps per second		9 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
340 shots per battery charge		360 shots per battery charge
128 x 93 x 114 mm, 650 g		122 x 89 x 43 mm, 425 g

Check SX60 offers at
ebay.com
Check E-M5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX60 HS and the Olympus OM-D E-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

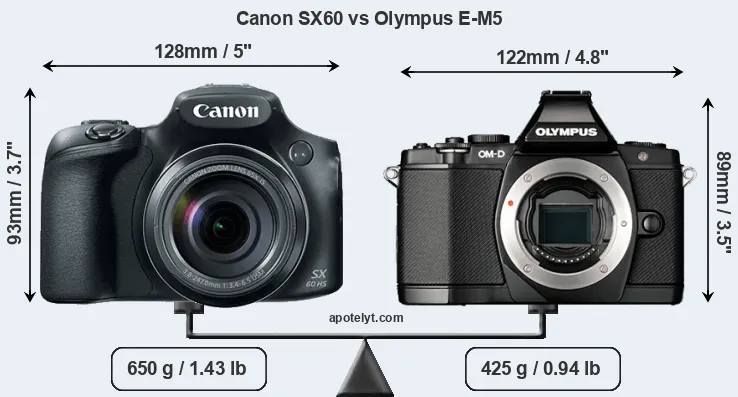

An illustration of the physical size and weight of the Canon SX60 and the Olympus E-M5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-M5 can be obtained in two different colors (black, silver), while the SX60 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M5 is notably smaller (9 percent) than the Canon SX60. It is noteworthy in this context that the E-M5 is splash and dust-proof, while the SX60 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX60 has a lens built in, whereas the E-M5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX60 gets 340 shots out of its Canon NB-10L battery, while the E-M5 can take 360 images on a single charge of its Olympus BLN-1 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
2.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	1,299	ebay.com
3.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	549	amazon.com
4.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	799	ebay.com
5.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
6.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	499	ebay.com
7.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	429	ebay.com
8.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	599	ebay.com
9.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	1,199	ebay.com
10.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	1,099	ebay.com
11.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	1,399	ebay.com
12.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
13.		Panasonic FZ300	132 mm	92 mm	117 mm	691 g	380	Y	Jul 2015	599	amazon.com
14.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
15.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	599	ebay.com
16.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	499	ebay.com
17.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX60 was launched at a lower price than the E-M5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX60 features a 1/2.3-inch sensor and the Olympus E-M5 a Four Thirds sensor. The sensor area in the E-M5 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

With 15.9MP, the E-M5 offers a higher resolution than the SX60 (14.2MP), but the E-M5 nevertheless has larger individual pixels (pixel pitch of 3.76μm versus 1.40μm for the SX60) due to its larger sensor. However, the SX60 is a much more recent model (by 2 years and 7 months) than the E-M5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX60 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot SX60 HS has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-6400. The corresponding ISO settings for the Olympus OM-D E-M5 are ISO 200 to ISO 25600 (no boost).

In terms of underlying technology, the SX60 is build around a BSI-CMOS sensor, while the E-M5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-M5 offers substantially better image quality than the SX60 (overall score 32 points higher). The advantage is based on 3.6 bits higher color depth, 1.5 EV in additional dynamic range, and 2.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
2.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
3.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
4.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
5.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
6.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
7.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
8.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
9.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
10.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
11.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
12.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
13.		Panasonic FZ300	1/2.3	12.0	4000	3000	4K/30p	19.3	11.0	97	38
14.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
15.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
16.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
17.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX60 provides a higher frame rate than the E-M5. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the E-M5 offers a substantially higher resolution than the one in the SX60 (1440k vs 922k dots). The adjacent table lists some of the other core features of the Canon SX60 and Olympus E-M5 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
2.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
3.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
4.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
5.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
6.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
7.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
8.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
9.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
10.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
11.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
12.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
13.		Panasonic FZ300	1440	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
14.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
15.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
16.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
17.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The SX60 has one, while the E-M5 does not. While the built-in flash of the SX60 is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the SX60 and the E-M5 write their files to SDXC cards. The E-M5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX60 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX60 HS and Olympus OM-D E-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
2.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic FZ300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
15.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
17.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the SX60 has a microphone port, which is missing on the E-M5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the SX60 and the E-M5 have been discontinued, but can regularly be found used on ebay. The E-M5 was replaced by the Olympus E-M5 II, while the SX60 was followed by the Canon SX70. Further information on the features and operation of the SX60 and E-M5 can be found, respectively, in the Canon SX60 Manual (free pdf) or the online Olympus E-M5 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon SX60 or the Olympus E-M5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon PowerShot SX60 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More detailed LCD: Has a higher resolution rear screen (922k vs 610k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Ready to shoot: Has a lens built-in, whereas the E-M5 requires a separate lens.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years and 7 months of technical progress since the E-M5 launch.

Arguments in favor of the Olympus OM-D E-M5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores substantially higher (32 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (3.6 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.5 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (2.7 stops ISO advantage).
• More detailed viewfinder: Has higher resolution electronic viewfinder (1440k vs 922k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 6.4 flaps/sec) to capture the decisive moment.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been around for much longer (launched in February 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the E-M5 comes out slightly ahead of the SX60 (13 : 12 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX60 and the Olympus E-M5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX60 or the E-M5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
2.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	1,299	ebay.com
3.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	549	amazon.com
4.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	799	ebay.com
5.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
6.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	499	ebay.com
7.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	429	ebay.com
8.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	599	ebay.com
9.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	1,199	ebay.com
10.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	1,099	ebay.com
11.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	1,399	ebay.com
12.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
13.		Panasonic FZ300	..	+ +	..	..	4.5/5	4.5/5	Jul 2015	599	amazon.com
14.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
15.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	599	ebay.com
16.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	499	ebay.com
17.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check SX60 offers at
ebay.com
Check E-M5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check SX60 offers at
ebay.com
Check E-M5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
