Canon SX60 vs Nikon D5500
The Canon PowerShot SX60 HS and the Nikon D5500 are two digital cameras that were revealed to the public, respectively, in September 2014 and January 2015. The SX60 is a fixed lens compact, while the D5500 is a DSLR. The cameras are based on a 1/2.3-inch (SX60) and an APS-C (D5500) sensor. The Canon has a resolution of 14.2 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX60 HS and the Nikon D5500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

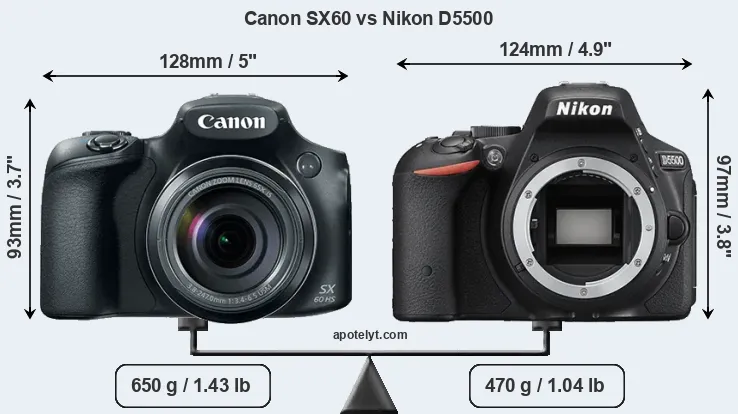

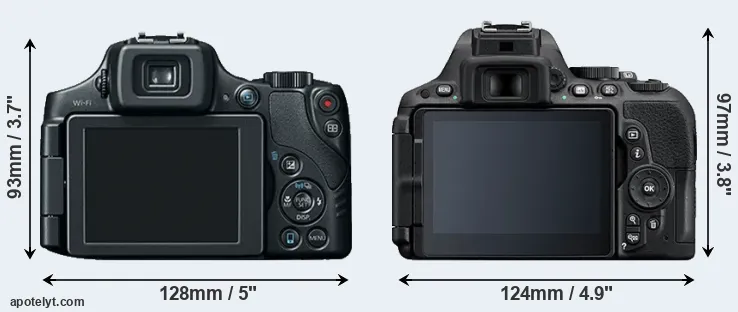

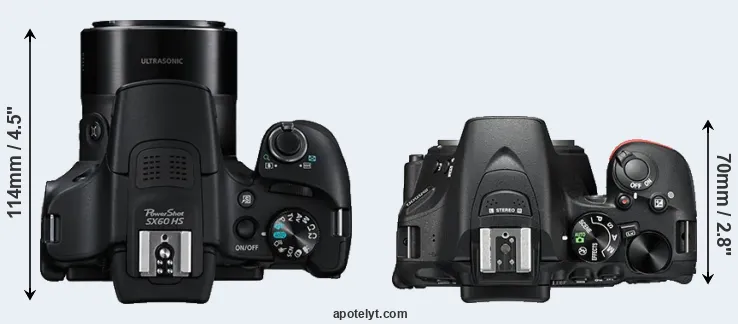

The physical size and weight of the Canon SX60 and the Nikon D5500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The D5500 can be obtained in two different colors (black, red), while the SX60 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5500 is somewhat larger (1 percent) than the Canon SX60. In this context, it is worth noting that neither the SX60 nor the D5500 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX60 has a lens built in, whereas the D5500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5500 and their specifications in the Nikon Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549||ebay.com|
|2.||Nikon D5500||124 mm||97 mm||70 mm||470 g||820||n||Jan 2015||899||ebay.com|
|3.||Canon SX70||127 mm||91 mm||117 mm||608 g||325||n||Sep 2018||549||amazon.com|
|4.||Canon G1 X Mark II||116 mm||74 mm||66 mm||553 g||240||n||Feb 2014||799||ebay.com|
|5.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549||ebay.com|
|6.||Canon G15||107 mm||76 mm||40 mm||352 g||350||n||Sep 2012||499||ebay.com|
|7.||Canon SX50||123 mm||87 mm||106 mm||595 g||315||n||Sep 2012||429||ebay.com|
|8.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|9.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499||ebay.com|
|10.||Nikon P900||140 mm||103 mm||137 mm||899 g||360||n||Mar 2015||599||ebay.com|
|11.||Nikon D3300||124 mm||98 mm||76 mm||430 g||700||n||Jan 2014||499||ebay.com|
|12.||Nikon D5300||125 mm||98 mm||76 mm||480 g||600||n||Oct 2013||799||ebay.com|
|13.||Nikon D5200||129 mm||98 mm||78 mm||555 g||500||n||Nov 2012||749||ebay.com|
|14.||Panasonic FZ300||132 mm||92 mm||117 mm||691 g||380||Y||Jul 2015||599||amazon.com|
|15.||Panasonic FZ200||125 mm||87 mm||110 mm||588 g||540||n||Jul 2012||599||ebay.com|
|16.||Panasonic FZ150||124 mm||82 mm||92 mm||528 g||410||n||Aug 2011||499||ebay.com|
|17.||Sony HX400V||130 mm||93 mm||103 mm||660 g||300||n||Feb 2014||499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX60 was launched at a lower price than the D5500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon SX60 features a 1/2.3-inch sensor and the Nikon D5500 an APS-C sensor. The sensor area in the D5500 is 1211 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX60 has a native 4:3 aspect ratio, while the one in the D5500 offers a 3:2 aspect.

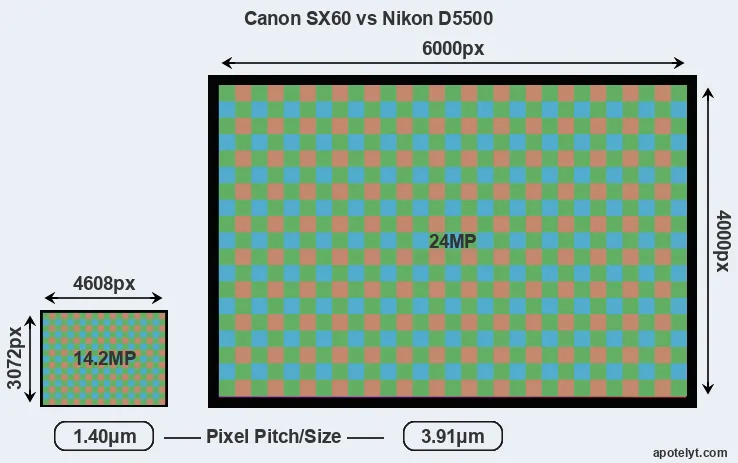

With 24MP, the D5500 offers a higher resolution than the SX60 (14.2MP), but the D5500 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.40μm for the SX60) due to its larger sensor. Moreover, the D5500 is a somewhat more recent model (by 3 months) than the SX60, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Nikon D5500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5500 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX60 are 23 x 15.4 inches or 58.5 x 39 cm for good quality, 18.4 x 12.3 inches or 46.8 x 31.2 cm for very good quality, and 15.4 x 10.2 inches or 39 x 26 cm for excellent quality prints.
The Canon PowerShot SX60 HS has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-6400. The corresponding ISO settings for the Nikon D5500 are ISO 100 to ISO 25600 (no boost).
In terms of underlying technology, the SX60 is build around a BSI-CMOS sensor, while the D5500 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the D5500 offers substantially better image quality than the SX60 (overall score 45 points higher). The advantage is based on 4.9 bits higher color depth, 3.2 EV in additional dynamic range, and 3.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|4.||Canon G1 X Mark II||1.5-inch||13.0||4160||3120||1080/30p||21.5||10.8||581||58|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/60p).
Beyond body and sensor, cameras can and do differ across a range of features. For example, the SX60 has an electronic viewfinder (922k dots), while the D5500 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon SX60 and Nikon D5500 along with similar information for a selection of comparators.
|1.||Canon SX60||922||n||3.0 / 922||swivel||n||1/2000s||6.4/s||Y||Y|
|2.||Nikon D5500||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|3.||Canon SX70||2360||n||3.0 / 922||swivel||n||1/2000s||10.0/s||Y||Y|
|4.||Canon G1 X Mark II||optional||n||3.0 / 1040||tilting||Y||1/4000s||5.2/s||Y||Y|
|5.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|6.||Canon G15||optical||n||3.0 / 922||fixed||n||1/4000s||2.1/s||Y||Y|
|7.||Canon SX50||202||n||3.0 / 461||swivel||n||1/2000s||2.2/s||Y||Y|
|8.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|9.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|10.||Nikon P900||921||n||3.0 / 921||swivel||n||1/4000s||7.0/s||Y||Y|
|11.||Nikon D3300||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|12.||Nikon D5300||optical||n||3.2 / 1037||swivel||n||1/4000s||5.0/s||Y||n|
|13.||Nikon D5200||optical||n||3.0 / 921||swivel||n||1/4000s||5.0/s||Y||n|
|14.||Panasonic FZ300||1440||n||3.0 / 1040||swivel||Y||1/4000s||12.0/s||Y||Y|
|15.||Panasonic FZ200||1312||n||3.0 / 460||swivel||n||1/4000s||12.0/s||Y||Y|
|16.||Panasonic FZ150||202||n||3.0 / 460||swivel||n||1/2000s||12.0/s||Y||Y|
|17.||Sony HX400V||210||n||3.0 / 921||tilting||n||1/4000s||10.0/s||Y||Y|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5500 has a touchscreen, while the SX60 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.
The Nikon D5500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX60 and the D5500 write their files to SDXC cards. The D5500 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX60 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX60 HS and Nikon D5500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon SX60||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|2.||Nikon D5500||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|3.||Canon SX70||-||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|4.||Canon G1 X Mark II||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|5.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|6.||Canon G15||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|7.||Canon SX50||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|8.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|9.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|10.||Nikon P900||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|11.||Nikon D3300||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|12.||Nikon D5300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|13.||Nikon D5200||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|14.||Panasonic FZ300||Y||stereo / mono||Y||-||mini||2.0||Y||-||-|
|15.||Panasonic FZ200||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|16.||Panasonic FZ150||Y||stereo / -||-||-||mini||2.0||-||-||-|
|17.||Sony HX400V||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
Both the SX60 and the D5500 have been discontinued, but can regularly be found used on ebay. The SX60 was replaced by the Canon SX70, while the D5500 was followed by the Nikon D5600. Further information on the features and operation of the SX60 and D5500 can be found, respectively, in the Canon SX60 Manual (free pdf) or the online Nikon D5500 Manual.
So what conclusions can be drawn? Is the Canon SX60 better than the Nikon D5500 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon PowerShot SX60 HS:
- More framing info: Has an electronic viewfinder that displays shooting data.
- Faster burst: Shoots at higher frequency (6.4 vs 5 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with a built-in lens, while the D5500 requires a separate lens.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been on the market for longer (launched in September 2014).
Arguments in favor of the Nikon D5500:
- More detail: Has more megapixels (24 vs 14.2MP), which boosts linear resolution by 30%.
- Better image quality: Scores substantially higher (45 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (4.9 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (3.2 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (3.5 stops ISO advantage).
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 922k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (820 versus 340) out of a single battery charge.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Was introduced somewhat (3 months) more recently.
If the count of relative strengths (bullet points above) is taken as a measure, the D5500 is the clear winner of the contest (15 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX60 and the Nikon D5500 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the SX60 or the D5500 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX60||3/5||+ +||..||75/100||4/5||4.5/5||Sep 2014||549||ebay.com|
|2.||Nikon D5500||5/5||+||..||79/100||4.5/5||4.5/5||Jan 2015||899||ebay.com|
|3.||Canon SX70||..||+ +||3.5/5||..||3.5/5||3.5/5||Sep 2018||549||amazon.com|
|4.||Canon G1 X Mark II||3/5||+||..||77/100||4/5||4.5/5||Feb 2014||799||ebay.com|
|5.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549||ebay.com|
|6.||Canon G15||4/5||+||..||76/100||4.5/5||4.5/5||Sep 2012||499||ebay.com|
|7.||Canon SX50||3/5||+ +||..||72/100||4.5/5||4.5/5||Sep 2012||429||ebay.com|
|8.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|9.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499||ebay.com|
|10.||Nikon P900||..||..||..||77/100||4/5||4/5||Mar 2015||599||ebay.com|
|11.||Nikon D3300||3/5||+||..||77/100||4.5/5||4.5/5||Jan 2014||499||ebay.com|
|12.||Nikon D5300||4/5||+ +||..||79/100||4.5/5||4.5/5||Oct 2013||799||ebay.com|
|13.||Nikon D5200||4/5||+ +||..||79/100||4.5/5||4.5/5||Nov 2012||749||ebay.com|
|14.||Panasonic FZ300||..||+ +||..||..||4.5/5||4.5/5||Jul 2015||599||amazon.com|
|15.||Panasonic FZ200||3/5||+ +||..||80/100||4.5/5||4.5/5||Jul 2012||599||ebay.com|
|16.||Panasonic FZ150||3/5||+ +||..||76/100||4/5||4.5/5||Aug 2011||499||ebay.com|
|17.||Sony HX400V||4/5||+ +||..||..||4/5||4/5||Feb 2014||499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 400D vs Canon SX60
- Canon SX60 vs Nikon D100
- Canon SX60 vs Nikon D7500
- Canon SX60 vs Olympus E-M5 II
- Canon SX60 vs Olympus TG-6
- Canon SX60 vs Sony H200
- Fujifilm X-E4 vs Nikon D5500
- Leica Q Typ 116 vs Nikon D5500
- Nikon 1 V3 vs Nikon D5500
- Nikon D5500 vs Panasonic FT7
- Nikon D5500 vs Pentax K-5
- Nikon D5500 vs Sony RX10
Specifications: Canon SX60 vs Nikon D5500
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX60||Nikon D5500|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||21-1365mm f/3.4-6.5||Nikon F mount lenses|
|Launch Date||September 2014||January 2015|
|Launch Price||USD 549||USD 899|
|Sensor Specs||Canon SX60||Nikon D5500|
|Sensor Format||1/2.3" Sensor||APS-C Sensor|
|Sensor Size||6.17 x 4.55 mm||23.5 x 15.6 mm|
|Sensor Area||28.0735 mm2||366.6 mm2|
|Sensor Diagonal||7.7 mm||28.2 mm|
|Sensor Resolution||14.2 Megapixels||24 Megapixels|
|Image Resolution||4608 x 3072 pixels||6000 x 4000 pixels|
|Pixel Pitch||1.40 μm||3.91 μm|
|Pixel Density||50.42 MP/cm2||6.55 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||100 - 3,200 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 6,400 ISO||no Enhancement|
|Image Processor||DIGIC 6||EXPEED 4|
|DXO Sensor Quality (score)||39||84|
|DXO Color Depth (bits)||19.2||24.1|
|DXO Dynamic Range (EV)||10.8||14.0|
|DXO Low Light (ISO)||127||1438|
|Screen Specs||Canon SX60||Nikon D5500|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Viewfinder Resolution||922k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||922k dots||1037k dots|
|LCD Attachment||Swivel screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon SX60||Nikon D5500|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||6.4 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon SX60||Nikon D5500|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX60||Nikon D5500|
|Battery Life (CIPA)||340 shots per charge||820 shots per charge|
128 x 93 x 114 mm
(5.0 x 3.7 x 4.5 in)
124 x 97 x 70 mm
(4.9 x 3.8 x 2.8 in)
|Camera Weight||650 g (22.9 oz)||470 g (16.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
