Canon SX540 vs Panasonic G7
The Canon PowerShot SX540 HS and the Panasonic Lumix DMC-G7 are two digital cameras that were revealed to the public, respectively, in January 2016 and May 2015. The SX540 is a fixed lens compact, while the G7 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX540) and a Four Thirds (G7) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Panasonic provides 15.8 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Panasonic Lumix DMC-G7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

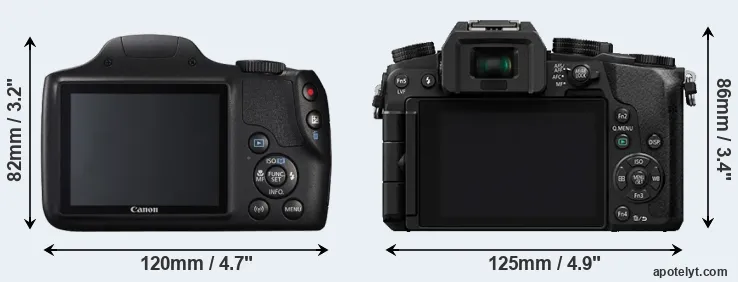

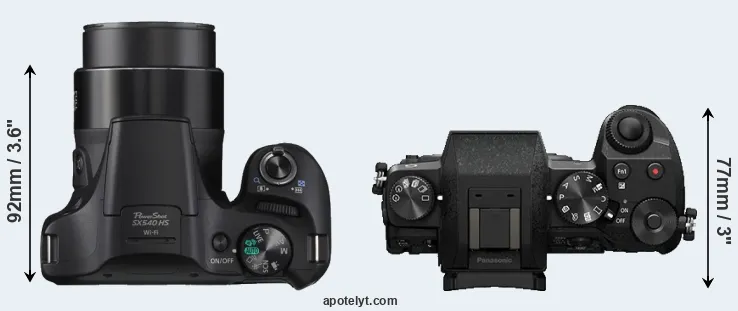

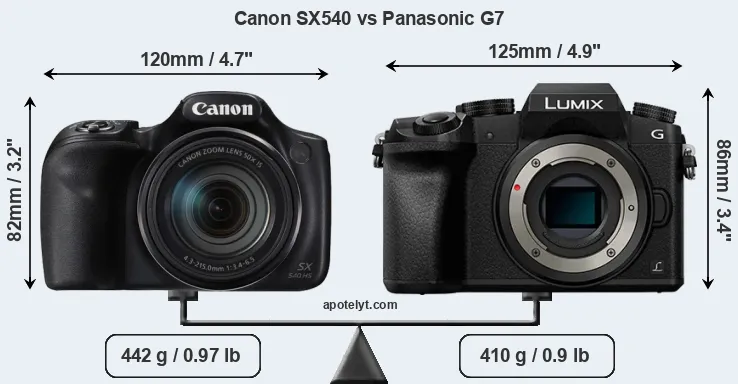

The physical size and weight of the Canon SX540 and the Panasonic G7 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The G7 can be obtained in two different colors (black, silver), while the SX540 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G7 is notably larger (9 percent) than the Canon SX540. In this context, it is worth noting that neither the SX540 nor the G7 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX540 has a lens built in, whereas the G7 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the G7 and their specifications in the Micro Four Thirds Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon SX540||120 mm||82 mm||92 mm||442 g||205||n||Jan 2016||399|
|2.||Panasonic G7||125 mm||86 mm||77 mm||410 g||350||n||May 2015||649|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon G1 X Mark III||115 mm||78 mm||51 mm||399 g||200||Y||Oct 2017||1,299|
|6.||Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|7.||Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|8.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|9.||Canon 1300D||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|10.||Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379|
|11.||Canon SX530||120 mm||82 mm||92 mm||442 g||210||n||Jan 2015||429|
|12.||Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349|
|13.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699|
|14.||Panasonic GM5||99 mm||60 mm||36 mm||211 g||220||n||Sep 2014||749|
|15.||Panasonic G6||122 mm||85 mm||71 mm||390 g||340||n||Apr 2013||599|
|16.||Panasonic G5||120 mm||83 mm||71 mm||396 g||320||n||Jul 2012||599|
|17.||Panasonic G3||115 mm||84 mm||47 mm||336 g||270||n||May 2011||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX540 was launched at a lower price than the G7, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

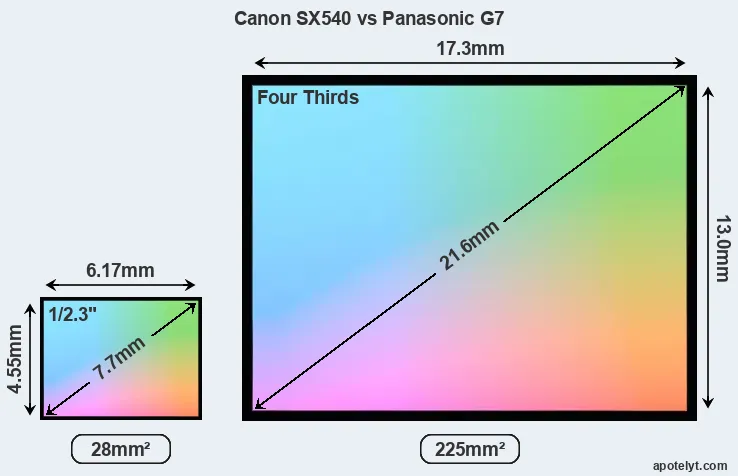

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon SX540 features a 1/2.3-inch sensor and the Panasonic G7 a Four Thirds sensor. The sensor area in the G7 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

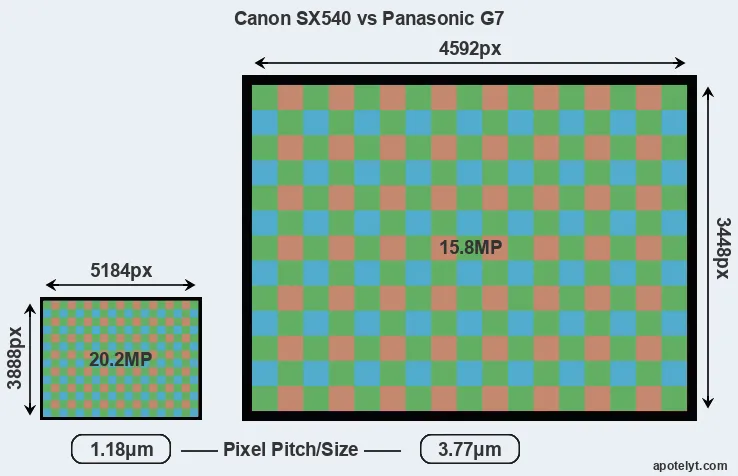

Despite having a smaller sensor, the Canon SX540 offers a higher resolution of 20.2 megapixels, compared with 15.8 MP of the Panasonic G7. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 3.77μm for the G7). However, it should be noted that the SX540 is a somewhat more recent model (by 7 months) than the G7, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that the SX540 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX540 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX540 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic G7 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.
The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-G7 are ISO 160 to ISO 25600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Panasonic G7||Four Thirds||15.8||4592||3448||4K/30p||..||..||..||..|
|5.||Canon G1 X Mark III||APS-C||24.0||6000||4000||1080/60p||..||..||..||..|
|6.||Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
|14.||Panasonic GM5||Four Thirds||15.8||4592||3448||1080/60p||22.1||11.7||721||66|
|15.||Panasonic G6||Four Thirds||15.9||4608||3456||1080/60p||21.3||11.5||639||61|
|16.||Panasonic G5||Four Thirds||15.9||4608||3456||1080/60p||..||..||..||..|
|17.||Panasonic G3||Four Thirds||15.8||4592||3448||1080/60i||21.0||10.6||667||56|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the G7 provides a better video resolution than the SX540. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the G7 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX540, the Panasonic G7, and comparable cameras.
|5.||Canon G1 X Mark III||2360||n||3.0||1040||swivel||Y||1/2000s||9.0||Y||Y|
|6.||Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G7 has a touchscreen, while the SX540 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The G7 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the SX540 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the G7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Panasonic G7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX540 and the G7 write their files to SDXC cards. The G7 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the SX540 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Panasonic Lumix DMC-G7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|5.||Canon G1 X Mark III||Y||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|6.||Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
It is notable that the G7 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX540 does not feature such a mic input.
The SX540 is a recent model that features in the current product line-up of Canon. In contrast, the G7 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the G7 was succeeded by the Panasonic G85. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.
So what conclusions can be drawn? Is there a clear favorite between the Canon SX540 and the Panasonic G7? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon PowerShot SX540 HS:
- More detail: Offers more megapixels (20.2 vs 15.8MP) with a 13% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has a lens built-in, whereas the G7 requires a separate lens.
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Is somewhat more recent (announced 7 months after the G7).
Arguments in favor of the Panasonic Lumix DMC-G7:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an electronic viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 5.9 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (350 versus 205) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More heavily discounted: Has been on the market for longer (launched in May 2015).
If the count of individual advantages (bullet points above) is taken as a guide, the G7 is the clear winner of the contest (21 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX540 and the Panasonic G7 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX540 or the G7. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX540||..||..||..||..||..||Jan 2016||399|
|2.||Panasonic G7||4/5||+ +||80/100||5/5||4.5/5||May 2015||649|
|3.||Canon 77D||4.5/5||..||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon 200D||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon G1 X Mark III||5/5||+||79/100||4.5/5||4.5/5||Oct 2017||1,299|
|6.||Canon G9 X Mark II||4/5||..||75/100||4.5/5||4.5/5||Jan 2017||529|
|7.||Canon M6||..||..||80/100||4/5||4/5||Feb 2017||779|
|8.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|9.||Canon 1300D||4/5||o||73/100||4/5||4/5||Mar 2016||449|
|10.||Canon SX720||..||+||..||4/5||4.5/5||Feb 2016||379|
|11.||Canon SX530||..||+ +||..||4/5||4/5||Jan 2015||429|
|12.||Canon SX710||..||+||..||4/5||3.5/5||Jan 2015||349|
|13.||Fujifilm X-E2S||4.5/5||..||77/100||4.5/5||4.5/5||Jan 2016||699|
|14.||Panasonic GM5||3.5/5||+||77/100||5/5||4.5/5||Sep 2014||749|
|15.||Panasonic G6||4/5||+ +||..||5/5||4.5/5||Apr 2013||599|
|16.||Panasonic G5||3/5||+ +||..||4.5/5||4.5/5||Jul 2012||599|
|17.||Panasonic G3||3/5||+ +||75/100||4.5/5||5/5||May 2011||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Canon SX540 vs Panasonic G7
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX540||Panasonic G7|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-1200mm f/3.4-6.5||Micro Four Thirds lenses|
|Launch Date||January 2016||May 2015|
|Launch Price||USD 399||USD 649|
|Sensor Specs||Canon SX540||Panasonic G7|
|Sensor Format||1/2.3" Sensor||Four Thirds Sensor|
|Sensor Size||6.17 x 4.55 mm||17.3 x 13.0 mm|
|Sensor Area||28.0735 mm2||224.9 mm2|
|Sensor Diagonal||7.7 mm||21.6 mm|
|Sensor Resolution||20.2 Megapixels||15.8 Megapixels|
|Image Resolution||5184 x 3888 pixels||4592 x 3448 pixels|
|Pixel Pitch||1.18 μm||3.77 μm|
|Pixel Density||71.80 MP/cm2||7.04 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||4K/30p Video|
|ISO Setting||80 - 3,200 ISO||160 - 25,600 ISO|
|Image Processor||DIGIC 6||Venus|
|Screen Specs||Canon SX540||Panasonic G7|
|Viewfinder Type||no viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%|
|Viewfinder Resolution||2360k dots|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||461k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon SX540||Panasonic G7|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/4000s|
|Continuous Shooting||5.9 shutter flaps/s||7 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-II|
|Connectivity Specs||Canon SX540||Panasonic G7|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX540||Panasonic G7|
|Battery Life (CIPA)||205 shots per charge||350 shots per charge|
120 x 82 x 92 mm
(4.7 x 3.2 x 3.6 in)
125 x 86 x 77 mm
(4.9 x 3.4 x 3.0 in)
|Camera Weight||442 g (15.6 oz)||410 g (14.5 oz)|
