Canon SX540 vs Nikon D7100
The Canon PowerShot SX540 HS and the Nikon D7100 are two digital cameras that were officially introduced, respectively, in January 2016 and February 2013. The SX540 is a fixed lens compact, while the D7100 is a DSLR. The cameras are based on a 1/2.3-inch (SX540) and an APS-C (D7100) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Nikon D7100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

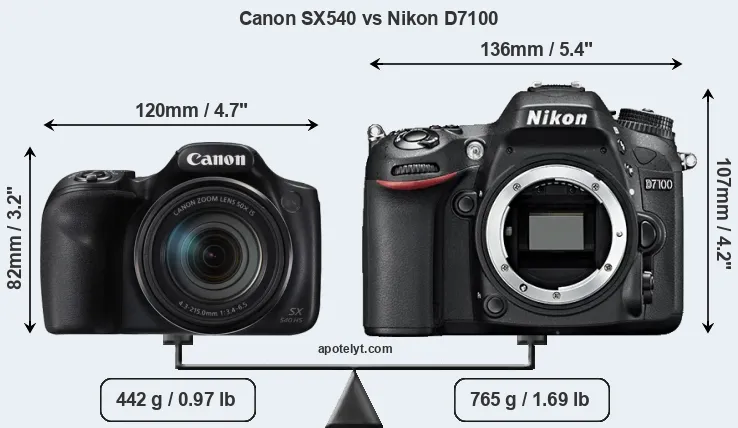

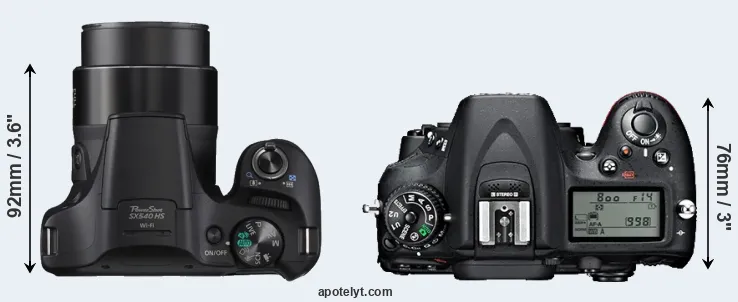

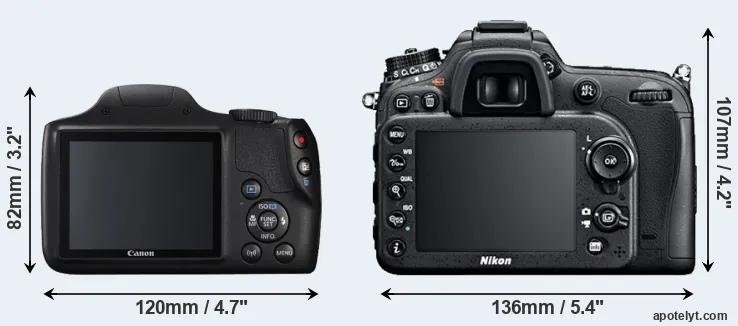

The physical size and weight of the Canon SX540 and the Nikon D7100 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D7100 is considerably larger (48 percent) than the Canon SX540. It is noteworthy in this context that the D7100 is splash and dust-proof, while the SX540 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX540 has a lens built in, whereas the D7100 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D7100 and their specifications in the Nikon Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|Canon SX540||120 mm||82 mm||92 mm||442 g||205||n||Jan 2016||399|
|Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|Canon 200D||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|Canon G1 X Mark III||115 mm||78 mm||51 mm||399 g||200||Y||Oct 2017||1,299|
|Canon G9 X Mark II||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529|
|Canon M6||112 mm||68 mm||45 mm||390 g||295||n||Feb 2017||779|
|Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|Canon 1300D||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379|
|Canon SX530||120 mm||82 mm||92 mm||442 g||210||n||Jan 2015||429|
|Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349|
|Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX540 was launched at a lower price than the D7100, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon SX540 features a 1/2.3-inch sensor and the Nikon D7100 an APS-C sensor. The sensor area in the D7100 is 1211 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX540 has a native 4:3 aspect ratio, while the one in the D7100 offers a 3:2 aspect.

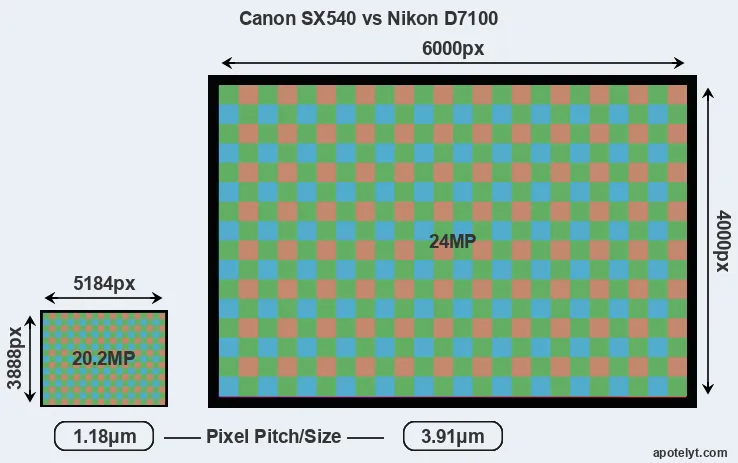

With 24MP, the D7100 offers a higher resolution than the SX540 (20.2MP), but the D7100 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.18μm for the SX540) due to its larger sensor. However, the SX540 is a much more recent model (by 2 years and 10 months) than the D7100, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Nikon D7100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D7100 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX540 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Nikon D7100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 50-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|Canon G1 X Mark III||APS-C||24.0||6000||4000||1080/60p||..||..||..||..|
|Canon G9 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/60p).
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D7100 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX540 and Nikon D7100 along with similar information for a selection of comparators.
|Canon G1 X Mark III||2360||n||3.0||1040||swivel||Y||1/2000s||9.0||Y||Y|
|Canon G9 X Mark II||none||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y|
One feature that is present on the D7100, but is missing on the SX540 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D7100 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX540 and the D7100 write their files to SDXC cards. The D7100 features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX540 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Nikon D7100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Canon G1 X Mark III||Y||stereo||mono||-||-||micro||2.0||Y||Y||Y|
|Canon G9 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||Y|
It is notable that the SX540 offers wifi support, while the D7100 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The SX540 is a recent model that features in the current product line-up of Canon. In contrast, the D7100 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D7100 was succeeded by the Nikon D7200. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Which of the two cameras – the Canon SX540 or the Nikon D7100 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon PowerShot SX540 HS:
- Ready to shoot: Comes with a built-in lens, while the D7100 requires a separate lens.
- More compact: Is smaller (120x82mm vs 136x107mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the D7100).
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 2 years and 10 months of technical progress since the D7100 launch.
Advantages of the Nikon D7100:
- More detail: Has more megapixels (24 vs 20.2MP), which boosts linear resolution by 11%.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1229k vs 461k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (950 versus 205) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in February 2013).
If the count of individual advantages (bullet points above) is taken as a guide, the D7100 is the clear winner of the contest (19 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX540 and the Nikon D7100 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SX540 and the D7100 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon SX540||..||..||..||..||..||Jan 2016||399|
|Nikon D7100||+ +||85/100||4.5/5||5/5||4.5/5||Feb 2013||1,199|
|Canon 77D||..||82/100||4.5/5||4.5/5||4/5||Feb 2017||899|
|Canon 200D||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549|
|Canon G1 X Mark III||+||79/100||4.5/5||..||4.5/5||Oct 2017||1,299|
|Canon G9 X Mark II||..||75/100||4.5/5||4.5/5||4.5/5||Jan 2017||529|
|Canon M6||..||80/100||4/5||4.5/5||4/5||Feb 2017||779|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Canon 1300D||o||73/100||4/5||3.5/5||4/5||Mar 2016||449|
|Canon SX720||+||..||4/5||..||4.5/5||Feb 2016||379|
|Canon SX530||+ +||..||4/5||..||4/5||Jan 2015||429|
|Canon SX710||+||..||4/5||..||3.5/5||Jan 2015||349|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Nikon D7500||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Nikon D7200||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199|
|Nikon D7000||..||80/100||4.5/5||5/5||4.5/5||Sep 2010||1,499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon SX540 vs Nikon D7100
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX540||Nikon D7100|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||24-1200mm f/3.4-6.5||Nikon F mount lenses|
|Launch Date||January 2016||February 2013|
|Launch Price||USD 399||USD 1,199|
|Sensor Specs||Canon SX540||Nikon D7100|
|Sensor Format||1/2.3" Sensor||APS-C Sensor|
|Sensor Size||6.17 x 4.55 mm||23.5 x 15.6 mm|
|Sensor Area||28.0735 mm2||366.6 mm2|
|Sensor Diagonal||7.7 mm||28.2 mm|
|Sensor Resolution||20.2 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3888 pixels||6000 x 4000 pixels|
|Pixel Pitch||1.18 μm||3.91 μm|
|Pixel Density||71.80 MP/cm2||6.55 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||1080/60p Video||1080/60p Video|
|ISO Setting||80 - 3,200 ISO||100 - 6,400 ISO|
|ISO Boost||no Enhancement||50 - 25,600 ISO|
|Image Processor||DIGIC 6||EXPEED 4|
|DXO Sensor Quality (score)||..||83|
|DXO Color Depth (bits)||..||24.2|
|DXO Dynamic Range (EV)||..||13.7|
|DXO Low Light (ISO)||..||1256|
|Screen Specs||Canon SX540||Nikon D7100|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||461k dots||1229k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon SX540||Nikon D7100|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Continuous Shooting||5.9 shutter flaps/s||6 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon SX540||Nikon D7100|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX540||Nikon D7100|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||205 shots per charge||950 shots per charge|
120 x 82 x 92 mm
(4.7 x 3.2 x 3.6 in)
136 x 107 x 76 mm
(5.4 x 4.2 x 3.0 in)
|Camera Weight||442 g (15.6 oz)||765 g (27.0 oz)|
