Canon SX540 vs Nikon D5200
The Canon PowerShot SX540 HS and the Nikon D5200 are two digital cameras that were officially introduced, respectively, in January 2016 and November 2012. The SX540 is a fixed lens compact, while the D5200 is a DSLR. The cameras are based on a 1/2.3-inch (SX540) and an APS-C (D5200) sensor. The Canon has a resolution of 20.2 megapixels, whereas the Nikon provides 24 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Nikon D5200? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

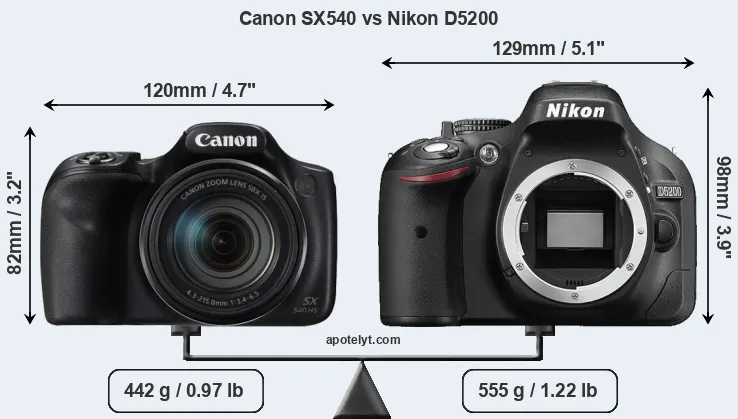

An illustration of the physical size and weight of the Canon SX540 and the Nikon D5200 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The D5200 can be obtained in two different colors (black, red), while the SX540 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5200 is notably larger (28 percent) than the Canon SX540. In this context, it is worth noting that neither the SX540 nor the D5200 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX540 has a lens built in, whereas the D5200 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5200 and their specifications in the Nikon Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon SX540||4.7 in||3.2 in||3.6 in||15.6 oz||205||n||Jan 2016||399|
|Nikon D5200||5.1 in||3.9 in||3.1 in||19.6 oz||500||n||Nov 2012||749|
|Canon SX740||4.3 in||2.5 in||1.6 in||10.5 oz||265||n||Jul 2018||399|
|Canon SX730||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399|
|Canon T6||5.1 in||4.0 in||3.1 in||17.1 oz||500||n||Mar 2016||449|
|Canon SX420||4.1 in||2.7 in||3.3 in||11.5 oz||195||n||Jan 2016||299|
|Canon SX720||4.3 in||2.5 in||1.4 in||9.5 oz||250||n||Feb 2016||379|
|Canon SX410||4.1 in||2.7 in||3.3 in||11.5 oz||185||n||Feb 2015||279|
|Canon SX530||4.7 in||3.2 in||3.6 in||15.6 oz||210||n||Jan 2015||429|
|Canon SX710||4.4 in||2.6 in||1.4 in||9.5 oz||230||n||Jan 2015||349|
|Nikon D5600||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699|
|Nikon D3300||4.9 in||3.9 in||3.0 in||15.2 oz||700||n||Jan 2014||499|
|Nikon D5300||4.9 in||3.9 in||3.0 in||16.9 oz||600||n||Oct 2013||799|
|Nikon D3200||4.9 in||3.8 in||3.0 in||17.8 oz||540||n||Apr 2012||599|
|Nikon D5100||5.0 in||3.8 in||3.1 in||19.8 oz||660||n||Apr 2011||749|
|Panasonic ZS70||4.4 in||2.6 in||1.6 in||11.4 oz||380||n||Apr 2017||449|
|Panasonic FZ80||5.1 in||3.7 in||4.7 in||21.7 oz||330||n||Jan 2017||399|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX540 was launched at a lower price than the D5200, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon SX540 features a 1/2.3-inch sensor and the Nikon D5200 an APS-C sensor. The sensor area in the D5200 is 1211 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX540 has a native 4:3 aspect ratio, while the one in the D5200 offers a 3:2 aspect.
With 24MP, the D5200 offers a higher resolution than the SX540 (20.2MP), but the D5200 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.18μm for the SX540) due to its larger sensor. However, the SX540 is a much more recent model (by 3 years and 1 month) than the D5200, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX540 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX540 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Nikon D5200 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX540 provides a higher frame rate than the D5200. It can shoot video footage at 1080/60p, while the Nikon is limited to 1080/60i.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the D5200 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX540 and Nikon D5200 in connection with corresponding information for a sample of similar cameras.
The Nikon D5200 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX540 and the D5200 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Nikon D5200 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the SX540 offers wifi support, while the D5200 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The SX540 is a recent model that features in the current product line-up of Canon. In contrast, the D5200 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D5200 was succeeded by the Nikon D5300. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Which of the two cameras – the Canon SX540 or the Nikon D5200 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon PowerShot SX540 HS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (1080/60p versus 1080/60i).
- Faster burst: Shoots at higher frequency (5.9 vs 5 flaps/sec) to capture the decisive moment.
- Ready to shoot: Comes with a built-in lens, while the D5200 requires a separate lens.
- More compact: Is smaller (120x82mm vs 129x98mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the D5200).
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 3 years and 1 month of technical progress since the D5200 launch.
Advantages of the Nikon D5200:
- More detail: Has more megapixels (24 vs 20.2MP), which boosts linear resolution by 11%.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 461k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (500 versus 205) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- More heavily discounted: Has been around for much longer (launched in November 2012).
If the count of individual advantages (bullet points above) is taken as a guide, the D5200 is the clear winner of the contest (17 : 11 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX540 and the Nikon D5200 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX540 or the D5200 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon SX540||..||..||..||..||..||Jan 2016||399|
|Nikon D5200||+ +||79/100||4.5/5||4.5/5||4.5/5||Nov 2012||749|
|Canon SX740||+||..||4/5||..||4/5||Jul 2018||399|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Canon T6||o||73/100||4/5||3.5/5||4/5||Mar 2016||449|
|Canon SX420||..||..||..||..||3/5||Jan 2016||299|
|Canon SX720||+||..||4/5||..||4.5/5||Feb 2016||379|
|Canon SX410||o||..||..||..||..||Feb 2015||279|
|Canon SX530||+ +||..||4/5||..||4/5||Jan 2015||429|
|Canon SX710||+||..||4/5||..||3.5/5||Jan 2015||349|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D3300||+||77/100||4.5/5||4.5/5||4.5/5||Jan 2014||499|
|Nikon D5300||+ +||79/100||4.5/5||4.5/5||4.5/5||Oct 2013||799|
|Nikon D3200||+ +||73/100||4.5/5||4.5/5||4.5/5||Apr 2012||599|
|Nikon D5100||+ +||76/100||4.5/5||5/5||4.5/5||Apr 2011||749|
|Panasonic ZS70||+ +||..||4/5||..||4/5||Apr 2017||449|
|Panasonic FZ80||+ +||..||4.5/5||..||4.5/5||Jan 2017||399|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 6D vs Canon SX540
- Canon G1 X Mark II vs Nikon D5200
- Canon SX50 vs Canon SX540
- Canon SX540 vs Epson R-D1
- Canon SX540 vs Leica C-LUX
- Canon SX540 vs Nikon D7500
- Canon SX540 vs Sony A900
- Canon T4i vs Nikon D5200
- Leica M9 vs Nikon D5200
- Nikon D5200 vs Sony A6400
- Nikon D5200 vs Sony H300
- Nikon D5200 vs Sony HX95
Specifications: Canon SX540 vs Nikon D5200
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX540||Nikon D5200|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||24-1200mm f/3.4-6.5||Nikon F mount lenses|
|Launch Date||January 2016||November 2012|
|Launch Price||USD 399||USD 749|
|Sensor Specs||Canon SX540||Nikon D5200|
|Sensor Format||1/2.3" Sensor||APS-C Sensor|
|Sensor Size||6.17 x 4.55 mm||23.5 x 15.6 mm|
|Sensor Area||28.0735 mm2||366.6 mm2|
|Sensor Diagonal||7.7 mm||28.2 mm|
|Sensor Resolution||20.2 Megapixels||24 Megapixels|
|Image Resolution||5184 x 3888 pixels||6000 x 4000 pixels|
|Pixel Pitch||1.18 μm||3.91 μm|
|Pixel Density||71.80 MP/cm2||6.55 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/60i Video|
|ISO Setting||80 - 3,200 ISO||100 - 6,400 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 6||EXPEED 3|
|DXO Sensor Quality (score)||..||84|
|DXO Color Depth (bits)||..||24.2|
|DXO Dynamic Range (EV)||..||13.9|
|DXO Low Light (ISO)||..||1284|
|Screen Specs||Canon SX540||Nikon D5200|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||461k dots||921k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Canon SX540||Nikon D5200|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Continuous Shooting||5.9 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon SX540||Nikon D5200|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX540||Nikon D5200|
|Battery Life (CIPA)||205 shots per charge||500 shots per charge|
120 x 82 x 92 mm
(4.7 x 3.2 x 3.6 in)
129 x 98 x 78 mm
(5.1 x 3.9 x 3.1 in)
|Camera Weight||442 g (15.6 oz)||555 g (19.6 oz)|
