Canon SX530 vs Panasonic G5

The Canon PowerShot SX530 HS and the Panasonic Lumix DMC-G5 are two digital cameras that were announced, respectively, in January 2015 and July 2012. The SX530 is a fixed lens compact, while the G5 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX530) and a Four Thirds (G5) sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SX530 versus Panasonic G5
Canon SX530 Panasonic G5
Fixed lens compact camera Mirrorless system camera
24-1200mm f/3.4-6.5 Micro Four Thirds lenses
15.9 MP, 1/2.3" Sensor 15.9 MP, Four Thirds Sensor
1080/30p Video 1080/60p Video
ISO 100-3,200 ISO 160-12,800
No viewfinder, LCD framing Electronic viewfinder (1440k dots)
3.0 LCD, 461k dots 3.0 LCD, 920k dots
Fixed screen (not touch-sensitive) Swivel touchscreen
1.6 shutter flaps per second 6 shutter flaps per second
210 shots per battery charge320 shots per battery charge
120 x 82 x 92 mm, 442 g 120 x 83 x 71 mm, 396 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX530 HS and the Panasonic Lumix DMC-G5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon SX530 and the Panasonic G5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The G5 can be obtained in two different colors (black, silver), while the SX530 is only available in black.

Size Canon SX530 vs Panasonic G5
Compare SX530 versus G5 top
Comparison SX530 or G5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G5 is somewhat larger (1 percent) than the Canon SX530. In this context, it is worth noting that neither the SX530 nor the G5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX530 has a lens built in, whereas the G5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the G5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX530 gets 210 shots out of its NB-6LH battery, while the G5 can take 320 images on a single charge of its DMW-BLC12 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price

Canon SX530 120 mm 82 mm 92 mm 442 g 210 n Jan 2015 429i

Panasonic G5 120 mm 83 mm 71 mm 396 g 320 n Jul 2012 599i

Canon 4000D 129 mm 102 mm 77 mm 436 g 500 n Feb 2018 399 i

Canon 1300D 129 mm 101 mm 78 mm 485 g 500 n Mar 2016 449i

Canon SX540 120 mm 82 mm 92 mm 442 g 205 n Jan 2016 399 i

Canon M10 108 mm 67 mm 35 mm 301 g 255 n Oct 2015 499i

Canon SX520 120 mm 82 mm 92 mm 441 g 210 n Jul 2014 399i

Canon 1200D 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449i

Canon SX60 128 mm 93 mm 114 mm 650 g 340 n Sep 2014 549i

Canon G1 X 117 mm 81 mm 65 mm 534 g 250 n Jan 2012 799i

Fujifilm X100T 127 mm 74 mm 52 mm 440 g 330 n Sep 2014 1,299i

Leica X Typ 113 133 mm 73 mm 78 mm 486 g 350 n Sep 2014 2,295i

Panasonic G7 125 mm 86 mm 77 mm 410 g 350 n May 2015 649i

Panasonic G6 122 mm 85 mm 71 mm 390 g 340 n Apr 2013 599i

Panasonic GF6 111 mm 65 mm 38 mm 323 g 340 n Apr 2013 499i

Panasonic G3 115 mm 84 mm 47 mm 336 g 270 n May 2011 599i

Panasonic GX1 116 mm 68 mm 39 mm 318 g 320 n Nov 2011 699i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX530 was launched at a lower price than the G5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

ad

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX530 features a 1/2.3-inch sensor and the Panasonic G5 a Four Thirds sensor. The sensor area in the G5 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

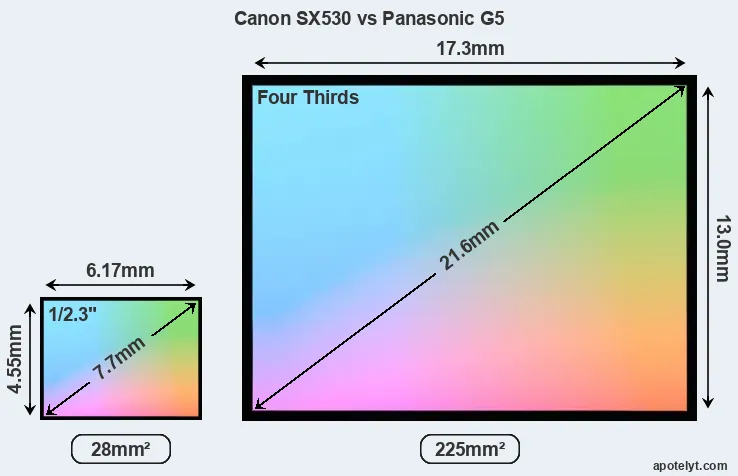

Canon SX530 and Panasonic G5 sensor measures

Even though the G5 has a larger sensor, both cameras offer the same resolution of 15.9 megapixels. This implies that the G5 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.76μm versus 1.33μm for the SX530), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the SX530 is much more recent (by 2 years and 5 months) than the G5, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the SX530 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot SX530 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-G5 are ISO 160 to ISO 12800 (no boost).

SX530 versus G5 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Canon SX530 1/2.3 15.9 4608 34561080/30p........

Panasonic G5 Four Thirds 15.9 4608 34561080/60p........

Canon 4000D APS-C 17.9 5184 34561080/30p21.911.469563

Canon 1300D APS-C 17.9 5184 34561080/30p........

Canon SX540 1/2.3 20.2 5184 38881080/60p........

Canon M10 APS-C 17.9 5184 34561080/30p22.211.475365

Canon SX520 1/2.3 15.9 4608 34561080/30p........

Canon 1200D APS-C 17.9 5184 34561080/30p21.911.372463

Canon SX60 1/2.3 14.2 4608 30721080/60p19.210.812739

Canon G1 X 1.5-inch 14.2 4352 32641080/24p21.710.864460

Fujifilm X100T APS-C 16.0 4896 32641080/60p........

Leica X Typ 113 APS-C 16.1 4928 32641080/30p........

Panasonic G7 Four Thirds 15.8 4592 34484K/30p........

Panasonic G6 Four Thirds 15.9 4608 34561080/60p21.311.563961

Panasonic GF6 Four Thirds 15.8 4592 34481080/60i20.710.662254

Panasonic G3 Four Thirds 15.8 4592 34481080/60i21.010.666756

Panasonic GX1 Four Thirds 15.8 4592 34481080/60p20.810.670355

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the G5 provides a faster frame rate than the SX530. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

ad

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the G5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX530 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX530, the Panasonic G5, and comparable cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Canon SX530none n 3.0 461 fixed n 1/2000s 1.6 Y Y

Panasonic G51440 n 3.0 920 swivel Y 1/4000s 6.0 Y n

Canon 4000Doptical n 2.7 230 fixed n 1/4000s 3.0 Y n

Canon 1300Doptical n 3.0 920 fixed n 1/4000s 3.0 Y n

Canon SX540none n 3.0 461 fixed n 1/2000s 5.9 Y Y

Canon M10none n 3.0 1040 tilting Y 1/4000s 4.6 Y n

Canon SX520none n 3.0 461 fixed n 1/2000s 1.6 Y Y

Canon 1200Doptical n 3.0 460 fixed n 1/4000s 3.0 Y n

Canon SX60922 n 3.0 922 swivel n 1/2000s 6.4 Y Y

Canon G1 Xoptical n 3.0 922 Swivel n 1/4000s 1.9 Y Y

Fujifilm X100T2360 n 3.0 1040 fixed n 1/4000s 6.0 Y n

Leica X Typ 113optional n 3.0 920 fixed n 1/2000s 5.0 Y n

Panasonic G72360 n 3.0 1040 swivel Y 1/4000s 7.0 Y n

Panasonic G61440 n 3.0 1036 swivel Y 1/4000s 7.0 Y n

Panasonic GF6none n 3.0 1040 tilting Y 1/4000s 4.2 Y n

Panasonic G31440 n 3.0 460 swivel Y 1/4000s 4.0 Y n

Panasonic GX1optional n 3.0 460 fixed Y 1/4000s 4.2 Y n

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G5 has a touchscreen, while the SX530 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The G5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the SX530 does not have a selfie-screen.

Concerning the storage of imaging data, both the SX530 and the G5 write their files to SDXC cards. The G5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX530 cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX530 HS and Panasonic Lumix DMC-G5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Canon SX530-stereomono--mini2.0YY-

Panasonic G5Ystereomono--mini2.0---

Canon 4000DYmonomono--mini2.0YY-

Canon 1300DYmonomono--mini2.0YY-

Canon SX540-stereomono--mini2.0YY-

Canon M10-stereomono--mini2.0YY-

Canon SX520-stereomono--mini2.0---

Canon 1200DYmonomono--mini2.0---

Canon SX60YstereomonoY-mini2.0YY-

Canon G1 XYstereomono--mini2.0---

Fujifilm X100TYstereomonoY-micro2.0Y--

Leica X Typ 113Ystereomono--mini2.0---

Panasonic G7YstereomonoY-micro2.0Y--

Panasonic G6YstereomonoY-mini2.0YY-

Panasonic GF6-stereomono--mini2.0YY-

Panasonic G3Ystereomono--mini2.0---

Panasonic GX1Ystereomono--mini2.0---

It is notable that the SX530 offers wifi support, while the G5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX530 and the G5 have been discontinued, but can regularly be found used on eBay. The G5 was replaced by the Panasonic G6, while the SX530 was followed by the Canon SX540. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon SX530 or the Panasonic G5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

ilogo

Reasons to prefer the Canon PowerShot SX530 HS:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Ready to shoot: Has a lens built-in, whereas the G5 requires a separate lens.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More modern: Reflects 2 years and 5 months of technical progress since the G5 launch.

ilogo

Arguments in favor of the Panasonic Lumix DMC-G5:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • More detailed LCD: Has a higher resolution rear screen (920k vs 461k dots).
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (6 vs 1.6 flaps/sec) to capture the decisive moment.
  • More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
  • Longer lasting: Gets more shots (320 versus 210) out of a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More heavily discounted: Has been around for much longer (launched in July 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the G5 is the clear winner of the contest (18 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SX530 07:18 G5

How about other alternatives? Do the specifications of the Canon SX530 and the Panasonic G5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX530 and the G5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Canon SX530+ +..4/5..4/5 Jan 2015 429i

Panasonic G5+ +..4.5/54.5/54.5/5 Jul 2012 599i

Canon 4000Do..3.5/5..3.5/5 Feb 2018 399 i

Canon 1300Do73/1004/53.5/54/5 Mar 2016 449i

Canon SX540.......... Jan 2016 399 i

Canon M10......o4/5 Oct 2015 499i

Canon SX520+..3.5/5..3.5/5 Jul 2014 399i

Canon 1200D+..4/54/54.5/5 Feb 2014 449i

Canon SX60+ +75/1004/5..4.5/5 Sep 2014 549i

Canon G1 X+76/1004/54/54.5/5 Jan 2012 799i

Fujifilm X100T+81/1004.5/54.5/55/5 Sep 2014 1,299i

Leica X Typ 113....3.5/5..4/5 Sep 2014 2,295i

Panasonic G7+ +80/1005/54.5/54.5/5 May 2015 649i

Panasonic G6+ +..5/5..4.5/5 Apr 2013 599i

Panasonic GF6+ +..4.5/5..4.5/5 Apr 2013 499i

Panasonic G3+ +75/1004.5/54.5/55/5 May 2011 599i

Panasonic GX1+77/1004.5/54.5/54.5/5 Nov 2011 699i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Canon SX530:
Check Ebay offers
Panasonic G5:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Canon SX530 vs Panasonic G5

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SX530 Panasonic G5
    Camera Type Fixed lens compact camera Mirrorless system camera
    Camera Lens 24-1200mm f/3.4-6.5 Micro Four Thirds lenses
    Launch Date January 2015 July 2012
    Launch Price USD 429 USD 599
    Sensor Specs Canon SX530 Panasonic G5
    Sensor Technology BSI-CMOS CMOS
    Sensor Format 1/2.3" Sensor Four Thirds Sensor
    Sensor Size 6.17 x 4.55 mm 17.3 x 13.0 mm
    Sensor Area 28.0735 mm2 224.9 mm2
    Sensor Diagonal 7.7 mm 21.6 mm
    Crop Factor 5.6x 2.0x
    Sensor Resolution 15.9 Megapixels 15.9 Megapixels
    Image Resolution 4608 x 3456 pixels 4608 x 3456 pixels
    Pixel Pitch 1.33 μm 3.76 μm
    Pixel Density 56.73 MP/cm2 7.08 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 1080/30p Video 1080/60p Video
    ISO Setting 100 - 3,200 ISO 160 - 12,800 ISO
    Image Processor DIGIC 4+ Venus VII FHD
    Screen Specs Canon SX530 Panasonic G5
    Viewfinder Type no viewfinder Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.70x
    Viewfinder Resolution 1440k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 461k dots 920k dots
    LCD Attachment Fixed screen Swivel screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon SX530 Panasonic G5
    Focus System Contrast-detect AF Contrast-detect AF
    Continuous Shooting 1.6 shutter flaps/s 6 shutter flaps/s
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no UHS-I
    Connectivity Specs Canon SX530 Panasonic G5
    External Flash no Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Body Specs Canon SX530 Panasonic G5
    Battery Type NB-6LH DMW-BLC12
    Battery Life (CIPA)210 shots per charge320 shots per charge
    Body Dimensions 120 x 82 x 92 mm
    (4.7 x 3.2 x 3.6 in)
    120 x 83 x 71 mm
    (4.7 x 3.3 x 2.8 in)
    Camera Weight 442 g (15.6 oz) 396 g (14.0 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SX530 vs Panasonic G5

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.
    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.
    ';
