Canon SX530 vs Nikon D3400

The Canon PowerShot SX530 HS and the Nikon D3400 are two digital cameras that were officially introduced, respectively, in January 2015 and August 2016. The SX530 is a fixed lens compact, while the D3400 is a DSLR. The cameras are based on a 1/2.3-inch (SX530) and an APS-C (D3400) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Nikon provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SX530 versus Nikon D3400
Canon SX530 Nikon D3400
Fixed lens compact camera Digital single lens reflex
24-1200mm f/3.4-6.5 Nikon F mount lenses
15.9 MP, 1/2.3" Sensor 24 MP, APS-C Sensor
1080/30p Video 1080/60p Video
ISO 100-3,200 ISO 100-25,600
No viewfinder, LCD framing Optical viewfinder
3.0 LCD, 461k dots 3.0 LCD, 921k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
1.6 shutter flaps per second 5 shutter flaps per second
210 shots per battery charge1200 shots per battery charge
120 x 82 x 92 mm, 442 g 124 x 98 x 76 mm, 445 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX530 HS and the Nikon D3400? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Canon SX530 and the Nikon D3400 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The D3400 can be obtained in two different colors (black, red), while the SX530 is only available in black.

Size Canon SX530 vs Nikon D3400
Compare SX530 versus D3400 top
Comparison SX530 or D3400 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3400 is notably larger (23 percent) than the Canon SX530. In this context, it is worth noting that neither the SX530 nor the D3400 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX530 has a lens built in, whereas the D3400 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D3400 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the SX530 gets 210 shots out of its NB-6LH battery, while the D3400 can take 1200 images on a single charge of its EN-EL14a power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Canon SX530 4.7 in 3.2 in 3.6 in 15.6 oz 210 n Jan 2015 429i

Nikon D3400 4.9 in 3.9 in 3.0 in 15.7 oz 1200 n Aug 2016 499i

Canon T6 5.1 in 4.0 in 3.1 in 17.1 oz 500 n Mar 2016 449i

Canon SX540 4.7 in 3.2 in 3.6 in 15.6 oz 205 n Jan 2016 399 i

Canon SX720 4.3 in 2.5 in 1.4 in 9.5 oz 250 n Feb 2016 379i

Canon SX520 4.7 in 3.2 in 3.6 in 15.6 oz 210 n Jul 2014 399i

Canon SX700 4.4 in 2.6 in 1.4 in 9.5 oz 250 n Feb 2014 349i

Canon SX60 5.0 in 3.7 in 4.5 in 22.9 oz 340 n Sep 2014 549i

Canon T5 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449i

Nikon D3500 4.9 in 3.8 in 2.8 in 12.9 oz 1550 n Aug 2018 429 i

Nikon D5600 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i

Nikon D5500 4.9 in 3.8 in 2.8 in 14.8 oz 820 n Jan 2015 899i

Nikon L840 4.4 in 3.1 in 3.8 in 19.0 oz 590 n Feb 2015 299i

Nikon D3300 4.9 in 3.9 in 3.0 in 15.2 oz 700 n Jan 2014 499i

Nikon D3200 4.9 in 3.8 in 3.0 in 17.8 oz 540 n Apr 2012 599i

Panasonic FZ100 4.9 in 3.2 in 3.6 in 19.0 oz 410 n Jul 2010 499i

Sony HX90V 4.0 in 2.3 in 1.4 in 8.6 oz 360 n Apr 2015 429 i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX530 was launched at a lower price than the D3400, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon SX530 features a 1/2.3-inch sensor and the Nikon D3400 an APS-C sensor. The sensor area in the D3400 is 1211 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX530 has a native 4:3 aspect ratio, while the one in the D3400 offers a 3:2 aspect.

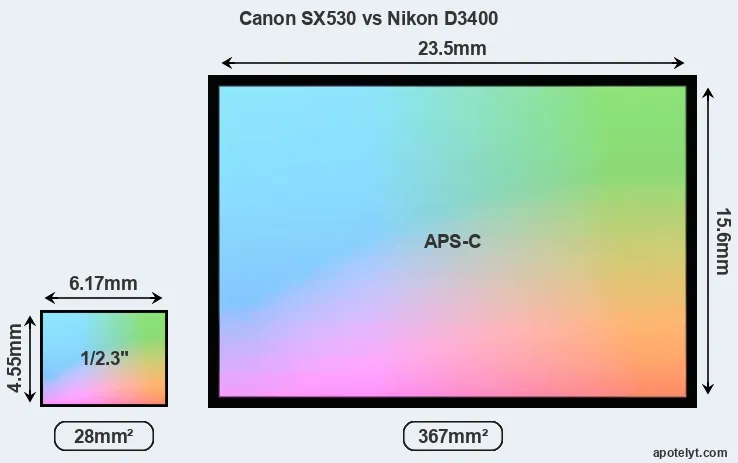

Canon SX530 and Nikon D3400 sensor measures

With 24MP, the D3400 offers a higher resolution than the SX530 (15.9MP), but the D3400 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.33μm for the SX530) due to its larger sensor. Moreover, the D3400 is a somewhat more recent model (by 1 year and 7 months) than the SX530, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX530 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX530 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Nikon D3400 are ISO 100 to ISO 25600 (no boost).

SX530 versus D3400 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Canon SX530 1/2.3 15.9 4608 34561080/30p........

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.9119286

Canon T6 APS-C 17.9 5184 34561080/30p........

Canon SX540 1/2.3 20.2 5184 38881080/60p........

Canon SX720 1/2.3 20.2 5184 38881080/60p........

Canon SX520 1/2.3 15.9 4608 34561080/30p........

Canon SX700 1/2.3 15.9 4608 34561080/60p........

Canon SX60 1/2.3 14.2 4608 30721080/60p19.210.812739

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463

Nikon D3500 APS-C 24.0 6000 40001080/60p........

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.0130684

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.0143884

Nikon L840 1/2.3 15.9 4608 34561080/60i........

Nikon D3300 APS-C 24.0 6000 40001080/60p24.312.8138582

Nikon D3200 APS-C 24.1 6016 40001080/30p24.113.2113181

Panasonic FZ100 1/2.3 14.0 4320 32401080/60i........

Sony HX90V 1/2.3 18.0 4896 36721080/60p........

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D3400 provides a faster frame rate than the SX530. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D3400 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX530 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX530, the Nikon D3400, and comparable cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Canon SX530none n 3.0 461 fixed n 1/2000s 1.6 Y Y

Nikon D3400optical n 3.0 921 fixed n 1/4000s 5.0 Y n

Canon T6optical n 3.0 920 fixed n 1/4000s 3.0 Y n

Canon SX540none n 3.0 461 fixed n 1/2000s 5.9 Y Y

Canon SX720none n 3.0 922 fixed n 1/3200s 5.9 Y Y

Canon SX520none n 3.0 461 fixed n 1/2000s 1.6 Y Y

Canon SX700none n 3.0 922 fixed n 1/3200s 8.5 Y Y

Canon SX60922 n 3.0 922 swivel n 1/2000s 6.4 Y Y

Canon T5optical n 3.0 460 fixed n 1/4000s 3.0 Y n

Nikon D3500optical n 3.0 921 fixed n 1/4000s 5.0 Y n

Nikon D5600optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n

Nikon D5500optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n

Nikon L840none n 3.0 921 tilting n 1/4000s 7.4 Y Y

Nikon D3300optical n 3.0 921 fixed n 1/4000s 5.0 Y n

Nikon D3200optical n 3.0 921 fixed n 1/4000s 4.0 Y n

Panasonic FZ100202 n 3.0 460 swivel n 1/2000s 11.0 Y Y

Sony HX90V638 n 3.0 921 tilting n 1/2000s 10.0 Y Y

Concerning the storage of imaging data, both the SX530 and the D3400 write their files to SDXC cards. The D3400 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX530 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX530 HS and Nikon D3400 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Canon SX530-stereomono--mini2.0YY-

Nikon D3400Ymonomono--mini2.0--Y

Canon T6Ymonomono--mini2.0YY-

Canon SX540-stereomono--mini2.0YY-

Canon SX720-stereomono--micro2.0YY-

Canon SX520-stereomono--mini2.0---

Canon SX700-stereomono--micro2.0YY-

Canon SX60YstereomonoY-mini2.0YY-

Canon T5Ymonomono--mini2.0---

Nikon D3500Ymonomono--mini2.0--Y

Nikon D5600YstereomonoY-mini2.0YYY

Nikon D5500YstereomonoY-mini2.0Y--

Nikon L840-stereomono--micro2.0YY-

Nikon D3300YmonomonoY-mini2.0---

Nikon D3200YmonomonoY-mini2.0---

Panasonic FZ100Ystereomono--mini2.0---

Sony HX90V-stereomono--micro2.0YY-

It is notable that the SX530 offers wifi support, while the D3400 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX530 and the D3400 have been discontinued, but can regularly be found used on eBay. The SX530 was replaced by the Canon SX540, while the D3400 was followed by the Nikon D3500. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon SX530 and the Nikon D3400? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Canon PowerShot SX530 HS:

  • Ready to shoot: Comes with a built-in lens, while the D3400 requires a separate lens.
  • More compact: Is smaller (120x82mm vs 124x98mm) and thus needs less room in the bag.
  • Less heavy: Is lighter even though it comes with a built-in lens (unlike the D3400).
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More heavily discounted: Has been on the market for longer (launched in January 2015).

ilogo

Reasons to prefer the Nikon D3400:

  • More detail: Has more megapixels (24 vs 15.9MP), which boosts linear resolution by 25%.
  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • More detailed LCD: Has a higher resolution rear screen (921k vs 461k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (5 vs 1.6 flaps/sec) to capture the decisive moment.
  • More flexible: Makes it possible to change lenses and thus to use specialty optics.
  • Longer lasting: Gets more shots (1200 versus 210) out of a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More modern: Was introduced somewhat (1 year and 7 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the D3400 is the clear winner of the contest (16 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SX530 08:16 D3400

How about other alternatives? Do the specifications of the Canon SX530 and the Nikon D3400 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX530 and the D3400 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Canon SX530+ +..4/5..4/5 Jan 2015 429i

Nikon D3400+76/1004/54.5/54.5/5 Aug 2016 499i

Canon T6o73/1004/53.5/54/5 Mar 2016 449i

Canon SX540.......... Jan 2016 399 i

Canon SX720+..4/5..4.5/5 Feb 2016 379i

Canon SX520+..3.5/5..3.5/5 Jul 2014 399i

Canon SX700+ +..4/5..4/5 Feb 2014 349i

Canon SX60+ +75/1004/5..4.5/5 Sep 2014 549i

Canon T5+..4/54/54.5/5 Feb 2014 449i

Nikon D3500..75/1004/54.5/54.5/5 Aug 2018 429 i

Nikon D5600..79/1004.5/54.5/54/5 Nov 2016 699 i

Nikon D5500+79/1004.5/55/54.5/5 Jan 2015 899i

Nikon L840+ +..3.5/5..4/5 Feb 2015 299i

Nikon D3300+77/1004.5/54.5/54.5/5 Jan 2014 499i

Nikon D3200+ +73/1004.5/54.5/54.5/5 Apr 2012 599i

Panasonic FZ100+..4.5/5..4.5/5 Jul 2010 499i

Sony HX90V+ +..4/5..4.5/5 Apr 2015 429 i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Canon SX530:
Check Ebay offers
Nikon D3400:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Canon SX530 vs Nikon D3400

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SX530 Nikon D3400
    Camera Type Fixed lens compact camera Digital single lens reflex
    Camera Lens 24-1200mm f/3.4-6.5 Nikon F mount lenses
    Launch Date January 2015 August 2016
    Launch Price USD 429 USD 499
    Sensor Specs Canon SX530 Nikon D3400
    Sensor Technology BSI-CMOS CMOS
    Sensor Format 1/2.3" Sensor APS-C Sensor
    Sensor Size 6.17 x 4.55 mm 23.5 x 15.6 mm
    Sensor Area 28.0735 mm2 366.6 mm2
    Sensor Diagonal 7.7 mm 28.2 mm
    Crop Factor 5.6x 1.5x
    Sensor Resolution 15.9 Megapixels 24 Megapixels
    Image Resolution 4608 x 3456 pixels 6000 x 4000 pixels
    Pixel Pitch 1.33 μm 3.91 μm
    Pixel Density 56.73 MP/cm2 6.55 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability 1080/30p Video 1080/60p Video
    ISO Setting 100 - 3,200 ISO 100 - 25,600 ISO
    Image Processor DIGIC 4+ EXPEED 4
    DXO Sensor Quality (score) .. 86
    DXO Color Depth (bits) .. 24.8
    DXO Dynamic Range (EV) .. 13.9
    DXO Low Light (ISO) .. 1192
    Screen Specs Canon SX530 Nikon D3400
    Viewfinder Type no viewfinder Optical viewfinder
    Viewfinder Field of View 95%
    Viewfinder Magnification 0.57x
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 461k dots 921k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon SX530 Nikon D3400
    Focus System Contrast-detect AF Phase-detect AF
    Continuous Shooting 1.6 shutter flaps/s 5 shutter flaps/s
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no UHS-I
    Connectivity Specs Canon SX530 Nikon D3400
    External Flash no Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon SX530 Nikon D3400
    Battery Type NB-6LH EN-EL14a
    Battery Life (CIPA)210 shots per charge1200 shots per charge
    Body Dimensions 120 x 82 x 92 mm
    (4.7 x 3.2 x 3.6 in)
    124 x 98 x 76 mm
    (4.9 x 3.9 x 3.0 in)
    Camera Weight 442 g (15.6 oz) 445 g (15.7 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SX530 vs Nikon D3400

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.
