Canon SX530 vs Fujifilm X20

The Canon PowerShot SX530 HS and the Fujifilm X20 are two digital cameras that were announced, respectively, in January 2015 and January 2013. Both the SX530 and the X20 are fixed lens compact cameras that are based on a 1/2.3-inch (SX530) and a 2/3 (X20) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Fujifilm provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SX530 versus Fujifilm X20
Canon SX530 Fujifilm X20
Fixed lens compact camera Fixed lens compact camera
24-1200mm f/3.4-6.5 28-112mm f/2.0-2.8
15.9 MP, 1/2.3" Sensor 12 MP, Two Thirds Sensor
1080/30p Video 1080/60p Video
ISO 100-3,200 ISO 100-12,800
No viewfinder, LCD framing Optical viewfinder
3.0 LCD, 461k dots 2.8 LCD, 460k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
1.6 shutter flaps per second 12 shutter flaps per second
210 shots per battery charge270 shots per battery charge
120 x 82 x 92 mm, 442 g 117 x 70 x 57 mm, 353 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX530 HS and the Fujifilm X20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon SX530 and the Fujifilm X20 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The X20 can be obtained in two different colors (black, silver), while the SX530 is only available in black.

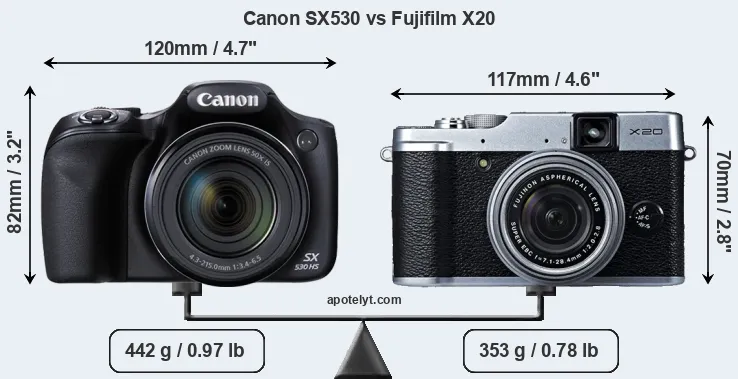

Size Canon SX530 vs Fujifilm X20

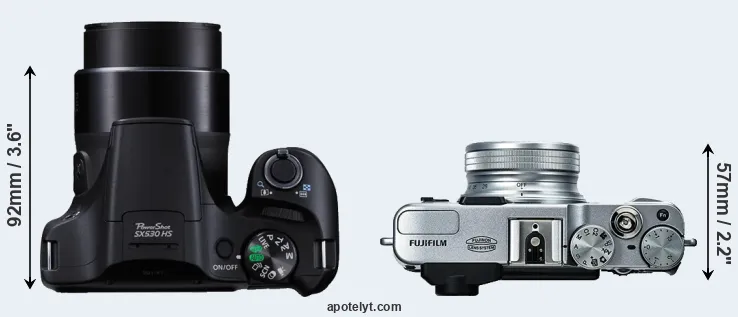

Compare SX530 versus X20 top

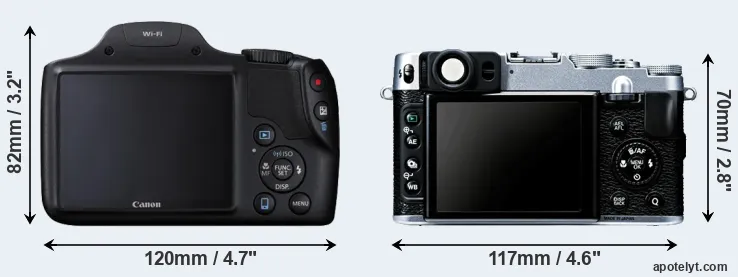

Comparison SX530 or X20 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X20 is notably smaller (17 percent) than the Canon SX530. Moreover, the X20 is markedly lighter (20 percent) than the SX530. In this context, it is worth noting that neither the SX530 nor the X20 are weather-sealed.

Concerning battery life, the SX530 gets 210 shots out of its NB-6LH battery, while the X20 can take 270 images on a single charge of its NP-50 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Canon SX530 4.7 in 3.2 in 3.6 in 15.6 oz 210 n Jan 2015 429i

Fujifilm X20 4.6 in 2.8 in 2.2 in 12.5 oz 270 n Jan 2013 599i

Canon T6 5.1 in 4.0 in 3.1 in 17.1 oz 500 n Mar 2016 449i

Canon SX540 4.7 in 3.2 in 3.6 in 15.6 oz 205 n Jan 2016 399 i

Canon SX720 4.3 in 2.5 in 1.4 in 9.5 oz 250 n Feb 2016 379i

Canon SX520 4.7 in 3.2 in 3.6 in 15.6 oz 210 n Jul 2014 399i

Canon SX700 4.4 in 2.6 in 1.4 in 9.5 oz 250 n Feb 2014 349i

Canon SX60 5.0 in 3.7 in 4.5 in 22.9 oz 340 n Sep 2014 549i

Canon T5 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449i

Canon G16 4.3 in 3.0 in 1.6 in 12.6 oz 360 n Aug 2013 549 i

Fujifilm X30 4.7 in 2.8 in 2.4 in 14.9 oz 470 n Aug 2014 599 i

Fujifilm XQ1 3.9 in 2.3 in 1.3 in 7.3 oz 240 n Oct 2013 499i

Fujifilm X10 4.6 in 2.8 in 2.2 in 12.3 oz 270 n Sep 2011 599i

Nikon L840 4.4 in 3.1 in 3.8 in 19.0 oz 590 n Feb 2015 299i

Panasonic LX7 4.4 in 2.7 in 1.8 in 10.5 oz 330 n Jul 2012 499i

Panasonic FZ100 4.9 in 3.2 in 3.6 in 19.0 oz 410 n Jul 2010 499i

Sony HX90V 4.0 in 2.3 in 1.4 in 8.6 oz 360 n Apr 2015 429 i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX530 was launched at a markedly lower price (by 28 percent) than the X20, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX530 features a 1/2.3-inch sensor and the Fujifilm X20 a 2/3 sensor. The sensor area in the X20 is 107 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 3.9. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

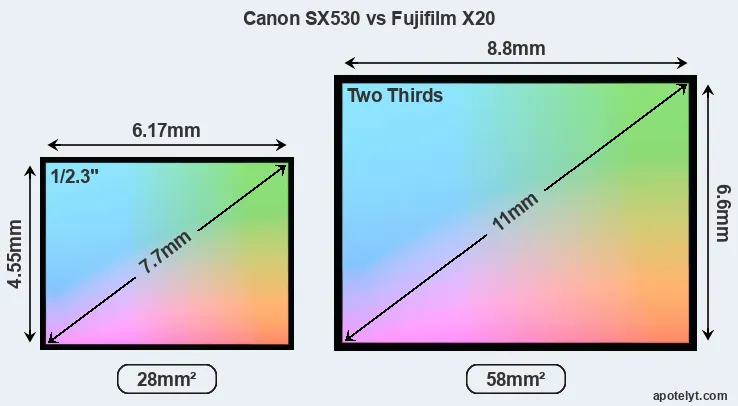

Canon SX530 and Fujifilm X20 sensor measures

Despite having a smaller sensor, the Canon SX530 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the Fujifilm X20. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 2.20μm for the X20). However, it should be noted that the SX530 is a somewhat more recent model (by 1 year and 11 months) than the X20, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX530 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX530 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Fujifilm X20 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The X20 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot SX530 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Fujifilm X20 are ISO 100 to ISO 12800 (no boost).

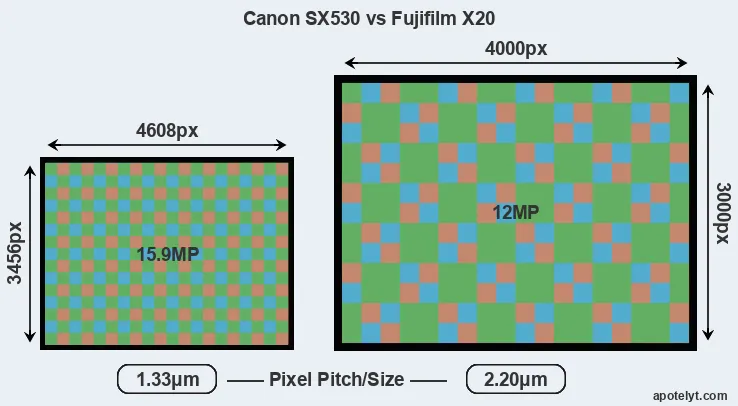

SX530 versus X20 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Canon SX530 1/2.3 15.9 4608 34561080/30p........

Fujifilm X20 2/3 12.0 4000 30001080/60p........

Canon T6 APS-C 17.9 5184 34561080/30p........

Canon SX540 1/2.3 20.2 5184 38881080/60p........

Canon SX720 1/2.3 20.2 5184 38881080/60p........

Canon SX520 1/2.3 15.9 4608 34561080/30p........

Canon SX700 1/2.3 15.9 4608 34561080/60p........

Canon SX60 1/2.3 14.2 4608 30721080/60p19.210.812739

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463

Canon G16 1/1.7 12.0 4000 30001080/60p21.011.723054

Fujifilm X30 2/3 12.0 4000 30001080/60p........

Fujifilm XQ1 2/3 12.0 4000 30001080/60p........

Fujifilm X10 2/3 12.0 4000 30001080/30p20.511.324550

Nikon L840 1/2.3 15.9 4608 34561080/60i........

Panasonic LX7 1/1.7 10.0 3648 27361080/60p20.711.714750

Panasonic FZ100 1/2.3 14.0 4320 32401080/60i........

Sony HX90V 1/2.3 18.0 4896 36721080/60p........

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the X20 provides a faster frame rate than the SX530. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the X20 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX530 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX530, the Fujifilm X20, and comparable cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Canon SX530none n 3.0 461 fixed n 1/2000s 1.6 Y Y

Fujifilm X20optical n 2.8 460 fixed n 1/4000s 12.0 Y Y

Canon T6optical n 3.0 920 fixed n 1/4000s 3.0 Y n

Canon SX540none n 3.0 461 fixed n 1/2000s 5.9 Y Y

Canon SX720none n 3.0 922 fixed n 1/3200s 5.9 Y Y

Canon SX520none n 3.0 461 fixed n 1/2000s 1.6 Y Y

Canon SX700none n 3.0 922 fixed n 1/3200s 8.5 Y Y

Canon SX60922 n 3.0 922 swivel n 1/2000s 6.4 Y Y

Canon T5optical n 3.0 460 fixed n 1/4000s 3.0 Y n

Canon G16optical n 3.0 922 fixed n 1/4000s 2.2 Y Y

Fujifilm X302360 n 3.0 920 tilting n 1/4000s 12.0 Y Y

Fujifilm XQ1none n 3.0 920 fixed n 1/4000s 12.0 Y Y

Fujifilm X10optical n 2.8 460 fixed n 1/4000s 10.0 Y Y

Nikon L840none n 3.0 921 tilting n 1/4000s 7.4 Y Y

Panasonic LX7optional n 3.0 920 fixed n 1/4000s 11.0 Y Y

Panasonic FZ100202 n 3.0 460 swivel n 1/2000s 11.0 Y Y

Sony HX90V638 n 3.0 921 tilting n 1/2000s 10.0 Y Y

Both the SX530 and the X20 have zoom lenses built in. The SX530 has a 24-1200mm f/3.4-6.5 optic and the X20 offers a 28-112mm f/2.0-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Fujifilm. The X20 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX530 and the X20 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX530 HS and Fujifilm X20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Canon SX530-stereomono--mini2.0YY-

Fujifilm X20Ystereomono--micro2.0---

Canon T6Ymonomono--mini2.0YY-

Canon SX540-stereomono--mini2.0YY-

Canon SX720-stereomono--micro2.0YY-

Canon SX520-stereomono--mini2.0---

Canon SX700-stereomono--micro2.0YY-

Canon SX60YstereomonoY-mini2.0YY-

Canon T5Ymonomono--mini2.0---

Canon G16Ystereomono--mini2.0Y--

Fujifilm X30Ystereomono--micro2.0Y--

Fujifilm XQ1-stereomono--micro2.0Y--

Fujifilm X10Ystereomono--mini2.0---

Nikon L840-stereomono--micro2.0YY-

Panasonic LX7Ystereomono--mini2.0---

Panasonic FZ100Ystereomono--mini2.0---

Sony HX90V-stereomono--micro2.0YY-

It is notable that the SX530 offers wifi support, while the X20 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX530 and the X20 have been discontinued, but can regularly be found used on eBay. The X20 was replaced by the Fujifilm X30, while the SX530 was followed by the Canon SX540. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon SX530 and the Fujifilm X20? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Canon PowerShot SX530 HS:

  • More detail: Offers more megapixels (15.9 vs 12MP) with a 15% higher linear resolution.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.8") for image review and settings control.
  • Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
  • More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (28 percent cheaper at launch).
  • More modern: Is somewhat more recent (announced 1 year and 11 months after the X20).

ilogo

Arguments in favor of the Fujifilm X20:

  • Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
  • Richer colors: The pixel size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (12 vs 1.6 flaps/sec) to capture the decisive moment.
  • Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.4).
  • More compact: Is smaller (117x70mm vs 120x82mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 89g or 20 percent) and is thus easier to take along.
  • Longer lasting: Gets more shots (270 versus 210) out of a single battery charge.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • More heavily discounted: Has been on the market for longer (launched in January 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the X20 is the clear winner of the contest (15 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SX530 08:15 X20

How about other alternatives? Do the specifications of the Canon SX530 and the Fujifilm X20 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX530 or the X20 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Canon SX530+ +..4/5..4/5 Jan 2015 429i

Fujifilm X20+ +77/1004.5/5..5/5 Jan 2013 599i

Canon T6o73/1004/53.5/54/5 Mar 2016 449i

Canon SX540.......... Jan 2016 399 i

Canon SX720+..4/5..4.5/5 Feb 2016 379i

Canon SX520+..3.5/5..3.5/5 Jul 2014 399i

Canon SX700+ +..4/5..4/5 Feb 2014 349i

Canon SX60+ +75/1004/5..4.5/5 Sep 2014 549i

Canon T5+..4/54/54.5/5 Feb 2014 449i

Canon G16+..4.5/54.5/54.5/5 Aug 2013 549 i

Fujifilm X30..76/1004.5/54/54.5/5 Aug 2014 599 i

Fujifilm XQ1....4.5/5..4.5/5 Oct 2013 499i

Fujifilm X10..76/1004/53.5/54.5/5 Sep 2011 599i

Nikon L840+ +..3.5/5..4/5 Feb 2015 299i

Panasonic LX7+ +75/1004/55/54.5/5 Jul 2012 499i

Panasonic FZ100+..4.5/5..4.5/5 Jul 2010 499i

Sony HX90V+ +..4/5..4.5/5 Apr 2015 429 i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon SX530:
Check Ebay offers
Fujifilm X20:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Canon SX530 vs Fujifilm X20

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SX530 Fujifilm X20
    Camera Type Fixed lens compact camera Fixed lens compact camera
    Camera Lens 24-1200mm f/3.4-6.5 28-112mm f/2.0-2.8
    Launch Date January 2015 January 2013
    Launch Price USD 429 USD 599
    Sensor Specs Canon SX530 Fujifilm X20
    Sensor Technology BSI-CMOS CMOS
    Sensor Format 1/2.3" Sensor Two Thirds Sensor
    Sensor Size 6.17 x 4.55 mm 8.8 x 6.6 mm
    Sensor Area 28.0735 mm2 58.08 mm2
    Sensor Diagonal 7.7 mm 11 mm
    Crop Factor 5.6x 3.9x
    Sensor Resolution 15.9 Megapixels 12 Megapixels
    Image Resolution 4608 x 3456 pixels 4000 x 3000 pixels
    Pixel Pitch 1.33 μm 2.20 μm
    Pixel Density 56.73 MP/cm2 20.66 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability 1080/30p Video 1080/60p Video
    ISO Setting 100 - 3,200 ISO 100 - 12,800 ISO
    Image Processor DIGIC 4+ EXR Processor II
    Screen Specs Canon SX530 Fujifilm X20
    Viewfinder Type no viewfinder Optical viewfinder
    Viewfinder Field of View 85%
    Viewfinder Magnification
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 2.8inch
    LCD Resolution 461k dots 460k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon SX530 Fujifilm X20
    Focus System Contrast-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/2000s 1/4000s
    Continuous Shooting 1.6 shutter flaps/s 12 shutter flaps/s
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no no
    Connectivity Specs Canon SX530 Fujifilm X20
    External Flash no Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Body Specs Canon SX530 Fujifilm X20
    Battery Type NB-6LH NP-50
    Battery Life (CIPA)210 shots per charge270 shots per charge
    Body Dimensions 120 x 82 x 92 mm
    (4.7 x 3.2 x 3.6 in)
    117 x 70 x 57 mm
    (4.6 x 2.8 x 2.2 in)
    Camera Weight 442 g (15.6 oz) 353 g (12.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SX530 vs Fujifilm X20

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.
