Canon SX520 vs Olympus E-PL6
The Canon PowerShot SX520 HS and the Olympus PEN E-PL6 are two digital cameras that were officially introduced, respectively, in July 2014 and May 2013. The SX520 is a fixed lens compact, while the E-PL6 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX520) and a Four Thirds (E-PL6) sensor. Both cameras offer a resolution of 15.9 megapixels.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Olympus PEN E-PL6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

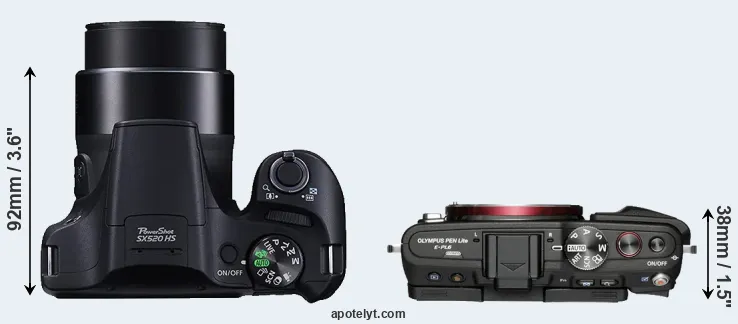

The physical size and weight of the Canon SX520 and the Olympus E-PL6 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL6 can be obtained in four different colors (black, silver, red, white), while the SX520 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL6 is notably smaller (28 percent) than the Canon SX520. In this context, it is worth noting that neither the SX520 nor the E-PL6 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the E-PL6 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL6 and their specifications in the Micro Four Thirds Lens Catalog.
Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the E-PL6 can take 360 images on a single charge of its Olympus BLS-5 power pack.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
# | Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | 120 mm | 82 mm | 92 mm | 441 g | 210 | n | Jul 2014 | 399 | ebay.com | |
2. | Olympus E-PL6 | 111 mm | 64 mm | 38 mm | 325 g | 360 | n | May 2013 | 599 | ebay.com | |
3. | Canon SX540 | 120 mm | 82 mm | 92 mm | 442 g | 205 | n | Jan 2016 | 399 | ebay.com | |
4. | Canon SX530 | 120 mm | 82 mm | 92 mm | 442 g | 210 | n | Jan 2015 | 429 | ebay.com | |
5. | Canon SX710 | 113 mm | 66 mm | 35 mm | 269 g | 230 | n | Jan 2015 | 349 | ebay.com | |
6. | Canon SX700 | 113 mm | 66 mm | 35 mm | 269 g | 250 | n | Feb 2014 | 349 | ebay.com | |
7. | Canon SX60 | 128 mm | 93 mm | 114 mm | 650 g | 340 | n | Sep 2014 | 549 | ebay.com | |
8. | Canon T5 | 130 mm | 100 mm | 78 mm | 480 g | 500 | n | Feb 2014 | 449 | ebay.com | |
9. | Canon SX510 | 104 mm | 70 mm | 80 mm | 349 g | 250 | n | Aug 2013 | 249 | ebay.com | |
10. | Nikon B600 | 122 mm | 82 mm | 99 mm | 500 g | 280 | n | Jan 2019 | 349 | ebay.com | |
11. | Olympus E-M10 II | 120 mm | 83 mm | 47 mm | 390 g | 320 | n | Aug 2015 | 649 | ebay.com | |
12. | Olympus E-M10 | 119 mm | 82 mm | 46 mm | 396 g | 320 | n | Jan 2014 | 699 | ebay.com | |
13. | Olympus E-PL7 | 115 mm | 67 mm | 38 mm | 357 g | 350 | n | Aug 2014 | 599 | ebay.com | |
14. | Olympus E-PL5 | 111 mm | 64 mm | 38 mm | 325 g | 360 | n | Sep 2012 | 599 | ebay.com | |
15. | Olympus E-PM2 | 110 mm | 64 mm | 34 mm | 269 g | 360 | n | Sep 2012 | 499 | ebay.com | |
16. | Sony HX90V | 102 mm | 58 mm | 36 mm | 245 g | 360 | n | Apr 2015 | 429 | ebay.com | |
17. | Sony H200 | 123 mm | 83 mm | 87 mm | 530 g | 240 | n | Jan 2013 | 249 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX520 was launched at a lower price than the E-PL6, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Olympus E-PL6 a Four Thirds sensor. The sensor area in the E-PL6 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Even though the E-PL6 has a larger sensor, both cameras offer the same resolution of 15.9 megapixels. This implies that the E-PL6 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.76μm versus 1.33μm for the SX520), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the SX520 is a somewhat more recent model (by 1 year and 2 months) than the E-PL6, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the SX520 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-PL6 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the E-PL6 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.1 | 11.5 | 672 | 46 | |
2. | Olympus E-PL6 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.5 | 12.0 | 717 | 68 | |
3. | Canon SX540 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.3 | 11.7 | 806 | 48 | |
4. | Canon SX530 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.2 | 11.6 | 712 | 47 | |
5. | Canon SX710 | 1/2.3 | 20.2 | 5184 | 3888 | 1080/60p | 20.2 | 11.6 | 712 | 47 | |
6. | Canon SX700 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/60p | 20.1 | 11.4 | 629 | 45 | |
7. | Canon SX60 | 1/2.3 | 14.2 | 4608 | 3072 | 1080/60p | 19.2 | 10.8 | 127 | 39 | |
8. | Canon T5 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.3 | 724 | 63 | |
9. | Canon SX510 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/24p | 20.0 | 11.3 | 586 | 45 | |
10. | Nikon B600 | 1/2.3 | 15.9 | 4608 | 3456 | 1080/30p | 20.7 | 12.2 | 1095 | 52 | |
11. | Olympus E-M10 II | Four Thirds | 15.9 | 4608 | 3456 | 1080/60p | 23.1 | 12.5 | 842 | 73 | |
12. | Olympus E-M10 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.3 | 884 | 72 | |
13. | Olympus E-PL7 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.7 | 12.4 | 873 | 72 | |
14. | Olympus E-PL5 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.8 | 12.3 | 889 | 72 | |
15. | Olympus E-PM2 | Four Thirds | 15.9 | 4608 | 3456 | 1080/30p | 22.7 | 12.2 | 932 | 72 | |
16. | Sony HX90V | 1/2.3 | 18.0 | 4896 | 3672 | 1080/60p | 20.2 | 11.6 | 738 | 47 | |
17. | Sony H200 | 1/2.3 | 15.2 | 5184 | 2930 | 720/30p | 19.9 | 11.2 | 529 | 44 | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. The SX520 and the E-PL6 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL6 can be equipped with an optional viewfinder – the VF-3. The table below summarizes some of the other core capabilities of the Canon SX520 and Olympus E-PL6 in connection with corresponding information for a sample of similar cameras.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 1.6/s | Y | Y | |
2. | Olympus E-PL6 | optional | n | 3.0 / 460 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
3. | Canon SX540 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 5.9/s | Y | Y | |
4. | Canon SX530 | none | n | 3.0 / 461 | fixed | n | 1/2000s | 1.6/s | Y | Y | |
5. | Canon SX710 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 6.0/s | Y | Y | |
6. | Canon SX700 | none | n | 3.0 / 922 | fixed | n | 1/3200s | 8.5/s | Y | Y | |
7. | Canon SX60 | 922 | n | 3.0 / 922 | swivel | n | 1/2000s | 6.4/s | Y | Y | |
8. | Canon T5 | optical | n | 3.0 / 460 | fixed | n | 1/4000s | 3.0/s | Y | n | |
9. | Canon SX510 | none | n | 3.0 / 461 | fixed | n | 1/1600s | 3.8/s | Y | Y | |
10. | Nikon B600 | none | n | 3.0 / 921 | fixed | n | 1/4000s | 7.4/s | Y | Y | |
11. | Olympus E-M10 II | 2360 | n | 3.0 / 1040 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
12. | Olympus E-M10 | 1440 | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | Y | Y | |
13. | Olympus E-PL7 | optional | n | 3.0 / 1037 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
14. | Olympus E-PL5 | optional | n | 3.0 / 460 | tilting | Y | 1/4000s | 8.0/s | n | Y | |
15. | Olympus E-PM2 | optional | n | 3.0 / 460 | fixed | Y | 1/4000s | 8.0/s | n | Y | |
16. | Sony HX90V | 638 | n | 3.0 / 921 | tilting | n | 1/2000s | 10.0/s | Y | Y | |
17. | Sony H200 | none | n | 3.0 / 460 | fixed | n | 1/1500s | 0.8/s | Y | Y | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One difference between the cameras concerns the presence of an on-board flash. The SX520 has one, while the E-PL6 does not. While the built-in flash of the SX520 is not very powerful, it can at times be useful as a fill-in light.
The E-PL6 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the SX520 does not have a selfie-screen.The Olympus E-PL6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX520 and the E-PL6 write their files to SDXC cards. The E-PL6 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX520 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Olympus PEN E-PL6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
# | Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | - | stereo / mono | - | - | mini | 2.0 | - | - | - | |
2. | Olympus E-PL6 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
3. | Canon SX540 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
4. | Canon SX530 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
5. | Canon SX710 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
6. | Canon SX700 | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
7. | Canon SX60 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | - | |
8. | Canon T5 | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
9. | Canon SX510 | - | stereo / mono | - | - | mini | 2.0 | Y | - | - | |
10. | Nikon B600 | - | stereo / mono | - | - | micro | 2.0 | Y | - | Y | |
11. | Olympus E-M10 II | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
12. | Olympus E-M10 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
13. | Olympus E-PL7 | Y | stereo / mono | - | - | micro | 2.0 | Y | - | - | |
14. | Olympus E-PL5 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
15. | Olympus E-PM2 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
16. | Sony HX90V | - | stereo / mono | - | - | micro | 2.0 | Y | Y | - | |
17. | Sony H200 | - | mono / mono | - | - | - | 2.0 | - | - | - |
It is notable that the E-PL6 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX520 does not feature such an accessory-socket.
Both the SX520 and the E-PL6 have been discontinued, but can regularly be found used on ebay. The E-PL6 was replaced by the Olympus E-PL7, while the SX520 was followed by the Canon SX530. Further information on the features and operation of the SX520 and E-PL6 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Olympus E-PL6 Manual.
Review summary
So how do things add up? Is there a clear favorite between the Canon SX520 and the Olympus E-PL6? Which camera is better? The listing below highlights the relative strengths of the two models.
Advantages of the Canon PowerShot SX520 HS:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has a lens built-in, whereas the E-PL6 requires a separate lens.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Is somewhat more recent (announced 1 year and 2 months after the E-PL6).
Reasons to prefer the Olympus PEN E-PL6:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (8 vs 1.6 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- More compact: Is smaller (111x64mm vs 120x82mm) and will fit more readily into a bag.
- Longer lasting: Gets more shots (360 versus 210) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More heavily discounted: Has been on the market for longer (launched in May 2013).
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL6 is the clear winner of the contest (18 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX520 and the Olympus E-PL6 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the SX520 or the E-PL6 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
# | Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SX520 | .. | + | .. | .. | 3.5/5 | 3.5/5 | Jul 2014 | 399 | ebay.com | |
2. | Olympus E-PL6 | .. | .. | .. | .. | .. | .. | May 2013 | 599 | ebay.com | |
3. | Canon SX540 | .. | .. | .. | .. | .. | .. | Jan 2016 | 399 | ebay.com | |
4. | Canon SX530 | .. | + + | .. | .. | 4/5 | 4/5 | Jan 2015 | 429 | ebay.com | |
5. | Canon SX710 | .. | + | .. | .. | 4/5 | 3.5/5 | Jan 2015 | 349 | ebay.com | |
6. | Canon SX700 | .. | + + | .. | .. | 4/5 | 4/5 | Feb 2014 | 349 | ebay.com | |
7. | Canon SX60 | 3/5 | + + | .. | 75/100 | 4/5 | 4.5/5 | Sep 2014 | 549 | ebay.com | |
8. | Canon T5 | 3/5 | + | .. | .. | 4/5 | 4.5/5 | Feb 2014 | 449 | ebay.com | |
9. | Canon SX510 | .. | + + | .. | .. | 4.5/5 | 4/5 | Aug 2013 | 249 | ebay.com | |
10. | Nikon B600 | .. | + | .. | .. | 3.5/5 | 3/5 | Jan 2019 | 349 | ebay.com | |
11. | Olympus E-M10 II | 4.5/5 | + + | .. | 80/100 | 5/5 | 5/5 | Aug 2015 | 649 | ebay.com | |
12. | Olympus E-M10 | 4/5 | .. | .. | 80/100 | 5/5 | 5/5 | Jan 2014 | 699 | ebay.com | |
13. | Olympus E-PL7 | 4/5 | + | .. | .. | 5/5 | 4/5 | Aug 2014 | 599 | ebay.com | |
14. | Olympus E-PL5 | 3/5 | + + | .. | .. | 4.5/5 | 4.5/5 | Sep 2012 | 599 | ebay.com | |
15. | Olympus E-PM2 | 3/5 | .. | .. | 77/100 | 5/5 | 4.5/5 | Sep 2012 | 499 | ebay.com | |
16. | Sony HX90V | 4/5 | + + | .. | .. | 4/5 | 4.5/5 | Apr 2015 | 429 | ebay.com | |
17. | Sony H200 | .. | .. | .. | .. | 3.5/5 | 3.5/5 | Jan 2013 | 249 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1100D vs Canon SX520
- Canon 1D vs Olympus E-PL6
- Canon SX520 vs Canon SX540
- Canon SX520 vs Nikon D3000
- Canon SX520 vs Nikon W150
- Canon SX520 vs Panasonic FZ200
- Canon SX520 vs Sony NEX-5T
- Leica TL2 vs Olympus E-PL6
- Nikon D3400 vs Olympus E-PL6
- Nikon D4S vs Olympus E-PL6
- Nikon D800E vs Olympus E-PL6
- Olympus E-PL6 vs Olympus E-PL7
Specifications: Canon SX520 vs Olympus E-PL6
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon SX520 | Olympus E-PL6 |
---|---|---|
Camera Type | Fixed lens compact camera | Mirrorless system camera |
Camera Lens | 24-1008mm f/3.4-6 | Micro Four Thirds lenses |
Launch Date | July 2014 | May 2013 |
Launch Price | USD 399 | USD 599 |
Sensor Specs | Canon SX520 | Olympus E-PL6 |
Sensor Technology | BSI-CMOS | CMOS |
Sensor Format | 1/2.3" Sensor | Four Thirds Sensor |
Sensor Size | 6.17 x 4.55 mm | 17.3 x 13.0 mm |
Sensor Area | 28.0735 mm2 | 224.9 mm2 |
Sensor Diagonal | 7.7 mm | 21.6 mm |
Crop Factor | 5.6x | 2.0x |
Sensor Resolution | 15.9 Megapixels | 15.9 Megapixels |
Image Resolution | 4608 x 3456 pixels | 4608 x 3456 pixels |
Pixel Pitch | 1.33 μm | 3.76 μm |
Pixel Density | 56.73 MP/cm2 | 7.08 MP/cm2 |
Moiré control | no AA filter | Anti-Alias filter |
Movie Capability | 1080/30p Video | 1080/30p Video |
ISO Setting | 100 - 3,200 ISO | 200 - 25,600 ISO |
ISO Boost | no Enhancement | 100 - 25,600 ISO |
Image Processor | DIGIC 4+ | TruePic VI |
Screen Specs | Canon SX520 | Olympus E-PL6 |
Viewfinder Type | no viewfinder | Viewfinder optional |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 461k dots | 460k dots |
LCD Attachment | Fixed screen | Tilting screen |
Touch Input | no Touchscreen | Touchscreen |
Shooting Specs | Canon SX520 | Olympus E-PL6 |
Focus System | Contrast-detect AF | Contrast-detect AF |
Continuous Shooting | 1.6 shutter flaps/s | 8 shutter flaps/s |
Time-Lapse Photography | no Intervalometer | Intervalometer built-in |
Image Stabilization | Lens-based stabilization | In-body stabilization |
Fill Flash | Built-in Flash | no On-Board Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | no | UHS-I |
Connectivity Specs | Canon SX520 | Olympus E-PL6 |
External Flash | no Hotshoe | Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Wifi Support | no Wifi | no Wifi |
Body Specs | Canon SX520 | Olympus E-PL6 |
Battery Type | Canon NB-6LH | Olympus BLS-5 |
Battery Life (CIPA) | 210 shots per charge | 360 shots per charge |
Body Dimensions |
120 x 82 x 92 mm (4.7 x 3.2 x 3.6 in) |
111 x 64 x 38 mm (4.4 x 2.5 x 1.5 in) |
Camera Weight | 441 g (15.6 oz) | 325 g (11.5 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
