Canon SX520 vs Olympus E-PL3

The Canon PowerShot SX520 HS and the Olympus PEN E-PL3 are two digital cameras that were revealed to the public, respectively, in July 2014 and June 2011. The SX520 is a fixed lens compact, while the E-PL3 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX520) and a Four Thirds (E-PL3) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Olympus E-PL3
Fixed lens compact camera		Mirrorless system camera
24-1008mm f/3.4-6		Micro Four Thirds lenses
15.9 MP – 1/2.3" sensor		12.2 MP – Four Thirds sensor
1080/30p Video		1080/60i Video
ISO 100-3,200		ISO 200-12,800
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 461k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
1.6 shutter flaps per second		5.5 shutter flaps per second
Lens-based stabilization		In-body stabilization
210 shots per battery charge		300 shots per battery charge
120 x 82 x 92 mm, 441 g		110 x 64 x 37 mm, 313 g

Check SX520 offers at
ebay.com
Check E-PL3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Olympus PEN E-PL3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

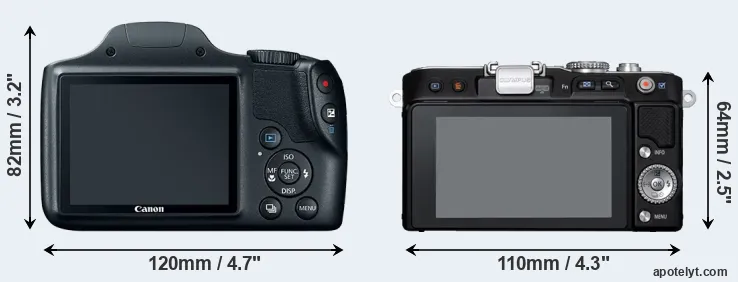

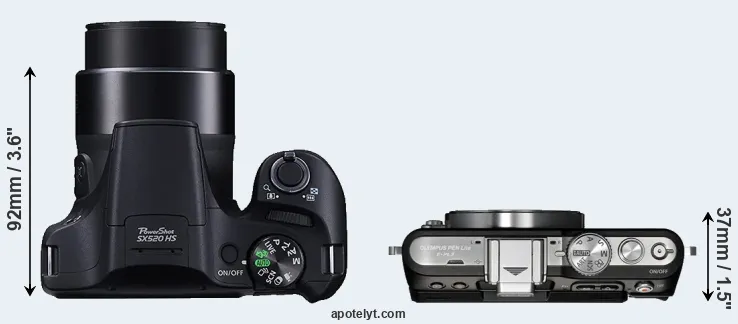

An illustration of the physical size and weight of the Canon SX520 and the Olympus E-PL3 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The E-PL3 can be obtained in four different colors (black, silver, red, white), while the SX520 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL3 is notably smaller (28 percent) than the Canon SX520. In this context, it is worth noting that neither the SX520 nor the E-PL3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the E-PL3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL3 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the E-PL3 can take 300 images on a single charge of its Olympus BLS-5 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	399	ebay.com
2.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	599	ebay.com
3.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
4.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	429	ebay.com
5.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
6.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	349	ebay.com
7.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
8.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
9.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	249	ebay.com
10.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	349	ebay.com
11.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	599	ebay.com
12.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	799	ebay.com
13.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	599	ebay.com
14.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	499	ebay.com
15.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	599	ebay.com
16.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	429	ebay.com
17.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX520 was launched at a lower price than the E-PL3, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Olympus E-PL3 a Four Thirds sensor. The sensor area in the E-PL3 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Canon SX520 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the Olympus E-PL3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 4.29μm for the E-PL3). However, it should be noted that the SX520 is much more recent (by 3 years) than the E-PL3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX520 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX520 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX520 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-PL3 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-PL3 are ISO 200 to ISO 12800 (no boost).

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the E-PL3 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
3.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
4.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
5.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
6.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
7.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
8.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
10.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
11.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
12.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
13.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
14.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
15.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
16.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
17.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-PL3 provides a faster frame rate than the SX520. It can shoot movie footage at 1080/60i, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The SX520 and the E-PL3 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL3 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Canon SX520 and Olympus E-PL3 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
3.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
4.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
5.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
6.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
7.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
8.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
10.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
11.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
13.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
14.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
15.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
16.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The SX520 has one, while the E-PL3 does not. While the built-in flash of the SX520 is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the SX520 and the E-PL3 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Olympus PEN E-PL3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
11.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-

It is notable that the E-PL3 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX520 does not feature such an accessory-socket.

Both the SX520 and the E-PL3 have been discontinued, but can regularly be found used on ebay. The E-PL3 was replaced by the Olympus E-PL5, while the SX520 was followed by the Canon SX530. Further information on the features and operation of the SX520 and E-PL3 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Olympus E-PL3 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon SX520 or the Olympus E-PL3 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot SX520 HS:

• More detail: Offers more megapixels (15.9 vs 12.2MP) with a 14% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has a lens built-in, whereas the E-PL3 requires a separate lens.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 3 years of technical progress since the E-PL3 launch.

Advantages of the Olympus PEN E-PL3:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (5.5 vs 1.6 flaps/sec) to capture the decisive moment.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (110x64mm vs 120x82mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (300 versus 210) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in June 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the E-PL3 is the clear winner of the contest (16 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Olympus E-PL3 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX520 and the E-PL3 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	399	ebay.com
2.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	599	ebay.com
3.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
4.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	429	ebay.com
5.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
6.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	349	ebay.com
7.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
8.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
9.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	249	ebay.com
10.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	349	ebay.com
11.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	599	ebay.com
12.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	799	ebay.com
13.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	599	ebay.com
14.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	499	ebay.com
15.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	599	ebay.com
16.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	429	ebay.com
17.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
