Canon SX520 vs Olympus E-P5

The Canon PowerShot SX520 HS and the Olympus PEN E-P5 are two digital cameras that were revealed to the public, respectively, in July 2014 and May 2013. The SX520 is a fixed lens compact, while the E-P5 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX520) and a Four Thirds (E-P5) sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Olympus E-P5
Fixed lens compact camera		Mirrorless system camera
24-1008mm f/3.4-6		Micro Four Thirds lenses
15.9 MP – 1/2.3" sensor		15.9 MP – Four Thirds sensor
1080/30p Video		1080/30p Video
ISO 100-3,200		ISO 200-25,600
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 461k dots		3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
1.6 shutter flaps per second		9 shutter flaps per second
Lens-based stabilization		In-body stabilization
210 shots per battery charge		330 shots per battery charge
120 x 82 x 92 mm, 441 g		122 x 69 x 37 mm, 420 g

Check SX520 offers at
ebay.com
Check E-P5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Olympus PEN E-P5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

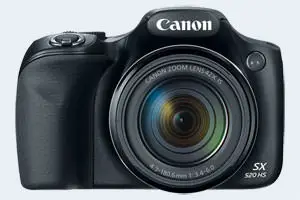

An illustration of the physical size and weight of the Canon SX520 and the Olympus E-P5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-P5 can be obtained in three different colors (black, silver, white), while the SX520 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P5 is notably smaller (14 percent) than the Canon SX520. In this context, it is worth noting that neither the SX520 nor the E-P5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the E-P5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-P5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the E-P5 can take 330 images on a single charge of its Olympus BLN-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	399	ebay.com
2.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	999	ebay.com
3.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
5.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
6.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	429	ebay.com
7.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
8.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	349	ebay.com
9.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
10.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
11.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	249	ebay.com
12.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	349	ebay.com
13.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	1,099	ebay.com
14.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	699	ebay.com
15.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	599	ebay.com
16.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	1,399	ebay.com
17.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX520 was launched at a lower price than the E-P5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Olympus E-P5 a Four Thirds sensor. The sensor area in the E-P5 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Even though the E-P5 has a larger sensor, both cameras offer the same resolution of 15.9 megapixels. This implies that the E-P5 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.76μm versus 1.33μm for the SX520), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the SX520 is a somewhat more recent model (by 1 year and 2 months) than the E-P5, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the SX520 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-P5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the E-P5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
3.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
6.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
7.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
8.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
9.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
10.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
11.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
12.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
13.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
14.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
15.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
16.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
17.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The SX520 and the E-P5 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The following table reports on some other key feature differences and similarities of the Canon SX520, the Olympus E-P5, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
3.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
6.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
7.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
8.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
9.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
11.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
12.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
13.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
14.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
15.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
16.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
17.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P5 has a touchscreen, while the SX520 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus E-P5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SX520 and the E-P5 write their files to SDXC cards. The E-P5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX520 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Olympus PEN E-P5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
12.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
14.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
17.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-

It is notable that the E-P5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX520 does not provide wifi capability.

Both the SX520 and the E-P5 have been discontinued, but can regularly be found used on ebay. The E-P5 was replaced by the Olympus E-P7, while the SX520 was followed by the Canon SX530. Further information on the features and operation of the SX520 and E-P5 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Olympus E-P5 Manual.

Review summary

So how do things add up? Is the Canon SX520 better than the Olympus E-P5 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon PowerShot SX520 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has a lens built-in, whereas the E-P5 requires a separate lens.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Is somewhat more recent (announced 1 year and 2 months after the E-P5).

Arguments in favor of the Olympus PEN E-P5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 461k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 1.6 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (122x69mm vs 120x82mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (330 versus 210) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in May 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the E-P5 is the clear winner of the contest (19 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Olympus E-P5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SX520 or the E-P5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	399	ebay.com
2.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	999	ebay.com
3.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
5.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
6.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	429	ebay.com
7.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
8.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	349	ebay.com
9.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
10.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
11.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	249	ebay.com
12.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	349	ebay.com
13.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	1,099	ebay.com
14.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	699	ebay.com
15.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	599	ebay.com
16.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	1,399	ebay.com
17.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
