Canon SX520 vs Leica SL

The Canon PowerShot SX520 HS and the Leica SL (Typ 601) are two digital cameras that were officially introduced, respectively, in July 2014 and October 2015. The SX520 is a fixed lens compact, while the Leica SL is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX520) and a full frame (Leica SL) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Leica provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SX520
versus
Leica SL
Canon SX520   Leica SL
Fixed lens compact camera Mirrorless system camera
24-1008mm f/3.4-6 Leica L mount lenses
15.9 MP – 1/2.3" sensor 24 MP – Full Frame sensor
1080/30p Video 4K/30p Video
ISO 100-3,200 ISO 50-50,000
No viewfinder, LCD framing Electronic viewfinder (4400k dots)
3.0" LCD – 461k dots 3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive) Fixed touchscreen
1.6 shutter flaps per second 11 shutter flaps per second
not weather sealedWeathersealed body
210 shots per battery charge400 shots per battery charge
120 x 82 x 92 mm, 441 g 147 x 104 x 39 mm, 847 g
logo
Check SX520 offers at
ebay.com
logo
Check Leica SL offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Leica SL (Typ 601)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon SX520 and the Leica SL is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Canon SX520 vs Leica SL
Compare SX520 versus Leica SL top

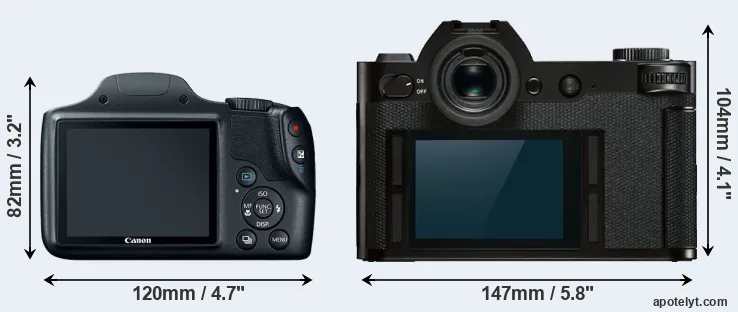

Comparison SX520 or Leica SL rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica SL is considerably larger (55 percent) than the Canon SX520. It is noteworthy in this context that the Leica SL is splash and dust-proof, while the SX520 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the Leica SL is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the Leica SL can take 400 images on a single charge of its Leica BP-SCL4 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon SX520 120 mm 82 mm 92 mm 441 g 210 n Jul 2014 399ebay.com
2.

Leica SL 147 mm 104 mm 39 mm 847 g 400 Y Oct 2015 7,450ebay.com
3.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199ebay.com
4.

Canon SX540 120 mm 82 mm 92 mm 442 g 205 n Jan 2016 399ebay.com
5.

Canon SX530 120 mm 82 mm 92 mm 442 g 210 n Jan 2015 429ebay.com
6.

Canon SX710 113 mm 66 mm 35 mm 269 g 230 n Jan 2015 349ebay.com
7.

Canon SX700 113 mm 66 mm 35 mm 269 g 250 n Feb 2014 349ebay.com
8.

Canon SX60 128 mm 93 mm 114 mm 650 g 340 n Sep 2014 549ebay.com
9.

Canon T5 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449ebay.com
10.

Canon SX510 104 mm 70 mm 80 mm 349 g 250 n Aug 2013 249ebay.com
11.

Leica SL2-S 146 mm 107 mm 83 mm 931 g 510 Y Dec 2020 4,895 amazon.com
12.

Leica SL2 146 mm 107 mm 42 mm 953 g 370 Y Nov 2019 5,999 amazon.com
13.

Leica M Typ 240 139 mm 80 mm 42 mm 680 g 500 Y Sep 2012 6,950ebay.com
14.

Nikon B600 122 mm 82 mm 99 mm 500 g 280 n Jan 2019 349ebay.com
15.

Nikon D750 141 mm 113 mm 78 mm 750 g 1230 Y Sep 2014 2,299ebay.com
16.

Sony HX90V 102 mm 58 mm 36 mm 245 g 360 n Apr 2015 429ebay.com
17.

Sony H200 123 mm 83 mm 87 mm 530 g 240 n Jan 2013 249ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX520 was launched at a lower price than the Leica SL, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Leica SL a full frame sensor. The sensor area in the Leica SL is 2986 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.0. The sensor in the SX520 has a native 4:3 aspect ratio, while the one in the Leica SL offers a 3:2 aspect.

Canon SX520 and Leica SL sensor measures

With 24MP, the Leica SL offers a higher resolution than the SX520 (15.9MP), but the Leica SL nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 1.33μm for the SX520) due to its larger sensor. Moreover, the Leica SL is a somewhat more recent model (by 1 year and 2 months) than the SX520, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Leica SL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Leica SL for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX520 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Leica SL (Typ 601) are ISO 50 to ISO 50000 (no boost).

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the Leica SL uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

SX520 versus Leica SL MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon SX520 1/2.3 15.9 4608 34561080/30p20.111.567246
2.

Leica SL Full Frame 24.0 6000 40004K/30p25.013.4182188
3.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
4.

Canon SX540 1/2.3 20.2 5184 38881080/60p20.311.780648
5.

Canon SX530 1/2.3 15.9 4608 34561080/30p20.211.671247
6.

Canon SX710 1/2.3 20.2 5184 38881080/60p20.211.671247
7.

Canon SX700 1/2.3 15.9 4608 34561080/60p20.111.462945
8.

Canon SX60 1/2.3 14.2 4608 30721080/60p19.210.812739
9.

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463
10.

Canon SX510 1/2.3 15.9 4608 34561080/24p20.011.358645
11.

Leica SL2-S Full Frame 24.0 6000 40004K/60p25.214.1350495
12.

Leica SL2 Full Frame 46.7 8368 55844K/60p25.314.3286695
13.

Leica M Typ 240 Full Frame 23.7 5952 39761080/25p24.013.3186084
14.

Nikon B600 1/2.3 15.9 4608 34561080/30p20.712.2109552
15.

Nikon D750 Full Frame 24.2 6016 40161080/60p24.814.5295693
16.

Sony HX90V 1/2.3 18.0 4896 36721080/60p20.211.673847
17.

Sony H200 1/2.3 15.2 5184 2930720/30p19.911.252944
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the Leica SL provides a better video resolution than the SX520. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the Leica SL has an electronic viewfinder (4400k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX520 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX520 and Leica SL along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon SX520none n3.0 / 461 fixed n 1/2000s 1.6/s Y Y
2.

Leica SL4400 Y3.0 / 1040 fixed Y 1/8000s 11.0/s n n
3.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
4.

Canon SX540none n3.0 / 461 fixed n 1/2000s 5.9/s Y Y
5.

Canon SX530none n3.0 / 461 fixed n 1/2000s 1.6/s Y Y
6.

Canon SX710none n3.0 / 922 fixed n 1/3200s 6.0/s Y Y
7.

Canon SX700none n3.0 / 922 fixed n 1/3200s 8.5/s Y Y
8.

Canon SX60922 n3.0 / 922 swivel n 1/2000s 6.4/s Y Y
9.

Canon T5optical n3.0 / 460 fixed n 1/4000s 3.0/s Y n
10.

Canon SX510none n3.0 / 461 fixed n 1/1600s 3.8/s Y Y
11.

Leica SL2-S5760 Y3.2 / 2100 fixed Y 1/8000s 20.0/s n Y
12.

Leica SL25760 Y3.2 / 2100 fixed Y 1/8000s 10.0/s n Y
13.

Leica M Typ 240optical n3.0 / 920 fixed n 1/4000s 3.0/s n n
14.

Nikon B600none n3.0 / 921 fixed n 1/4000s 7.4/s Y Y
15.

Nikon D750optical Y3.2 / 1229 tilting n 1/4000s 6.0/s Y n
16.

Sony HX90V638 n3.0 / 921 tilting n 1/2000s 10.0/s Y Y
17.

Sony H200none n3.0 / 460 fixed n 1/1500s 0.8/s Y Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The SX520 has one, while the Leica SL does not. While the built-in flash of the SX520 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Leica SL is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica SL has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SX520 and the Leica SL write their files to SDXC cards. The Leica SL features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX520 only has one slot. The Leica SL supports UHS-II cards on its first slot and UHS-I on its second one, while the SX520 cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Leica SL (Typ 601) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon SX520-stereo / mono--mini2.0---
2.

Leica SLYstereo / monoYYfull3.0Y--
3.

Canon 80DYstereo / monoYYmini2.0YY-
4.

Canon SX540-stereo / mono--mini2.0YY-
5.

Canon SX530-stereo / mono--mini2.0YY-
6.

Canon SX710-stereo / mono--micro2.0YY-
7.

Canon SX700-stereo / mono--micro2.0YY-
8.

Canon SX60Ystereo / monoY-mini2.0YY-
9.

Canon T5Ymono / mono--mini2.0---
10.

Canon SX510-stereo / mono--mini2.0Y--
11.

Leica SL2-SYstereo / monoYYfull3.2Y-Y
12.

Leica SL2Ystereo / monoYYfull3.1Y-Y
13.

Leica M Typ 240Ystereo / mono---2.0---
14.

Nikon B600-stereo / mono--micro2.0Y-Y
15.

Nikon D750Ystereo / monoYYmini2.0Y--
16.

Sony HX90V-stereo / mono--micro2.0YY-
17.

Sony H200-mono / mono---2.0---
padding

It is notable that the Leica SL offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX520 does not provide wifi capability.

Studio photographers will appreciate that the Leica SL (unlike the SX520) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the Leica SL has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the SX520 and the Leica SL have been discontinued, but can regularly be found used on ebay. The SX520 was replaced by the Canon SX530, while the Leica SL was followed by the Leica SL2. Further information on the features and operation of the SX520 and Leica SL can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Leica SL Manual.

ad

Review summary

So what conclusions can be drawn? Is the Canon SX520 better than the Leica SL or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Canon PowerShot SX520 HS:

  • Ready to shoot: Has a lens built-in, whereas the Leica SL requires a separate lens.
  • More compact: Is smaller (120x82mm vs 147x104mm) and thus needs less room in the bag.
  • Less heavy: Is lighter even though it comes with a built-in lens (unlike the Leica SL).
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More heavily discounted: Has been on the market for longer (launched in July 2014).

ilogo

Advantages of the Leica SL (Typ 601):

  • More detail: Has more megapixels (24 vs 15.9MP), which boosts linear resolution by 25%.
  • Better image quality: Is equipped with a larger and more technologically advanced sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • More detailed LCD: Has a higher resolution rear screen (1040k vs 461k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (11 vs 1.6 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
  • Longer lasting: Gets more shots (400 versus 210) out of a single battery charge.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports Ultra High Speed (UHS-II and UHS-I) SDXC cards.
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
  • More modern: Was introduced somewhat (1 year and 2 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the Leica SL is the clear winner of the contest (29 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SX520 07:29 Leica SL

How about other alternatives? Do the specifications of the Canon SX520 and the Leica SL place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX520 and the Leica SL in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon SX520..+....3.5/53.5/5 Jul 2014 399ebay.com
2.

Leica SL4/5..4/584/1004.5/54/5 Oct 2015 7,450ebay.com
3.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 1,199ebay.com
4.

Canon SX540............ Jan 2016 399ebay.com
5.

Canon SX530..+ +....4/54/5 Jan 2015 429ebay.com
6.

Canon SX710..+....4/53.5/5 Jan 2015 349ebay.com
7.

Canon SX700..+ +....4/54/5 Feb 2014 349ebay.com
8.

Canon SX603/5+ +..75/1004/54.5/5 Sep 2014 549ebay.com
9.

Canon T53/5+....4/54.5/5 Feb 2014 449ebay.com
10.

Canon SX510..+ +....4.5/54/5 Aug 2013 249ebay.com
11.

Leica SL2-S4/5..4/5..4.5/54.5/5 Dec 2020 4,895 amazon.com
12.

Leica SL24/5..4.5/5..4.5/54/5 Nov 2019 5,999 amazon.com
13.

Leica M Typ 2404/5......4/5.. Sep 2012 6,950ebay.com
14.

Nikon B600..+....3.5/53/5 Jan 2019 349ebay.com
15.

Nikon D7505/5+ +4/590/1004.5/54.5/5 Sep 2014 2,299ebay.com
16.

Sony HX90V4/5+ +....4/54.5/5 Apr 2015 429ebay.com
17.

Sony H200........3.5/53.5/5 Jan 2013 249ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check SX520 offers at
ebay.com
logo
Check Leica SL offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon SX520 vs Leica SL

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SX520 Leica SL
    Camera Type Fixed lens compact camera Mirrorless system camera
    Camera Lens 24-1008mm f/3.4-6 Leica L mount lenses
    Launch Date July 2014 October 2015
    Launch Price USD 399 USD 7,450
    Sensor Specs Canon SX520 Leica SL
    Sensor Technology BSI-CMOS CMOS
    Sensor Format 1/2.3" Sensor Full Frame Sensor
    Sensor Size 6.17 x 4.55 mm 36.0 x 24.0 mm
    Sensor Area 28.0735 mm2 864 mm2
    Sensor Diagonal 7.7 mm 43.3 mm
    Crop Factor 5.6x 1.0x
    Sensor Resolution 15.9 Megapixels 24 Megapixels
    Image Resolution 4608 x 3456 pixels 6000 x 4000 pixels
    Pixel Pitch 1.33 μm 6.00 μm
    Pixel Density 56.73 MP/cm2 2.78 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability 1080/30p Video 4K/30p Video
    ISO Setting 100 - 3,200 ISO 50 - 50,000 ISO
    Image Processor DIGIC 4+ Maestro II
    DXO Sensor Quality (score) .. 88
    DXO Color Depth (bits) .. 25.0
    DXO Dynamic Range (EV) .. 13.4
    DXO Low Light (ISO) .. 1821
    Screen Specs Canon SX520 Leica SL
    Viewfinder Type no viewfinder Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.80x
    Viewfinder Resolution 4400k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 461k dots 1040k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon SX520 Leica SL
    Focus System Contrast-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/2000s 1/8000s
    Continuous Shooting 1.6 shutter flaps/s 11 shutter flaps/s
    Electronic Shutterno E-Shutterup to 1/16000s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    UHS card support no Single UHS-II
    Connectivity Specs Canon SX520 Leica SL
    External Flash no Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 2.0 USB 3.0
    HDMI Port mini HDMI full HDMI
    Microphone Port no MIC socket External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Geotagging no internal GPS GPS built-in
    Body Specs Canon SX520 Leica SL
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Canon NB-6LH Leica BP-SCL4
    Battery Life (CIPA)210 shots per charge400 shots per charge
    Body Dimensions 120 x 82 x 92 mm
    (4.7 x 3.2 x 3.6 in)
    147 x 104 x 39 mm
    (5.8 x 4.1 x 1.5 in)
    Camera Weight 441 g (15.6 oz) 847 g (29.9 oz)
    logo
    Check SX520 offers at
    ebay.com
    logo
    Check Leica SL offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SX520 vs Leica SL
