Canon SX520 vs Fujifilm XQ2

The Canon PowerShot SX520 HS and the Fujifilm XQ2 are two digital cameras that were announced, respectively, in July 2014 and January 2015. Both the SX520 and the XQ2 are fixed lens compact cameras that are based on a 1/2.3-inch (SX520) and a 2/3 (XQ2) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Fujifilm provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Fujifilm XQ2
Fixed lens compact camera		Fixed lens compact camera
24-1008mm f/3.4-6		25-100mm f/1.8-4.9
15.9 MP – 1/2.3" sensor		12 MP – Two Thirds sensor
1080/30p Video		1080/60p Video
ISO 100-3,200		ISO 100-12,800
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 461k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.6 shutter flaps per second		12 shutter flaps per second
210 shots per battery charge		240 shots per battery charge
120 x 82 x 92 mm, 441 g		100 x 59 x 33 mm, 206 g

Check SX520 offers at
ebay.com
Check XQ2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Fujifilm XQ2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

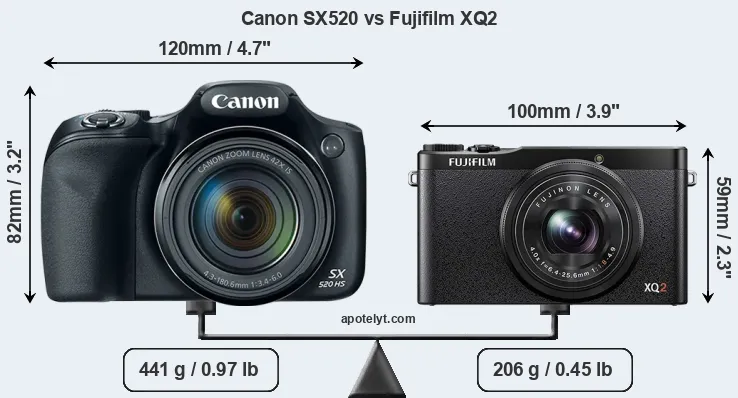

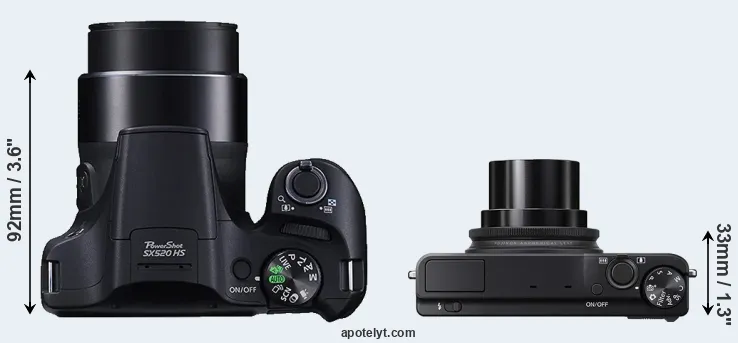

Body comparison

An illustration of the physical size and weight of the Canon SX520 and the Fujifilm XQ2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The XQ2 can be obtained in three different colors (black, silver, white), while the SX520 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm XQ2 is considerably smaller (40 percent) than the Canon SX520. Moreover, the XQ2 is substantially lighter (53 percent) than the SX520. In this context, it is worth noting that neither the SX520 nor the XQ2 are weather-sealed.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the XQ2 can take 240 images on a single charge of its Fujifilm NP-48 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	399	ebay.com
2.		Fujifilm XQ2	100 mm	59 mm	33 mm	206 g	240	n	Jan 2015	399	ebay.com
3.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
4.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	429	ebay.com
5.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
6.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	349	ebay.com
7.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
8.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
9.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	249	ebay.com
10.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	449	ebay.com
11.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	599	ebay.com
12.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
13.		Fujifilm XQ1	100 mm	59 mm	33 mm	206 g	240	n	Oct 2013	499	ebay.com
14.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	599	ebay.com
15.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	349	ebay.com
16.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	429	ebay.com
17.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

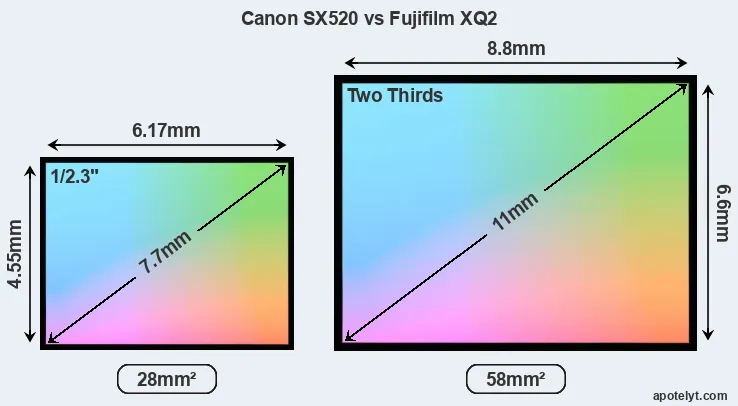

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Fujifilm XQ2 a 2/3 sensor. The sensor area in the XQ2 is 107 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 3.9. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

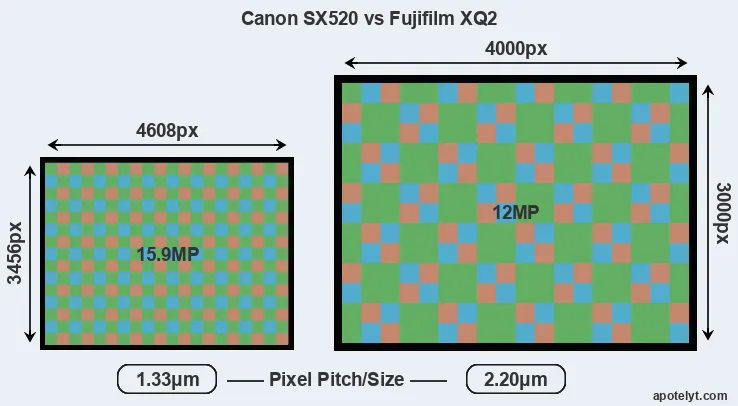

Despite having a smaller sensor, the Canon SX520 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the Fujifilm XQ2. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 2.20μm for the XQ2). Moreover, it should be noted that the XQ2 is a somewhat more recent model (by 5 months) than the SX520, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX520 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX520 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Fujifilm XQ2 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The XQ2 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Fujifilm XQ2 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the XQ2 uses a CMOS imager. Like most digital cameras, the SX520 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the XQ2 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Fujifilm XQ2	2/3	12.0	4000	3000	1080/60p	20.5	11.2	-275	49
3.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
4.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
5.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
6.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
7.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
8.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
9.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
10.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
11.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
12.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
13.		Fujifilm XQ1	2/3	12.0	4000	3000	1080/60p	20.3	11.0	-390	47
14.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
15.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
16.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
17.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the XQ2 provides a faster frame rate than the SX520. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The SX520 and the XQ2 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Canon SX520, the Fujifilm XQ2, and comparable cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Fujifilm XQ2	none	n	3.0 / 920	fixed	n	1/4000s	12.0/s	Y	Y
3.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
4.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
5.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
6.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
7.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
8.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
10.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
11.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
12.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
13.		Fujifilm XQ1	none	n	3.0 / 920	fixed	n	1/4000s	12.0/s	Y	Y
14.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
15.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
16.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX520 and the XQ2 have zoom lenses built in. The SX520 has a 24-1008mm f/3.4-6 optic and the XQ2 offers a 25-100mm f/1.8-4.9 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Fujifilm. The XQ2 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX520 and the XQ2 write their files to SDXC cards. The XQ2 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX520 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Fujifilm XQ2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Fujifilm XQ2	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
11.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
13.		Fujifilm XQ1	-	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-

It is notable that the XQ2 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX520 does not provide wifi capability.

Both the SX520 and the XQ2 have been discontinued, but can regularly be found used on ebay. The SX520 was replaced by the Canon SX530, while the XQ2 does not have a direct successor. Further information on the features and operation of the SX520 and XQ2 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Fujifilm XQ2 Manual.

Review summary

So how do things add up? Is the Canon SX520 better than the Fujifilm XQ2 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon PowerShot SX520 HS:

• More detail: Offers more megapixels (15.9 vs 12MP) with a 15% higher linear resolution.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More heavily discounted: Has been on the market for longer (launched in July 2014).

Arguments in favor of the Fujifilm XQ2:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (920k vs 461k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 1.6 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/3.4).
• More compact: Is smaller (100x59mm vs 120x82mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 235g or 53 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (240 versus 210) out of a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Was introduced somewhat (5 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the XQ2 is the clear winner of the contest (16 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Fujifilm XQ2 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SX520 and the XQ2 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	399	ebay.com
2.		Fujifilm XQ2	..	..	..	..	4/5	4/5	Jan 2015	399	ebay.com
3.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
4.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	429	ebay.com
5.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
6.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	349	ebay.com
7.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
8.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
9.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	249	ebay.com
10.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	449	ebay.com
11.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	599	ebay.com
12.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
13.		Fujifilm XQ1	..	..	..	..	4.5/5	4.5/5	Oct 2013	499	ebay.com
14.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	599	ebay.com
15.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	349	ebay.com
16.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	429	ebay.com
17.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
