Canon SX520 vs Fujifilm X-Pro1

The Canon PowerShot SX520 HS and the Fujifilm X-Pro1 are two digital cameras that were announced, respectively, in July 2014 and January 2012. The SX520 is a fixed lens compact, while the X-Pro1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX520) and an APS-C (X-Pro1) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Fujifilm provides 16 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Fujifilm X-Pro1
Fixed lens compact camera		Mirrorless system camera
24-1008mm f/3.4-6		Fujifilm X mount lenses
15.9 MP – 1/2.3" sensor		16 MP – APS-C sensor
1080/30p Video		1080/24p Video
ISO 100-3,200		ISO 200-6,400 (100 - 25,600)
No viewfinder, LCD framing		Electronic viewfinder (1440k dots)
3.0" LCD – 461k dots		3.0" LCD – 1230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.6 shutter flaps per second		6 shutter flaps per second
210 shots per battery charge		300 shots per battery charge
120 x 82 x 92 mm, 441 g		140 x 82 x 43 mm, 450 g

Check SX520 offers at
ebay.com
Check X-Pro1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Fujifilm X-Pro1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

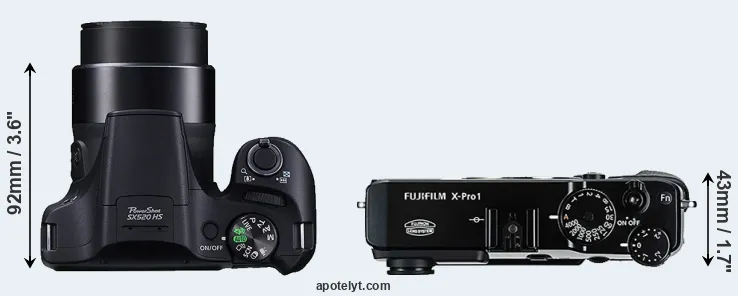

The side-by-side display below illustrates the physical size and weight of the Canon SX520 and the Fujifilm X-Pro1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-Pro1 is notably larger (17 percent) than the Canon SX520. In this context, it is worth noting that neither the SX520 nor the X-Pro1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the X-Pro1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the X-Pro1 and their specifications in the Fujinon X Lens Catalog.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the X-Pro1 can take 300 images on a single charge of its Fujifilm NP-W126 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	399	ebay.com
2.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	1,699	ebay.com
3.		Canon 4000D	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	399	amazon.com
4.		Canon 1300D	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
5.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
6.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	429	ebay.com
7.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
8.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	349	ebay.com
9.		Canon 1200D	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
10.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
11.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	249	ebay.com
12.		Fujifilm X-Pro2	141 mm	83 mm	46 mm	495 g	350	Y	Jan 2016	1,699	ebay.com
13.		Fujifilm X-T1	129 mm	90 mm	47 mm	440 g	350	Y	Jan 2014	1,299	ebay.com
14.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	1,299	ebay.com
15.		Fujifilm X-E2	129 mm	75 mm	37 mm	350 g	350	n	Oct 2013	999	ebay.com
16.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	699	ebay.com
17.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX520 was launched at a lower price than the X-Pro1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Fujifilm X-Pro1 an APS-C sensor. The sensor area in the X-Pro1 is 1214 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX520 has a native 4:3 aspect ratio, while the one in the X-Pro1 offers a 3:2 aspect.

With 16MP, the X-Pro1 offers a higher resolution than the SX520 (15.9MP), but the X-Pro1 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 1.33μm for the SX520) due to its larger sensor. However, the SX520 is a much more recent model (by 2 years and 6 months) than the X-Pro1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Fujifilm X-Pro1 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the X-Pro1 uses a CMOS imager. Like most digital cameras, the SX520 uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-Pro1 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
3.		Canon 4000D	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
4.		Canon 1300D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
5.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
6.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
7.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
8.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
9.		Canon 1200D	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
10.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
11.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
12.		Fujifilm X-Pro2	APS-C	24.0	6000	4000	1080/60p	23.7	13.0	1608	80
13.		Fujifilm X-T1	APS-C	16.0	4896	3264	1080/60p	23.5	12.7	1426	77
14.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
15.		Fujifilm X-E2	APS-C	16.0	4896	3264	1080/60p	23.4	12.6	1400	77
16.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
17.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX520 provides a higher frame rate than the X-Pro1. It can shoot video footage at 1080/30p, while the Fujifilm is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the X-Pro1 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX520 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX520 and Fujifilm X-Pro1 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
3.		Canon 4000D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 1300D	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
5.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
6.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
7.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
8.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
9.		Canon 1200D	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
11.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
12.		Fujifilm X-Pro2	2360	n	3.0 / 1620	fixed	n	1/8000s	8.0/s	n	n
13.		Fujifilm X-T1	2360	n	3.0 / 1040	tilting	n	1/4000s	8.0/s	n	n
14.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
15.		Fujifilm X-E2	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
16.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
17.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The SX520 has one, while the X-Pro1 does not. While the built-in flash of the SX520 is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the SX520 and the X-Pro1 write their files to SDXC cards. The X-Pro1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX520 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Fujifilm X-Pro1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 4000D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon 1300D	Y	mono / mono	-	-	mini	2.0	Y	Y	-
5.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon 1200D	Y	mono / mono	-	-	mini	2.0	-	-	-
10.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
12.		Fujifilm X-Pro2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
13.		Fujifilm X-T1	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
15.		Fujifilm X-E2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
16.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
17.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the X-Pro1 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX520 does not feature such an accessory-socket.

Studio photographers will appreciate that the Fujifilm X-Pro1 (unlike the SX520) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the SX520 and the X-Pro1 have been discontinued, but can regularly be found used on ebay. The X-Pro1 was replaced by the Fujifilm X-Pro2, while the SX520 was followed by the Canon SX530. Further information on the features and operation of the SX520 and X-Pro1 can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Fujifilm X-Pro1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon SX520 and the Fujifilm X-Pro1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot SX520 HS:

• Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
• Ready to shoot: Has a lens built-in, whereas the X-Pro1 requires a separate lens.
• More compact: Is smaller (120x82mm vs 140x82mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the X-Pro1).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years and 6 months of technical progress since the X-Pro1 launch.

Advantages of the Fujifilm X-Pro1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 461k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (6 vs 1.6 flaps/sec) to capture the decisive moment.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (300 versus 210) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been around for much longer (launched in January 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the X-Pro1 is the clear winner of the contest (14 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Fujifilm X-Pro1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX520 or the X-Pro1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	399	ebay.com
2.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	1,699	ebay.com
3.		Canon 4000D	2.5/5	o	3/5	..	3.5/5	3.5/5	Feb 2018	399	amazon.com
4.		Canon 1300D	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
5.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
6.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	429	ebay.com
7.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
8.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	349	ebay.com
9.		Canon 1200D	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
10.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
11.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	249	ebay.com
12.		Fujifilm X-Pro2	..	+	..	83/100	4.5/5	4.5/5	Jan 2016	1,699	ebay.com
13.		Fujifilm X-T1	5/5	+ +	..	84/100	5/5	5/5	Jan 2014	1,299	ebay.com
14.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	1,299	ebay.com
15.		Fujifilm X-E2	4/5	..	..	80/100	4.5/5	5/5	Oct 2013	999	ebay.com
16.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	699	ebay.com
17.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	349	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
