Canon SX520 vs T1i

The Canon PowerShot SX520 HS and the Canon EOS Rebel T1i (labelled Canon 500D in some countries) are two digital cameras that were revealed to the public, respectively, in July 2014 and March 2009. The SX520 is a fixed lens compact, while the T1i is a DSLR. The cameras are based on a 1/2.3-inch (SX520) and an APS-C (T1i) sensor. The SX520 has a resolution of 15.9 megapixels, whereas the T1i provides 15.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX520		Canon T1i
Fixed lens compact camera		Digital single lens reflex
24-1008mm f/3.4-6		Canon EF mount lenses
15.9 MP – 1/2.3" sensor		15.1 MP – APS-C sensor
1080/30p Video		1080/20p Video
ISO 100-3,200		ISO 100-6,400 (100 - 12,800)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 461k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.6 shutter flaps per second		3.4 shutter flaps per second
210 shots per battery charge		400 shots per battery charge
120 x 82 x 92 mm, 441 g		129 x 98 x 62 mm, 520 g

Check SX520 offers at
ebay.com
Check T1i offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Canon EOS Rebel T1i? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

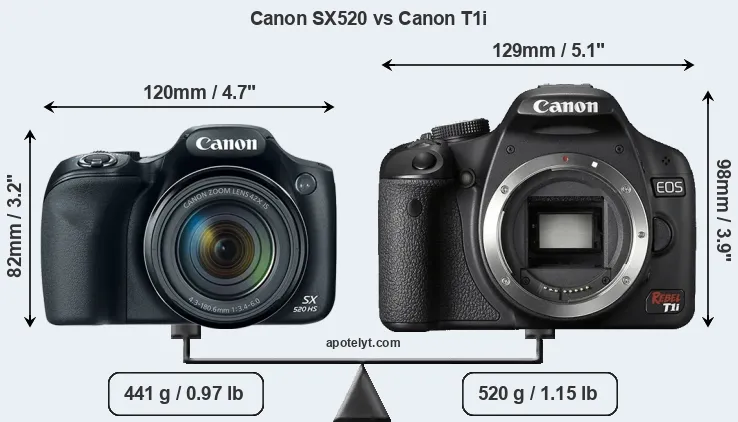

An illustration of the physical size and weight of the Canon SX520 and the Canon T1i is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T1i is notably larger (28 percent) than the Canon SX520. In this context, it is worth noting that neither the SX520 nor the T1i are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX520 has a lens built in, whereas the T1i is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the T1i and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the SX520 gets 210 shots out of its Canon NB-6LH battery, while the T1i can take 400 images on a single charge of its Canon LP-E5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	399	ebay.com
2.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
3.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
4.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	399	ebay.com
5.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
6.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	429	ebay.com
7.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	349	ebay.com
8.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	349	ebay.com
9.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
10.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
11.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	249	ebay.com
12.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
13.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
14.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	799	ebay.com
15.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	349	ebay.com
16.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	429	ebay.com
17.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX520 was launched at a lower price than the T1i, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX520 features a 1/2.3-inch sensor and the Canon T1i an APS-C sensor. The sensor area in the T1i is 1086 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.6. The sensor in the SX520 has a native 4:3 aspect ratio, while the one in the T1i offers a 3:2 aspect.

In terms of chip-set technology, the SX520 uses a more advanced image processing engine (DIGIC 4+) than the T1i (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the Canon SX520 offers a higher resolution of 15.9 megapixels, compared with 15.1 MP of the Canon T1i. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 4.69μm for the T1i). However, it should be noted that the SX520 is much more recent (by 5 years and 4 months) than the T1i, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX520 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Canon EOS Rebel T1i are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-12800.

In terms of underlying technology, the SX520 is build around a BSI-CMOS sensor, while the T1i uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
2.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
3.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
4.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
5.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
6.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
7.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
8.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
9.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
10.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
11.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
12.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
13.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
14.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
15.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
16.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
17.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX520 provides a higher frame rate than the T1i. It can shoot video footage at 1080/30p, while the T1i is limited to 1080/20p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the T1i has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX520 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX520 and Canon T1i in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
2.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
3.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
5.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
7.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
8.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
9.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
10.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
12.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
14.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
15.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
16.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The SX520 writes its imaging data to SDXC cards, while the T1i uses SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Canon EOS Rebel T1i and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
4.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
7.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
12.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
14.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
15.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-

It is notable that the T1i has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX520 does not feature such an accessory-socket.

Both the SX520 and the T1i have been discontinued, but can regularly be found used on ebay. The T1i was replaced by the Canon T2i, while the SX520 was followed by the Canon SX530. Further information on the features and operation of the SX520 and T1i can be found, respectively, in the Canon SX520 Manual (free pdf) or the online Canon T1i Manual.

Review summary

So how do things add up? Is the Canon SX520 better than the Canon T1i or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Canon PowerShot SX520 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (DIGIC 4+ vs DIGIC 4).
• Better video: Provides higher movie framerates (1080/30p versus 1080/20p).
• Ready to shoot: Comes with a built-in lens, while the T1i requires a separate lens.
• More compact: Is smaller (120x82mm vs 129x98mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the T1i).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years and 4 months of technical progress since the T1i launch.

Reasons to prefer the Canon EOS Rebel T1i:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 461k dots).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (3.4 vs 1.6 flaps/sec) to capture the decisive moment.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (400 versus 210) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in March 2009).

If the number of relative strengths (bullet points above) is taken as a guide, the T1i is the clear winner of the contest (13 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX520 and the Canon T1i place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX520 or the T1i. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	399	ebay.com
2.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
3.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
4.		Canon SX540	..	..	..	..	..	..	Jan 2016	399	ebay.com
5.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
6.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	429	ebay.com
7.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	349	ebay.com
8.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	349	ebay.com
9.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
10.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
11.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	249	ebay.com
12.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
13.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
14.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	799	ebay.com
15.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	349	ebay.com
16.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	429	ebay.com
17.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
