Canon SX520 vs SX720

The Canon PowerShot SX520 HS and the Canon PowerShot SX720 HS are two digital cameras that were announced, respectively, in July 2014 and February 2016. Both the SX520 and the SX720 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The SX520 has a resolution of 15.9 megapixels, whereas the SX720 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon SX520 versus Canon SX720
Canon SX520 Canon SX720
Fixed lens compact camera Fixed lens compact camera
24-1008mm f/3.4-6 24-960mm f/3.3-6.9
15.9 MP, 1/2.3" Sensor 20.2 MP, 1/2.3" Sensor
1080/30p Video 1080/60p Video
ISO 100-3,200 ISO 80-3,200
No viewfinder, LCD framing No viewfinder, LCD framing
3.0 LCD, 461k dots 3.0 LCD, 922k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
1.6 shutter flaps per second 5.9 shutter flaps per second
210 shots per battery charge250 shots per battery charge
120 x 82 x 92 mm, 441 g 110 x 64 x 36 mm, 270 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX520 HS and the Canon PowerShot SX720 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon SX520 and the Canon SX720. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The SX720 can be obtained in two different colors (black, red), while the SX520 is only available in black.

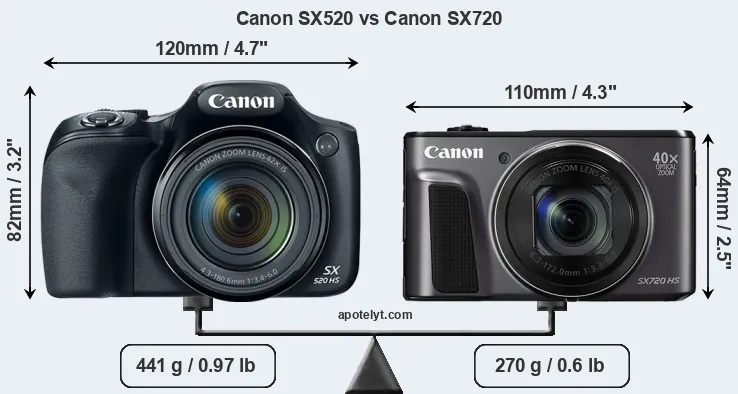

Size Canon SX520 vs Canon SX720

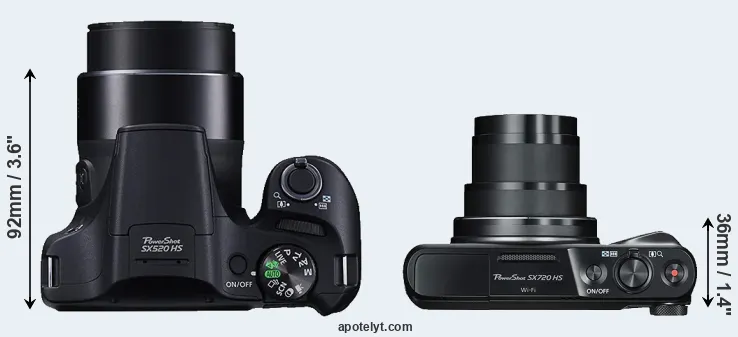

Compare SX520 versus SX720 top

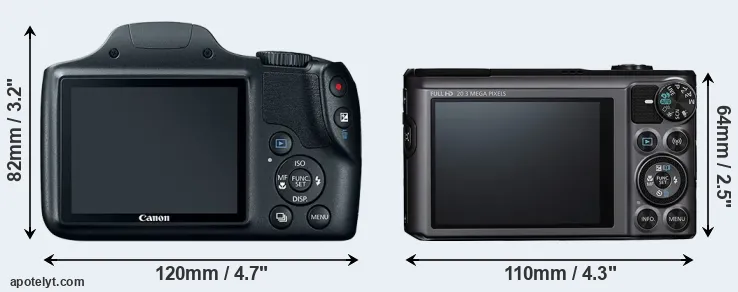

Comparison SX520 or SX720 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX720 is notably smaller (28 percent) than the Canon SX520. Moreover, the SX720 is substantially lighter (39 percent) than the SX520. In this context, it is worth noting that neither the SX520 nor the SX720 are weather-sealed.

Concerning battery life, the SX520 gets 210 shots out of its NB-6LH battery, while the SX720 can take 250 images on a single charge of its NB-13L power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Canon SX520 4.7 in 3.2 in 3.6 in 15.6 oz 210 n Jul 2014 399i

Canon SX720 4.3 in 2.5 in 1.4 in 9.5 oz 250 n Feb 2016 379i

Canon SX740 4.3 in 2.5 in 1.6 in 10.5 oz 265 n Jul 2018 399 i

Canon SX730 4.3 in 2.5 in 1.6 in 10.6 oz 250 n Apr 2017 399i

Canon SX540 4.7 in 3.2 in 3.6 in 15.6 oz 205 n Jan 2016 399 i

Canon SX410 4.1 in 2.7 in 3.3 in 11.5 oz 185 n Feb 2015 279i

Canon SX530 4.7 in 3.2 in 3.6 in 15.6 oz 210 n Jan 2015 429i

Canon SX710 4.4 in 2.6 in 1.4 in 9.5 oz 230 n Jan 2015 349i

Canon SX700 4.4 in 2.6 in 1.4 in 9.5 oz 250 n Feb 2014 349i

Canon SX60 5.0 in 3.7 in 4.5 in 22.9 oz 340 n Sep 2014 549i

Canon T5 5.1 in 3.9 in 3.1 in 16.9 oz 500 n Feb 2014 449i

Canon SX510 4.1 in 2.8 in 3.1 in 12.3 oz 250 n Aug 2013 249i

Nikon B600 4.8 in 3.2 in 3.9 in 17.6 oz 280 n Jan 2019 349 i

Panasonic ZS70 4.4 in 2.6 in 1.6 in 11.4 oz 380 n Apr 2017 449i

Sony HX90V 4.0 in 2.3 in 1.4 in 8.6 oz 360 n Apr 2015 429 i

Sony H200 4.8 in 3.3 in 3.4 in 18.7 oz 240 n Jan 2013 249 i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX720 was somewhat cheaper (by 5 percent) than the SX520 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the SX720 uses a more advanced image processing engine (DIGIC 6) than the SX520 (DIGIC 4+), with benefits for noise reduction, color accuracy, and processing speed.

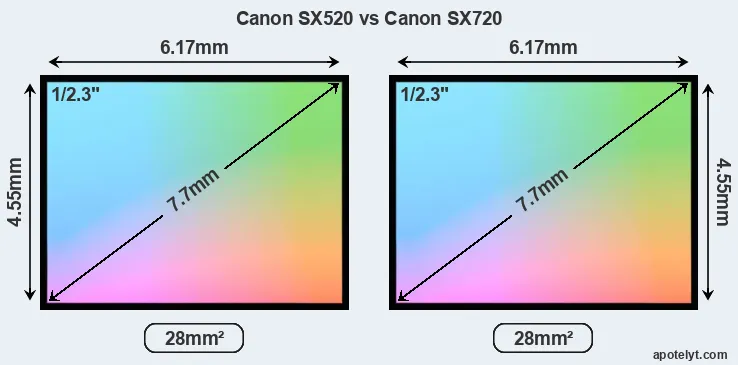

Canon SX520 and Canon SX720 sensor measures

While the two cameras under review share the same sensor size, the SX720 offers a higher resolution of 20.2 megapixels, compared with 15.9 MP of the SX520. This megapixels advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the SX720 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.33μm for the SX520). However, it should be noted that the SX720 is a somewhat more recent model (by 1 year and 6 months) than the SX520, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX720 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX720 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon SX520 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX520 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Canon PowerShot SX720 HS are ISO 80 to ISO 3200 (no boost).

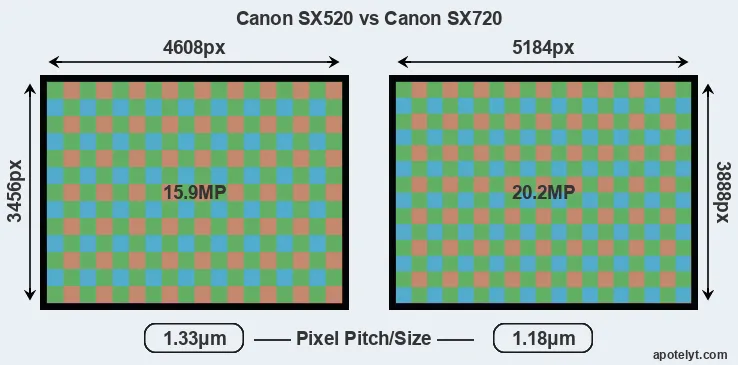

SX520 versus SX720 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Canon SX520 1/2.3 15.9 4608 34561080/30p........

Canon SX720 1/2.3 20.2 5184 38881080/60p........

Canon SX740 1/2.3 20.2 5184 38884K/30p........

Canon SX730 1/2.3 20.2 5184 38881080/60p........

Canon SX540 1/2.3 20.2 5184 38881080/60p........

Canon SX410 1/2.3 19.9 5152 3864720/30p........

Canon SX530 1/2.3 15.9 4608 34561080/30p........

Canon SX710 1/2.3 20.2 5184 38881080/60p........

Canon SX700 1/2.3 15.9 4608 34561080/60p........

Canon SX60 1/2.3 14.2 4608 30721080/60p19.210.812739

Canon T5 APS-C 17.9 5184 34561080/30p21.911.372463

Canon SX510 1/2.3 15.9 4608 34561080/24p........

Nikon B600 1/2.3 15.9 4608 34561080/30p........

Panasonic ZS70 1/2.3 20.2 5184 38884K/30p19.110.610636

Sony HX90V 1/2.3 18.0 4896 36721080/60p........

Sony H200 1/2.3 15.2 5184 2930720/30p........

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the SX720 provides a faster frame rate than the SX520. It can shoot movie footage at 1080/60p, while the SX520 is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The SX520 and the SX720 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Canon SX520, the Canon SX720, and comparable cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Canon SX520none n 3.0 461 fixed n 1/2000s 1.6 Y Y

Canon SX720none n 3.0 922 fixed n 1/3200s 5.9 Y Y

Canon SX740none n 3.0 922 tilting n 1/3200s 10.0 Y Y

Canon SX730none n 3.0 922 tilting n 1/3200s 5.9 Y Y

Canon SX540none n 3.0 461 fixed n 1/2000s 5.9 Y Y

Canon SX410none n 3.0 230 fixed n 1/4000s 0.5 Y Y

Canon SX530none n 3.0 461 fixed n 1/2000s 1.6 Y Y

Canon SX710none n 3.0 922 fixed n 1/3200s 6.0 Y Y

Canon SX700none n 3.0 922 fixed n 1/3200s 8.5 Y Y

Canon SX60922 n 3.0 922 swivel n 1/2000s 6.4 Y Y

Canon T5optical n 3.0 460 fixed n 1/4000s 3.0 Y n

Canon SX510none n 3.0 461 fixed n 1/1600s 3.8 Y Y

Nikon B600none n 3.0 921 fixed n 1/4000s 7.4 Y Y

Panasonic ZS701166 n 3.0 1040 tilting Y 1/2000s 10.0 Y Y

Sony HX90V638 n 3.0 921 tilting n 1/2000s 10.0 Y Y

Sony H200none n 3.0 460 fixed n 1/1500s 0.8 Y Y

Both the SX520 and the SX720 have zoom lenses built in. The SX520 has a 24-1008mm f/3.4-6 optic and the SX720 offers a 24-960mm f/3.3-6.9 (focal lengths in full frame equivalent terms). Hence, the SX520 and SX720 provide the same view at the wide-angle end, but the SX720 has less tele-photo reach at the long end. The SX720 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX520 and the SX720 write their files to SDXC cards. The SX720 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX520 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX520 HS and Canon PowerShot SX720 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Canon SX520-stereomono--mini2.0---

Canon SX720-stereomono--micro2.0YY-

Canon SX740-stereomono--micro2.0Y-Y

Canon SX730-stereomono--micro2.0YYY

Canon SX540-stereomono--mini2.0YY-

Canon SX410-stereomono---2.0---

Canon SX530-stereomono--mini2.0YY-

Canon SX710-stereomono--micro2.0YY-

Canon SX700-stereomono--micro2.0YY-

Canon SX60YstereomonoY-mini2.0YY-

Canon T5Ymonomono--mini2.0---

Canon SX510-stereomono--mini2.0Y--

Nikon B600-stereomono--micro2.0Y-Y

Panasonic ZS70-stereomono--micro2.0Y--

Sony HX90V-stereomono--micro2.0YY-

Sony H200-monomono---2.0---

It is notable that the SX720 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the SX520 does not provide wifi capability.

Both the SX520 and the SX720 have been discontinued, but can regularly be found used on eBay. The SX520 was replaced by the Canon SX530, while the SX720 was followed by the Canon SX730. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So how do things add up? Is the Canon SX520 better than the Canon SX720 or vice versa? The listing below highlights the relative strengths of the two models.


Reasons to prefer the Canon PowerShot SX520 HS:

  • More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
  • More heavily discounted: Has been on the market for longer (launched in July 2014).


Arguments in favor of the Canon PowerShot SX720 HS:

  • More detail: Has more megapixels (20.2 vs 15.9MP), which boosts linear resolution by 13%.
  • Better jpgs: Has a more modern image processing engine (DIGIC 6 vs DIGIC 4+).
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • More detailed LCD: Has a higher resolution rear screen (922k vs 461k dots).
  • Faster shutter: Has higher mechanical shutter speed (1/3200s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (5.9 vs 1.6 flaps/sec) to capture the decisive moment.
  • Better light gathering: Has a lens with a wider maximum aperture (f/3.3 vs f/3.4).
  • More compact: Is smaller (110x64mm vs 120x82mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 171g or 39 percent) and is thus easier to take along.
  • Longer lasting: Gets more shots (250 versus 210) out of a single battery charge.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More modern: Was introduced somewhat (1 year and 6 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the SX720 is the clear winner of the contest (14 : 2 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

SX520 02:14 SX720

How about other alternatives? Do the specifications of the Canon SX520 and the Canon SX720 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX520 or the SX720. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Canon SX520+..3.5/5..3.5/5 Jul 2014 399i

Canon SX720+..4/5..4.5/5 Feb 2016 379i

Canon SX740+..4/5..4/5 Jul 2018 399 i

Canon SX730+..4/5..4/5 Apr 2017 399i

Canon SX540.......... Jan 2016 399 i

Canon SX410o........ Feb 2015 279i

Canon SX530+ +..4/5..4/5 Jan 2015 429i

Canon SX710+..4/5..3.5/5 Jan 2015 349i

Canon SX700+ +..4/5..4/5 Feb 2014 349i

Canon SX60+ +75/1004/5..4.5/5 Sep 2014 549i

Canon T5+..4/54/54.5/5 Feb 2014 449i

Canon SX510+ +..4.5/5..4/5 Aug 2013 249i

Nikon B600+..3.5/5..3/5 Jan 2019 349 i

Panasonic ZS70+ +..4/5..4/5 Apr 2017 449i

Sony HX90V+ +..4/5..4.5/5 Apr 2015 429 i

Sony H200....3.5/5..3.5/5 Jan 2013 249 i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon SX520:
Check Ebay offers
Canon SX720:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

    Specifications: Canon SX520 vs Canon SX720

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon SX520 Canon SX720
    Camera Type Fixed lens compact camera Fixed lens compact camera
    Camera Lens 24-1008mm f/3.4-6 24-960mm f/3.3-6.9
    Launch Date July 2014 February 2016
    Launch Price USD 399 USD 379
    Sensor Specs Canon SX520 Canon SX720
    Sensor Technology BSI-CMOS BSI-CMOS
    Sensor Format 1/2.3" Sensor 1/2.3" Sensor
    Sensor Size 6.17 x 4.55 mm 6.17 x 4.55 mm
    Sensor Area 28.0735 mm2 28.0735 mm2
    Sensor Diagonal 7.7 mm 7.7 mm
    Crop Factor 5.6x 5.6x
    Sensor Resolution 15.9 Megapixels 20.2 Megapixels
    Image Resolution 4608 x 3456 pixels 5184 x 3888 pixels
    Pixel Pitch 1.33 μm 1.18 μm
    Pixel Density 56.73 MP/cm2 71.80 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability 1080/30p Video 1080/60p Video
    ISO Setting 100 - 3,200 ISO 80 - 3,200 ISO
    Image Processor DIGIC 4+ DIGIC 6
    Screen Specs Canon SX520 Canon SX720
    Viewfinder Type no viewfinder no viewfinder
    Viewfinder Magnification
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 461k dots 922k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Canon SX520 Canon SX720
    Focus System Contrast-detect AF Contrast-detect AF
    Continuous Shooting 1.6 shutter flaps/s 5.9 shutter flaps/s
    Fill Flash Build-in Flash Build-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support no UHS-I
    Connectivity Specs Canon SX520 Canon SX720
    External Flash no Hotshoe no Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI micro HDMI
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Body Specs Canon SX520 Canon SX720
    Battery Type NB-6LH NB-13L
    Battery Life (CIPA)210 shots per charge250 shots per charge
    Body Dimensions 120 x 82 x 92 mm
    (4.7 x 3.2 x 3.6 in)
    110 x 64 x 36 mm
    (4.3 x 2.5 x 1.4 in)
    Camera Weight 441 g (15.6 oz) 270 g (9.5 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon SX520 vs Canon SX720

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.
