Canon SX510 vs Nikon Z7

The Canon PowerShot SX510 HS and the Nikon Z7 are two digital cameras that were revealed to the public, respectively, in August 2013 and August 2018. The SX510 is a fixed lens compact, while the Z7 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX510) and a full frame (Z7) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Nikon provides 45.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX510		Nikon Z7
Fixed lens compact camera		Mirrorless system camera
24-720mm f/3.4-5.8		Nikon Z mount lenses
15.9 MP – 1/2.3" sensor		45.4 MP – Full Frame sensor
1080/24p Video		4K/30p Video
ISO 80-3,200		ISO 64-25,600 (32 - 102,400)
No viewfinder, LCD framing		Electronic viewfinder (3690k dots)
3.0" LCD – 461k dots		3.2" LCD – 2100k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3.8 shutter flaps per second		9 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
250 shots per battery charge		330 shots per battery charge
104 x 70 x 80 mm, 349 g		134 x 101 x 67 mm, 675 g

Check SX510 offers at
ebay.com
Check Z7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Nikon Z7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

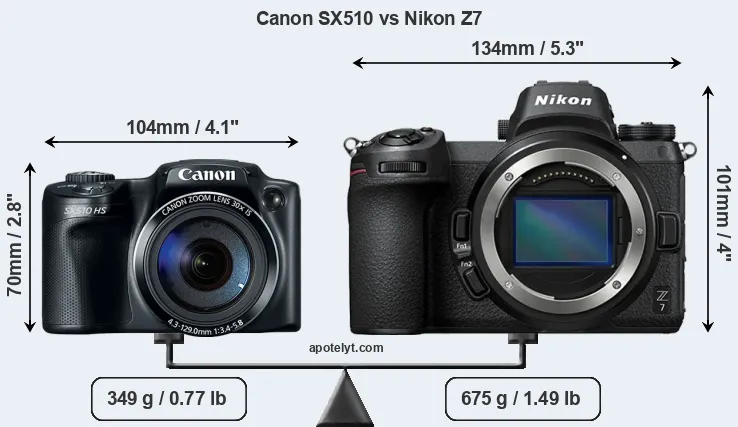

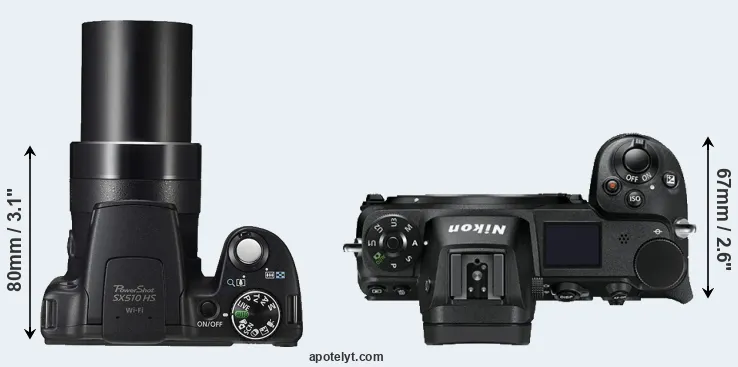

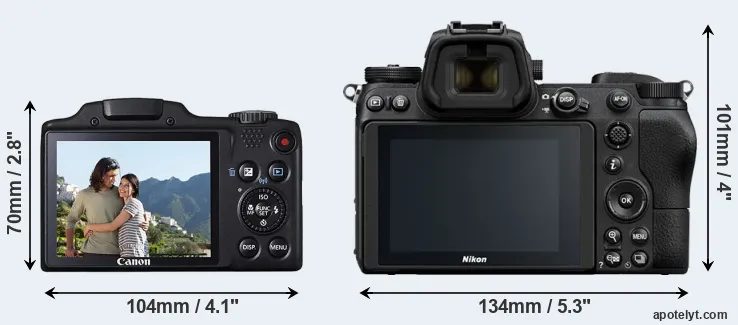

An illustration of the physical size and weight of the Canon SX510 and the Nikon Z7 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon Z7 is considerably larger (86 percent) than the Canon SX510. It is noteworthy in this context that the Z7 is splash and dust-proof, while the SX510 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX510 has a lens built in, whereas the Z7 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the SX510 gets 250 shots out of its Canon NB-6LH battery, while the Z7 can take 330 images on a single charge of its Nikon EN-EL15b power pack. The power pack in the Z7 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	249	ebay.com
2.		Nikon Z7	134 mm	101 mm	67 mm	675 g	330	Y	Aug 2018	3,399	ebay.com
3.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	299	ebay.com
4.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	299	ebay.com
5.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	279	ebay.com
6.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	399	ebay.com
7.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	349	ebay.com
8.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	249	ebay.com
9.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	249	ebay.com
10.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	549	ebay.com
11.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	329	ebay.com
12.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	3,999	amazon.com
13.		Nikon Z7 II	134 mm	101 mm	70 mm	705 g	420	Y	Oct 2020	2,999	amazon.com
14.		Nikon Z6	134 mm	101 mm	67 mm	675 g	310	Y	Aug 2018	1,999	ebay.com
15.		Sony A7R IIIA	127 mm	96 mm	74 mm	650 g	650	Y	Apr 2021	3,199	amazon.com
16.		Sony A7R III	127 mm	96 mm	74 mm	650 g	650	Y	Oct 2017	3,199	ebay.com
17.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	249	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX510 was launched at a lower price than the Z7, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Nikon Z7 a full frame sensor. The sensor area in the Z7 is 2964 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.0. The sensor in the SX510 has a native 4:3 aspect ratio, while the one in the Z7 offers a 3:2 aspect.

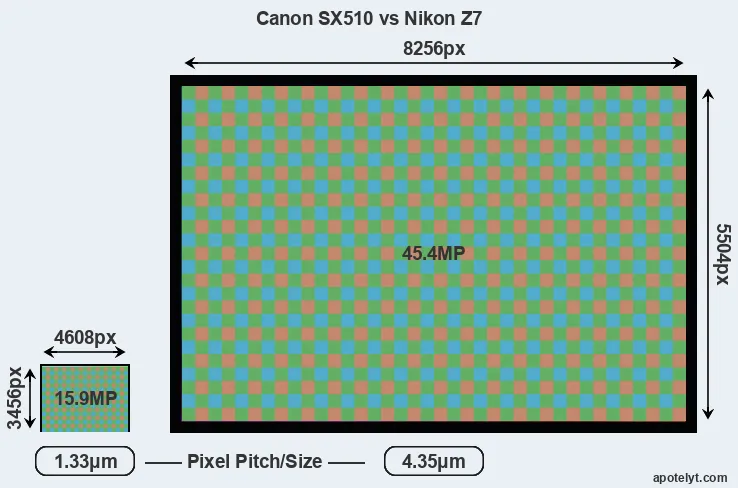

With 45.4MP, the Z7 offers a higher resolution than the SX510 (15.9MP), but the Z7 nevertheless has larger individual pixels (pixel pitch of 4.35μm versus 1.33μm for the SX510) due to its larger sensor. Moreover, the Z7 is a much more recent model (by 5 years) than the SX510, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Nikon Z7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Z7 for good quality output (200 dots per inch) amounts to 41.3 x 27.5 inches or 104.9 x 69.9 cm, for very good quality (250 dpi) 33 x 22 inches or 83.9 x 55.9 cm, and for excellent quality (300 dpi) 27.5 x 18.3 inches or 69.9 x 46.6 cm. The corresponding values for the Canon SX510 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Z7 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Nikon Z7 are ISO 64 to ISO 25600, with the possibility to increase the ISO range to 32-102400.

In terms of underlying technology, the SX510 is build around a CMOS sensor, while the Z7 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
2.		Nikon Z7	Full Frame	45.4	8256	5504	4K/30p	26.3	14.6	2668	99
3.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
4.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
5.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
6.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
7.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
8.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
9.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
10.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
11.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
12.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
13.		Nikon Z7 II	Full Frame	45.4	8256	5504	4K/60p	26.3	14.7	2841	100
14.		Nikon Z6	Full Frame	24.3	6048	4024	4K/30p	25.3	14.3	3299	95
15.		Sony A7R IIIA	Full Frame	42.2	7952	5304	4K/30p	26.0	14.7	3523	100
16.		Sony A7R III	Full Frame	42.2	7952	5304	4K/30p	26.0	14.7	3523	100
17.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the Z7 provides a better video resolution than the SX510. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/24p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the Z7 has an electronic viewfinder (3690k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX510 and Nikon Z7 along with similar information for a selection of comparators.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
2.		Nikon Z7	3690	Y	3.2 / 2100	tilting	Y	1/8000s	9.0/s	n	Y
3.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
4.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
7.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
8.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
9.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
10.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
11.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
12.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
13.		Nikon Z7 II	3690	Y	3.2 / 2100	tilting	Y	1/8000s	10.0/s	n	Y
14.		Nikon Z6	3690	Y	3.2 / 2100	tilting	Y	1/8000s	12.0/s	n	Y
15.		Sony A7R IIIA	3686	n	3.0 / 2340	tilting	Y	1/8000s	10.0/s	n	Y
16.		Sony A7R III	3686	n	3.0 / 1440	tilting	Y	1/8000s	10.0/s	n	Y
17.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The SX510 has one, while the Z7 does not. While the built-in flash of the SX510 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Z7 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon Z7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The SX510 writes its imaging data to SDXC cards, while the Z7 uses XQD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Nikon Z7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Nikon Z7	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
3.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
4.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
5.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
6.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
10.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
12.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
13.		Nikon Z7 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
14.		Nikon Z6	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
15.		Sony A7R IIIA	Y	stereo / mono	Y	Y	micro	3.2	Y	Y	Y
16.		Sony A7R III	Y	stereo / mono	Y	Y	micro	3.1	Y	Y	Y
17.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-

It is notable that the Z7 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX510 does not feature such a mic input.

Both the SX510 and the Z7 have been discontinued, but can regularly be found used on ebay. The SX510 was replaced by the Canon SX520, while the Z7 was followed by the Nikon Z7 II. Further information on the features and operation of the SX510 and Z7 can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Nikon Z7 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon SX510 or the Nikon Z7 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon PowerShot SX510 HS:

• Ready to shoot: Has a lens built-in, whereas the Z7 requires a separate lens.
• More compact: Is smaller (104x70mm vs 134x101mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the Z7).
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in August 2013).

Arguments in favor of the Nikon Z7:

• More detail: Has more megapixels (45.4 vs 15.9MP), which boosts linear resolution by 72%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/24p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 461k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 3.8 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (330 versus 250) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 5 years of technical progress since the SX510 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the Z7 is the clear winner of the contest (27 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX510 and the Nikon Z7 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the SX510 or the Z7 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	249	ebay.com
2.		Nikon Z7	5/5	+	4.8/5	89/100	4.5/5	5/5	Aug 2018	3,399	ebay.com
3.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	299	ebay.com
4.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	299	ebay.com
5.		Canon SX410	..	o	..	..	..	..	Feb 2015	279	ebay.com
6.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	399	ebay.com
7.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	349	ebay.com
8.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	249	ebay.com
9.		Canon SX400	..	+	..	..	..	..	Jul 2014	249	ebay.com
10.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	549	ebay.com
11.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	329	ebay.com
12.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	3,999	amazon.com
13.		Nikon Z7 II	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Oct 2020	2,999	amazon.com
14.		Nikon Z6	5/5	..	5/5	89/100	4.5/5	5/5	Aug 2018	1,999	ebay.com
15.		Sony A7R IIIA	..	+ +	4/5	90/100	4.5/5	5/5	Apr 2021	3,199	amazon.com
16.		Sony A7R III	..	+ +	4/5	90/100	4.5/5	5/5	Oct 2017	3,199	ebay.com
17.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	249	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check SX510 offers at
ebay.com
Check Z7 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check SX510 offers at
ebay.com
Check Z7 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
