Canon SX430 vs Olympus E-PL10
The Canon PowerShot SX430 IS and the Olympus PEN E-PL10 are two digital cameras that were revealed to the public, respectively, in January 2017 and October 2019. The SX430 is a fixed lens compact, while the E-PL10 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX430) and a Four Thirds (E-PL10) sensor. The Canon has a resolution of 19.9 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX430 IS and the Olympus PEN E-PL10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

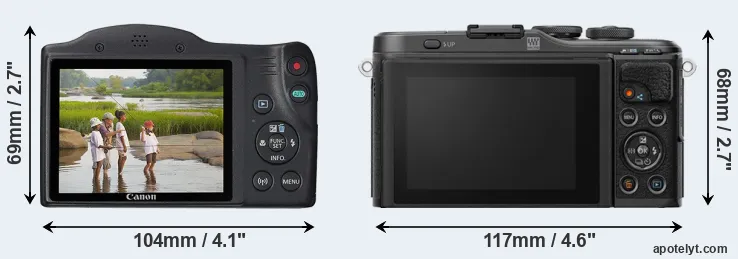

An illustration of the physical size and weight of the Canon SX430 and the Olympus E-PL10 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL10 can be obtained in four different colors (black, brown, blue, white), while the SX430 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL10 is notably larger (11 percent) than the Canon SX430. In this context, it is worth noting that neither the SX430 nor the E-PL10 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX430 has a lens built in, whereas the E-PL10 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL10 and their specifications in the Micro Four Thirds Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon SX430||104 mm||69 mm||85 mm||323 g||195||n||Jan 2017||299|
|2.||Olympus E-PL10||117 mm||68 mm||39 mm||380 g||350||n||Oct 2019||599|
|3.||Canon SX740||110 mm||64 mm||40 mm||299 g||265||n||Jul 2018||399|
|4.||Canon SX70||127 mm||91 mm||117 mm||608 g||325||n||Sep 2018||549|
|5.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399|
|6.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699|
|7.||Canon SX420||104 mm||69 mm||85 mm||325 g||195||n||Jan 2016||299|
|8.||Canon SX620||97 mm||57 mm||28 mm||182 g||295||n||May 2016||279|
|9.||Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379|
|10.||Canon SX410||104 mm||69 mm||85 mm||325 g||185||n||Feb 2015||279|
|11.||Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349|
|12.||Olympus E-PL9||117 mm||68 mm||39 mm||380 g||350||n||Feb 2018||599|
|13.||Olympus E-M10 III||122 mm||84 mm||50 mm||410 g||330||n||Aug 2017||649|
|14.||Olympus E-PL8||115 mm||67 mm||38 mm||357 g||350||n||Sep 2016||549|
|15.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|16.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|17.||Panasonic ZS70||112 mm||67 mm||41 mm||322 g||380||n||Apr 2017||449|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX430 was launched at a lower price than the E-PL10, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon SX430 features a 1/2.3-inch sensor and the Olympus E-PL10 a Four Thirds sensor. The sensor area in the E-PL10 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.
Despite having a smaller sensor, the Canon SX430 offers a higher resolution of 19.9 megapixels, compared with 15.9 MP of the Olympus E-PL10. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 3.76μm for the E-PL10). Moreover, it should be noted that the E-PL10 is much more recent (by 2 years and 9 months) than the SX430, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX430 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX430 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX430 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Olympus E-PL10 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon PowerShot SX430 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-PL10 are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Olympus E-PL10||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|6.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|12.||Olympus E-PL9||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|13.||Olympus E-M10 III||Four Thirds||15.9||4608||3456||4K/30p||..||..||..||..|
|14.||Olympus E-PL8||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|15.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|16.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the E-PL10 provides a better video resolution than the SX430. It can shoot movie footage at 4K/30p, while the Canon is limited to 720/25p.
Apart from body and sensor, cameras can and do differ across a range of features. The SX430 and the E-PL10 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Canon SX430 and Olympus E-PL10 in connection with corresponding information for a sample of similar cameras.
|6.||Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|13.||Olympus E-M10 III||2360||n||3.0||1040||tilting||Y||1/4000s||8.6||Y||Y|
|15.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-PL10 has a touchscreen, while the SX430 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.The E-PL10 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the SX430 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-PL10 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Olympus E-PL10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX430 and the E-PL10 write their files to SDXC cards. The E-PL10 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX430 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX430 IS and Olympus PEN E-PL10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|6.||Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|13.||Olympus E-M10 III||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
|15.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the E-PL10 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX430 does not feature such an accessory-socket.
Both the SX430 and the E-PL10 are recent models that are part of the current product line-up. The SX430 replaced the earlier Canon SX420, while the E-PL10 followed on from the Olympus E-PL9. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Which of the two cameras – the Canon SX430 or the Olympus E-PL10 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon PowerShot SX430 IS:
- More detail: Offers more megapixels (19.9 vs 15.9MP) with a 12% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has a lens built-in, whereas the E-PL10 requires a separate lens.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the E-PL10).
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been available for much longer (launched in January 2017).
Advantages of the Olympus PEN E-PL10:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (4K/30p vs 720/25p).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8.6 vs 0.5 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (350 versus 195) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 9 months of technical progress since the SX430 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the E-PL10 is the clear winner of the contest (19 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX430 and the Olympus E-PL10 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the SX430 and the E-PL10 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX430||..||..||..||3.5/5||3.5/5||Jan 2017||299|
|2.||Olympus E-PL10||..||..||77/100||..||4/5||Oct 2019||599|
|3.||Canon SX740||..||+||..||4/5||4/5||Jul 2018||399|
|4.||Canon SX70||..||+ +||..||3.5/5||3.5/5||Sep 2018||549|
|5.||Canon SX730||..||+||..||4/5||4/5||Apr 2017||399|
|6.||Canon G7 X Mark II||4.5/5||+ +||81/100||4.5/5||4.5/5||Feb 2016||699|
|7.||Canon SX420||..||..||..||..||3/5||Jan 2016||299|
|8.||Canon SX620||..||..||..||..||4/5||May 2016||279|
|9.||Canon SX720||..||+||..||4/5||4.5/5||Feb 2016||379|
|10.||Canon SX410||..||o||..||..||..||Feb 2015||279|
|11.||Canon SX710||..||+||..||4/5||3.5/5||Jan 2015||349|
|12.||Olympus E-PL9||..||+||..||4.5/5||4/5||Feb 2018||599|
|13.||Olympus E-M10 III||..||+||80/100||4.5/5||4.5/5||Aug 2017||649|
|14.||Olympus E-PL8||..||..||..||4.5/5||4/5||Sep 2016||549|
|15.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|16.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|17.||Panasonic ZS70||..||+ +||..||4/5||4/5||Apr 2017||449|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon SX430 vs Olympus E-PL10
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX430||Olympus E-PL10|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-1080mm f/3.5-6.6||Micro Four Thirds lenses|
|Launch Date||January 2017||October 2019|
|Launch Price||USD 299||USD 599|
|Sensor Specs||Canon SX430||Olympus E-PL10|
|Sensor Format||1/2.3" Sensor||Four Thirds Sensor|
|Sensor Size||6.17 x 4.55 mm||17.3 x 13.0 mm|
|Sensor Area||28.0735 mm2||224.9 mm2|
|Sensor Diagonal||7.7 mm||21.6 mm|
|Sensor Resolution||19.9 Megapixels||15.9 Megapixels|
|Image Resolution||5152 x 3864 pixels||4608 x 3456 pixels|
|Pixel Pitch||1.19 μm||3.76 μm|
|Pixel Density||70.91 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||720/25p Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 6,400 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 4+||TruePic VIII|
|Screen Specs||Canon SX430||Olympus E-PL10|
|Viewfinder Type||no viewfinder||no viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon SX430||Olympus E-PL10|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||0.5 shutter flaps/s||8.6 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon SX430||Olympus E-PL10|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon SX430||Olympus E-PL10|
|Battery Life (CIPA)||195 shots per charge||350 shots per charge|
104 x 69 x 85 mm
(4.1 x 2.7 x 3.3 in)
117 x 68 x 39 mm
(4.6 x 2.7 x 1.5 in)
|Camera Weight||323 g (11.4 oz)||380 g (13.4 oz)|
