Canon SX420 vs Olympus E-PL6
The Canon PowerShot SX420 IS and the Olympus PEN E-PL6 are two digital cameras that were officially introduced, respectively, in January 2016 and May 2013. The SX420 is a fixed lens compact, while the E-PL6 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX420) and a Four Thirds (E-PL6) sensor. The Canon has a resolution of 19.9 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon SX420||Olympus E-PL6|
|Fixed lens compact camera||Mirrorless system camera|
|24-1008mm f/3.5-6.6||Micro Four Thirds lenses|
|19.9 MP, 1/2.3" Sensor||15.9 MP, Four Thirds Sensor|
|720/25p Video||1080/30p Video|
|ISO 100-1,600||ISO 200-25,600|
|No viewfinder, LCD framing||Viewfinder optional|
|3.0 LCD, 230k dots||3.0 LCD, 460k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|0.5 shutter flaps per second||8 shutter flaps per second|
|Lens-based stabilization||In-body stabilization|
|195 shots per battery charge||360 shots per battery charge|
|104 x 69 x 85 mm, 325 g||111 x 64 x 38 mm, 325 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX420 IS and the Olympus PEN E-PL6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

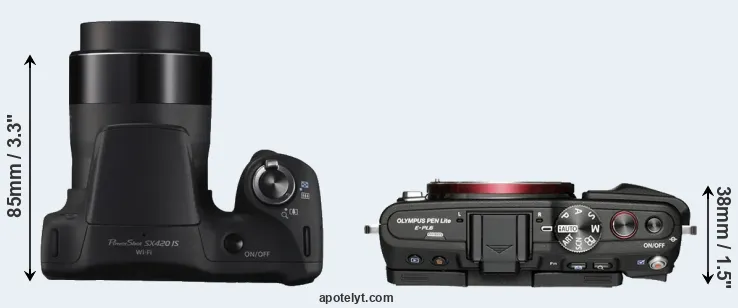

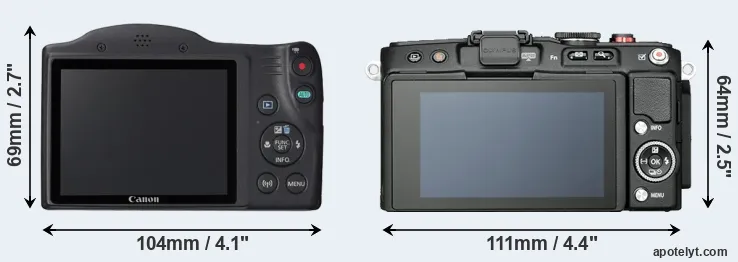

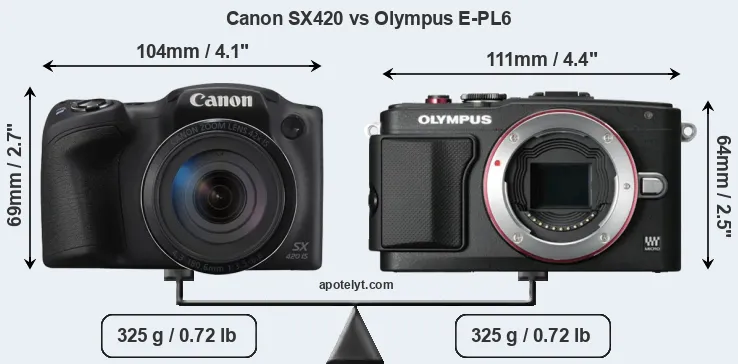

The physical size and weight of the Canon SX420 and the Olympus E-PL6 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
The SX420 can be obtained in two different colors (black, red), while the E-PL6 is available in four color-versions (black, silver, red, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL6 is somewhat smaller (1 percent) than the Canon SX420. Yet, the two cameras share the same weight. In this context, it is worth noting that neither the SX420 nor the E-PL6 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX420 has a lens built in, whereas the E-PL6 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL6 and their specifications in the Micro Four Thirds Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon SX420||4.1 in||2.7 in||3.3 in||11.5 oz||195||n||Jan 2016||299|
|Olympus E-PL6||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||May 2013||599|
|Canon SX740||4.3 in||2.5 in||1.6 in||10.5 oz||265||n||Jul 2018||399|
|Canon SX730||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399|
|Canon G7 X Mark II||4.2 in||2.4 in||1.7 in||11.3 oz||265||n||Feb 2016||699|
|Canon SX620||3.8 in||2.2 in||1.1 in||6.4 oz||295||n||May 2016||279|
|Canon SX720||4.3 in||2.5 in||1.4 in||9.5 oz||250||n||Feb 2016||379|
|Canon G5 X||4.4 in||3.0 in||1.7 in||12.5 oz||210||n||Oct 2015||799|
|Canon SX410||4.1 in||2.7 in||3.3 in||11.5 oz||185||n||Feb 2015||279|
|Canon SX610||4.1 in||2.4 in||1.1 in||6.7 oz||270||n||Jan 2015||249|
|Canon SX710||4.4 in||2.6 in||1.4 in||9.5 oz||230||n||Jan 2015||349|
|Olympus E-M10 II||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649|
|Olympus E-M10||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699|
|Olympus E-PL7||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Aug 2014||599|
|Olympus E-PL5||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599|
|Olympus E-PM2||4.3 in||2.5 in||1.3 in||9.5 oz||360||n||Sep 2012||499|
|Panasonic ZS70||4.4 in||2.6 in||1.6 in||11.4 oz||380||n||Apr 2017||449|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The SX420 was launched at a lower price than the E-PL6, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

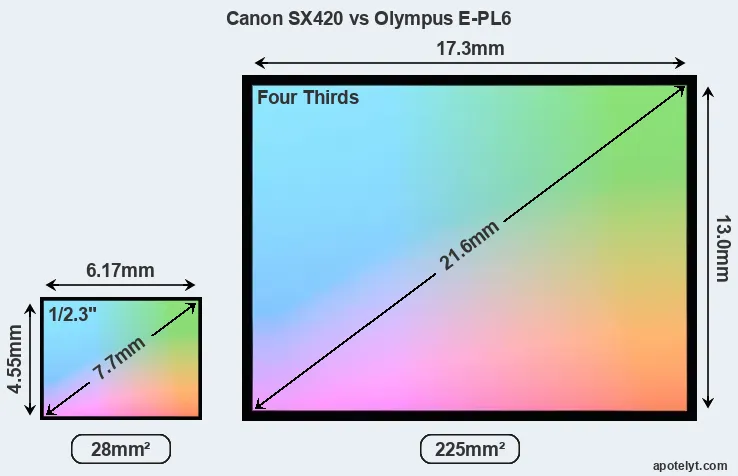

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon SX420 features a 1/2.3-inch sensor and the Olympus E-PL6 a Four Thirds sensor. The sensor area in the E-PL6 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

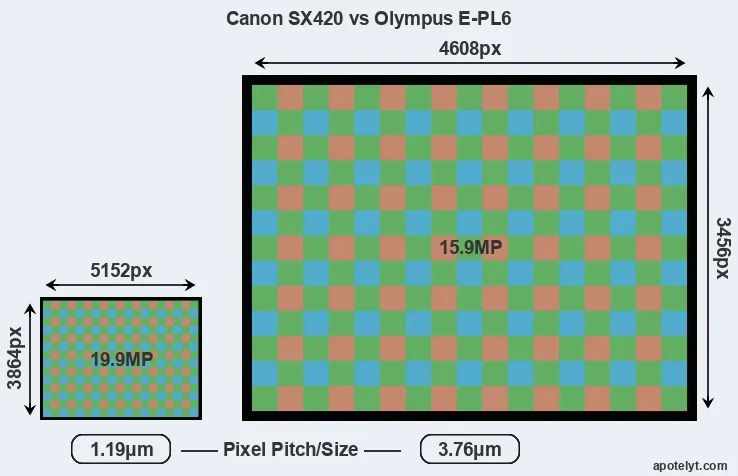

Despite having a smaller sensor, the Canon SX420 offers a higher resolution of 19.9 megapixels, compared with 15.9 MP of the Olympus E-PL6. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 3.76μm for the E-PL6). However, it should be noted that the SX420 is much more recent (by 2 years and 7 months) than the E-PL6, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX420 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX420 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX420 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Olympus E-PL6 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.
The Canon PowerShot SX420 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-PL6 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..|
|Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Canon G5 X||1-inch||20.0||5472||3648||1080/60p||..||..||..||..|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72|
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72|
|Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the E-PL6 provides a better video resolution than the SX420. It can shoot movie footage at 1080/30p, while the Canon is limited to 720/25p.
Apart from body and sensor, cameras can and do differ across a variety of features. The SX420 and the E-PL6 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL6 can be equipped with an optional viewfinder – the VF-3. The adjacent table lists some of the other core features of the Canon SX420 and Olympus E-PL6 along with similar information for a selection of comparators.
|Canon G7 X Mark II||none||n||3.0||1040||tilting||Y||1/2000s||8.0||Y||Y|
|Canon G5 X||2360||n||3.0||1040||swivel||Y||1/2000s||5.9||Y||Y|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One difference between the cameras concerns the presence of an on-board flash. The SX420 has one, while the E-PL6 does not. While the built-in flash of the SX420 is not very powerful, it can at times be useful as a fill-in light.The E-PL6 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the SX420 does not have a selfie-screen.
The Olympus E-PL6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the SX420 and the E-PL6 write their files to SDXC cards. The E-PL6 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX420 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX420 IS and Olympus PEN E-PL6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon G7 X Mark II||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
|Canon G5 X||Y||stereo||mono||-||-||mini||2.0||Y||Y||-|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the SX420 offers wifi support, while the E-PL6 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The SX420 is a recent model that features in the current product line-up of Canon. In contrast, the E-PL6 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the E-PL6 was succeeded by the Olympus E-PL7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So how do things add up? Is there a clear favorite between the Canon SX420 and the Olympus E-PL6? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon PowerShot SX420 IS:
- More detail: Offers more megapixels (19.9 vs 15.9MP) with a 12% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Ready to shoot: Has a lens built-in, whereas the E-PL6 requires a separate lens.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 2 years and 7 months of technical progress since the E-PL6 launch.
Advantages of the Olympus PEN E-PL6:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better video: Provides higher definition movie capture (1080/30p vs 720/25p).
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8 vs 0.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
- Longer lasting: Gets more shots (360 versus 195) out of a single battery charge.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More heavily discounted: Has been around for much longer (launched in May 2013).
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL6 is the clear winner of the contest (18 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX420 and the Olympus E-PL6 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX420 or the E-PL6 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon SX420||..||..||..||..||3/5||Jan 2016||299|
|Olympus E-PL6||..||..||..||..||..||May 2013||599|
|Canon SX740||+||..||4/5||..||4/5||Jul 2018||399|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Canon G7 X Mark II||+ +||81/100||4.5/5||4/5||4.5/5||Feb 2016||699|
|Canon SX620||..||..||..||..||4/5||May 2016||279|
|Canon SX720||+||..||4/5||..||4.5/5||Feb 2016||379|
|Canon G5 X||+ +||78/100||4.5/5||4/5||4.5/5||Oct 2015||799|
|Canon SX410||o||..||..||..||..||Feb 2015||279|
|Canon SX610||..||..||4/5||..||4/5||Jan 2015||249|
|Canon SX710||+||..||4/5||..||3.5/5||Jan 2015||349|
|Olympus E-M10 II||+ +||80/100||5/5||5/5||5/5||Aug 2015||649|
|Olympus E-M10||..||80/100||5/5||4.5/5||5/5||Jan 2014||699|
|Olympus E-PL7||+||..||5/5||4.5/5||4/5||Aug 2014||599|
|Olympus E-PL5||+ +||..||4.5/5||4.5/5||4.5/5||Sep 2012||599|
|Olympus E-PM2||..||77/100||5/5||4.5/5||4.5/5||Sep 2012||499|
|Panasonic ZS70||+ +||..||4/5||..||4/5||Apr 2017||449|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1200D vs Olympus E-PL6
- Canon SX420 vs Fujifilm X20
- Canon SX420 vs Nikon D5600
- Canon SX420 vs Nikon D7100
- Canon SX420 vs Olympus E-M1
- Canon SX420 vs Sony HX350
- Canon T6s vs Olympus E-PL6
- Leica T vs Olympus E-PL6
- Nikon D70s vs Olympus E-PL6
- Olympus E-P3 vs Olympus E-PL6
- Olympus E-PL6 vs Pentax KP
- Olympus E-PL6 vs Sony A7S
Specifications: Canon SX420 vs Olympus E-PL6
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX420||Olympus E-PL6|
|Camera Type||Fixed lens compact camera||Mirrorless system camera|
|Camera Lens||24-1008mm f/3.5-6.6||Micro Four Thirds lenses|
|Launch Date||January 2016||May 2013|
|Launch Price||USD 299||USD 599|
|Sensor Specs||Canon SX420||Olympus E-PL6|
|Sensor Format||1/2.3" Sensor||Four Thirds Sensor|
|Sensor Size||6.17 x 4.55 mm||17.3 x 13.0 mm|
|Sensor Area||28.0735 mm2||224.9 mm2|
|Sensor Diagonal||7.7 mm||21.6 mm|
|Sensor Resolution||19.9 Megapixels||15.9 Megapixels|
|Image Resolution||5152 x 3864 pixels||4608 x 3456 pixels|
|Pixel Pitch||1.19 μm||3.76 μm|
|Pixel Density||70.91 MP/cm2||7.08 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||720/25p Video||1080/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 25,600 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|Image Processor||DIGIC 4+||TruePic VI|
|Screen Specs||Canon SX420||Olympus E-PL6|
|Viewfinder Type||no viewfinder||Viewfinder optional|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||460k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon SX420||Olympus E-PL6|
|Focus System||Contrast-detect AF||Contrast-detect AF|
|Continuous Shooting||0.5 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens-based stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||UHS-I|
|Connectivity Specs||Canon SX420||Olympus E-PL6|
|External Flash||no Hotshoe||Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX420||Olympus E-PL6|
|Battery Life (CIPA)||195 shots per charge||360 shots per charge|
104 x 69 x 85 mm
(4.1 x 2.7 x 3.3 in)
111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
|Camera Weight||325 g (11.5 oz)||325 g (11.5 oz)|
