Canon SX420 vs Nikon D300S
The Canon PowerShot SX420 IS and the Nikon D300S are two digital cameras that were revealed to the public, respectively, in January 2016 and July 2009. The SX420 is a fixed lens compact, while the D300S is a DSLR. The cameras are based on a 1/2.3-inch (SX420) and an APS-C (D300S) sensor. The Canon has a resolution of 19.9 megapixels, whereas the Nikon provides 12.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX420 IS and the Nikon D300S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

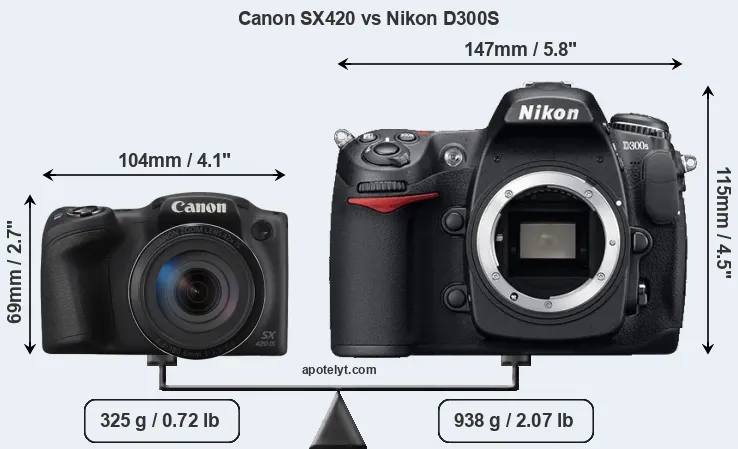

The side-by-side display below illustrates the physical size and weight of the Canon SX420 and the Nikon D300S. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The SX420 can be obtained in two different colors (black, red), while the D300S is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D300S is considerably larger (136 percent) than the Canon SX420. It is noteworthy in this context that the D300S is splash and dust-proof, while the SX420 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX420 has a lens built in, whereas the D300S is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D300S and their specifications in the Nikon Lens Catalog.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon SX420||104 mm||69 mm||85 mm||325 g||195||n||Jan 2016||299||ebay.com|
|2.||Nikon D300S||147 mm||115 mm||81 mm||938 g||950||Y||Jul 2009||1,799||ebay.com|
|3.||Canon SX430||104 mm||69 mm||85 mm||323 g||195||n||Jan 2017||299||amazon.com|
|4.||Canon M100||108 mm||67 mm||35 mm||302 g||295||n||Aug 2017||499||ebay.com|
|5.||Canon SX730||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399||ebay.com|
|6.||Canon G7 X Mark II||106 mm||61 mm||42 mm||319 g||265||n||Feb 2016||699||ebay.com|
|7.||Canon SX620||97 mm||57 mm||28 mm||182 g||295||n||May 2016||279||ebay.com|
|8.||Canon SX720||110 mm||64 mm||36 mm||270 g||250||n||Feb 2016||379||ebay.com|
|9.||Canon G5 X||112 mm||76 mm||44 mm||353 g||210||n||Oct 2015||799||ebay.com|
|10.||Canon SX410||104 mm||69 mm||85 mm||325 g||185||n||Feb 2015||279||ebay.com|
|11.||Canon SX610||105 mm||61 mm||27 mm||191 g||270||n||Jan 2015||249||ebay.com|
|12.||Canon SX710||113 mm||66 mm||35 mm||269 g||230||n||Jan 2015||349||ebay.com|
|13.||Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999||amazon.com|
|14.||Nikon D7000||132 mm||105 mm||77 mm||780 g||1050||Y||Sep 2010||1,499||ebay.com|
|15.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999||ebay.com|
|16.||Nikon D300||147 mm||114 mm||74 mm||925 g||1000||Y||Aug 2007||1,799||ebay.com|
|17.||Nikon D200||147 mm||113 mm||74 mm||920 g||400||Y||Nov 2005||1,699||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX420 was launched at a lower price than the D300S, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon SX420 features a 1/2.3-inch sensor and the Nikon D300S an APS-C sensor. The sensor area in the D300S is 1232 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX420 has a native 4:3 aspect ratio, while the one in the D300S offers a 3:2 aspect.
Despite having a smaller sensor, the Canon SX420 offers a higher resolution of 19.9 megapixels, compared with 12.2 MP of the Nikon D300S. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 5.53μm for the D300S). However, it should be noted that the SX420 is much more recent (by 6 years and 5 months) than the D300S, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX420 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon SX420 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX420 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Nikon D300S are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.
The Canon PowerShot SX420 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Nikon D300S are ISO 200 to ISO 3200, with the possibility to increase the ISO range to 100-6400.
In terms of underlying technology, the SX420 is build around a CCD sensor, while the D300S uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|6.||Canon G7 X Mark II||1-inch||20.0||5472||3648||1080/60p||21.8||11.9||260||62|
|9.||Canon G5 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||471||62|
|15.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX420 provides a higher frame rate than the D300S. It can shoot video footage at 720/25p, while the Nikon is limited to 720/24p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D300S has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX420 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX420 and Nikon D300S in connection with corresponding information for a sample of similar cameras.
|1.||Canon SX420||none||n||3.0 / 230||fixed||n||1/4000s||0.5/s||Y||Y|
|2.||Nikon D300S||optical||Y||3.0 / 920||fixed||n||1/8000s||7.0/s||Y||n|
|3.||Canon SX430||none||n||3.0 / 230||fixed||n||1/4000s||0.5/s||Y||Y|
|4.||Canon M100||none||n||3.0 / 1040||tilting||Y||1/4000s||6.1/s||Y||n|
|5.||Canon SX730||none||n||3.0 / 922||tilting||n||1/3200s||5.9/s||Y||Y|
|6.||Canon G7 X Mark II||none||n||3.0 / 1040||tilting||Y||1/2000s||8.0/s||Y||Y|
|7.||Canon SX620||none||n||3.0 / 922||fixed||n||1/2000s||2.5/s||Y||Y|
|8.||Canon SX720||none||n||3.0 / 922||fixed||n||1/3200s||5.9/s||Y||Y|
|9.||Canon G5 X||2360||n||3.0 / 1040||swivel||Y||1/2000s||5.9/s||Y||Y|
|10.||Canon SX410||none||n||3.0 / 230||fixed||n||1/4000s||0.5/s||Y||Y|
|11.||Canon SX610||none||n||3.0 / 922||fixed||n||1/2000s||2.5/s||Y||Y|
|12.||Canon SX710||none||n||3.0 / 922||fixed||n||1/3200s||6.0/s||Y||Y|
|13.||Nikon D500||optical||Y||3.2 / 2359||tilting||Y||1/8000s||10.0/s||n||n|
|14.||Nikon D7000||optical||Y||3.0 / 921||fixed||n||1/8000s||6.0/s||Y||n|
|15.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0/s||Y||n|
|16.||Nikon D300||optical||Y||3.0 / 922||fixed||n||1/8000s||6.0/s||Y||n|
|17.||Nikon D200||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the D300S, but is missing on the SX420 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D300S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The SX420 writes its imaging data to SDXC cards, while the D300S uses Compact Flash or SDXC cards. The D300S features dual card slots, which can be very useful in case a memory card fails. In contrast, the SX420 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX420 IS and Nikon D300S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon SX420||-||mono / mono||-||-||-||2.0||Y||Y||-|
|2.||Nikon D300S||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|3.||Canon SX430||-||mono / mono||-||-||-||2.0||Y||Y||-|
|4.||Canon M100||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|5.||Canon SX730||-||stereo / mono||-||-||micro||2.0||Y||Y||Y|
|6.||Canon G7 X Mark II||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|7.||Canon SX620||-||mono / mono||-||-||micro||2.0||Y||Y||-|
|8.||Canon SX720||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|9.||Canon G5 X||Y||stereo / mono||-||-||mini||2.0||Y||Y||-|
|10.||Canon SX410||-||stereo / mono||-||-||-||2.0||-||-||-|
|11.||Canon SX610||-||- / -||-||-||micro||2.0||Y||Y||-|
|12.||Canon SX710||-||stereo / mono||-||-||micro||2.0||Y||Y||-|
|13.||Nikon D500||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|14.||Nikon D7000||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|15.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|16.||Nikon D300||Y||- / -||-||-||mini||2.0||-||-||-|
|17.||Nikon D200||Y||- / -||-||-||-||2.0||-||-||-|
It is notable that the SX420 offers wifi support, while the D300S does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Nikon D300S (unlike the SX420) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the SX420 and the D300S have been discontinued, but can regularly be found used on ebay. The D300S was replaced by the Nikon D500, while the SX420 was followed by the Canon SX430. Further information on the features and operation of the SX420 and D300S can be found, respectively, in the Canon SX420 Manual (free pdf) or the online Nikon D300S Manual.
So what is the bottom line? Is there a clear favorite between the Canon SX420 and the Nikon D300S? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon PowerShot SX420 IS:
- More detail: Offers more megapixels (19.9 vs 12.2MP) with a 25% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better video: Provides higher movie framerates (720/25p versus 720/24p).
- Ready to shoot: Comes with a built-in lens, while the D300S requires a separate lens.
- More compact: Is smaller (104x69mm vs 147x115mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the D300S).
- Sharper images: Has hand-shake reducing image stabilization built-in.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 6 years and 5 months of technical progress since the D300S launch.
Advantages of the Nikon D300S:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (7 vs 0.5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (950 versus 195) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in July 2009).
If the number of relative strengths (bullet points above) is taken as a guide, the D300S is the clear winner of the contest (19 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SX420 and the Nikon D300S place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX420 and the D300S in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SX420||..||..||..||..||..||3/5||Jan 2016||299||ebay.com|
|2.||Nikon D300S||5/5||+ +||..||82/100||4/5||4.5/5||Jul 2009||1,799||ebay.com|
|3.||Canon SX430||..||..||..||..||3.5/5||3.5/5||Jan 2017||299||amazon.com|
|4.||Canon M100||3/5||+||..||..||4/5||3.5/5||Aug 2017||499||ebay.com|
|5.||Canon SX730||..||+||..||..||4/5||4/5||Apr 2017||399||ebay.com|
|6.||Canon G7 X Mark II||4.5/5||+ +||..||81/100||4.5/5||4.5/5||Feb 2016||699||ebay.com|
|7.||Canon SX620||..||..||..||..||..||4/5||May 2016||279||ebay.com|
|8.||Canon SX720||..||+||..||..||4/5||4.5/5||Feb 2016||379||ebay.com|
|9.||Canon G5 X||5/5||+ +||..||78/100||4.5/5||4.5/5||Oct 2015||799||ebay.com|
|10.||Canon SX410||..||o||..||..||..||..||Feb 2015||279||ebay.com|
|11.||Canon SX610||..||..||..||..||4/5||4/5||Jan 2015||249||ebay.com|
|12.||Canon SX710||..||+||..||..||4/5||3.5/5||Jan 2015||349||ebay.com|
|13.||Nikon D500||5/5||+ +||4.7/5||91/100||4.5/5||5/5||Jan 2016||1,999||amazon.com|
|14.||Nikon D7000||4/5||..||..||80/100||4.5/5||4.5/5||Sep 2010||1,499||ebay.com|
|15.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999||ebay.com|
|16.||Nikon D300||..||+ +||..||+ +||5/5||4.5/5||Aug 2007||1,799||ebay.com|
|17.||Nikon D200||..||+ +||..||+ +||o||..||Nov 2005||1,699||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon G1 X Mark II vs Canon SX420
- Canon G5 X Mark II vs Canon SX420
- Canon G7 X vs Nikon D300S
- Canon SL2 vs Nikon D300S
- Canon SX420 vs Olympus E-M1X
- Canon SX420 vs Panasonic FZ80
- Canon SX420 vs Samsung NX500
- Canon SX420 vs Sony NEX-6
- Fujifilm X-A5 vs Nikon D300S
- Nikon D300S vs Nikon Z9
- Nikon D300S vs Olympus E-PL5
- Nikon D300S vs Panasonic TZ200
Specifications: Canon SX420 vs Nikon D300S
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SX420||Nikon D300S|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||24-1008mm f/3.5-6.6||Nikon F mount lenses|
|Launch Date||January 2016||July 2009|
|Launch Price||USD 299||USD 1,799|
|Sensor Specs||Canon SX420||Nikon D300S|
|Sensor Format||1/2.3" Sensor||APS-C Sensor|
|Sensor Size||6.17 x 4.55 mm||23.6 x 15.8 mm|
|Sensor Area||28.0735 mm2||372.88 mm2|
|Sensor Diagonal||7.7 mm||28.4 mm|
|Sensor Resolution||19.9 Megapixels||12.2 Megapixels|
|Image Resolution||5152 x 3864 pixels||4288 x 2848 pixels|
|Pixel Pitch||1.19 μm||5.53 μm|
|Pixel Density||70.91 MP/cm2||3.28 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||720/25p Video||720/24p Video|
|ISO Setting||100 - 1,600 ISO||200 - 3,200 ISO|
|ISO Boost||no Enhancement||100 - 6,400 ISO|
|Image Processor||DIGIC 4+||EXPEED|
|DXO Sensor Quality (score)||..||70|
|DXO Color Depth (bits)||..||22.5|
|DXO Dynamic Range (EV)||..||12.2|
|DXO Low Light (ISO)||..||787|
|Screen Specs||Canon SX420||Nikon D300S|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||920k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon SX420||Nikon D300S|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Continuous Shooting||0.5 shutter flaps/s||7 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or SDXC cards|
|Single or Dual Card Slots||Single card slot||Dual card slots|
|UHS card support||no||no|
|Connectivity Specs||Canon SX420||Nikon D300S|
|External Flash||no Hotshoe||Hotshoe|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Canon SX420||Nikon D300S|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||195 shots per charge||950 shots per charge|
104 x 69 x 85 mm
(4.1 x 2.7 x 3.3 in)
147 x 115 x 81 mm
(5.8 x 4.5 x 3.2 in)
|Camera Weight||325 g (11.5 oz)||938 g (33.1 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
