Canon SL1 vs Panasonic LX5
The Canon EOS Rebel SL1 (called Canon 100D in some regions) and the Panasonic Lumix DMC-LX5 are two digital cameras that were announced, respectively, in March 2013 and July 2010. The SL1 is a DSLR, while the LX5 is a fixed lens compact. The cameras are based on an APS-C (SL1) and a 1/1.7-inch (LX5) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Panasonic provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL1 and the Panasonic Lumix DMC-LX5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

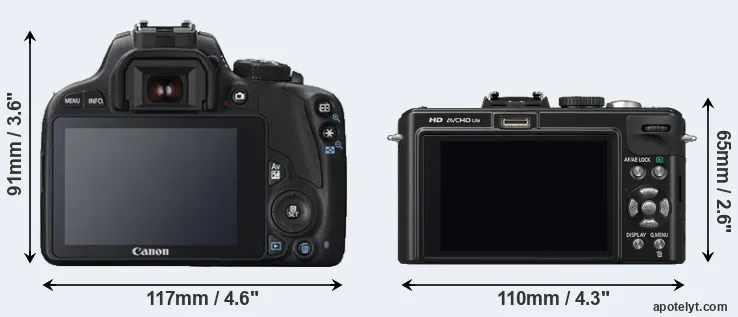

The side-by-side display below illustrates the physical size and weight of the Canon SL1 and the Panasonic LX5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, white).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic LX5 is considerably smaller (33 percent) than the Canon SL1. In this context, it is worth noting that neither the SL1 nor the LX5 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the LX5 has a lens built in, whereas the SL1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the SL1 and their specifications in the Canon EF Lens Catalog.
Concerning battery life, the SL1 gets 380 shots out of its Canon LP-E12 battery, while the LX5 can take 400 images on a single charge of its Panasonic DMW-BCJ13 power pack.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
# | Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SL1 | 117 mm | 91 mm | 69 mm | 407 g | 380 | n | Mar 2013 | 549 | ebay.com | |
2. | Panasonic LX5 | 110 mm | 65 mm | 43 mm | 271 g | 400 | n | Jul 2010 | 499 | ebay.com | |
3. | Canon T100 | 129 mm | 102 mm | 77 mm | 436 g | 500 | n | Feb 2018 | 399 | amazon.com | |
4. | Canon SL2 | 122 mm | 93 mm | 70 mm | 453 g | 650 | n | Jun 2017 | 549 | ebay.com | |
5. | Canon T6 | 129 mm | 101 mm | 78 mm | 485 g | 500 | n | Mar 2016 | 449 | ebay.com | |
6. | Canon M10 | 108 mm | 67 mm | 35 mm | 301 g | 255 | n | Oct 2015 | 499 | ebay.com | |
7. | Canon T5 | 130 mm | 100 mm | 78 mm | 480 g | 500 | n | Feb 2014 | 449 | ebay.com | |
8. | Canon G16 | 109 mm | 76 mm | 40 mm | 356 g | 360 | n | Aug 2013 | 549 | ebay.com | |
9. | Canon T5i | 133 mm | 100 mm | 79 mm | 580 g | 440 | n | Mar 2013 | 649 | ebay.com | |
10. | Canon M | 109 mm | 66 mm | 32 mm | 298 g | 230 | n | Jul 2012 | 599 | ebay.com | |
11. | Canon T4i | 133 mm | 100 mm | 79 mm | 575 g | 440 | n | Jun 2012 | 849 | ebay.com | |
12. | Canon T3i | 133 mm | 100 mm | 80 mm | 570 g | 440 | n | Feb 2011 | 599 | ebay.com | |
13. | Fujifilm X10 | 117 mm | 70 mm | 57 mm | 350 g | 270 | n | Sep 2011 | 599 | ebay.com | |
14. | Olympus XZ-1 | 111 mm | 65 mm | 42 mm | 275 g | 320 | n | Jan 2011 | 499 | ebay.com | |
15. | Panasonic LX7 | 111 mm | 68 mm | 46 mm | 298 g | 330 | n | Jul 2012 | 499 | ebay.com | |
16. | Panasonic FZ150 | 124 mm | 82 mm | 92 mm | 528 g | 410 | n | Aug 2011 | 499 | ebay.com | |
17. | Panasonic GF3 | 108 mm | 67 mm | 32 mm | 264 g | 300 | n | Jun 2011 | 549 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The LX5 was launched at a lower price than the SL1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon SL1 features an APS-C sensor and the Panasonic LX5 a 1/1.7-inch sensor. The sensor area in the LX5 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 4.4. The sensor in the SL1 has a native 3:2 aspect ratio, while the one in the LX5 offers a 4:3 aspect. The LX5 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.
With 17.9MP, the SL1 offers a higher resolution than the LX5 (10MP), but the SL1 nevertheless has larger individual pixels (pixel pitch of 4.31μm versus 2.14μm for the LX5) due to its larger sensor. Moreover, the SL1 is a much more recent model (by 2 years and 8 months) than the LX5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon SL1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SL1 for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Panasonic LX5 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The SL1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel SL1 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DMC-LX5 are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-12800.
In terms of underlying technology, the SL1 is build around a CMOS sensor, while the LX5 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the SL1 provides substantially higher image quality than the LX5, with an overall score that is 22 points higher. This advantage is based on 2.2 bits higher color depth, 0.5 EV in additional dynamic range, and 2.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SL1 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.8 | 11.3 | 843 | 63 | |
2. | Panasonic LX5 | 1/1.7 | 10.0 | 3648 | 2736 | 720/60p | 19.6 | 10.8 | 132 | 41 | |
3. | Canon T100 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.4 | 695 | 63 | |
4. | Canon SL2 | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.6 | 13.4 | 1041 | 79 | |
5. | Canon T6 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.0 | 11.7 | 781 | 66 | |
6. | Canon M10 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.2 | 11.4 | 753 | 65 | |
7. | Canon T5 | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.9 | 11.3 | 724 | 63 | |
8. | Canon G16 | 1/1.7 | 12.0 | 4000 | 3000 | 1080/60p | 21.0 | 11.7 | 230 | 54 | |
9. | Canon T5i | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.7 | 11.2 | 681 | 61 | |
10. | Canon M | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.1 | 11.2 | 827 | 65 | |
11. | Canon T4i | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 21.7 | 11.2 | 722 | 62 | |
12. | Canon T3i | APS-C | 17.9 | 5184 | 3456 | 1080/30p | 22.1 | 11.5 | 793 | 65 | |
13. | Fujifilm X10 | 2/3 | 12.0 | 4000 | 3000 | 1080/30p | 20.5 | 11.3 | 245 | 50 | |
14. | Olympus XZ-1 | 1/1.7 | 10.1 | 3664 | 2752 | 720/30p | 18.8 | 10.4 | 117 | 34 | |
15. | Panasonic LX7 | 1/1.7 | 10.0 | 3648 | 2736 | 1080/60p | 20.7 | 11.7 | 147 | 50 | |
16. | Panasonic FZ150 | 1/2.3 | 12.0 | 4000 | 3000 | 1080/60p | 19.4 | 10.9 | 132 | 40 | |
17. | Panasonic GF3 | Four Thirds | 12.0 | 4000 | 3000 | 1080/60i | 20.6 | 10.1 | 459 | 50 |
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SL1 provides a higher video resolution than the LX5. It can shoot video footage at 1080/30p, while the Panasonic is limited to 720/60p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SL1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the LX5 relies on live view and the rear LCD for framing. That said, the LX5 can be equipped with an optional viewfinder – the DMW-LVF1. The following table reports on some other key feature differences and similarities of the Canon SL1, the Panasonic LX5, and comparable cameras.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SL1 | optical | n | 3.0 / 1040 | fixed | Y | 1/4000s | 4.9/s | Y | n | |
2. | Panasonic LX5 | optional | n | 3.0 / 460 | fixed | n | 1/4000s | 2.5/s | Y | Y | |
3. | Canon T100 | optical | n | 2.7 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
4. | Canon SL2 | optical | n | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
5. | Canon T6 | optical | n | 3.0 / 920 | fixed | n | 1/4000s | 3.0/s | Y | n | |
6. | Canon M10 | none | n | 3.0 / 1040 | tilting | Y | 1/4000s | 4.6/s | Y | n | |
7. | Canon T5 | optical | n | 3.0 / 460 | fixed | n | 1/4000s | 3.0/s | Y | n | |
8. | Canon G16 | optical | n | 3.0 / 922 | fixed | n | 1/4000s | 2.2/s | Y | Y | |
9. | Canon T5i | optical | n | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
10. | Canon M | none | n | 3.0 / 1040 | fixed | Y | 1/4000s | 4.3/s | n | n | |
11. | Canon T4i | optical | n | 3.0 / 1040 | swivel | Y | 1/4000s | 5.0/s | Y | n | |
12. | Canon T3i | optical | n | 3.0 / 1040 | swivel | n | 1/4000s | 3.7/s | Y | n | |
13. | Fujifilm X10 | optical | n | 2.8 / 460 | fixed | n | 1/4000s | 10.0/s | Y | Y | |
14. | Olympus XZ-1 | optional | n | 3.0 / 614 | fixed | n | 1/2000s | 2.0/s | Y | Y | |
15. | Panasonic LX7 | optional | n | 3.0 / 920 | fixed | n | 1/4000s | 11.0/s | Y | Y | |
16. | Panasonic FZ150 | 202 | n | 3.0 / 460 | swivel | n | 1/2000s | 12.0/s | Y | Y | |
17. | Panasonic GF3 | none | n | 3.0 / 460 | fixed | Y | 1/4000s | 3.2/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The SL1 has a touchscreen, while the LX5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
Concerning the storage of imaging data, both the SL1 and the LX5 write their files to SDXC cards. The SL1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the LX5 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL1 and Panasonic Lumix DMC-LX5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
# | Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SL1 | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
2. | Panasonic LX5 | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
3. | Canon T100 | Y | mono / mono | - | - | mini | 2.0 | Y | Y | - | |
4. | Canon SL2 | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y | |
5. | Canon T6 | Y | mono / mono | - | - | mini | 2.0 | Y | Y | - | |
6. | Canon M10 | - | stereo / mono | - | - | mini | 2.0 | Y | Y | - | |
7. | Canon T5 | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
8. | Canon G16 | Y | stereo / mono | - | - | mini | 2.0 | Y | - | - | |
9. | Canon T5i | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
10. | Canon M | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
11. | Canon T4i | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
12. | Canon T3i | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
13. | Fujifilm X10 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
14. | Olympus XZ-1 | Y | mono / - | - | - | mini | 2.0 | - | - | - | |
15. | Panasonic LX7 | Y | stereo / mono | - | - | mini | 2.0 | - | - | - | |
16. | Panasonic FZ150 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
17. | Panasonic GF3 | - | stereo / mono | - | - | mini | 2.0 | - | - | - |
It is notable that the SL1 has a microphone port, which is missing on the LX5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.
Both the SL1 and the LX5 have been discontinued, but can regularly be found used on ebay. The LX5 was replaced by the Panasonic LX7, while the SL1 was followed by the Canon SL2. Further information on the features and operation of the SL1 and LX5 can be found, respectively, in the Canon SL1 Manual (free pdf) or the online Panasonic LX5 Manual.
Review summary
So how do things add up? Is the Canon SL1 better than the Panasonic LX5 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS Rebel SL1:
- More detail: Offers more megapixels (17.9 vs 10MP) with a 37% higher linear resolution.
- Better image quality: Scores substantially higher (22 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (2.2 bits more color depth).
- Better low-light sensitivity: Requires less light for good images (2.7 stops ISO advantage).
- Better video: Provides higher definition movie capture (1080/30p vs 720/60p).
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (4.9 vs 2.5 flaps/sec) to capture the decisive moment.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 8 months of technical progress since the LX5 launch.
Arguments in favor of the Panasonic Lumix DMC-LX5:
- Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
- Ready to shoot: Comes with an integrated lens, while the SL1 requires a separate lens.
- More compact: Is smaller (110x65mm vs 117x91mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the SL1).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in July 2010).
If the count of relative strengths (bullet points above) is taken as a measure, the SL1 is the clear winner of the match-up (14 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon SL1 and the Panasonic LX5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SL1 or the LX5 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
# | Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Canon SL1 | 4/5 | + | .. | 78/100 | 4/5 | 4/5 | Mar 2013 | 549 | ebay.com | |
2. | Panasonic LX5 | 4/5 | + | .. | 73/100 | 4.5/5 | 4.5/5 | Jul 2010 | 499 | ebay.com | |
3. | Canon T100 | .. | o | 3/5 | .. | 3.5/5 | 3.5/5 | Feb 2018 | 399 | amazon.com | |
4. | Canon SL2 | 4/5 | + + | 4/5 | 78/100 | 4.5/5 | 4.5/5 | Jun 2017 | 549 | ebay.com | |
5. | Canon T6 | 4/5 | o | 4/5 | 73/100 | 4/5 | 4/5 | Mar 2016 | 449 | ebay.com | |
6. | Canon M10 | .. | .. | .. | .. | .. | 4/5 | Oct 2015 | 499 | ebay.com | |
7. | Canon T5 | 3/5 | + | .. | .. | 4/5 | 4.5/5 | Feb 2014 | 449 | ebay.com | |
8. | Canon G16 | 4/5 | + | .. | .. | 4.5/5 | 4.5/5 | Aug 2013 | 549 | ebay.com | |
9. | Canon T5i | .. | .. | .. | 76/100 | 4.5/5 | 4.5/5 | Mar 2013 | 649 | ebay.com | |
10. | Canon M | 3/5 | + | .. | .. | 4/5 | 4/5 | Jul 2012 | 599 | ebay.com | |
11. | Canon T4i | 4/5 | + + | .. | 77/100 | 4.5/5 | 4.5/5 | Jun 2012 | 849 | ebay.com | |
12. | Canon T3i | 3/5 | o | .. | 77/100 | 4.5/5 | 4.5/5 | Feb 2011 | 599 | ebay.com | |
13. | Fujifilm X10 | .. | .. | .. | 76/100 | 4/5 | 4.5/5 | Sep 2011 | 599 | ebay.com | |
14. | Olympus XZ-1 | 4/5 | .. | .. | 74/100 | 4.5/5 | 4.5/5 | Jan 2011 | 499 | ebay.com | |
15. | Panasonic LX7 | 3/5 | + + | .. | 75/100 | 4/5 | 4.5/5 | Jul 2012 | 499 | ebay.com | |
16. | Panasonic FZ150 | 3/5 | + + | .. | 76/100 | 4/5 | 4.5/5 | Aug 2011 | 499 | ebay.com | |
17. | Panasonic GF3 | 3/5 | 82/100 | .. | 71/100 | 4.5/5 | 4/5 | Jun 2011 | 549 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 7D II vs Panasonic LX5
- Canon SL1 vs Canon SX60
- Canon SL1 vs Canon SX620
- Canon SL1 vs Canon XSi
- Canon SL1 vs Panasonic GF2
- Canon SL1 vs Sony A9
- Canon SL1 vs Sony H200
- Nikon Coolpix A vs Panasonic LX5
- Nikon D40X vs Panasonic LX5
- Panasonic GX7 vs Panasonic LX5
- Panasonic LX5 vs Sony H200
- Panasonic LX5 vs Sony NEX-F3
Specifications: Canon SL1 vs Panasonic LX5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Canon SL1 | Panasonic LX5 |
---|---|---|
Camera Type | Digital single lens reflex | Fixed lens compact camera |
Camera Lens | Canon EF mount lenses | 24-90mm f/2.0-3.3 |
Launch Date | March 2013 | July 2010 |
Launch Price | USD 549 | USD 499 |
Sensor Specs | Canon SL1 | Panasonic LX5 |
Sensor Technology | CMOS | CCD |
Sensor Format | APS-C Sensor | 1/1.7" Sensor |
Sensor Size | 22.3 x 14.9 mm | 7.85 x 5.89 mm |
Sensor Area | 332.27 mm2 | 46.2365 mm2 |
Sensor Diagonal | 26.8 mm | 9.8 mm |
Crop Factor | 1.6x | 4.4x |
Sensor Resolution | 17.9 Megapixels | 10 Megapixels |
Image Resolution | 5184 x 3456 pixels | 3648 x 2736 pixels |
Pixel Pitch | 4.31 μm | 2.14 μm |
Pixel Density | 5.39 MP/cm2 | 21.59 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | 1080/30p Video | 720/60p Video |
ISO Setting | 100 - 12,800 ISO | 80 - 3,200 ISO |
ISO Boost | 100 - 25,600 ISO | 80 - 12,800 ISO |
Image Processor | DIGIC 5 | Venus FHD |
DXO Sensor Quality (score) | 63 | 41 |
DXO Color Depth (bits) | 21.8 | 19.6 |
DXO Dynamic Range (EV) | 11.3 | 10.8 |
DXO Low Light (ISO) | 843 | 132 |
Screen Specs | Canon SL1 | Panasonic LX5 |
Viewfinder Type | Optical viewfinder | Viewfinder optional |
Viewfinder Field of View | 95% | |
Viewfinder Magnification | 0.54x | |
LCD Framing | Live View | Live View |
Rear LCD Size | 3.0inch | 3.0inch |
LCD Resolution | 1040k dots | 460k dots |
LCD Attachment | Fixed screen | Fixed screen |
Touch Input | Touchscreen | no Touchscreen |
Shooting Specs | Canon SL1 | Panasonic LX5 |
Focus System | Phase-detect AF | Contrast-detect AF |
Continuous Shooting | 4.9 shutter flaps/s | 2.5 shutter flaps/s |
Fill Flash | Built-in Flash | Built-in Flash |
Storage Medium | SDXC cards | SDXC cards |
Single or Dual Card Slots | Single card slot | Single card slot |
UHS card support | UHS-I | no |
Connectivity Specs | Canon SL1 | Panasonic LX5 |
External Flash | Hotshoe | Hotshoe |
USB Connector | USB 2.0 | USB 2.0 |
HDMI Port | mini HDMI | mini HDMI |
Microphone Port | External MIC port | no MIC socket |
Wifi Support | no Wifi | no Wifi |
Body Specs | Canon SL1 | Panasonic LX5 |
Battery Type | Canon LP-E12 | Panasonic DMW-BCJ13 |
Battery Life (CIPA) | 380 shots per charge | 400 shots per charge |
Body Dimensions |
117 x 91 x 69 mm (4.6 x 3.6 x 2.7 in) |
110 x 65 x 43 mm (4.3 x 2.6 x 1.7 in) |
Camera Weight | 407 g (14.4 oz) | 271 g (9.6 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
