Canon SL1 vs Leica M Typ 262
The Canon EOS Rebel SL1 (called Canon 100D in some regions) and the Leica M (Typ 262) are two digital cameras that were announced, respectively, in March 2013 and November 2015. The SL1 is a DSLR, while the M Typ 262 is a rangefinder-style mirrorless camera. The cameras are based on an APS-C (SL1) and a full frame (M Typ 262) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Leica provides 23.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel SL1 and the Leica M (Typ 262)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

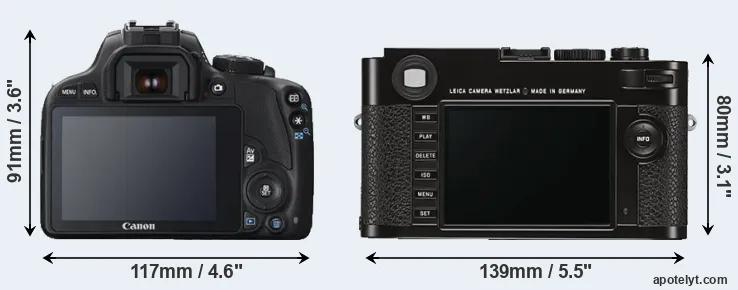

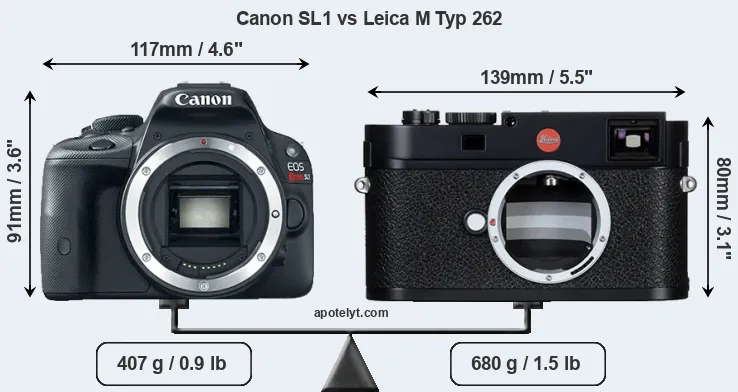

The physical size and weight of the Canon SL1 and the Leica M Typ 262 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The SL1 can be obtained in two different colors (black, white), while the M Typ 262 is also available in two color-versions, but different ones (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M Typ 262 is somewhat larger (4 percent) than the Canon SL1. Moreover, the M Typ 262 is substantially heavier (67 percent) than the SL1. It is noteworthy in this context that the M Typ 262 is splash and dust-proof, while the SL1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (SL1) and the Leica M Lens Catalog (M Typ 262).
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|2.||Leica M Typ 262||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195|
|3.||Canon T100||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399|
|4.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|5.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|6.||Canon T6||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449|
|7.||Canon M10||108 mm||67 mm||35 mm||301 g||255||n||Oct 2015||499|
|8.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|9.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|10.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|11.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|12.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|13.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|14.||Leica M-E Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Jun 2019||3,999|
|15.||Leica M10-P||139 mm||80 mm||39 mm||660 g||210||Y||Aug 2018||7,995|
|16.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595|
|17.||Leica M Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Sep 2012||6,950|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SL1 was launched at a markedly lower price (by 89 percent) than the M Typ 262, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

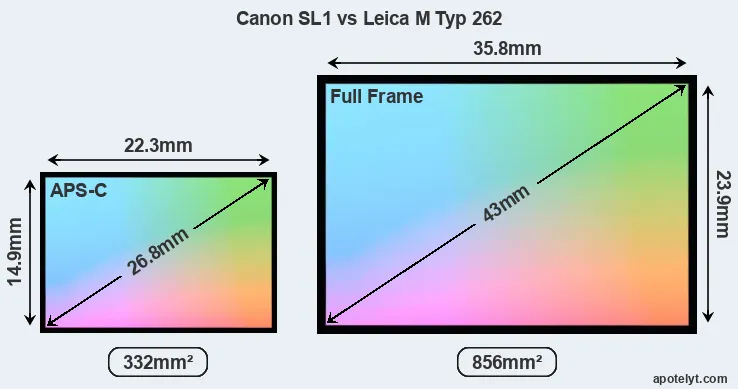

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon SL1 features an APS-C sensor and the Leica M Typ 262 a full frame sensor. The sensor area in the M Typ 262 is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 23.7MP, the M Typ 262 offers a higher resolution than the SL1 (17.9MP), but the M Typ 262 nevertheless has larger individual pixels (pixel pitch of 6.01μm versus 4.31μm for the SL1) due to its larger sensor. Moreover, the M Typ 262 is a much more recent model (by 2 years and 7 months) than the SL1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the M Typ 262 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica M Typ 262 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M Typ 262 for good quality output (200 dots per inch) amounts to 29.8 x 19.9 inches or 75.6 x 50.5 cm, for very good quality (250 dpi) 23.8 x 15.9 inches or 60.5 x 40.4 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.7 cm. The corresponding values for the Canon SL1 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.
The SL1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS Rebel SL1 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica M (Typ 262) are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-6400.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Leica M Typ 262||Full Frame||23.7||5952||3976||none||..||..||..||..|
|14.||Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||..||..||..||..|
|15.||Leica M10-P||Full Frame||23.8||5952||3992||none||..||..||..||..|
|16.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|17.||Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
Many modern cameras cannot only take still pictures, but also record videos. The SL1 indeed provides movie recording capabilities, while the M Typ 262 does not. The highest resolution format that the SL1 can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The SL1 and the M Typ 262 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M Typ 262 offers a wider field of view (100%) than the one in the SL1 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M Typ 262 has a higher magnification (0.68x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon SL1 and Leica M Typ 262 in connection with corresponding information for a sample of similar cameras.
|2.||Leica M Typ 262||optical||n||3.0||921||fixed||n||1/4000s||3.0||n||n|
|14.||Leica M-E Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
|17.||Leica M Typ 240||optical||n||3.0||920||fixed||n||1/4000s||3.0||n||n|
One difference between the cameras concerns the presence of an on-board flash. The SL1 has one, while the M Typ 262 does not. While the built-in flash of the SL1 is not very powerful, it can at times be useful as a fill-in light.
Concerning the storage of imaging data, both the SL1 and the M Typ 262 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel SL1 and Leica M (Typ 262) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|2.||Leica M Typ 262||Y||-||-||-||-||-||2.0||-||-||-|
|14.||Leica M-E Typ 240||Y||mono||-||-||-||-||2.0||-||-||-|
|17.||Leica M Typ 240||Y||stereo||mono||-||-||-||2.0||-||-||-|
Both the SL1 and the M Typ 262 have been discontinued, but can regularly be found used on eBay. The SL1 was replaced by the Canon SL2, while the M Typ 262 was followed by the Leica M10. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what is the bottom line? Is there a clear favorite between the Canon SL1 and the Leica M Typ 262? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Canon EOS Rebel SL1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (4.9 vs 3 flaps/sec) to capture the decisive moment.
- Less heavy: Is lighter (by 273g or 40 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (89 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in March 2013).
Reasons to prefer the Leica M (Typ 262):
- More detail: Has more megapixels (23.7 vs 17.9MP), which boosts linear resolution by 15%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.68x vs 0.54x).
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Reflects 2 years and 7 months of technical progress since the SL1 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the M Typ 262 comes out slightly ahead of the SL1 (11 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the SL1 or the M Typ 262 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon SL1||4/5||+||78/100||4/5||4/5||Mar 2013||549|
|2.||Leica M Typ 262||..||..||..||..||..||Nov 2015||5,195|
|3.||Canon T100||..||o||..||3.5/5||3.5/5||Feb 2018||399|
|4.||Canon SL2||4/5||+ +||78/100||4.5/5||4.5/5||Jun 2017||549|
|5.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|6.||Canon T6||4/5||o||73/100||4/5||4/5||Mar 2016||449|
|7.||Canon M10||..||..||..||..||4/5||Oct 2015||499|
|8.||Canon T5||3/5||+||..||4/5||4.5/5||Feb 2014||449|
|9.||Canon G16||4/5||+||..||4.5/5||4.5/5||Aug 2013||549|
|10.||Canon T5i||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|11.||Canon M||3/5||+||..||4/5||4/5||Jul 2012||599|
|12.||Canon T4i||4/5||+ +||77/100||4.5/5||4.5/5||Jun 2012||849|
|13.||Canon T3i||3/5||o||77/100||4.5/5||4.5/5||Feb 2011||599|
|14.||Leica M-E Typ 240||..||..||..||..||..||Jun 2019||3,999|
|15.||Leica M10-P||..||..||..||..||4/5||Aug 2018||7,995|
|16.||Leica M10||4.5/5||..||..||4/5||4.5/5||Jan 2017||6,595|
|17.||Leica M Typ 240||4/5||..||..||4/5||..||Sep 2012||6,950|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon SL1 vs Leica M Typ 262
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon SL1||Leica M Typ 262|
|Camera Type||Digital single lens reflex||Rangefinder camera|
|Camera Lens||Canon EF mount lenses||Leica M mount lenses|
|Launch Date||March 2013||November 2015|
|Launch Price||USD 549||USD 5,195|
|Sensor Specs||Canon SL1||Leica M Typ 262|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||35.8 x 23.9 mm|
|Sensor Area||332.27 mm2||855.62 mm2|
|Sensor Diagonal||26.8 mm||43 mm|
|Sensor Resolution||17.9 Megapixels||23.7 Megapixels|
|Image Resolution||5184 x 3456 pixels||5952 x 3976 pixels|
|Pixel Pitch||4.31 μm||6.01 μm|
|Pixel Density||5.39 MP/cm2||2.77 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 12,800 ISO||200 - 6,400 ISO|
|ISO Boost||100 - 25,600 ISO||100 - 6,400 ISO|
|Image Processor||DIGIC 5||Maestro|
|DXO Sensor Quality (score)||63||..|
|DXO Color Depth (bits)||21.8||..|
|DXO Dynamic Range (EV)||11.3||..|
|DXO Low Light (ISO)||843||..|
|Screen Specs||Canon SL1||Leica M Typ 262|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Canon SL1||Leica M Typ 262|
|Focus System||Phase-detect AF||Manual Focus|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||4.9 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-I||UHS-I|
|Connectivity Specs||Canon SL1||Leica M Typ 262|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon SL1||Leica M Typ 262|
|Environmental Sealing||not weather sealed||Weathersealed body|
117 x 91 x 69 mm
(4.6 x 3.6 x 2.7 in)
139 x 80 x 42 mm
(5.5 x 3.1 x 1.7 in)
|Camera Weight||407 g (14.4 oz)||680 g (24.0 oz)|
