Canon S120 vs Sony A77 II

The Canon PowerShot S120 and the Sony Alpha SLT-A77 II are two digital cameras that were revealed to the public, respectively, in August 2013 and May 2014. The S120 is a fixed lens compact, while the A77 II is a DSLR. The cameras are based on a 1/1.7-inch (S120) and an APS-C (A77 II) sensor. The Canon has a resolution of 12 megapixels, whereas the Sony provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon S120		Sony A77 II
Fixed lens compact camera		Digital single lens reflex
24-120mm f/1.8-5.7		Sony A mount lenses
12 MP – 1/1.7" sensor		24 MP – APS-C sensor
1080/60p Video		1080/60p Video
ISO 80-12,800		ISO 100-25,600 (50 - 51,200)
No viewfinder, LCD framing		Electronic viewfinder (2359k dots)
3.0" LCD – 922k dots		3.0" LCD – 1229k dots
Fixed touchscreen		Fully flexible screen (no touchscreen)
12.1 shutter flaps per second		12 shutter flaps per second
Lens-based stabilization		In-body stabilization
not weather sealed		Weathersealed body
230 shots per battery charge		480 shots per battery charge
100 x 59 x 29 mm, 217 g		143 x 104 x 81 mm, 647 g

Check S120 offers at
ebay.com
Check A77 II offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot S120 and the Sony Alpha SLT-A77 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

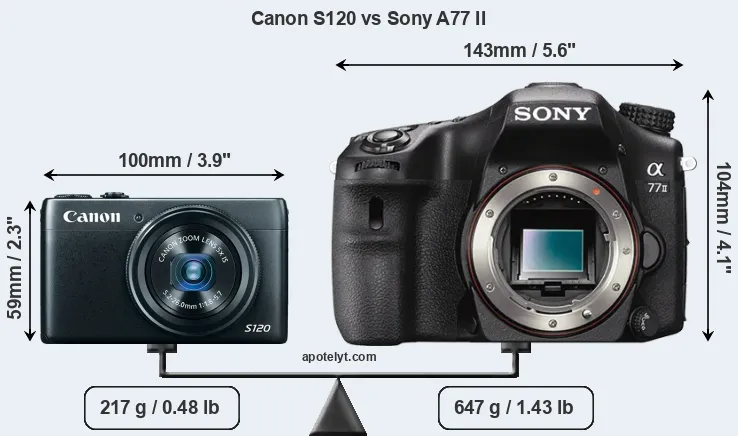

An illustration of the physical size and weight of the Canon S120 and the Sony A77 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony A77 II is considerably larger (152 percent) than the Canon S120. It is noteworthy in this context that the A77 II is splash and dust-proof, while the S120 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the S120 has a lens built in, whereas the A77 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the S120 gets 230 shots out of its Canon NB-6LH battery, while the A77 II can take 480 images on a single charge of its Sony NP-FM500H power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	449	ebay.com
2.		Sony A77 II	143 mm	104 mm	81 mm	647 g	480	Y	May 2014	1,199	ebay.com
3.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
5.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	799	ebay.com
6.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
7.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
8.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	499	ebay.com
9.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	429	ebay.com
10.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	1,199	ebay.com
11.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	549	ebay.com
12.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	499	ebay.com
13.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	499	ebay.com
14.		Sony A6600	120 mm	67 mm	69 mm	503 g	810	Y	Aug 2019	1,399	amazon.com
15.		Sony A68	143 mm	104 mm	81 mm	610 g	540	n	Nov 2015	699	ebay.com
16.		Sony A58	129 mm	95 mm	78 mm	492 g	690	n	Feb 2013	599	ebay.com
17.		Sony A77	143 mm	104 mm	81 mm	732 g	470	Y	Aug 2011	1,399	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The S120 was launched at a lower price than the A77 II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon S120 features a 1/1.7-inch sensor and the Sony A77 II an APS-C sensor. The sensor area in the A77 II is 753 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 1.5. The sensor in the S120 has a native 4:3 aspect ratio, while the one in the A77 II offers a 3:2 aspect.

With 24MP, the A77 II offers a higher resolution than the S120 (12MP), but the A77 II nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.89μm for the S120) due to its larger sensor. Moreover, the A77 II is a somewhat more recent model (by 8 months) than the S120, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Sony A77 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the A77 II for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon S120 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot S120 has a native sensitivity range from ISO 80 to ISO 12800. The corresponding ISO settings for the Sony Alpha SLT-A77 II are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-51200.

In terms of underlying technology, the S120 is build around a BSI-CMOS sensor, while the A77 II uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the A77 II offers substantially better image quality than the S120 (overall score 26 points higher). The advantage is based on 3.1 bits higher color depth, 1.5 EV in additional dynamic range, and 2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
2.		Sony A77 II	APS-C	24.0	6000	4000	1080/60p	24.4	13.4	1013	82
3.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
6.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
7.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
8.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
9.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
10.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
11.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
12.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
13.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
14.		Sony A6600	APS-C	24.0	6000	4000	4K/30p	23.8	13.4	1497	82
15.		Sony A68	APS-C	24.0	6000	4000	1080/60i	24.1	13.5	701	79
16.		Sony A58	APS-C	19.8	5456	3632	1080/60i	23.3	12.5	753	74
17.		Sony A77	APS-C	24.0	6000	4000	1080/60p	24.0	13.2	801	78

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the A77 II has an electronic viewfinder (2359k dots), which can be very helpful when shooting in bright sunlight. In contrast, the S120 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon S120 and Sony A77 II in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
2.		Sony A77 II	2359	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	Y	Y
3.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
6.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
7.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
8.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
9.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
10.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
11.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
12.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
13.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
14.		Sony A6600	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	n	Y
15.		Sony A68	1440	Y	2.7 / 460	tilting	n	1/4000s	8.0/s	Y	Y
16.		Sony A58	1440	n	2.7 / 460	tilting	n	1/4000s	5.0/s	Y	Y
17.		Sony A77	2359	Y	3.0 / 921	full-flex	n	1/8000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The S120 has a touchscreen, while the A77 II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon S120 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The S120 writes its imaging data to SDXC cards, while the A77 II uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot S120 and Sony Alpha SLT-A77 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Sony A77 II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
3.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
11.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony A6600	Y	stereo / mono	Y	Y	YES	2.0	Y	Y	Y
15.		Sony A68	Y	stereo / mono	Y	-	micro	2.0	-	-	-
16.		Sony A58	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony A77	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the A77 II has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The S120 does not feature such a mic input.

Studio photographers will appreciate that the Sony A77 II (unlike the S120) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the S120 and the A77 II have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and Sony. Further information on the features and operation of the S120 and A77 II can be found, respectively, in the Canon S120 Manual (free pdf) or the online Sony A77 II Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon S120 and the Sony A77 II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot S120:

• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with a built-in lens, while the A77 II requires a separate lens.
• More compact: Is smaller (100x59mm vs 143x104mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the A77 II).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been on the market for longer (launched in August 2013).

Advantages of the Sony Alpha SLT-A77 II:

• More detail: Has more megapixels (24 vs 12MP), which boosts linear resolution by 44%.
• Better image quality: Scores substantially higher (26 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (3.1 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.5 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (2 stops ISO advantage).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1229k vs 922k dots).
• More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (480 versus 230) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More modern: Was introduced somewhat (8 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the A77 II is the clear winner of the contest (19 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon S120 and the Sony A77 II place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the S120 and the A77 II in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	449	ebay.com
2.		Sony A77 II	4/5	..	..	80/100	4.5/5	5/5	May 2014	1,199	ebay.com
3.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
5.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	799	ebay.com
6.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
7.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
8.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	499	ebay.com
9.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	429	ebay.com
10.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	1,199	ebay.com
11.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	549	ebay.com
12.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	499	ebay.com
13.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	499	ebay.com
14.		Sony A6600	4/5	+	4/5	83/100	4.5/5	4/5	Aug 2019	1,399	amazon.com
15.		Sony A68	3/5	..	..	..	4/5	4/5	Nov 2015	699	ebay.com
16.		Sony A58	3/5	..	..	..	4.5/5	4.5/5	Feb 2013	599	ebay.com
17.		Sony A77	5/5	91/100	..	81/100	..	5/5	Aug 2011	1,399	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
