Canon S120 vs SX620

The Canon PowerShot S120 and the Canon PowerShot SX620 HS are two digital cameras that were announced, respectively, in August 2013 and May 2016. Both the S120 and the SX620 are fixed lens compact cameras that are based on a 1/1.7-inch (S120) and a 1/2.3-inch (SX620) sensor. The S120 has a resolution of 12 megapixels, whereas the SX620 provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon S120		Canon SX620
Fixed lens compact camera		Fixed lens compact camera
24-120mm f/1.8-5.7		25-625mm f/3.2-6.6
12 MP – 1/1.7" sensor		20.2 MP – 1/2.3" sensor
1080/60p Video		1080/30p Video
ISO 80-12,800		ISO 80-3,200
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 922k dots		3.0" LCD – 922k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
12.1 shutter flaps per second		2.5 shutter flaps per second
230 shots per battery charge		295 shots per battery charge
100 x 59 x 29 mm, 217 g		97 x 57 x 28 mm, 182 g

Check S120 offers at
ebay.com
Check SX620 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot S120 and the Canon PowerShot SX620 HS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon S120 and the Canon SX620. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The SX620 can be obtained in three different colors (black, silver, red), while the S120 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX620 is notably smaller (6 percent) than the Canon S120. Moreover, the SX620 is markedly lighter (16 percent) than the S120. In this context, it is worth noting that neither the S120 nor the SX620 are weather-sealed.

Concerning battery life, the S120 gets 230 shots out of its NB-6LH battery, while the SX620 can take 295 images on a single charge of its NB-13L power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	449	ebay.com
2.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	279	ebay.com
3.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	299	amazon.com
4.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	529	ebay.com
5.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	299	ebay.com
6.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	529	ebay.com
7.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	279	ebay.com
8.		Canon SX610	105 mm	61 mm	27 mm	191 g	270	n	Jan 2015	249	ebay.com
9.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	799	ebay.com
10.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
11.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	799	ebay.com
12.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	499	ebay.com
13.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	429	ebay.com
14.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	549	ebay.com
15.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	499	ebay.com
16.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX620 was launched at a markedly lower price (by 38 percent) than the S120, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

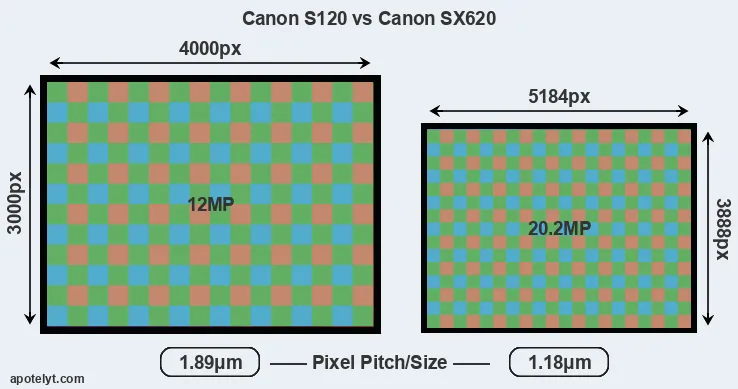

Of the two cameras under consideration, the Canon S120 features a 1/1.7-inch sensor and the Canon SX620 a 1/2.3-inch sensor. The sensor area in the SX620 is 35 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the SX620 offers a higher resolution of 20.2 megapixels, compared with 12 MP of the S120. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.89μm for the S120). However, it should be noted that the SX620 is much more recent (by 2 years and 8 months) than the S120, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX620 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX620 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX620 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Canon S120 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot S120 has a native sensitivity range from ISO 80 to ISO 12800. The corresponding ISO settings for the Canon PowerShot SX620 HS are ISO 80 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
2.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
3.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
4.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
5.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
6.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
7.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
8.		Canon SX610	1/2.3	20.2	5184	3888	1080/30p	20.2	11.6	712	47
9.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
10.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
11.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
12.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
13.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
14.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
15.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
16.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S120 provides a higher frame rate than the SX620. It can shoot video footage at 1080/60p, while the SX620 is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The S120 and the SX620 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Canon S120, the Canon SX620, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
2.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
3.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
4.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
5.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
7.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX610	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
9.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
10.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
11.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
12.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
13.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
14.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
15.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
16.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The S120 has a touchscreen, while the SX620 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon S120 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the S120 and the SX620 have zoom lenses built in. The S120 has a 24-120mm f/1.8-5.7 optic and the SX620 offers a 25-625mm f/3.2-6.6 (focal lengths in full frame equivalent terms). Hence, the S120 provides a wider angle of view at the short end than the SX620, but less tele-photo reach at the long end. The S120 offers the faster maximum aperture.

Concerning the storage of imaging data, both the S120 and the SX620 write their files to SDXC cards. The S120 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX620 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot S120 and Canon PowerShot SX620 HS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
3.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
4.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
6.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
8.		Canon SX610	-	- / -	-	-	micro	2.0	Y	Y	-
9.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
10.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
11.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the S120 and the SX620 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon. Further information on the features and operation of the S120 and SX620 can be found, respectively, in the Canon S120 Manual (free pdf) or the online Canon SX620 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon S120 and the Canon SX620? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon PowerShot S120:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (12.1 vs 2.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/3.2).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been available for much longer (launched in August 2013).

Reasons to prefer the Canon PowerShot SX620 HS:

• More detail: Has more megapixels (20.2 vs 12MP), which boosts linear resolution by 30%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Less heavy: Has a lower weight (by 35g or 16 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (295 versus 230) out of a single battery charge.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
• More modern: Reflects 2 years and 8 months of technical progress since the S120 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the S120 is the clear winner of the match-up (13 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon S120 and the Canon SX620 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the S120 or the SX620. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	449	ebay.com
2.		Canon SX620	..	..	..	..	..	4/5	May 2016	279	ebay.com
3.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	299	amazon.com
4.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	529	ebay.com
5.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	299	ebay.com
6.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	529	ebay.com
7.		Canon SX410	..	o	..	..	..	..	Feb 2015	279	ebay.com
8.		Canon SX610	..	..	..	..	4/5	4/5	Jan 2015	249	ebay.com
9.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	799	ebay.com
10.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
11.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	799	ebay.com
12.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	499	ebay.com
13.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	429	ebay.com
14.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	549	ebay.com
15.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	499	ebay.com
16.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	499	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
