Canon Rebel vs Olympus E-M1

The Canon EOS Digital Rebel (called Canon 300D in some regions) and the Olympus OM-D E-M1 are two digital cameras that were revealed to the public, respectively, in August 2003 and September 2013. The Rebel is a DSLR, while the E-M1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (Rebel) and a Four Thirds (E-M1) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon Rebel
versus
Olympus E-M1
Canon Rebel   Olympus E-M1
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Micro Four Thirds lenses
6.3 MP – APS-C sensor 15.9 MP – Four Thirds sensor
no Video 1080/30p Video
ISO 100-1,600 ISO 200-25,600
Optical viewfinder Electronic viewfinder (2360k dots)
1.8" LCD – 118k dots 3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
2.5 shutter flaps per second 10 shutter flaps per second
Lens stabilization onlyIn-body stabilization
not weather sealedWeathersealed body
400 shots per battery charge350 shots per battery charge
142 x 99 x 72 mm, 649 g 130 x 94 x 63 mm, 497 g
logo
Check Rebel offers at
ebay.com
logo
Check E-M1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Digital Rebel and the Olympus OM-D E-M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The physical size and weight of the Canon Rebel and the Olympus E-M1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The E-M1 can be obtained in two different colors (black, silver), while the Rebel is only available in silver.

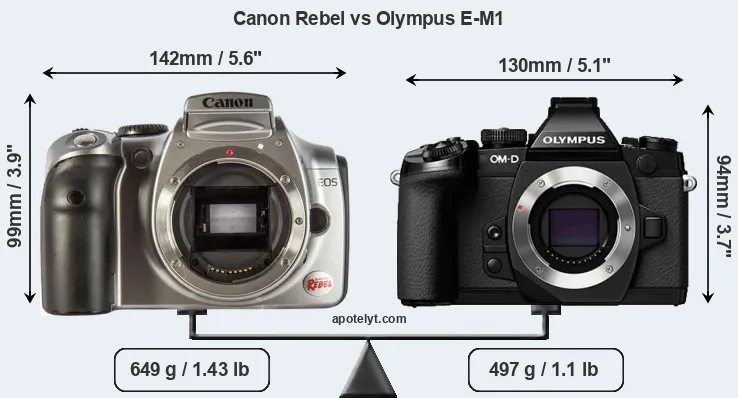

Size Canon Rebel vs Olympus E-M1

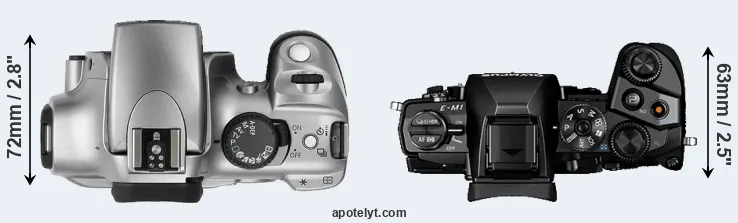

Compare Rebel versus E-M1 top

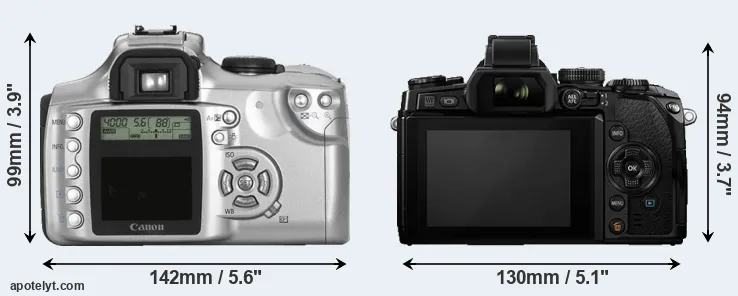

Comparison Rebel or E-M1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M1 is notably smaller (13 percent) than the Canon Rebel. Moreover, the E-M1 is markedly lighter (23 percent) than the Rebel. It is noteworthy in this context that the E-M1 is splash and dust-proof, while the Rebel does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (Rebel) and the Micro Four Thirds Lens Catalog (E-M1). Mirrorless cameras, such as the E-M1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the Rebel gets 400 shots out of its Canon BP-511 battery, while the E-M1 can take 350 images on a single charge of its Olympus BLN-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon Rebel 142 mm 99 mm 72 mm 649 g 400 n Aug 2003 899ebay.com
2.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
3.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749ebay.com
4.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649ebay.com
5.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849ebay.com
6.

Canon T3i 133 mm 100 mm 80 mm 570 g 440 n Feb 2011 599ebay.com
7.

Canon T1i 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799ebay.com
8.

Canon XTi 127 mm 84 mm 65 mm 556 g 370 n Aug 2006 799ebay.com
9.

Canon XT 127 mm 94 mm 64 mm 540 g 400 n Feb 2005 899ebay.com
10.

Canon 20D 144 mm 106 mm 72 mm 770 g 700 n Aug 2004 1,499ebay.com
11.

Canon 10D 150 mm 107 mm 75 mm 850 g 500 n Feb 2003 1,999ebay.com
12.

Nikon D70 140 mm 111 mm 78 mm 679 g 400 n Jan 2004 999ebay.com
13.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 1,999ebay.com
14.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
15.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
16.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
17.

Olympus E-M5 122 mm 89 mm 43 mm 425 g 360 Y Feb 2012 1,299ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The Rebel was launched at a markedly lower price (by 36 percent) than the E-M1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon Rebel features an APS-C sensor and the Olympus E-M1 a Four Thirds sensor. The sensor area in the E-M1 is 34 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the Rebel has a native 3:2 aspect ratio, while the one in the E-M1 offers a 4:3 aspect.

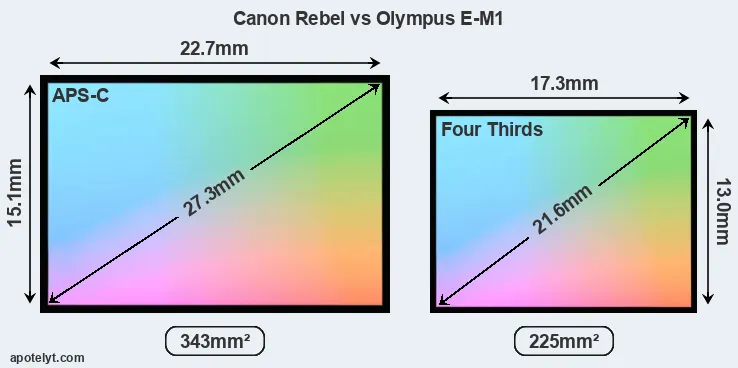

Canon Rebel and Olympus E-M1 sensor measures

Despite having a smaller sensor, the E-M1 offers a higher resolution of 15.9 megapixels, compared with 6.3 MP of the Rebel. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 7.38μm for the Rebel). However, it should be noted that the E-M1 is much more recent (by 10 years) than the Rebel, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the E-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus E-M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M1 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon Rebel are 15.4 x 10.2 inches or 39 x 26 cm for good quality, 12.3 x 8.2 inches or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inches or 26 x 17.3 cm for excellent quality prints.

The E-M1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS Digital Rebel has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus OM-D E-M1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Rebel versus E-M1 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the E-M1 offers substantially better image quality than the Rebel (overall score 18 points higher). The advantage is based on 2 bits higher color depth, 1.9 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon Rebel APS-C 6.3 3072 2048none21.010.854455
2.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
3.

Canon T7i APS-C 24.0 6000 40001080/60p23.713.1158680
4.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.091570
5.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.272262
6.

Canon T3i APS-C 17.9 5184 34561080/30p22.111.579365
7.

Canon T1i APS-C 15.1 4752 31681080/20p21.711.566363
8.

Canon XTi APS-C 10.1 3888 2592none22.111.066462
9.

Canon XT APS-C 8.0 3456 2304none21.810.863760
10.

Canon 20D APS-C 8.2 3504 2336none21.911.072162
11.

Canon 10D APS-C 6.3 3072 2048none21.110.957157
12.

Nikon D70 APS-C 6.0 3008 2000none20.410.352950
13.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
14.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
15.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
16.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
17.

Olympus E-M5 Four Thirds 15.9 4608 34561080/60i22.812.382671
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. The E-M1 indeed provides for movie recording, while the Rebel does not. The highest resolution format that the E-M1 can use is 1080/30p.

ad

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-M1 has an electronic viewfinder (2360k dots), while the Rebel has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M1 offers a wider field of view (100%) than the one in the Rebel (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M1 has a higher magnification (0.74x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon Rebel, the Olympus E-M1, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon Rebeloptical n1.8 / 118 fixed n 1/4000s 2.5/s Y n
2.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
3.

Canon T7ioptical n3.0 / 1040 swivel Y 1/4000s 6.0/s Y n
4.

Canon T6soptical Y3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
5.

Canon T4ioptical n3.0 / 1040 swivel Y 1/4000s 5.0/s Y n
6.

Canon T3ioptical n3.0 / 1040 swivel n 1/4000s 3.7/s Y n
7.

Canon T1ioptical n3.0 / 920 fixed n 1/4000s 3.4/s Y n
8.

Canon XTioptical n2.5 / 230 fixed n 1/4000s 3.0/s Y n
9.

Canon XToptical n1.8 / 115 fixed n 1/4000s 3.0/s Y n
10.

Canon 20Doptical Y1.8 / 118 fixed n 1/8000s 5.0/s Y n
11.

Canon 10Doptical Y1.8 / 118 fixed n 1/4000s 3.0/s Y n
12.

Nikon D70optical n1.8 / 130 fixed n 1/8000s 3.0/s Y n
13.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
14.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
15.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
16.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
17.

Olympus E-M51440 n3.0 / 610 tilting Y 1/4000s 9.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One difference between the cameras concerns the presence of an on-board flash. The Rebel has one, while the E-M1 does not. While the built-in flash of the Rebel is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the E-M1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The Rebel writes its imaging data to Compact Flash cards, while the E-M1 uses SDXC cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Digital Rebel and Olympus OM-D E-M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon RebelY- / ----1.1---
2.

Olympus E-M1Ystereo / monoY-micro2.0Y--
3.

Canon T7iYstereo / monoY-mini2.0YYY
4.

Canon T6sYstereo / monoY-mini2.0YY-
5.

Canon T4iYstereo / monoY-mini2.0---
6.

Canon T3iYmono / monoY-mini2.0---
7.

Canon T1iYmono / mono--mini2.0---
8.

Canon XTiY- / ----2.0---
9.

Canon XTY- / ----2.0---
10.

Canon 20DY- / ----1.1---
11.

Canon 10DY- / ----1.1---
12.

Nikon D70Y- / ----1.0---
13.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
14.

Olympus PEN-FYstereo / mono--micro2.0Y--
15.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
16.

Olympus E-P5Ystereo / mono--micro2.0Y--
17.

Olympus E-M5Ystereo / mono--mini2.0---
padding

It is notable that the E-M1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the Rebel does not provide wifi capability.

Studio photographers will appreciate that the Olympus E-M1 (unlike the Rebel) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the Rebel and the E-M1 have been discontinued, but can regularly be found used on ebay. The Rebel was replaced by the Canon XT, while the E-M1 was followed by the Olympus E-M1 II. Further information on the features and operation of the Rebel and E-M1 can be found, respectively, in the Canon Rebel Manual (free pdf) or the online Olympus E-M1 Manual.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon Rebel or the Olympus E-M1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Reasons to prefer the Canon EOS Digital Rebel:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Longer lasting: Can take more shots (400 versus 350) on a single battery charge.
  • Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
  • More affordable: Was introduced into a lower priced category (36 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in August 2003).

ilogo

Arguments in favor of the Olympus OM-D E-M1:

  • More detail: Has more megapixels (15.9 vs 6.3MP), which boosts linear resolution by 56%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (18 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.9 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (0.5 stops ISO advantage).
  • Broader imaging potential: Can capture not only stills but also 1080/30p video.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.55x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 118k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 2.5 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (130x94mm vs 142x99mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 152g or 23 percent) and is thus easier to take along.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More modern: Reflects 10 years of technical progress since the Rebel launch.

If the number of relative strengths (bullet points above) is taken as a guide, the E-M1 is the clear winner of the contest (28 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

Rebel 06:28 E-M1

How about other alternatives? Do the specifications of the Canon Rebel and the Olympus E-M1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the Rebel and the E-M1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon Rebel......+ +.... Aug 2003 899ebay.com
2.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
3.

Canon T7i4.5/5..3.5/580/1004.5/54/5 Feb 2017 749ebay.com
4.

Canon T6s5/5+..77/1004.5/54.5/5 Feb 2015 649ebay.com
5.

Canon T4i4/5+ +..77/1004.5/54.5/5 Jun 2012 849ebay.com
6.

Canon T3i3/5o..77/1004.5/54.5/5 Feb 2011 599ebay.com
7.

Canon T1i..+ +..74/1004.5/54.5/5 Mar 2009 799ebay.com
8.

Canon XTi..+ +..+ +o4/5 Aug 2006 799ebay.com
9.

Canon XT..80/100..+ +o.. Feb 2005 899ebay.com
10.

Canon 20D......+ +.... Aug 2004 1,499ebay.com
11.

Canon 10D......+ +.... Feb 2003 1,999ebay.com
12.

Nikon D70......+ +.... Jan 2004 999ebay.com
13.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 1,999ebay.com
14.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
15.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
16.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
17.

Olympus E-M54/5+ +..80/1004.5/55/5 Feb 2012 1,299ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check Rebel offers at
ebay.com
logo
Check E-M1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Canon Rebel vs Olympus E-M1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon Rebel Olympus E-M1
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Micro Four Thirds lenses
    Launch Date August 2003 September 2013
    Launch Price USD 899 USD 1,399
    Sensor Specs Canon Rebel Olympus E-M1
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.7 x 15.1 mm 17.3 x 13.0 mm
    Sensor Area 342.77 mm2 224.9 mm2
    Sensor Diagonal 27.3 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 6.3 Megapixels 15.9 Megapixels
    Image Resolution 3072 x 2048 pixels 4608 x 3456 pixels
    Pixel Pitch 7.38 μm 3.76 μm
    Pixel Density 1.84 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability no Video 1080/30p Video
    ISO Setting 100 - 1,600 ISO 200 - 25,600 ISO
    ISO Boost no Enhancement 100 - 25,600 ISO
    DXO Sensor Quality (score) 55 73
    DXO Color Depth (bits) 21.0 23.0
    DXO Dynamic Range (EV) 10.8 12.7
    DXO Low Light (ISO) 544 757
    Screen Specs Canon Rebel Olympus E-M1
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.55x 0.74x
    Viewfinder Resolution 2360k dots
    LCD Framing Live View
    Rear LCD Size 1.8inch 3.0inch
    LCD Resolution 118k dots 1037k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon Rebel Olympus E-M1
    Focus System Phase-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 2.5 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterno E-ShutterYES
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash no On-Board Flash
    Storage Medium CF cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    Connectivity Specs Canon Rebel Olympus E-M1
    External Flash Hotshoe Hotshoe
    Studio Flash no PC Sync PC Sync socket
    USB Connector USB 1.1 USB 2.0
    HDMI Port no HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Wifi Support no Wifi Wifi built-in
    Body Specs Canon Rebel Olympus E-M1
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Canon BP-511 Olympus BLN-1
    Battery Life (CIPA)400 shots per charge350 shots per charge
    Body Dimensions 142 x 99 x 72 mm
    (5.6 x 3.9 x 2.8 in)
    130 x 94 x 63 mm
    (5.1 x 3.7 x 2.5 in)
    Camera Weight 649 g (22.9 oz) 497 g (17.5 oz)
    logo
    Check Rebel offers at
    ebay.com
    logo
    Check E-M1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon Rebel vs Olympus E-M1
