Canon R7 vs Olympus PEN-F

The Canon EOS R7 and the Olympus PEN-F are two enthusiast cameras that were revealed to the public, respectively, in May 2022 and January 2016. Both the R7 and the PEN-F are mirrorless interchangeable lens cameras that are based on an APS-C (R7) and a Four Thirds (PEN-F) sensor. The Canon has a resolution of 32.3 megapixels, whereas the Olympus provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon R7
versus
Olympus PEN-F
Canon R7   Olympus PEN-F
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses
32.3 MP – APS-C sensor 20.2 MP – Four Thirds sensor
4k/60p Video 1080/60p Video
ISO 100-32,000 (100 - 51,200) ISO 80-25,600
Electronic viewfinder (2360k dots) Electronic viewfinder (2360k dots)
3.0" LCD – 1620k dots 3.0" LCD – 1037k dots
Swivel touchscreen Swivel touchscreen
15 shutter flaps per second 10 shutter flaps per second
In-body stabilizationIn-body stabilization
Weathersealed bodynot weather sealed
660 shots per battery charge330 shots per battery charge
132 x 90 x 92 mm, 612 g 125 x 72 x 37 mm, 427 g
logo
Check R7 price at
amazon.com
logo
Check PEN-F offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R7 and the Olympus PEN-F? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon R7 and the Olympus PEN-F. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The PEN-F can be obtained in two different colors (black, silver), while the R7 is only available in black.

Size Canon R7 vs Olympus PEN-F

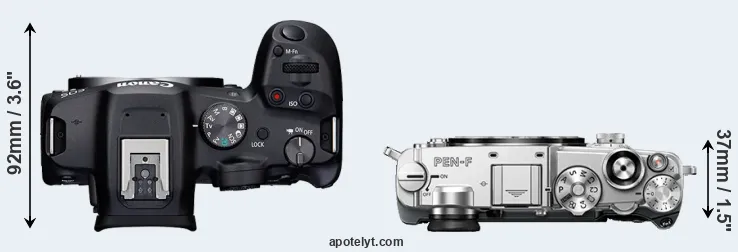

Compare R7 versus PEN-F top
Comparison R7 or PEN-F rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus PEN-F is notably smaller (24 percent) than the Canon R7. Moreover, the PEN-F is markedly lighter (30 percent) than the R7. It is worth mentioning in this context that the R7 is splash and dust resistant, while the PEN-F does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R7 gets 660 shots out of its Canon LP-E6NH battery, while the PEN-F can take 330 images on a single charge of its Olympus BLN-1 power pack. The power pack in the R7 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon R7 132 mm 90 mm 92 mm 612 g 660 Y May 2022 1,499 amazon.com
2.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
3.

Canon R6 Mark II 138 mm 98 mm 88 mm 670 g 450 Y Nov 2022 2,499 amazon.com
4.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 3,899 amazon.com
5.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 2,499 amazon.com
6.

Canon 90D 141 mm 105 mm 77 mm 701 g 1300 Y Aug 2019 1,199 amazon.com
7.

Fujifilm X-T5 130 mm 91 mm 64 mm 557 g 580 Y Nov 2022 1,699 amazon.com
8.

Fujifilm X-T4 135 mm 93 mm 64 mm 607 g 500 Y Feb 2020 1,699ebay.com
9.

Nikon Z5 134 mm 101 mm 67 mm 675 g 470 Y Jul 2020 1,399 amazon.com
10.

Olympus E-M10 III 122 mm 84 mm 50 mm 410 g 330 n Aug 2017 649ebay.com
11.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
12.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 649ebay.com
13.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
14.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
15.

Panasonic GH5 II 139 mm 98 mm 87 mm 727 g 400 Y May 2021 1,699 amazon.com
16.

Sony A7C II 124 mm 71 mm 63 mm 514 g 540 Y Aug 2023 2,199 amazon.com
17.

Sony A7 IV 131 mm 96 mm 80 mm 659 g 580 Y Oct 2021 2,499 amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The PEN-F was launched at a somewhat lower price (by 20 percent) than the R7, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R7 features an APS-C sensor and the Olympus PEN-F a Four Thirds sensor. The sensor area in the PEN-F is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the R7 has a native 3:2 aspect ratio, while the one in the PEN-F offers a 4:3 aspect.

Canon R7 and Olympus PEN-F sensor measures

With 32.3MP, the R7 offers a higher resolution than the PEN-F (20.2MP), but the R7 has smaller individual pixels (pixel pitch of 3.20μm versus 3.34μm for the PEN-F). However, the R7 is a much more recent model (by 6 years and 3 months) than the PEN-F, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the PEN-F has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon R7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R7 for good quality output (200 dots per inch) amounts to 34.8 x 23.2 inches or 88.4 x 58.9 cm, for very good quality (250 dpi) 27.8 x 18.6 inches or 70.7 x 47.1 cm, and for excellent quality (300 dpi) 23.2 x 15.5 inches or 58.9 x 39.3 cm. The corresponding values for the Olympus PEN-F are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The R7 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the R7, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon EOS R7 has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 100-51200. The corresponding ISO settings for the Olympus PEN-F are ISO 80 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

R7 versus PEN-F MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon R7 APS-C 32.3 6960 46404k/60p24.113.8209284
2.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
3.

Canon R6 Mark II Full Frame 24.0 6000 40004k/60p25.414.6315496
4.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
5.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
6.

Canon 90D APS-C 32.3 6960 46404K/30p24.013.5184883
7.

Fujifilm X-T5 APS-C 39.8 7728 51526.2k/30p24.313.9226486
8.

Fujifilm X-T4 APS-C 26.0 6240 41604K/60p24.113.6199584
9.

Nikon Z5 Full Frame 24.2 6016 40164K/30p25.314.3292995
10.

Olympus E-M10 III Four Thirds 15.9 4608 34564K/30p23.112.8112074
11.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
12.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
13.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
14.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
15.

Panasonic GH5 II Four Thirds 20.2 5184 38884K/60p23.713.1113679
16.

Sony A7C II Full Frame 32.7 7008 46724K/60p25.414.7323796
17.

Sony A7 IV Full Frame 32.7 7008 46724K/60p25.414.7337997
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R7 provides a higher video resolution than the PEN-F. It can shoot video footage at 4k/60p, while the Olympus is limited to 1080/60p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The R7 and the PEN-F are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The following table reports on some other key feature differences and similarities of the Canon R7, the Olympus PEN-F, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon R72360 n3.0 / 1620 swivel Y 1/8000s 15.0/s n Y
2.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
3.

Canon R6 Mark II3690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
4.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
5.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
6.

Canon 90Doptical Y3.0 / 1040 swivel Y 1/8000s 11.0/s Y n
7.

Fujifilm X-T53690 n3.0 / 1840 full-flex Y 1/8000s 15.0/s n Y
8.

Fujifilm X-T43690 n3.0 / 1620 swivel Y 1/8000s 15.0/s n Y
9.

Nikon Z53690 n3.2 / 1040 tilting Y 1/8000s 4.5/s n Y
10.

Olympus E-M10 III2360 n3.0 / 1040 tilting Y 1/4000s 8.6/s Y Y
11.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
12.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
13.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
14.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
15.

Panasonic GH5 II3680 n3.0 / 1840 swivel Y 1/8000s 12.0/s n Y
16.

Sony A7C II2360 n3.0 / 1037 swivel Y 1/4000s 10.0/s n Y
17.

Sony A7 IV3686 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding
Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R7 and the Olympus PEN-F both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the R7 and the PEN-F write their files to SDXC cards. The R7 features dual card slots, which can be very useful in case a memory card fails. In contrast, the PEN-F only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R7 and Olympus PEN-F and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon R7Ystereo / monoYYmicro3.2Y-Y
2.

Olympus PEN-FYstereo / mono--micro2.0Y--
3.

Canon R6 Mark IIYstereo / monoYYmicro3.2Y-Y
4.

Canon R5Ymono / monoYYmicro3.2Y-Y
5.

Canon R6Ymono / monoYYmicro3.2Y-Y
6.

Canon 90DYstereo / monoYYmini2.0Y-Y
7.

Fujifilm X-T5Ystereo / monoY-micro3.2Y-Y
8.

Fujifilm X-T4Ystereo / monoY-micro3.1Y-Y
9.

Nikon Z5Ystereo / monoYYmicro3.2Y-Y
10.

Olympus E-M10 IIIYstereo / mono--micro2.0Y--
11.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
12.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
13.

Olympus E-M1Ystereo / monoY-micro2.0Y--
14.

Olympus E-P5Ystereo / mono--micro2.0Y--
15.

Panasonic GH5 IIYstereo / monoYYfull3.2Y-Y
16.

Sony A7C IIYstereo / monoYYmicro3.2Y-Y
17.

Sony A7 IVYstereo / monoYYfull3.2Y-Y
padding

It is notable that the R7 has a microphone port, which is missing on the PEN-F. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The R7 is a recent model that features in the current product line-up of Canon. In contrast, the PEN-F has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the PEN-F from Olympus. Further information on the features and operation of the R7 and PEN-F can be found, respectively, in the Canon R7 Manual (free pdf) or the online Olympus PEN-F Manual.

ad

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon R7 and the Olympus PEN-F? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Canon EOS R7:

  • More detail: Offers more megapixels (32.3 vs 20.2MP) with a 29% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Better video: Provides higher definition movie capture (4k/60p vs 1080/60p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.62x).
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 1037k dots).
  • Faster burst: Shoots at higher frequency (15 vs 10 flaps/sec) to capture the decisive moment.
  • Longer lasting: Can take more shots (660 versus 330) on a single battery charge.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More modern: Reflects 6 years and 3 months of technical progress since the PEN-F launch.

ilogo

Reasons to prefer the Olympus PEN-F:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • More compact: Is smaller (125x72mm vs 132x90mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 185g or 30 percent) and is thus easier to take along.
  • More affordable: Was released into a lower priced segment (20 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in January 2016).

If the count of relative strengths (bullet points above) is taken as a measure, the R7 is the clear winner of the match-up (20 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

R7 20:06 PEN-F

How about other alternatives? Do the specifications of the Canon R7 and the Olympus PEN-F place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the R7 and the PEN-F in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon R74.5/5+5/587/1004.5/54.5/5 May 2022 1,499 amazon.com
2.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
3.

Canon R6 Mark II5/5+ +4.5/591/1004.5/55/5 Nov 2022 2,499 amazon.com
4.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 3,899 amazon.com
5.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 2,499 amazon.com
6.

Canon 90D4/5+4.5/585/1004.5/54.5/5 Aug 2019 1,199 amazon.com
7.

Fujifilm X-T55/5+ +4.5/590/1004.5/5.. Nov 2022 1,699 amazon.com
8.

Fujifilm X-T45/5+ +5/588/1005/55/5 Feb 2020 1,699ebay.com
9.

Nikon Z54/5..4/589/1004.5/54/5 Jul 2020 1,399 amazon.com
10.

Olympus E-M10 III..+5/580/1004.5/54.5/5 Aug 2017 649ebay.com
11.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
12.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 649ebay.com
13.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
14.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
15.

Panasonic GH5 II4.5/5..4.5/585/1004.5/55/5 May 2021 1,699 amazon.com
16.

Sony A7C II4/5..4/587/1004.5/54.5/5 Aug 2023 2,199 amazon.com
17.

Sony A7 IV5/5+ +4.5/589/1004.5/54.5/5 Oct 2021 2,499 amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check R7 price at
amazon.com
logo
Check PEN-F offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Canon R7 vs Olympus PEN-F

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon R7 Olympus PEN-F
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon RF mount lenses Micro Four Thirds lenses
    Launch Date May 2022 January 2016
    Launch Price USD 1,499 USD 1,199
    Sensor Specs Canon R7 Olympus PEN-F
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.3 x 14.8 mm 17.3 x 13.0 mm
    Sensor Area 330.04 mm2 224.9 mm2
    Sensor Diagonal 26.8 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 32.3 Megapixels 20.2 Megapixels
    Image Resolution 6960 x 4640 pixels 5184 x 3888 pixels
    Pixel Pitch 3.20 μm 3.34 μm
    Pixel Density 9.78 MP/cm2 8.96 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 4k/60p Video 1080/60p Video
    ISO Setting 100 - 32,000 ISO 80 - 25,600 ISO
    ISO Boost 100 - 51,200 ISO no Enhancement
    Image Processor DIGIC X TruePic VII
    DXO Sensor Quality (score) .. 74
    DXO Color Depth (bits) .. 23.1
    DXO Dynamic Range (EV) .. 12.4
    DXO Low Light (ISO) .. 894
    Screen Specs Canon R7 Olympus PEN-F
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.72x 0.62x
    Viewfinder Resolution 2360k dots 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1620k dots 1037k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon R7 Olympus PEN-F
    Focus System On-Sensor Phase-detect Contrast-detect AF
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 15 shutter flaps/s 10 shutter flaps/s
    Electronic Shutterup to 1/16000sup to 1/16000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support Dual UHS-II UHS-II
    Connectivity Specs Canon R7 Olympus PEN-F
    External Flash Hotshoe Hotshoe
    USB Connector USB 3.2 USB 2.0
    HDMI Port micro HDMI micro HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon R7 Olympus PEN-F
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type Canon LP-E6NH Olympus BLN-1
    Battery Life (CIPA)660 shots per charge330 shots per charge
    In-Camera Charging USB charging no USB charging
    Body Dimensions 132 x 90 x 92 mm
    (5.2 x 3.5 x 3.6 in)
    125 x 72 x 37 mm
    (4.9 x 2.8 x 1.5 in)
    Camera Weight 612 g (21.6 oz) 427 g (15.1 oz)
    logo
    Check R7 price at
    amazon.com
    logo
    Check PEN-F offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon R7 vs Olympus PEN-F
