Canon R5 vs Sigma fp

The Canon EOS R5 and the Sigma fp are two digital cameras that were revealed to the public, respectively, in July 2020 and July 2019. Both the R5 and the fp are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The Canon has a resolution of 44.8 megapixels, whereas the Sigma provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon R5
versus
Sigma fp
Canon R5   Sigma fp
Mirrorless system camera Mirrorless system camera
Canon RF mount lenses Leica L mount lenses
44.8 MP – Full Frame sensor 24 MP – Full Frame sensor
8K/30p Video 4K/30p Video
ISO 100-51,200 (50 - 102,400) ISO 100-25,600 (6 - 102,400)
Electronic viewfinder (5760k dots) Viewfinder optional
3.2" LCD – 2100k dots 3.2" LCD – 2100k dots
Swivel touchscreen Fixed touchscreen
12 shutter flaps per second 12 shutter flaps per second
In-body stabilizationLens stabilization only
Weathersealed bodyWeathersealed body
320 shots per battery charge280 shots per battery charge
138 x 98 x 88 mm, 738 g 113 x 70 x 45 mm, 422 g
logo
Check R5 price at
amazon.com
logo
Check fp price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 and the Sigma fp? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon R5 and the Sigma fp is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

Size Canon R5 vs Sigma fp
Compare R5 versus fp top

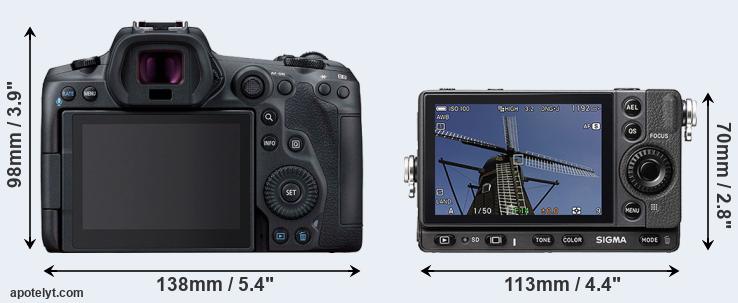

Comparison R5 or fp rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sigma fp is considerably smaller (42 percent) than the Canon R5. Moreover, the fp is substantially lighter (43 percent) than the R5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R5 gets 320 shots out of its Canon LP-E6NH battery, while the fp can take 280 images on a single charge of its Sigma BP-51 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 3,899 amazon.com
2.

Sigma fp 113 mm 70 mm 45 mm 422 g 280 Y Jul 2019 1,899 amazon.com
3.

Canon R6 138 mm 98 mm 88 mm 680 g 360 Y Jul 2020 2,499 amazon.com
4.

Fujifilm X-Pro3 141 mm 83 mm 46 mm 497 g 440 Y Oct 2019 1,799 amazon.com
5.

Nikon D780 144 mm 116 mm 76 mm 840 g 2260 Y Jan 2020 2,299 amazon.com
6.

Nikon Z7 II 134 mm 101 mm 70 mm 705 g 420 Y Oct 2020 2,999 amazon.com
7.

Nikon Z7 134 mm 101 mm 67 mm 675 g 330 Y Aug 2018 3,399ebay.com
8.

Panasonic S5 133 mm 98 mm 82 mm 714 g 440 Y Sep 2020 1,999 amazon.com
9.

Panasonic S1 149 mm 110 mm 97 mm 1017 g 400 Y Feb 2019 2,499 amazon.com
10.

Panasonic S1R 149 mm 110 mm 97 mm 1016 g 380 Y Feb 2019 3,699 amazon.com
11.

Panasonic S1H 151 mm 114 mm 110 mm 1052 g 400 Y May 2019 3,999 amazon.com
12.

Sony A7R IIIA 127 mm 96 mm 74 mm 650 g 650 Y Apr 2021 3,199 amazon.com
13.

Sony A7S III 127 mm 97 mm 81 mm 699 g 600 Y Jul 2020 3,499 amazon.com
14.

Sony A9 II 129 mm 96 mm 76 mm 678 g 690 Y Oct 2019 4,499 amazon.com
15.

Sony A7R IV 129 mm 96 mm 78 mm 665 g 670 Y Jul 2019 3,499ebay.com
16.

Sony A7R III 127 mm 96 mm 74 mm 650 g 650 Y Oct 2017 3,199ebay.com
17.

Sony A99 II 143 mm 104 mm 76 mm 849 g 490 Y Sep 2016 3,199ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The fp was launched at a markedly lower price (by 51 percent) than the R5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the fp is 1 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon R5 and Sigma fp sensor measures

With 44.8MP, the R5 offers a higher resolution than the fp (24MP), but the R5 has smaller individual pixels (pixel pitch of 4.39μm versus 5.98μm for the fp). However, the R5 is a somewhat more recent model (by 11 months) than the fp, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the fp has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon R5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Sigma fp are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The R5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R5 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Sigma fp are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 6-102400.

In terms of underlying technology, the R5 is build around a CMOS sensor, while the fp uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

R5 versus fp MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
2.

Sigma fp Full Frame 24.0 6000 40004K/30p25.214.2282994
3.

Canon R6 Full Frame 20.0 5472 36484k/60p24.214.3339490
4.

Fujifilm X-Pro3 APS-C 26.0 6240 41604K/30p24.113.6196884
5.

Nikon D780 Full Frame 24.3 6048 40244K/30p25.314.3287795
6.

Nikon Z7 II Full Frame 45.4 8256 55044K/60p26.314.72841100
7.

Nikon Z7 Full Frame 45.4 8256 55044K/30p26.314.6266899
8.

Panasonic S5 Full Frame 24.0 6000 40004K/60p25.114.5269794
9.

Panasonic S1 Full Frame 24.0 6000 40004K/60p25.214.5333395
10.

Panasonic S1R Full Frame 46.7 8368 55844K/60p26.414.13525100
11.

Panasonic S1H Full Frame 24.0 6000 40006K/30p25.214.2280594
12.

Sony A7R IIIA Full Frame 42.2 7952 53044K/30p26.014.73523100
13.

Sony A7S III Full Frame 12.0 4240 28324K/120p23.713.9252086
14.

Sony A9 II Full Frame 24.0 6000 40004K/30p25.014.0343493
15.

Sony A7R IV Full Frame 60.2 9504 63364K/30p26.014.8334499
16.

Sony A7R III Full Frame 42.2 7952 53044K/30p26.014.73523100
17.

Sony A99 II Full Frame 42.2 7952 53044K/30p25.413.4231792
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R5 provides a higher video resolution than the fp. It can shoot video footage at 8K/30p, while the Sigma is limited to 4K/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the R5 has an electronic viewfinder (5760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the fp relies on live view and the rear LCD for framing. That said, the fp can be equipped with an optional viewfinder – the EVF-11. The table below summarizes some of the other core capabilities of the Canon R5 and Sigma fp in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
2.

Sigma fpoptional n3.2 / 2100 fixed Y 1/8000s 12.0/s n n
3.

Canon R63690 n3.0 / 1620 swivel Y 1/8000s 12.0/s n Y
4.

Fujifilm X-Pro33690 n3.0 / 1620 tilting Y 1/8000s 8.0/s n n
5.

Nikon D780optical Y3.2 / 2359 tilting Y 1/8000s 12.0/s n n
6.

Nikon Z7 II3690 Y3.2 / 2100 tilting Y 1/8000s 10.0/s n Y
7.

Nikon Z73690 Y3.2 / 2100 tilting Y 1/8000s 9.0/s n Y
8.

Panasonic S52360 n3.0 / 1840 swivel Y 1/8000s 7.0/s n Y
9.

Panasonic S15760 Y3.2 / 2100 full-flex Y 1/8000s 9.0/s n Y
10.

Panasonic S1R5760 Y3.2 / 2100 full-flex Y 1/8000s 9.0/s n Y
11.

Panasonic S1H5760 Y3.2 / 2330 swivel Y 1/8000s 9.0/s n Y
12.

Sony A7R IIIA3686 n3.0 / 2340 tilting Y 1/8000s 10.0/s n Y
13.

Sony A7S III9440 n3.0 / 1440 swivel Y 1/8000s 10.0/s n Y
14.

Sony A9 II3686 n3.0 / 1440 tilting Y 1/8000s 20.0/s n Y
15.

Sony A7R IV5760 n3.0 / 1440 tilting Y 1/8000s 10.0/s n Y
16.

Sony A7R III3686 n3.0 / 1440 tilting Y 1/8000s 10.0/s n Y
17.

Sony A99 II2400 Y3.0 / 1229 full-flex n 1/8000s 12.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the R5, but is missing on the fp is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The R5 has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the fp does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 and the Sigma fp both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R5 writes its imaging data to CFexpress (type B) or SDXC cards, while the fp uses SDXC cards. The R5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the fp only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 and Sigma fp and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon R5Ymono / monoYYmicro3.2Y-Y
2.

Sigma fpYstereo / monoY-micro3.1---
3.

Canon R6Ymono / monoYYmicro3.2Y-Y
4.

Fujifilm X-Pro3Ystereo / monoY--3.1Y-Y
5.

Nikon D780Ystereo / monoYYmini3.1Y-Y
6.

Nikon Z7 IIYstereo / monoYYmicro3.2Y-Y
7.

Nikon Z7Ystereo / monoYYmicro3.1Y-Y
8.

Panasonic S5Ystereo / monoYYmicro3.2Y-Y
9.

Panasonic S1Ystereo / monoYYfull3.1Y-Y
10.

Panasonic S1RYstereo / monoYYfull3.1Y-Y
11.

Panasonic S1HYstereo / monoYYfull3.1Y-Y
12.

Sony A7R IIIAYstereo / monoYYmicro3.2YYY
13.

Sony A7S IIIYstereo / monoYYfull3.2Y-Y
14.

Sony A9 IIYstereo / monoYYmicro3.1YYY
15.

Sony A7R IVYstereo / monoYYmicro3.1YYY
16.

Sony A7R IIIYstereo / monoYYmicro3.1YYY
17.

Sony A99 IIYstereo / monoYYmicro2.0YYY
padding

It is notable that the R5 has a headphone jack, which is not present on the fp This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

Studio photographers will appreciate that the Canon R5 (unlike the fp) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R5 and the fp are recent models that are part of the current product line-up. Neither of the two has a direct predecessor, so perhaps they will constitute the origins of new camera lines for Canon and Sigma. Further information on the features and operation of the R5 and fp can be found, respectively, in the Canon R5 Manual (free pdf) or the online Sigma fp Manual.

ad

Review summary

So how do things add up? Is the Canon R5 better than the Sigma fp or vice versa? The listing below highlights the relative strengths of the two models.

ilogo

Advantages of the Canon EOS R5:

  • More detail: Offers more megapixels (44.8 vs 24MP) with a 37% higher linear resolution.
  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Better video: Provides higher definition movie capture (8K/30p vs 4K/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Longer lasting: Can take more shots (320 versus 280) on a single battery charge.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 3.1).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • More modern: Is somewhat more recent (announced 11 months after the fp).

ilogo

Reasons to prefer the Sigma fp:

  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • More compact: Is smaller (113x70mm vs 138x98mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 316g or 43 percent) and is thus easier to take along.
  • More affordable: Was introduced into a lower priced category (51 percent cheaper at launch).
  • More heavily discounted: Has been on the market for longer (launched in July 2019).

If the number of relative strengths (bullet points above) is taken as a guide, the R5 is the clear winner of the match-up (17 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

R5 17:05 fp

How about other alternatives? Do the specifications of the Canon R5 and the Sigma fp place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R5 or the fp. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 3,899 amazon.com
2.

Sigma fp4/5..4/5..4/54.5/5 Jul 2019 1,899 amazon.com
3.

Canon R65/5+ +4/590/1004.5/55/5 Jul 2020 2,499 amazon.com
4.

Fujifilm X-Pro34/5+4/585/1004/5.. Oct 2019 1,799 amazon.com
5.

Nikon D7805/5..5/587/1004.5/54.5/5 Jan 2020 2,299 amazon.com
6.

Nikon Z7 II4.5/5..4.5/5..4.5/54.5/5 Oct 2020 2,999 amazon.com
7.

Nikon Z75/5+4.8/589/1004.5/55/5 Aug 2018 3,399ebay.com
8.

Panasonic S54.5/5+ +4.5/588/1004.5/54.5/5 Sep 2020 1,999 amazon.com
9.

Panasonic S14.5/5+ +4.5/588/1004.5/54/5 Feb 2019 2,499 amazon.com
10.

Panasonic S1R4.5/5..4.6/589/1004.5/54.5/5 Feb 2019 3,699 amazon.com
11.

Panasonic S1H....4/590/100.... May 2019 3,999 amazon.com
12.

Sony A7R IIIA..+ +4/590/1004.5/55/5 Apr 2021 3,199 amazon.com
13.

Sony A7S III4.5/5+ +5/591/1004.5/55/5 Jul 2020 3,499 amazon.com
14.

Sony A9 II....5/590/1005/55/5 Oct 2019 4,499 amazon.com
15.

Sony A7R IV5/5+4.5/591/1004.5/55/5 Jul 2019 3,499ebay.com
16.

Sony A7R III..+ +4/590/1004.5/55/5 Oct 2017 3,199ebay.com
17.

Sony A99 II....4.5/585/1004.5/54.5/5 Sep 2016 3,199ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check R5 price at
amazon.com
logo
Check fp price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications: Canon R5 vs Sigma fp

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon R5 Sigma fp
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Canon RF mount lenses Leica L mount lenses
    Launch Date July 2020 July 2019
    Launch Price USD 3,899 USD 1,899
    Sensor Specs Canon R5 Sigma fp
    Sensor Technology CMOS BSI-CMOS
    Sensor Format Full Frame Sensor Full Frame Sensor
    Sensor Size 36.0 x 24.0 mm 35.9 x 23.9 mm
    Sensor Area 864 mm2 858.01 mm2
    Sensor Diagonal 43.3 mm 43.1 mm
    Crop Factor 1.0x 1.0x
    Sensor Resolution 44.8 Megapixels 24 Megapixels
    Image Resolution 8192 x 5464 pixels 6000 x 4000 pixels
    Pixel Pitch 4.39 μm 5.98 μm
    Pixel Density 5.18 MP/cm2 2.80 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 8K/30p Video 4K/30p Video
    ISO Setting 100 - 51,200 ISO 100 - 25,600 ISO
    ISO Boost 50 - 102,400 ISO 6 - 102,400 ISO
    DXO Sensor Quality (score) 95 ..
    DXO Color Depth (bits) 25.3 ..
    DXO Dynamic Range (EV) 14.6 ..
    DXO Low Light (ISO) 3042 ..
    Screen Specs Canon R5 Sigma fp
    Viewfinder Type Electronic viewfinder Viewfinder optional
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.76x
    Viewfinder Resolution 5760k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.2inch
    LCD Resolution 2100k dots 2100k dots
    LCD Attachment Swivel screen Fixed screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon R5 Sigma fp
    Focus System On-Sensor Phase-detect Contrast-detect AF
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 12 shutter flaps/s 12 shutter flaps/s
    Electronic Shutterup to 1/8000sup to 1/8000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationIn-body stabilizationLens stabilization only
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CFexB or SDXC cards SDXC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support Dual UHS-II UHS-II
    Connectivity Specs Canon R5 Sigma fp
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.2 USB 3.1
    HDMI Port micro HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in no Wifi
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Canon R5 Sigma fp
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Canon LP-E6NH Sigma BP-51
    Battery Life (CIPA)320 shots per charge280 shots per charge
    In-Camera Charging USB charging USB charging
    Body Dimensions 138 x 98 x 88 mm
    (5.4 x 3.9 x 3.5 in)
    113 x 70 x 45 mm
    (4.4 x 2.8 x 1.8 in)
    Camera Weight 738 g (26.0 oz) 422 g (14.9 oz)
    logo
    Check R5 price at
    amazon.com
    logo
    Check fp price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon R5 vs Sigma fp
